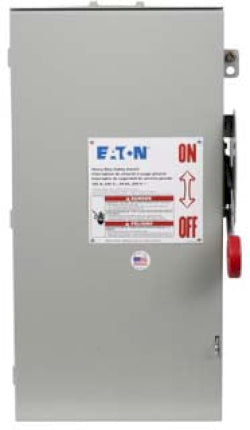

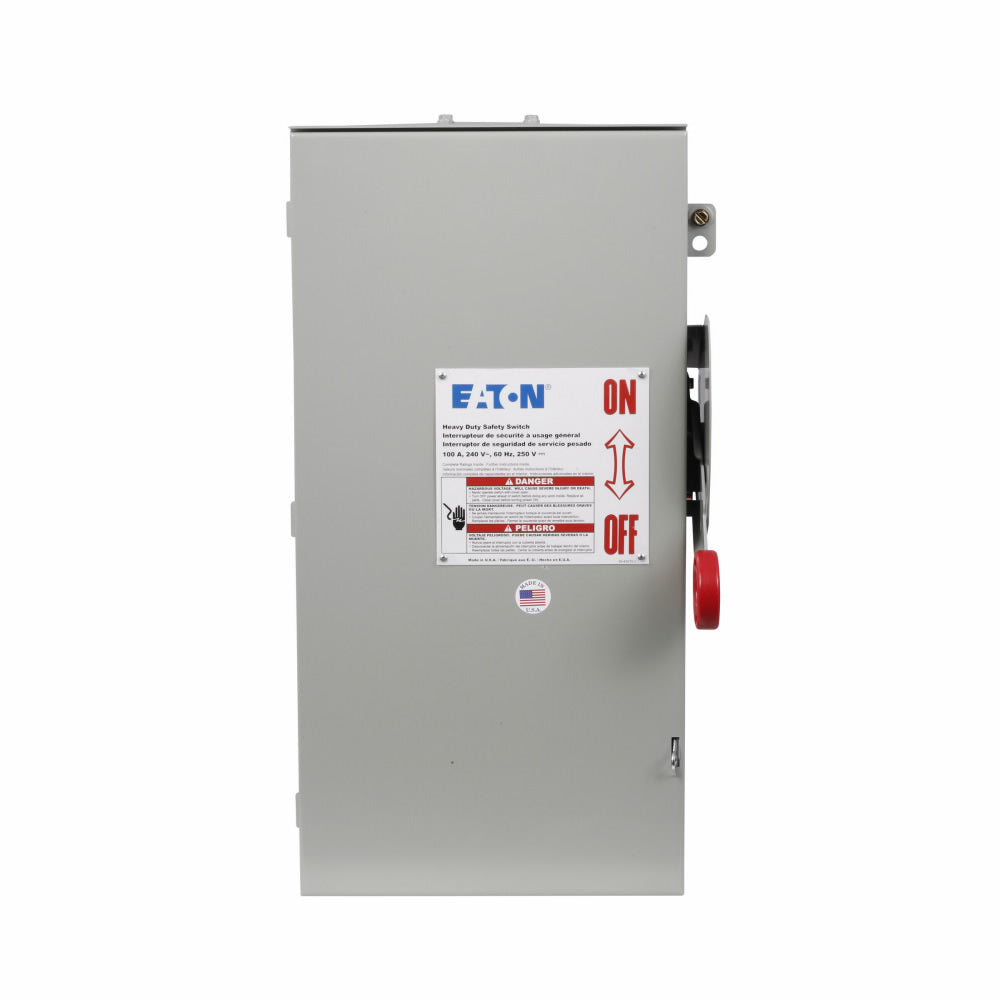

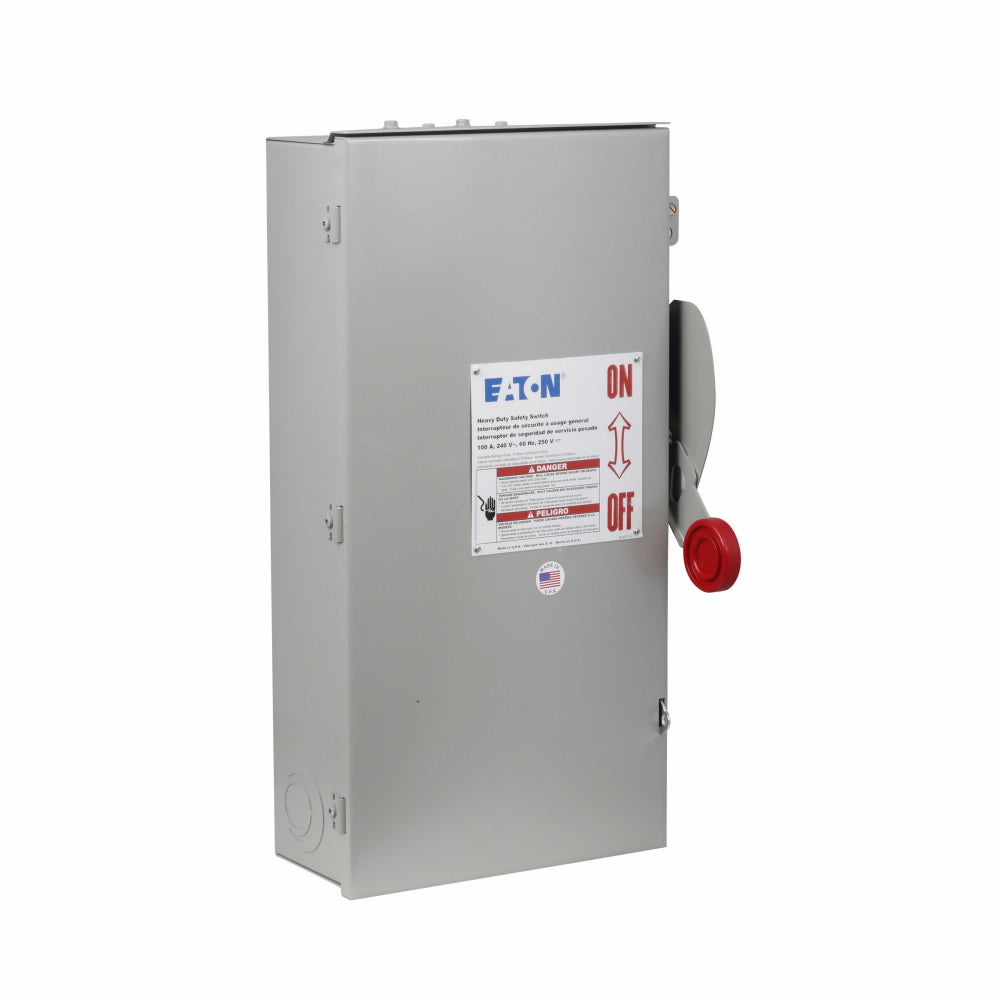

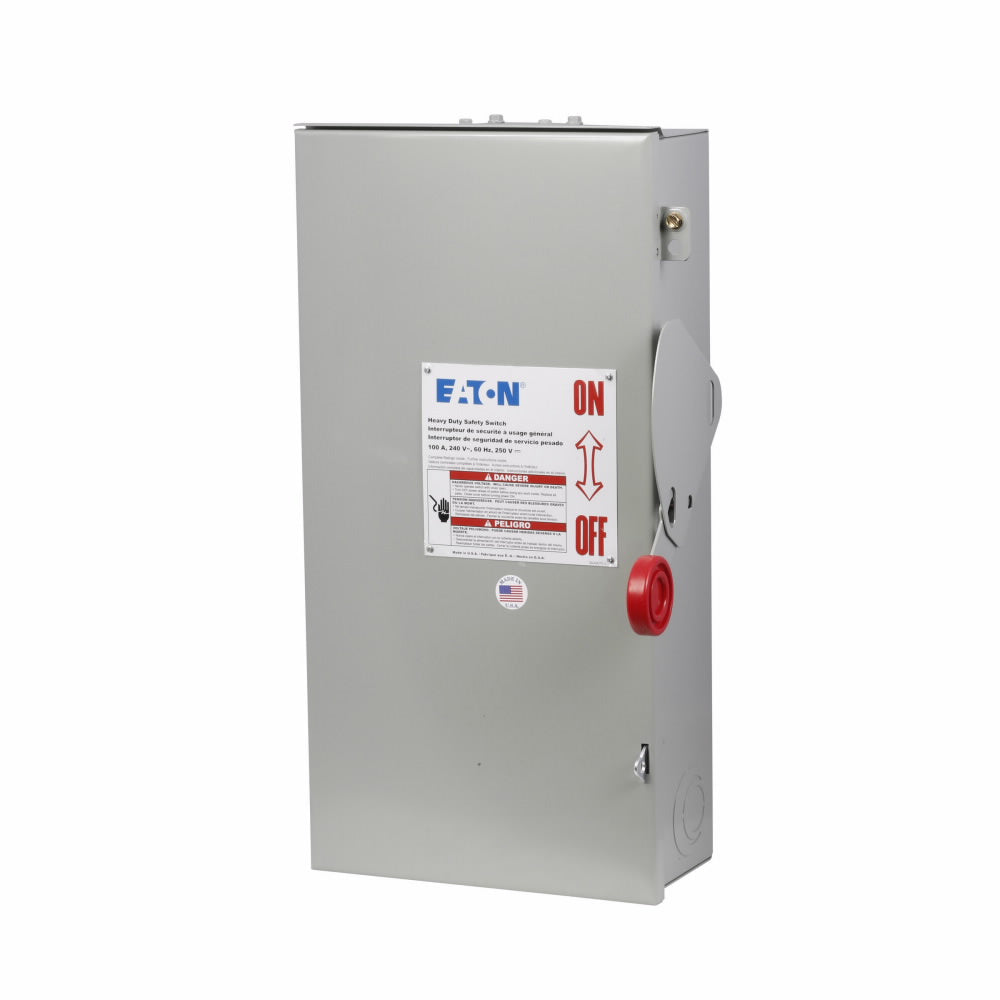

Eaton DH223NRK - Fusible Safety Switch 100A 240V (NEMA 4X)

Price
Regular price $417.13
Regular price $1,623.00 Sale price $417.13
Save $1,205.87
/
Title
  • Low stock - 4 items left
  • Backordered, shipping soon
Eaton Cutler-Hammer DH223NRK is a fusible safety switch designed for providing reliable circuit isolation and overcurrent protection in demanding industrial environments. It is rated for 240V AC operation with a 100A current capacity, housed in a robust NEMA 4X enclosure measuring 22.5 in x 9 in x 12.75 in (L/D x H x W) and weighing 26 lb for durable construction. The switch is UL Listed and features a 100kA interrupting rating at 240V, ensuring compliance with critical safety standards for fault protection. Its two-pole, single-phase configuration with Class R fuse compatibility and a wiring range from AWG 14 to 1/0 Cu/Al makes it suitable for applications like motor control centers, industrial machinery, and power distribution panels.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, DH Series, NEMA 4X Enclosure
  • Voltage Rating: 240V AC
  • Current Rating: 100A
  • Configuration: Single Phase, 2-Pole
  • Dimensions: 22.5 in x 9 in x 12.75 in (Length/Depth x Height x Width)
  • Weight: 26 lb
  • Standards: UL Listed
  • Applications: Motor Control Centers, Industrial Machinery, Power Distribution
  • Switch Style: Fusible
  • Fuse Class: R
  • AIC Rating: 100kA @ 240V
  • Wire Size: AWG 14 to AWG 1/0, Copper/Aluminum
  • NEMA Rating: 4X
  • Compatible Frames: SKPA
  • Country of Origin: United States


Product Identification
  • UPC: 782113206233
  • GTIN: 00782113213491
