Cutler Hammer DG326NRK - Fusible Safety Switch 600A 240V (100kA AIC)
Cutler Hammer DG326NRK - Fusible Safety Switch 600A 240V (100kA AIC)
Cutler Hammer DG326NRK - Fusible Safety Switch 600A 240V (100kA AIC)
Cutler Hammer DG326NRK - Fusible Safety Switch 600A 240V (100kA AIC)
Cutler Hammer DG326NRK - Fusible Safety Switch 600A 240V (100kA AIC)
Cutler Hammer DG326NRK - Fusible Safety Switch 600A 240V (100kA AIC)

Cutler Hammer DG326NRK - Fusible Safety Switch 600A 240V (100kA AIC)

Cutler Hammer
Price
Save $17,656.30
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

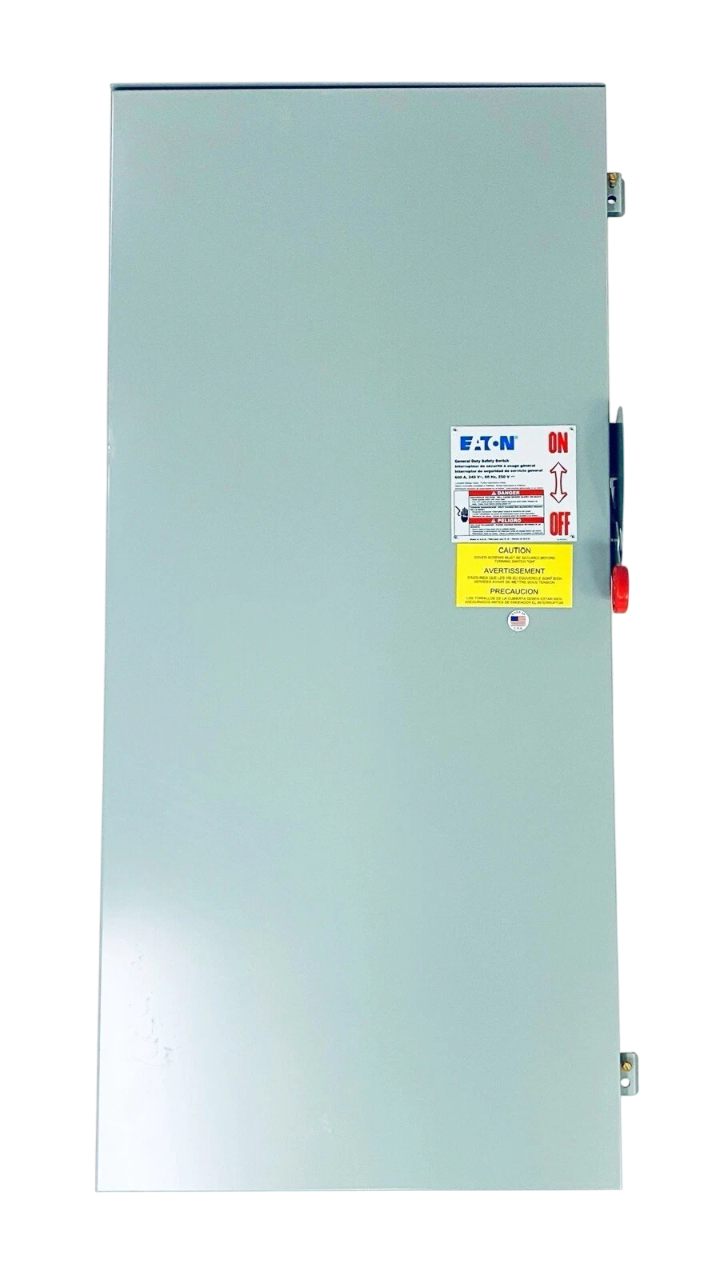

Cutler Hammer DG326NRK is a fusible safety switch designed for providing reliable circuit isolation and protection in industrial power distribution. It is rated for 600A at 240V AC in a 3-phase configuration and features a 100kA interrupting capacity at 240V for robust short-circuit protection. The switch is constructed with a bolt-on connection for secure 3-pole wiring, is housed in a NEMA 3R enclosure for outdoor durability, and measures 14.25 in (D) x 52.7 in (H) x 24 in (W) with a weight of 150 lb. It complies with industry standards for solid-state protection and utilizes Class R fuses, supporting long-time and instantaneous (LI) trip functions for coordinated overcurrent protection. This disconnect is typically applied in industrial facilities, data centers, and commercial buildings for main feeder and branch circuit protection.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, NEMA 3R Enclosure, Bolt-On Connection
  • Voltage Rating: 240V AC
  • Current Rating: 600A
  • Phase: 3
  • Poles: 3
  • AIC Rating: 100kA @ 240V
  • Configuration: Single
  • Protection: Solid State
  • Functions: LI (Long-Time and Instantaneous)
  • Fuse Class: R
  • Wire Size: 4 AWG
  • Coil Voltage: 230V Min, 240V Max
  • Compatible Frames: THED
  • Dimensions: 14.25" D x 52.7" H x 24" W
  • Weight: 150 lb
  • Standards: NEMA 3R Rated
  • Applications: Main Feeder & Branch Circuit Protection in Industrial/Commercial Power Distribution


Product Identification
  • UPC: 78211363923
  • GTIN: 00782114000000
