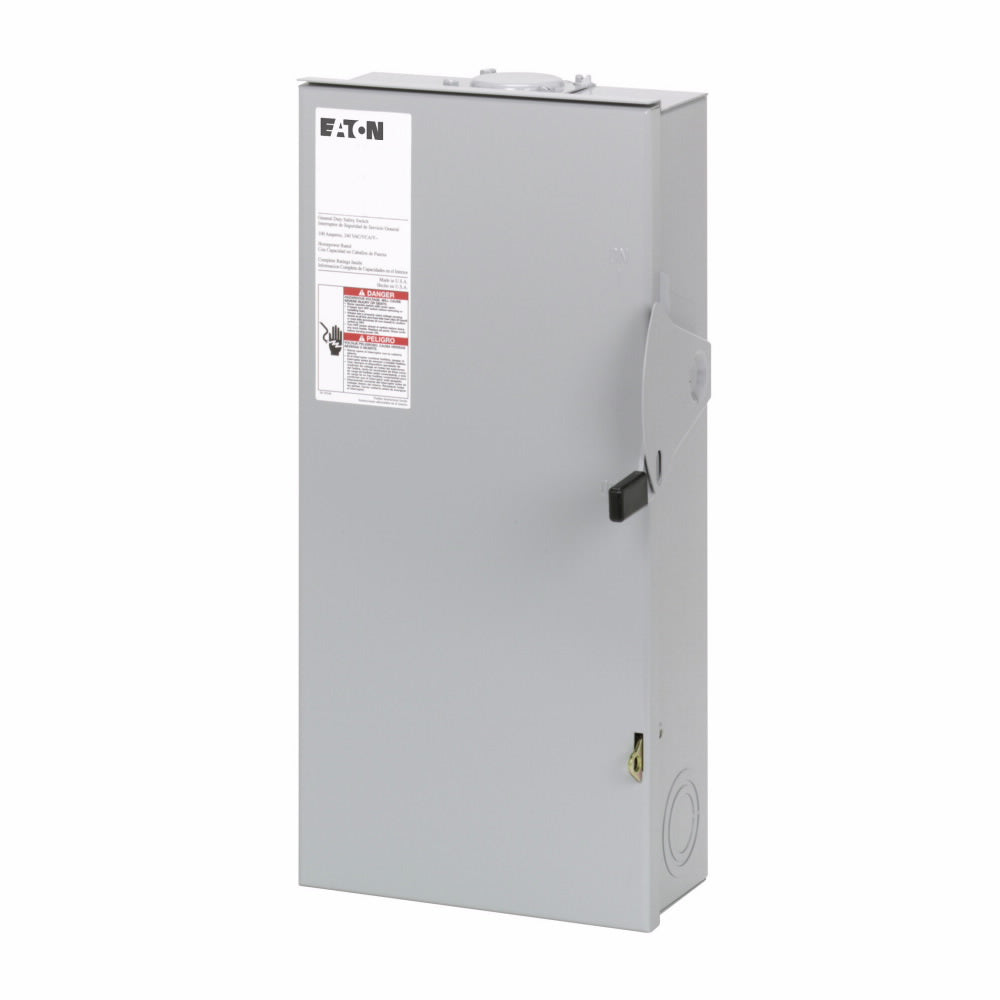

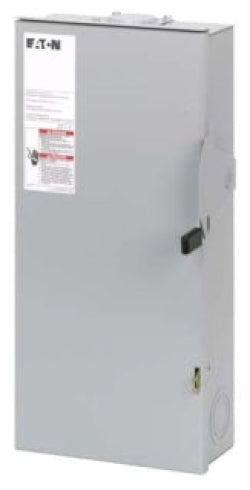

Eaton DG323NRB - Fusible Safety Switch 100A 240V (NEMA 3R Enclosure)

The Eaton DG323NRB is a heavy-duty fusible safety switch designed for reliable circuit protection and isolation in industrial applications. It features a 240V AC voltage rating with 100A current capacity and 100kA interrupting rating for robust electrical performance. The unit is constructed with a NEMA 3R-rated enclosure measuring 17.75 x 7.38 x 19.25 inches (WxDxH) and weighs 14.35 lb, providing durable outdoor protection. This switch complies with NEMA KS-1, UL98, and UL Listed standards, ensuring industry-recognized safety and reliability. Typical applications include industrial power distribution, motor control centers, and machinery disconnects where Class R fuse protection is required.

Key Features & Specifications

• Type: Fusible safety disconnect switch, DG Series
• Voltage Rating: 240V AC
• Current Rating: 100A
• Dimensions: 17.75" x 7.38" x 19.25" (WxDxH)
• Standards: NEMA KS-1, UL Listed, UL98
• Applications: Industrial power distribution, motor control, machinery disconnects
• Switch Type: Fusible
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC Rating: 100kA@240V
• Fuse Class: R
• NEMA Rating: NEMA 3R
• Compatible Frames: TB
• Weight: 14.35 lb
• Country of Origin: United States

Product Identification

• UPC: 782113144351
• GTIN: 00887621872540
