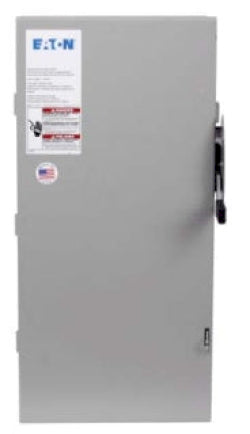

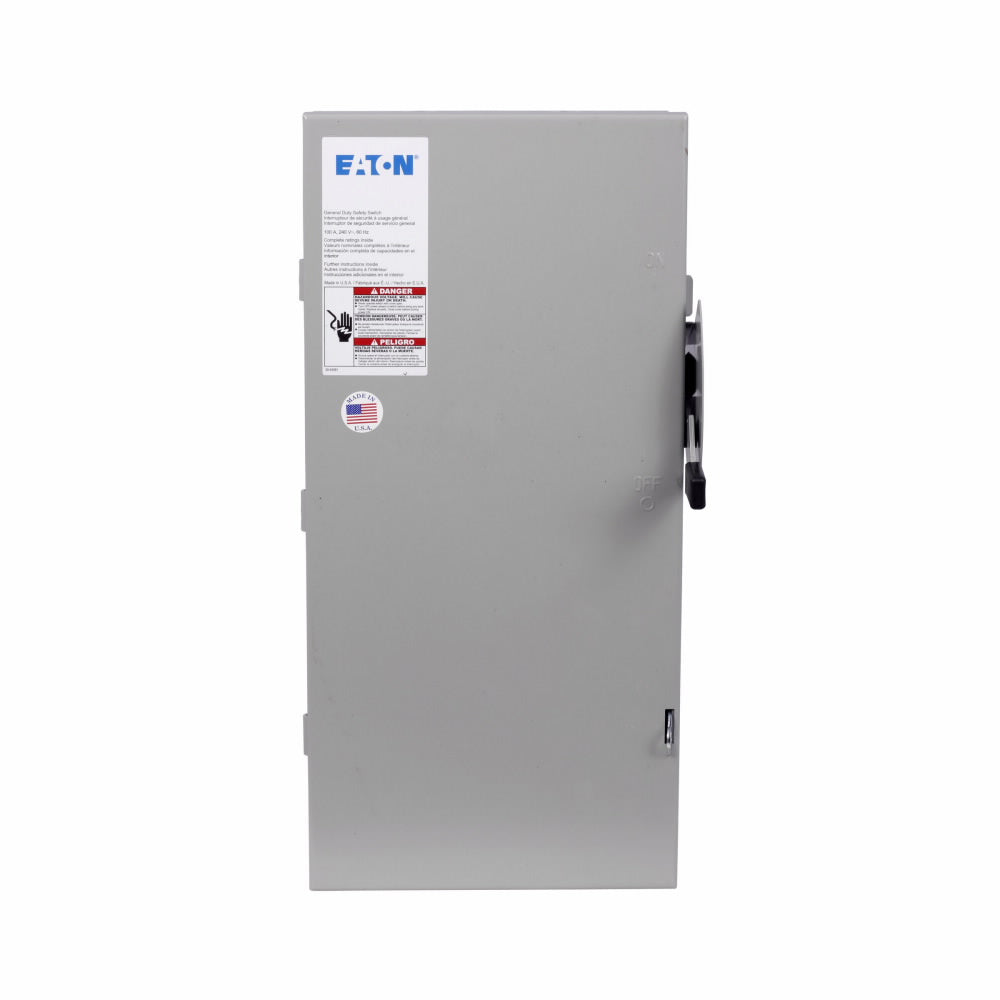

Eaton DG223UGB - Non-Fusible Disconnect 100A 240V (100kA AIC)

Eaton
Price
Save $419.58
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton DG223UGB is a non-fusible safety disconnect switch designed for providing a visible break and isolation in single-phase industrial power circuits. It is rated for 240V AC operation with a 100A current capacity and features a robust two-pole, single-configuration design housed in a NEMA 1 enclosure measuring 7.38 in (L) x 6.7 in (H) x 9.13 in (W) and weighing 12 lb. The unit is UL Listed and complies with NEC 230.62(C) barrier requirements, offering a high 100kA interrupting rating at 240V for reliable protection. This disconnect is typically applied in industrial control panels and motor circuits compatible with TED series frames, ensuring safe maintenance and system isolation.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, DG Series
  • Voltage Rating: 240V AC
  • Current Rating: 100A
  • Dimensions: 7.38 in x 6.7 in x 9.13 in (L x H x W)
  • Weight: 12 lb
  • Standards: UL Listed, NEC 230.62 (C) Compliant Barrier
  • Applications: Industrial control panels, motor circuit isolation
  • Switch Style: Non-Fusible
  • Configuration: Single
  • Phase: 1
  • Poles: 2
  • AIC Rating: 100kA @ 240V
  • NEMA Rating: NEMA 1
  • Compatible Frames: TED
  • Country of Origin: United States


Product Identification
  • UPC: 782114731147
  • GTIN: 00785901481911
