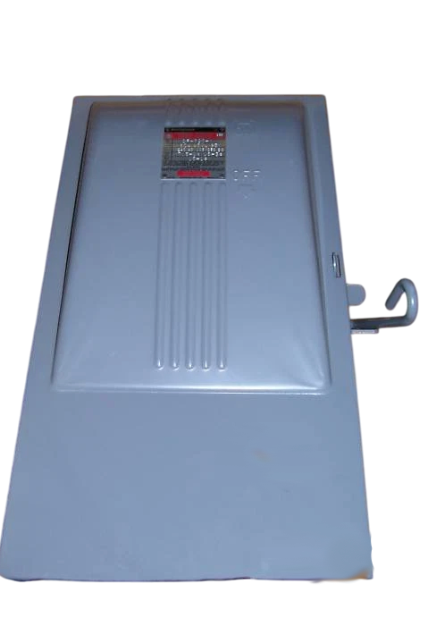

Eaton DF323A - Fusible Disconnect Switch 30A 600V (SKHA Frame Compatible)

Eaton DF323A is a heavy-duty safety disconnect switch designed for reliable circuit isolation in industrial power distribution systems. It features a 600V AC/250V DC voltage rating with current handling up to 30A, housed in a rugged steel enclosure for durability in demanding environments. The switch meets UL 98 and CSA C22.2 No. 4 safety standards, with SKHA frame compatibility for seamless integration into existing panels. Typical applications include motor control centers, HVAC systems, and industrial machinery where visible circuit interruption is required.

Key Features & Specifications

• Type: Fusible safety disconnect switch with quick-make/quick-break mechanism
• Voltage Rating: 600V AC/250V DC
• Current Rating: 30A
• Dimensions: 6.5" x 4.3" x 5.2" (HxWxD)
• Standards: UL 98, CSA C22.2 No. 4
• Applications: Industrial power distribution, motor control, equipment isolation
• Switch Type: Fusible disconnect
• Configuration: 3-pole
• Enclosure: NEMA 1 steel
• Compatible Frames: SKHA
• Mounting: Panel-mounted
• Terminal Connection: Screw-type

Product Identification

• GTIN: 782113099142
