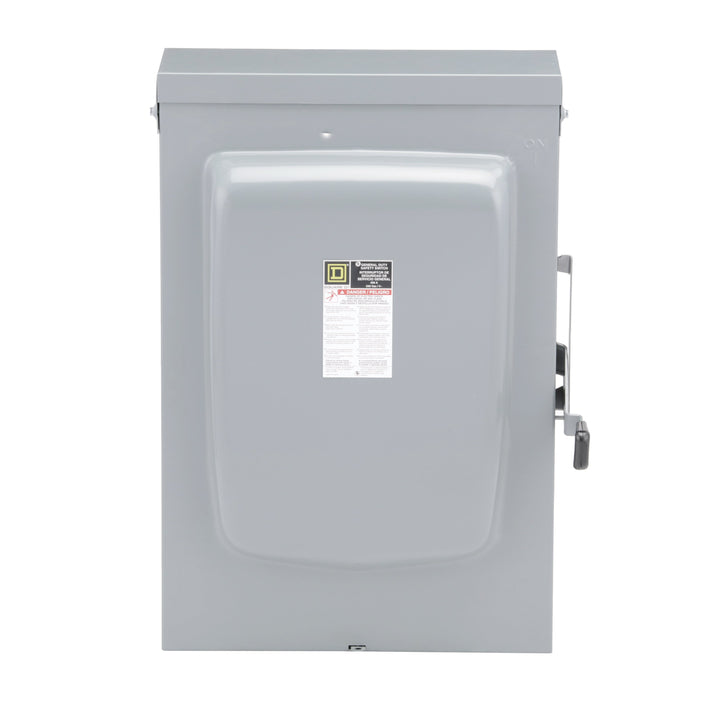

Square D D225NR - Fusible Safety Switch 400A 240V (NEMA 3R)

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon

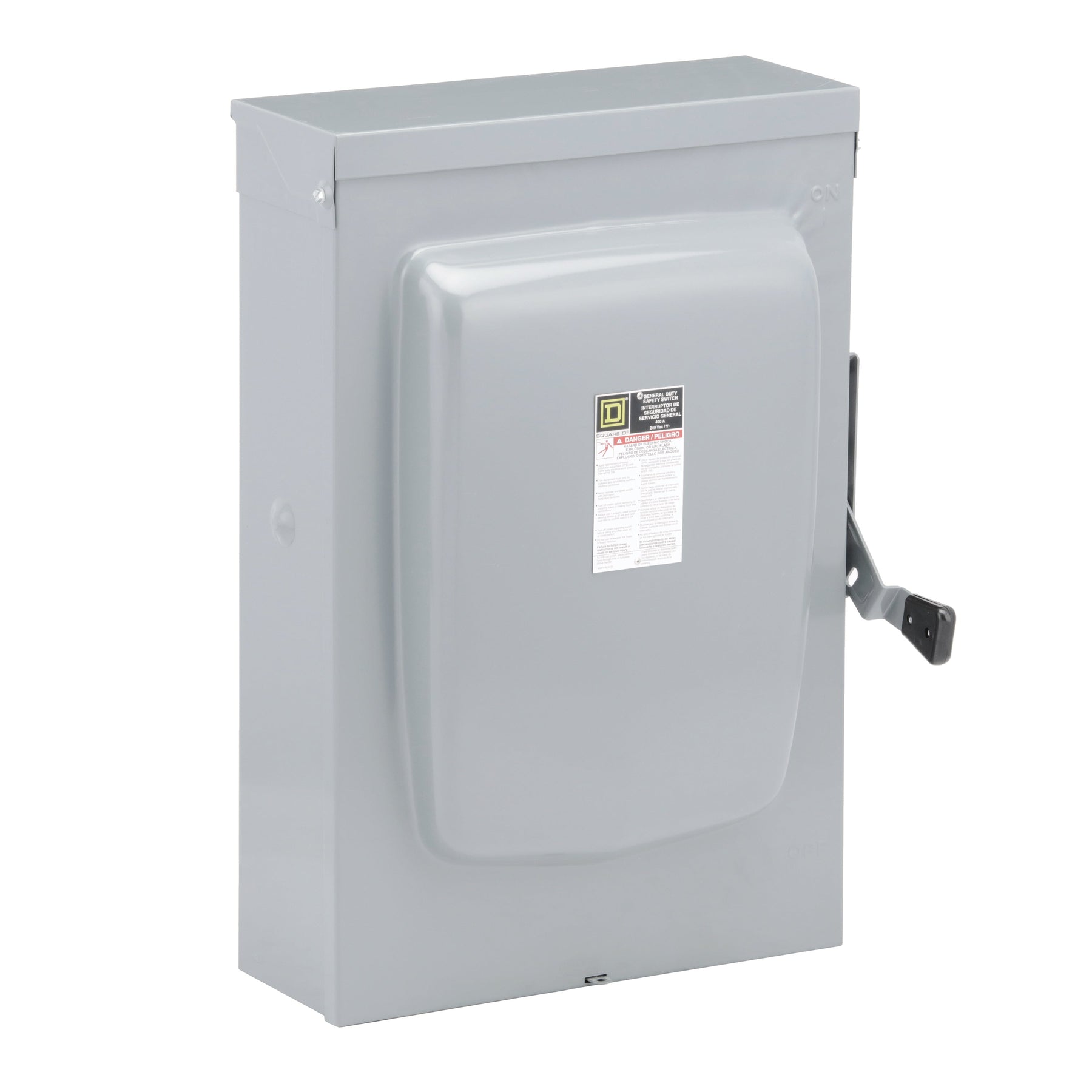

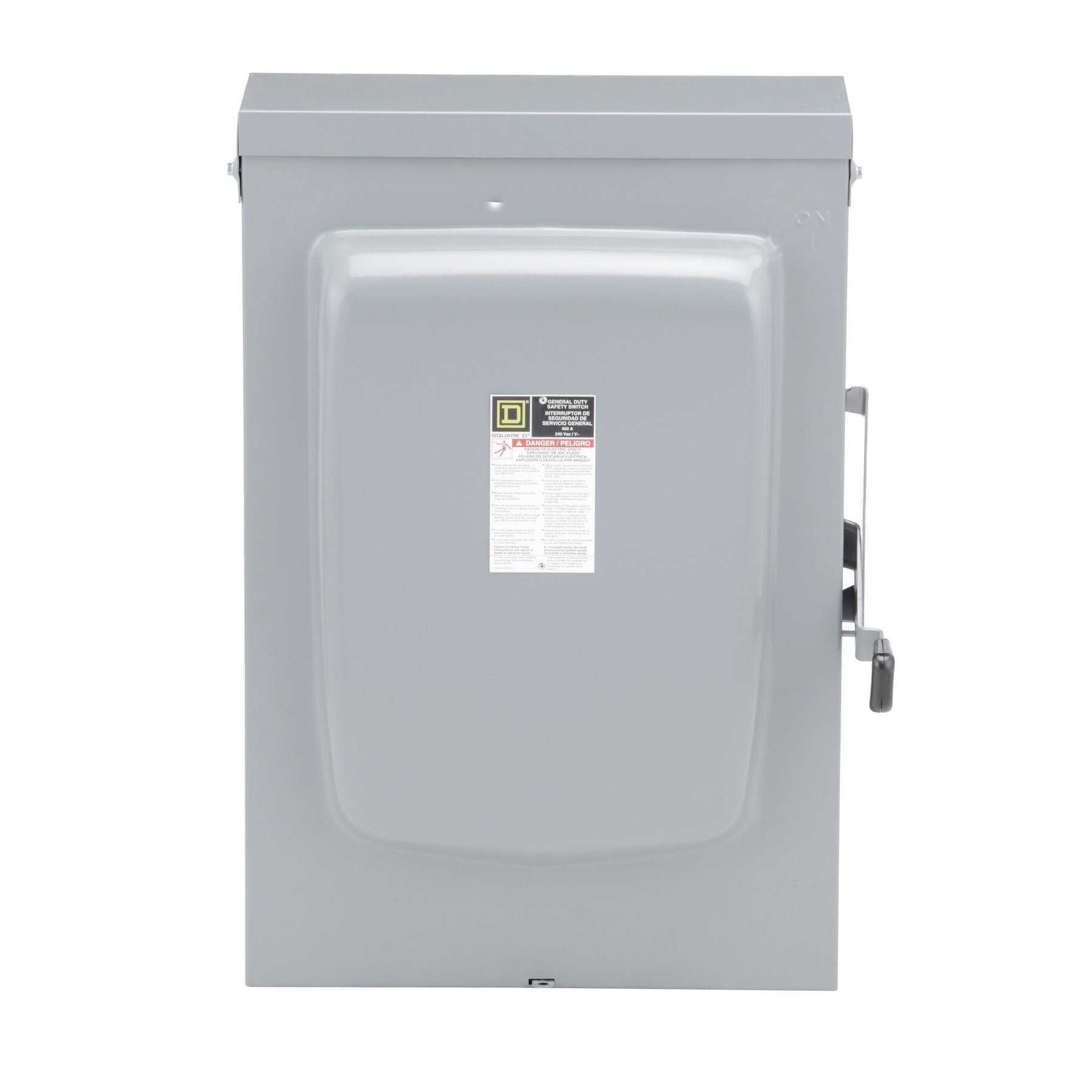

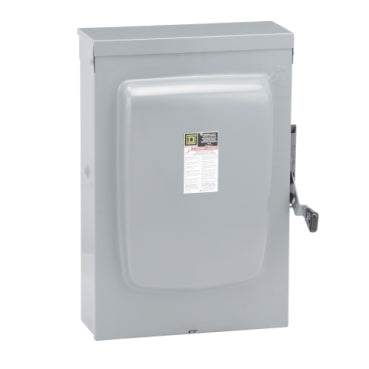

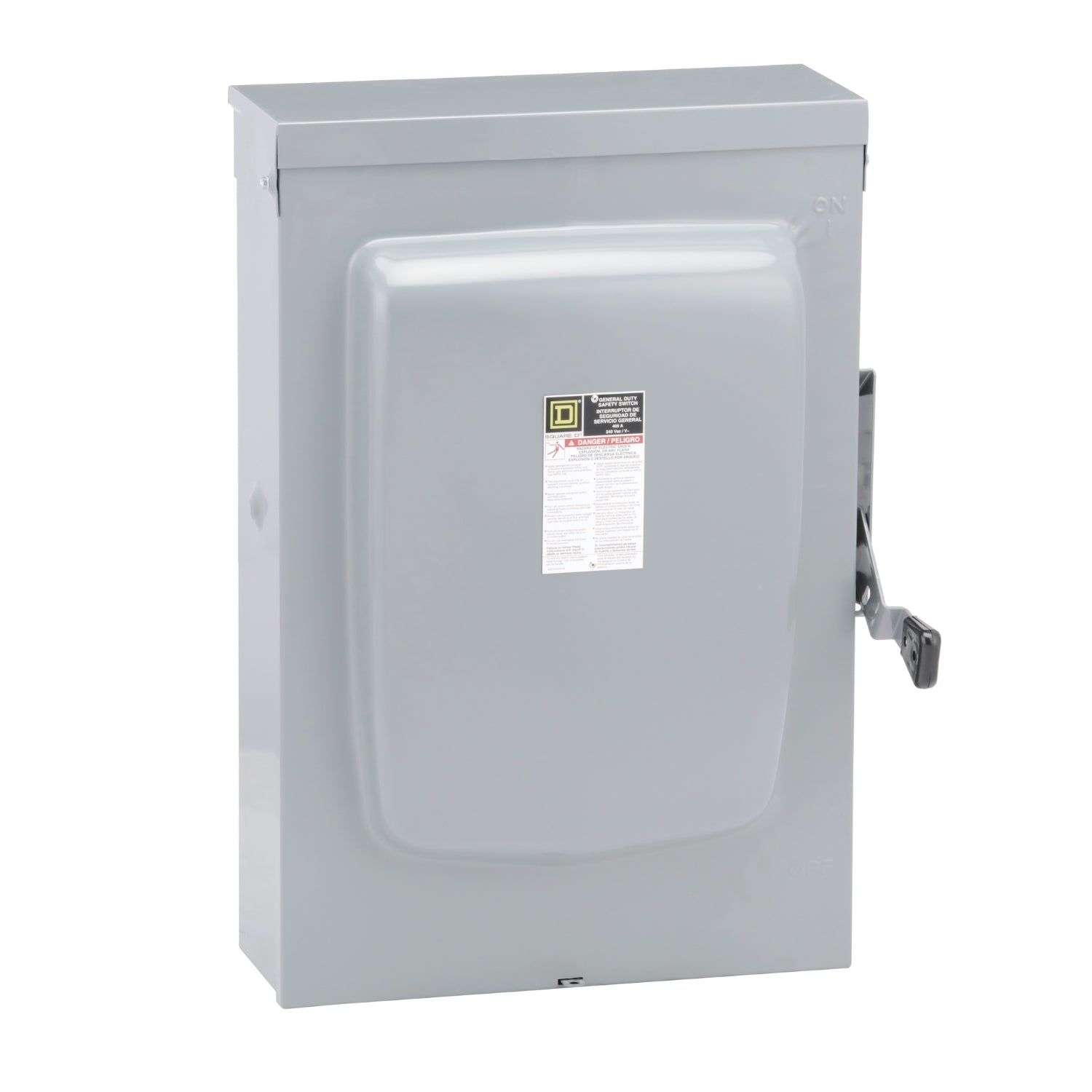

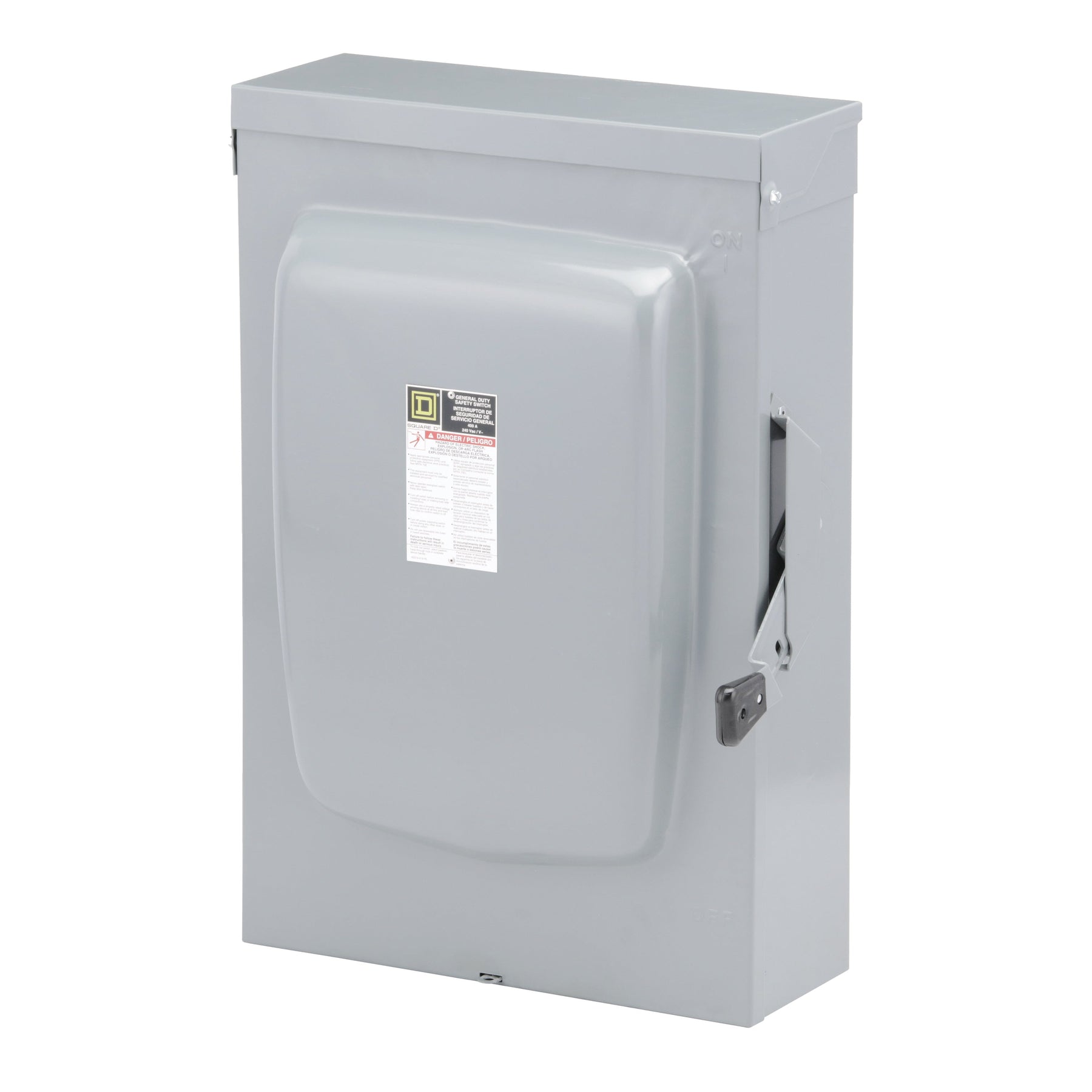

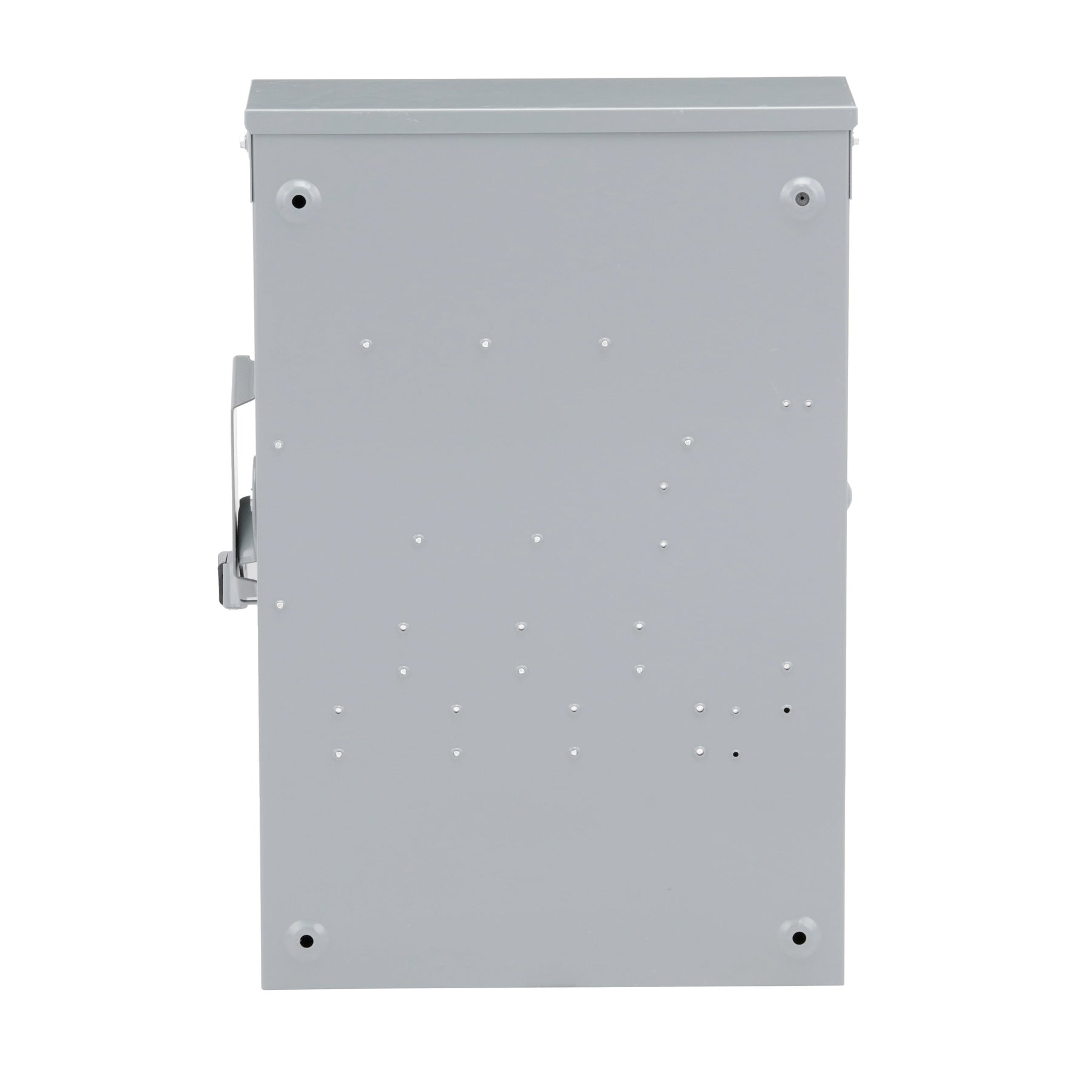

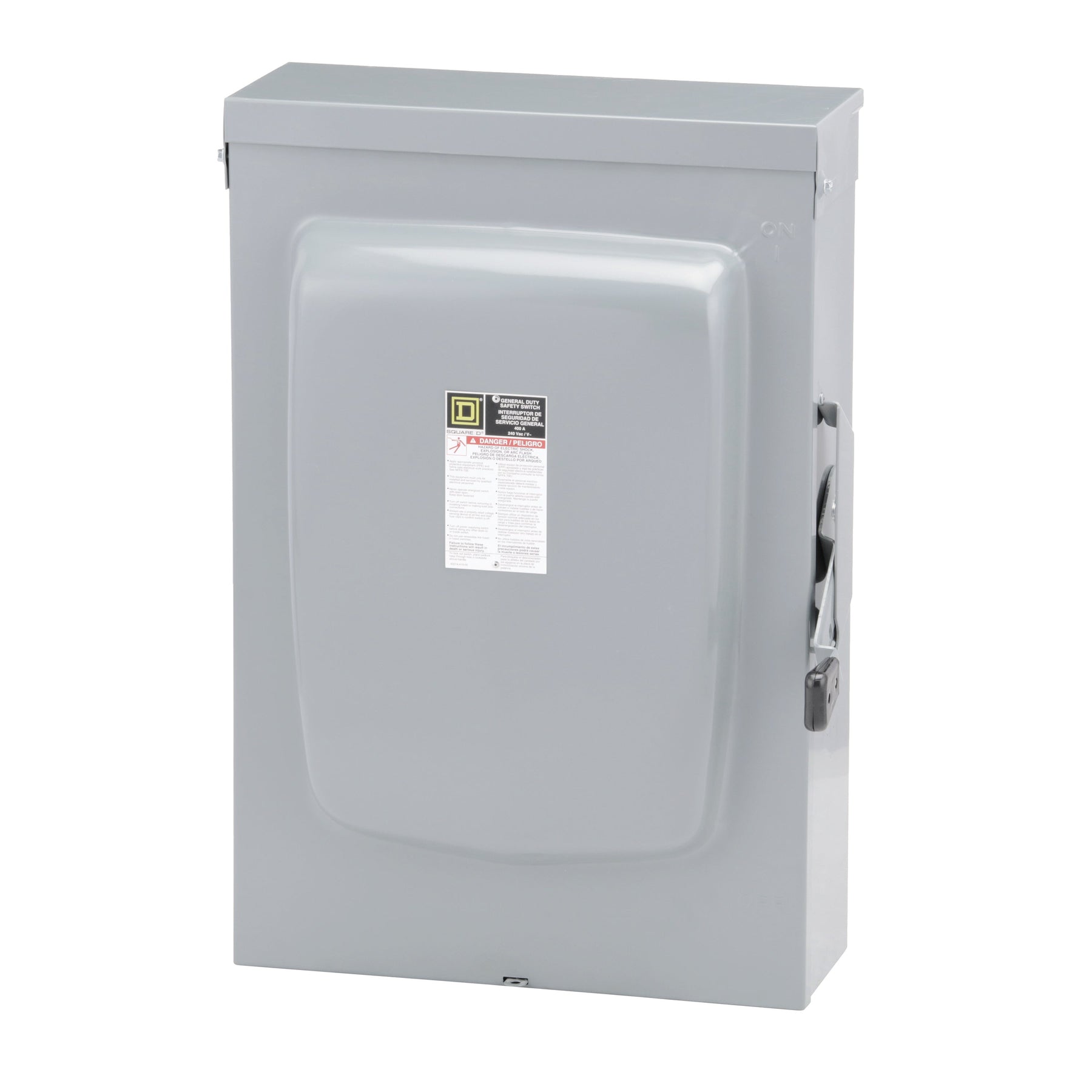

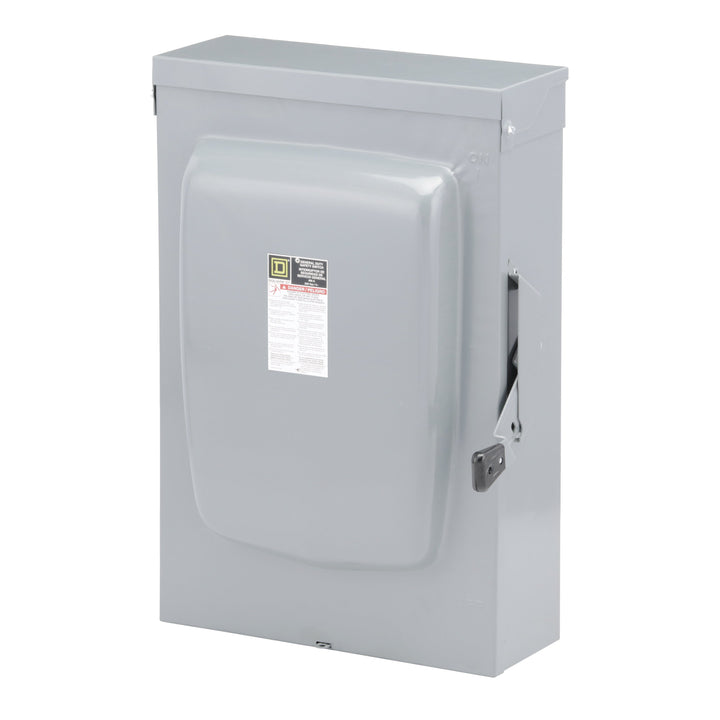

Square D D225NR is a fusible safety switch designed for providing reliable circuit isolation and overcurrent protection in industrial power distribution. It features a 400A current rating and a 240V AC/DC voltage rating, housed in a robust NEMA 3R enclosure measuring 778 mm H x 565 mm W x 257 mm D (30.63 in x 22.25 in x 10.13 in) with a weight of 66.461 lb. The switch is UL listed and engineered for a high 100kA interrupting capacity at 240V, making it suitable for protecting motor control centers, industrial machinery, and feeder circuits where Class R fuses are specified.

Key Features & Specifications
  • Type: Fusible safety disconnect switch, Series E, Type D
  • Voltage Rating: 240V AC/DC
  • Current Rating: 400A
  • Configuration: Single, 2-pole
  • Dimensions: 778 mm H x 565 mm W x 257 mm D (30.63 in x 22.25 in x 10.13 in)
  • Weight: 66.461 lb
  • Standards: UL listed, NEMA 3R enclosure rating
  • Applications: Industrial power distribution, motor control centers, machinery protection
  • Switch Style: Fusible
  • Phase: 1
  • AIC Rating: 100kA @ 240V
  • Fuse Class: R
  • Wire Size: AWG 10 to AWG 6 (Aluminum/Copper)
  • Compatible Frames: RLF
  • Country of Origin: Mexico


Product Identification
  • UPC: 78590146081
  • GTIN: 00785901460817
