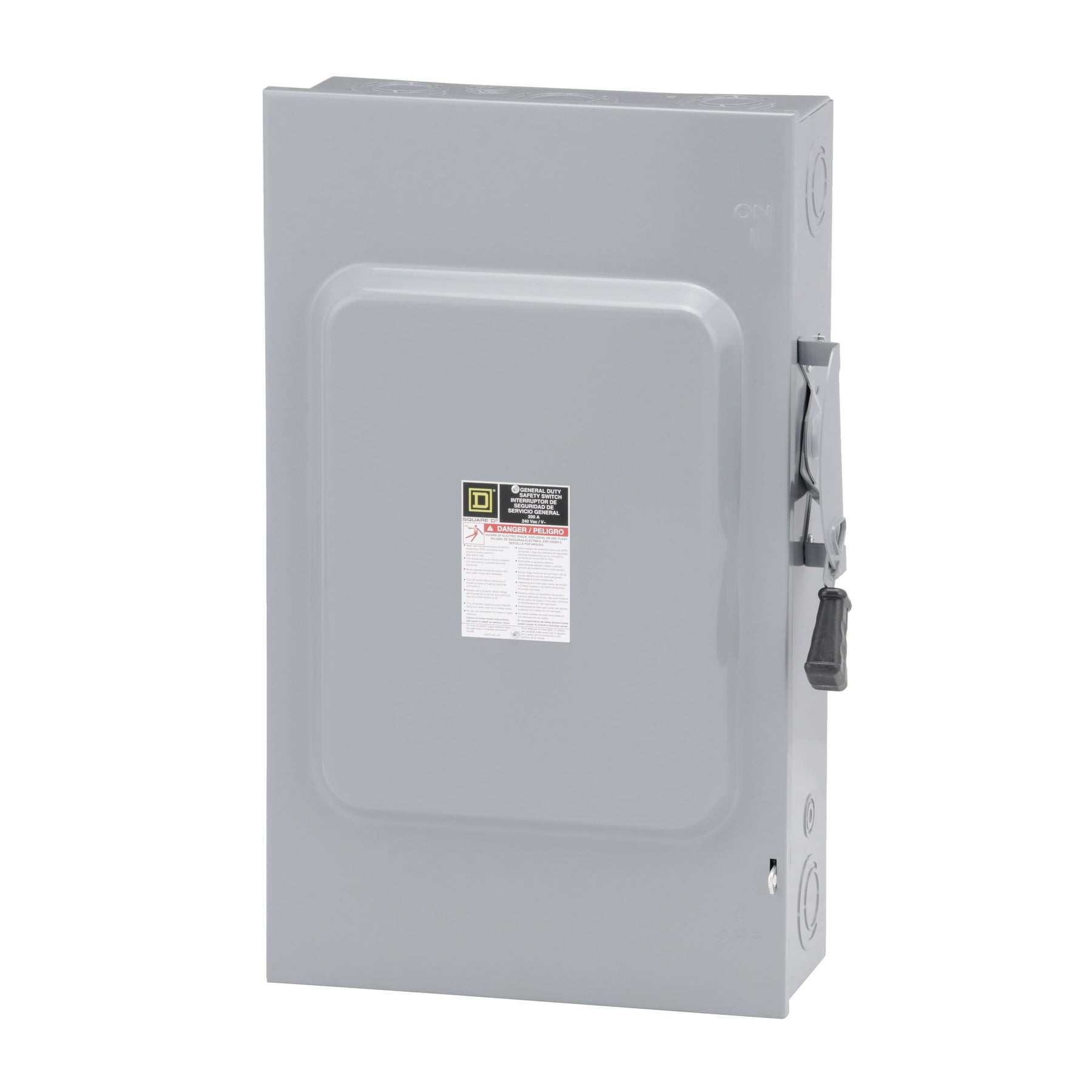

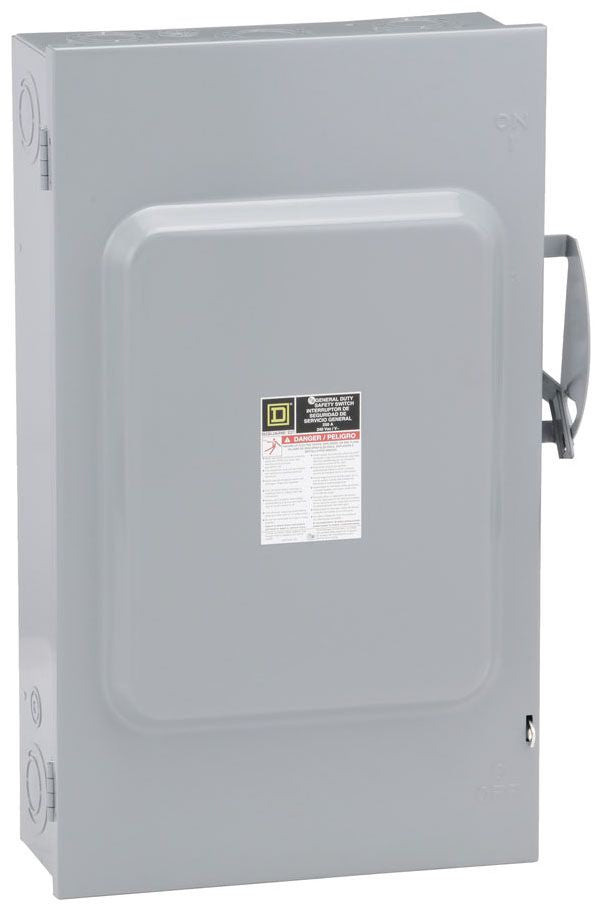

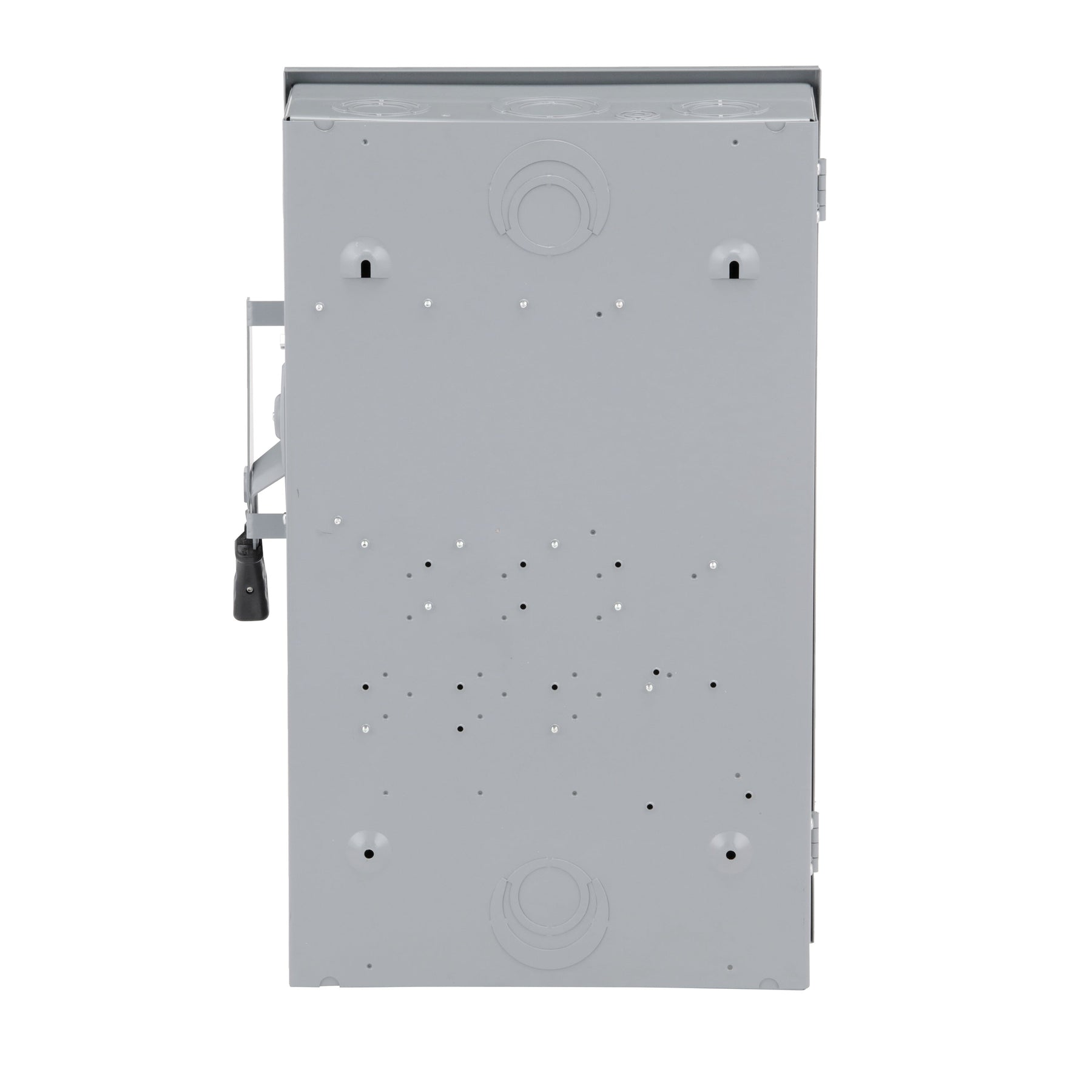

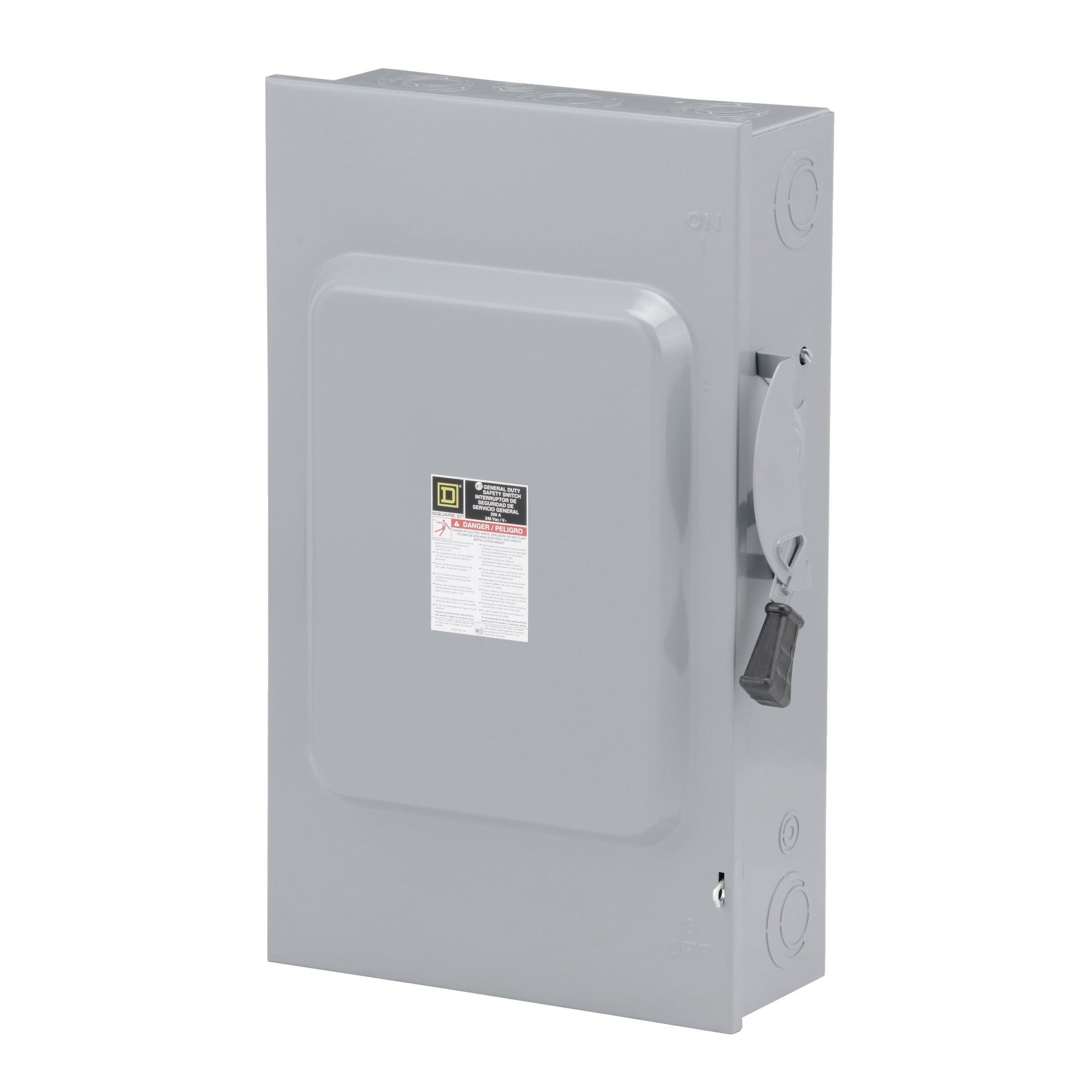

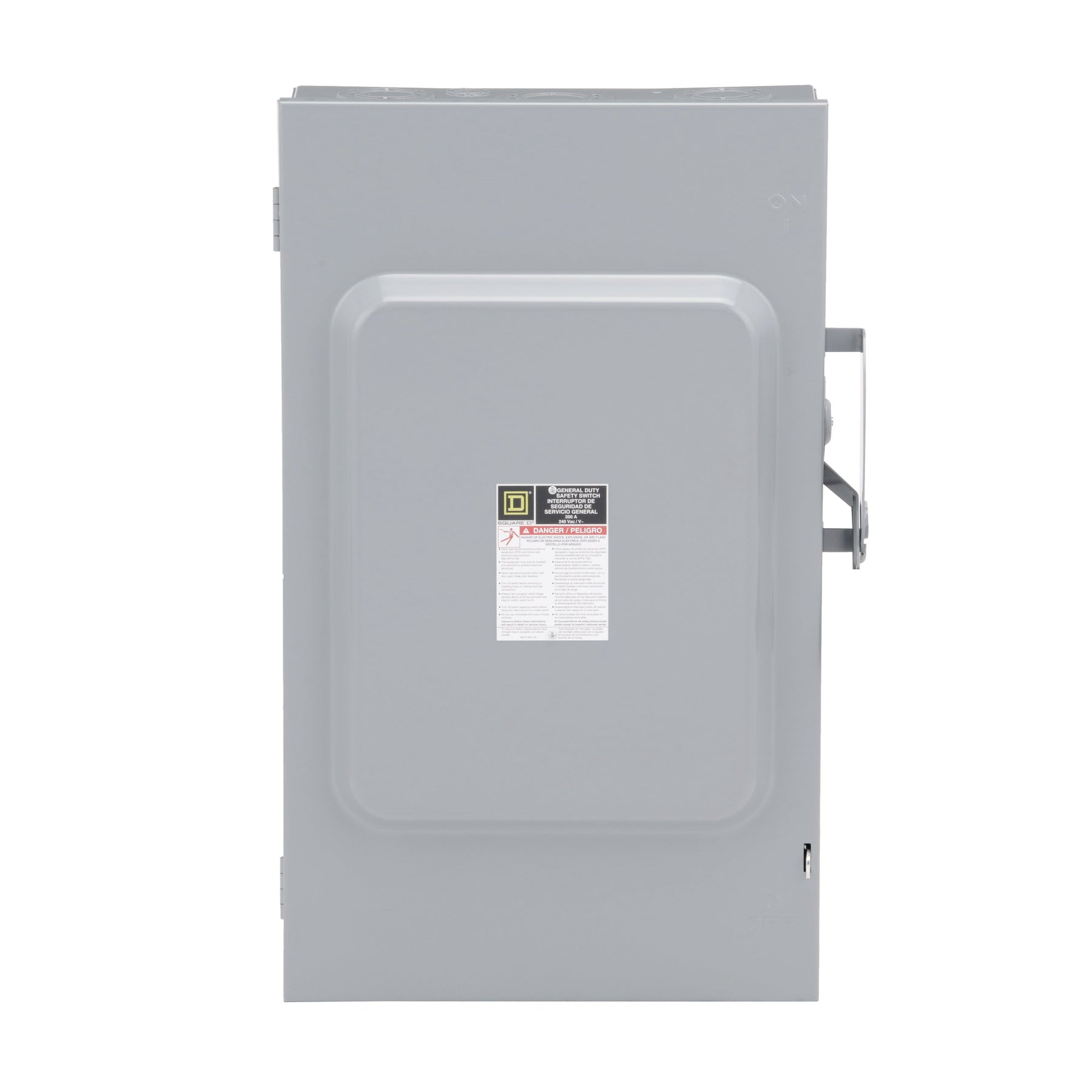

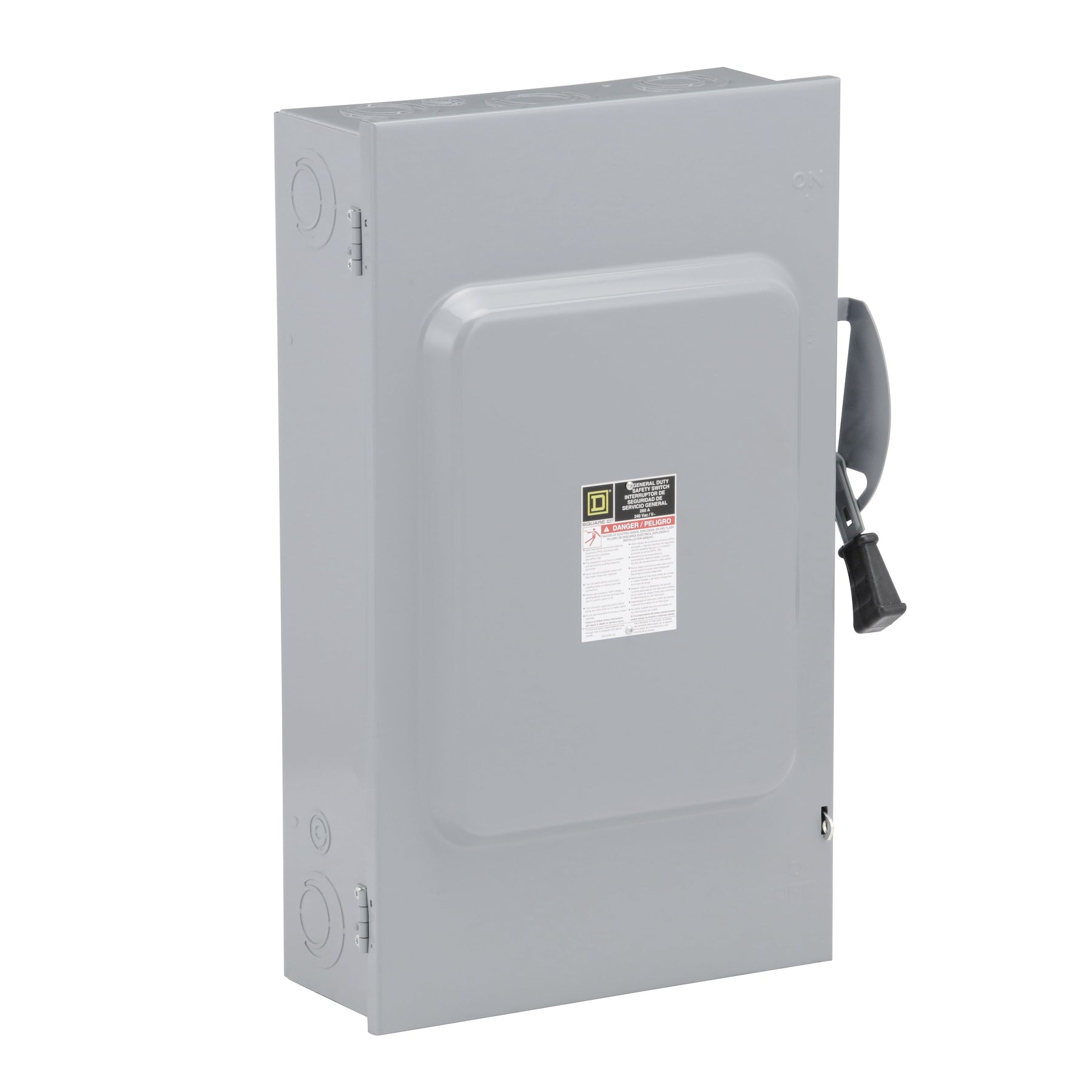

Square D D224N - Fusible Disconnect Switch 200A @ 240V AC (100kA AIC)

Square D D224N is a fusible safety disconnect switch designed for reliable circuit isolation and protection in industrial applications. This 200A rated switch operates at 240V AC with a 100kA interrupting capacity, providing robust short-circuit protection in single-phase systems. The unit features a compact NEMA 1 enclosure measuring 19" x 8.25" x 29" (WxDxH) and weighs 18.96 lb, constructed for durable performance in demanding environments. UL listed certification ensures compliance with industry safety standards, while compatibility with RLF frames facilitates straightforward integration into existing electrical systems. Typical applications include industrial control panels, motor control centers, and machinery requiring safe maintenance disconnects with Class R fuse protection.

Key Features & Specifications

• Type: Fusible safety disconnect switch, Series F family, Type D
• Voltage Rating: 240V AC
• Current Rating: 200A
• Dimensions: 19 in x 8.25 in x 29 in (WxDxH)
• Weight: 18.96 lb
• Standards: UL listed
• Applications: Industrial control panels, motor control centers, machinery disconnects
• Switch Type: Disconnect
• Configuration: Single
• Phase: 1
• AIC Rating: 100kA@240V
• Poles: 2
• Fuse Class: R
• NEMA Rating: NEMA 1
• Compatible Frames: RLF
• Country of Origin: United States

Product Identification

• UPC: 785901460749
• GTIN: 00785901460749
