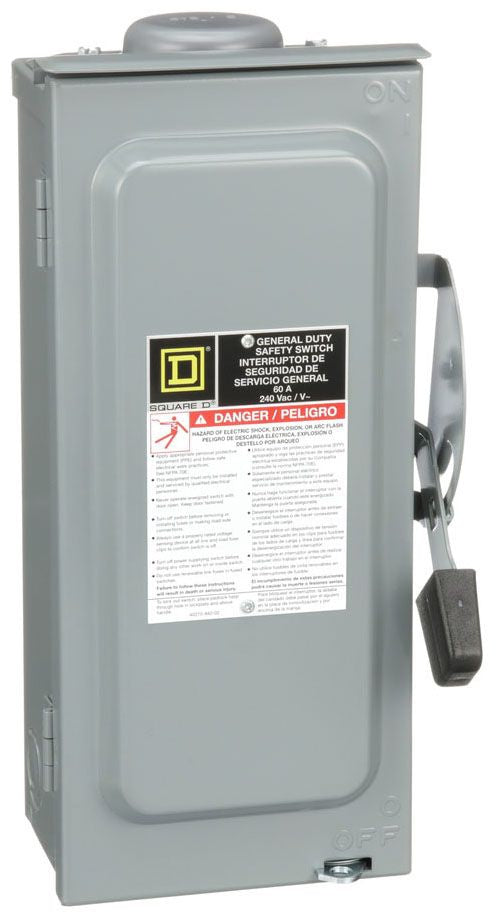

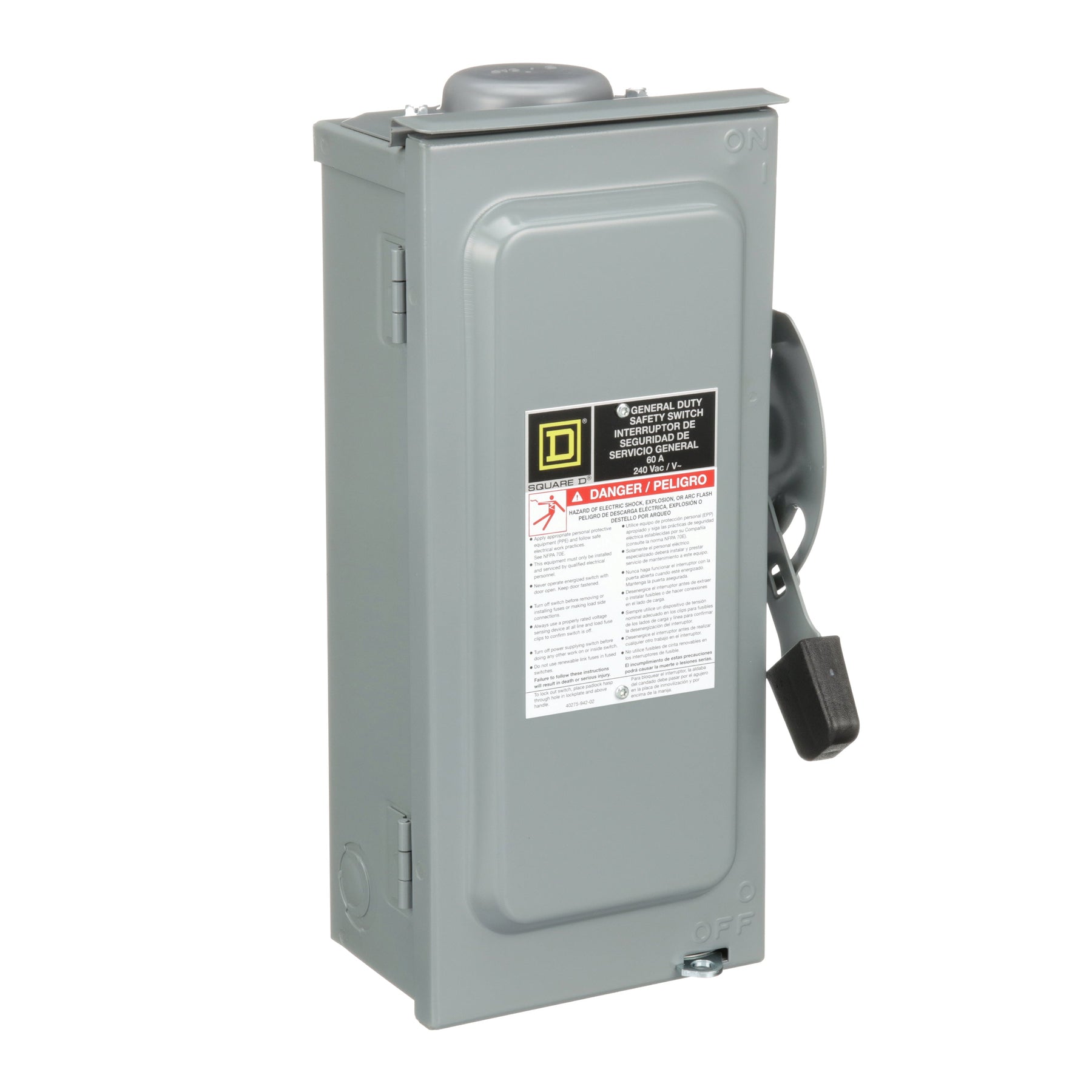

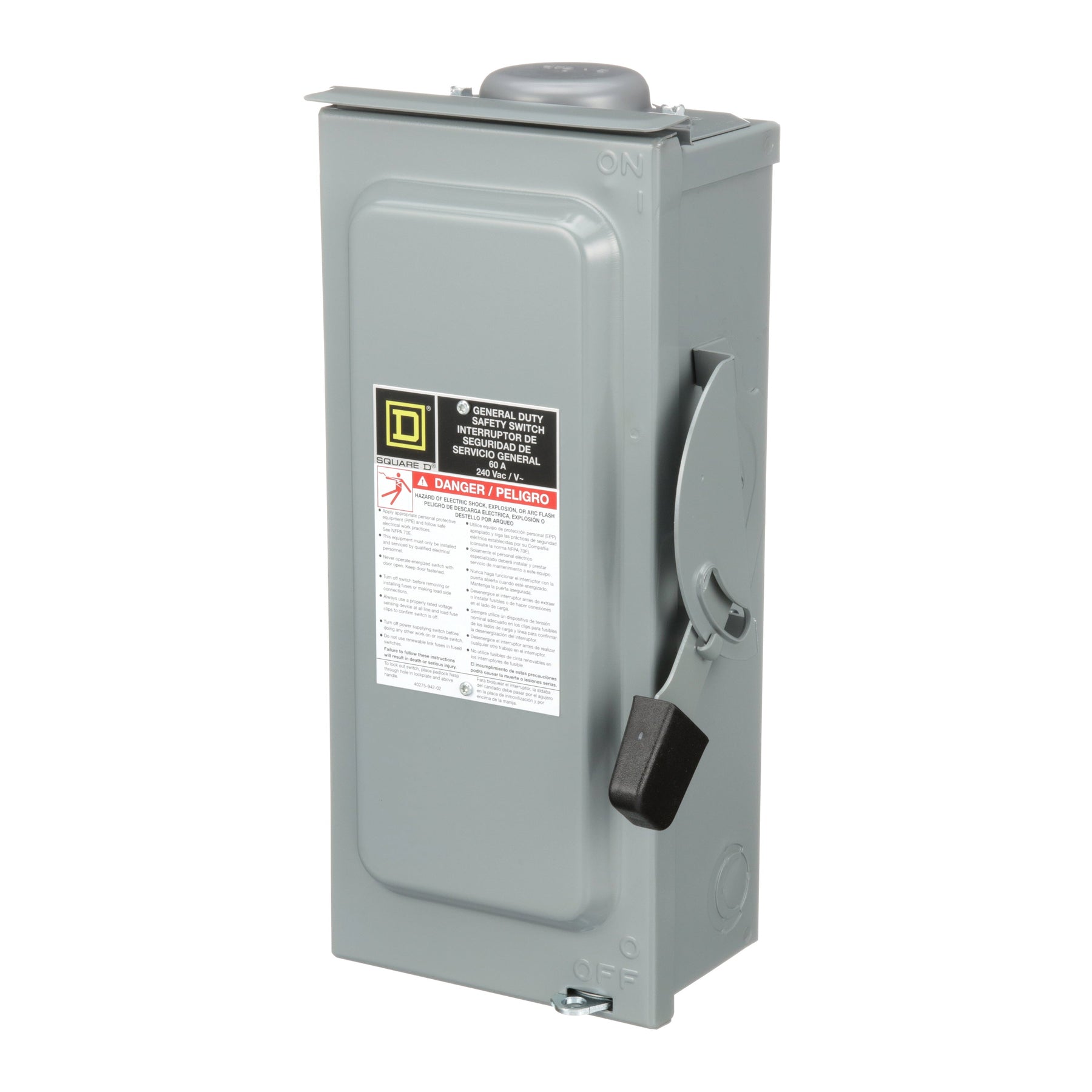

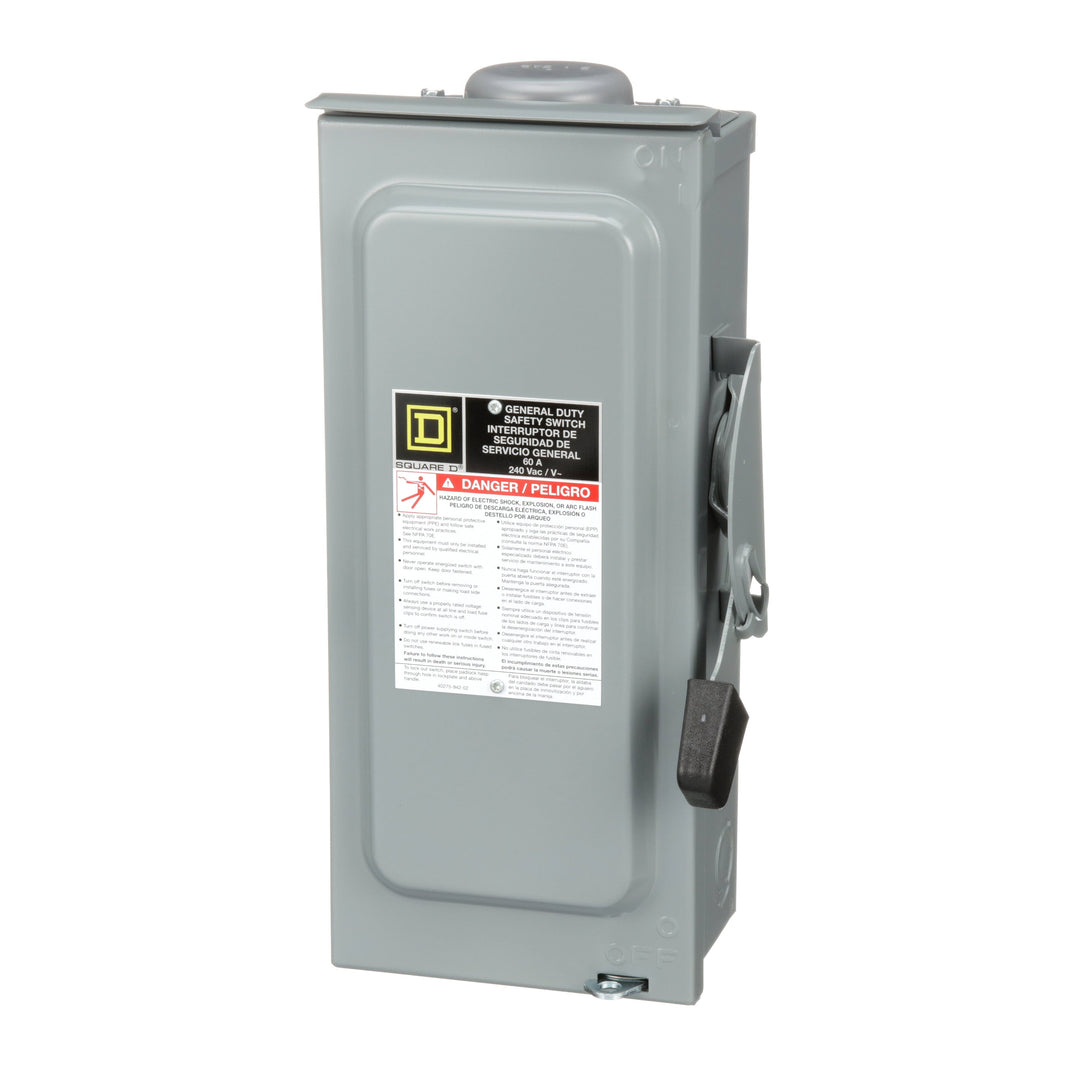

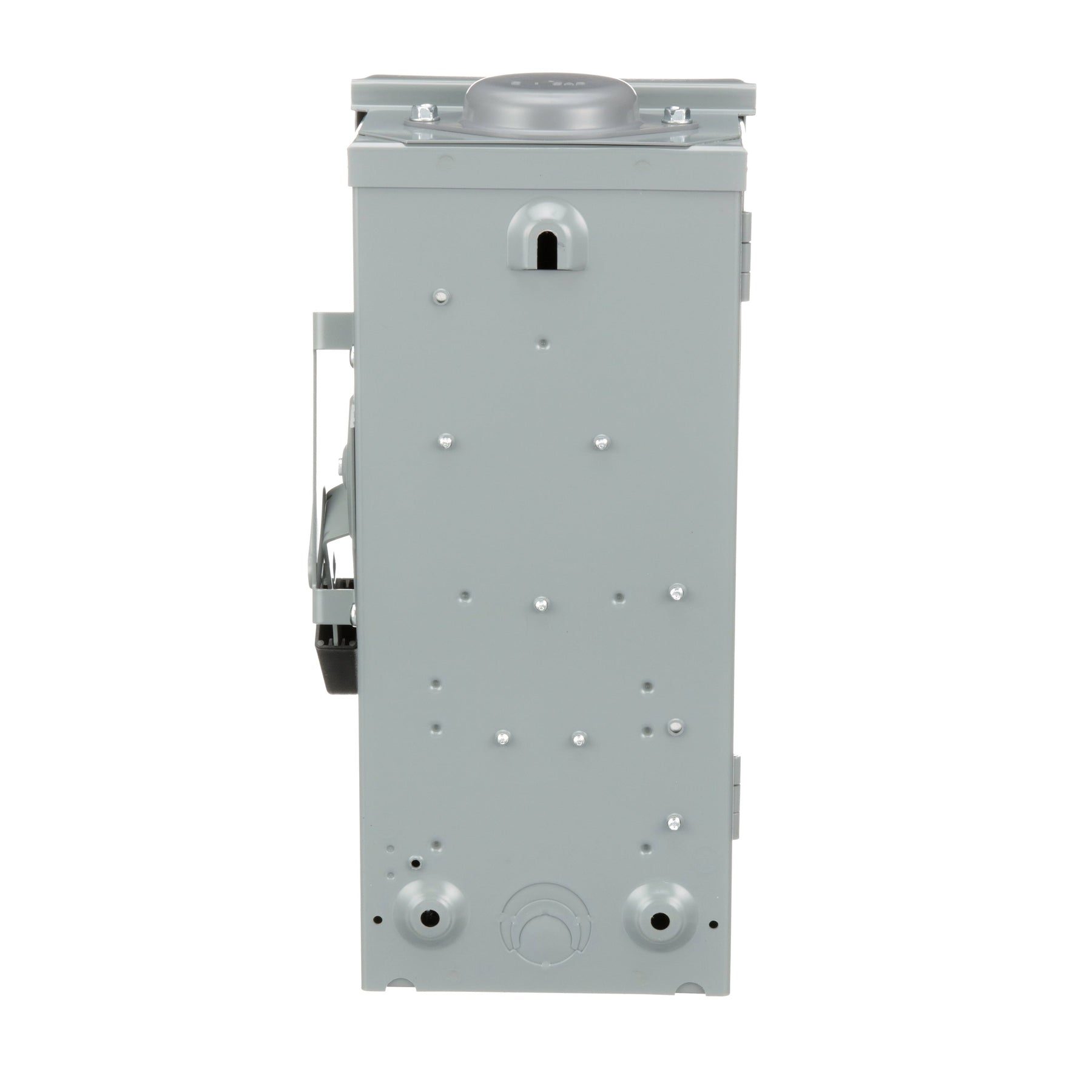

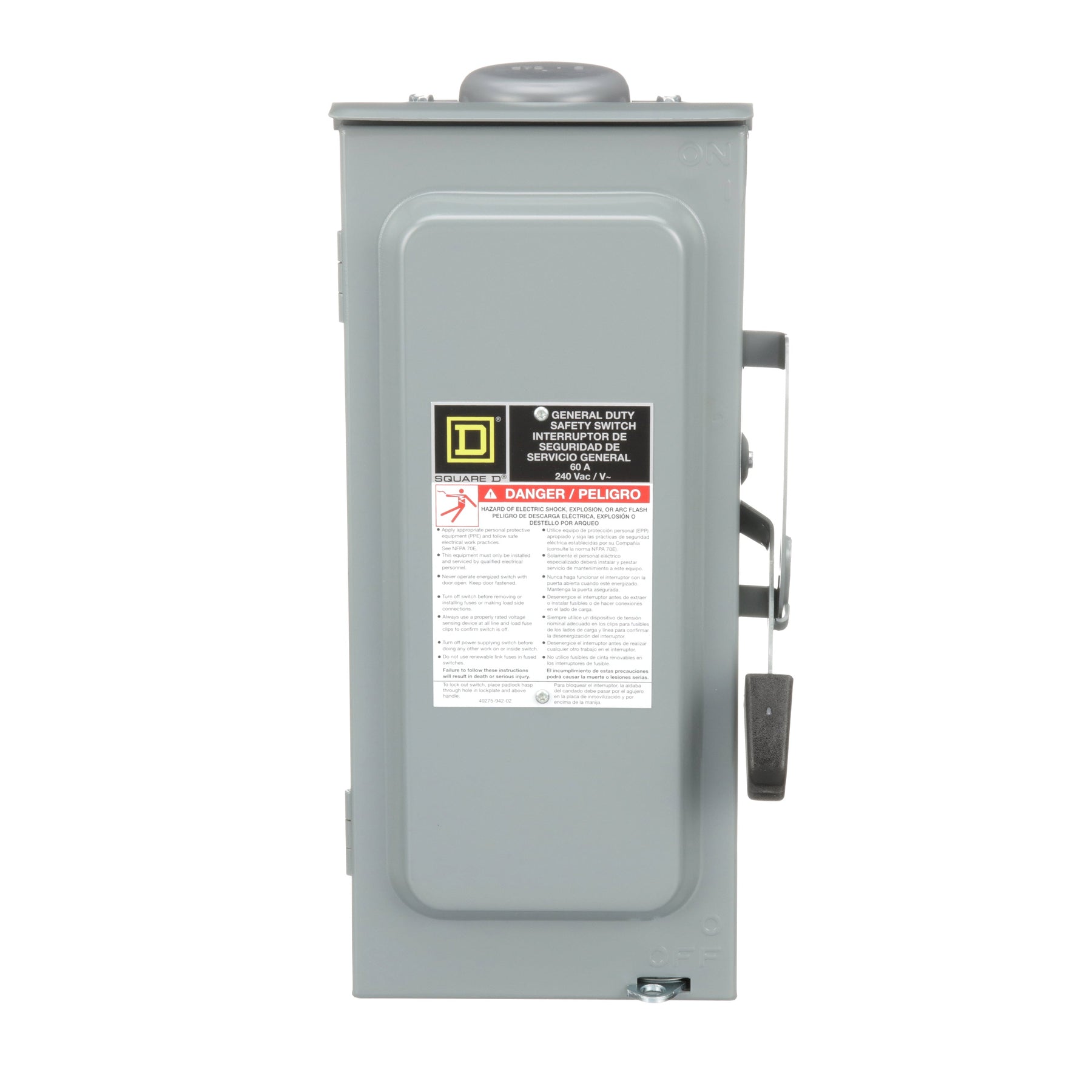

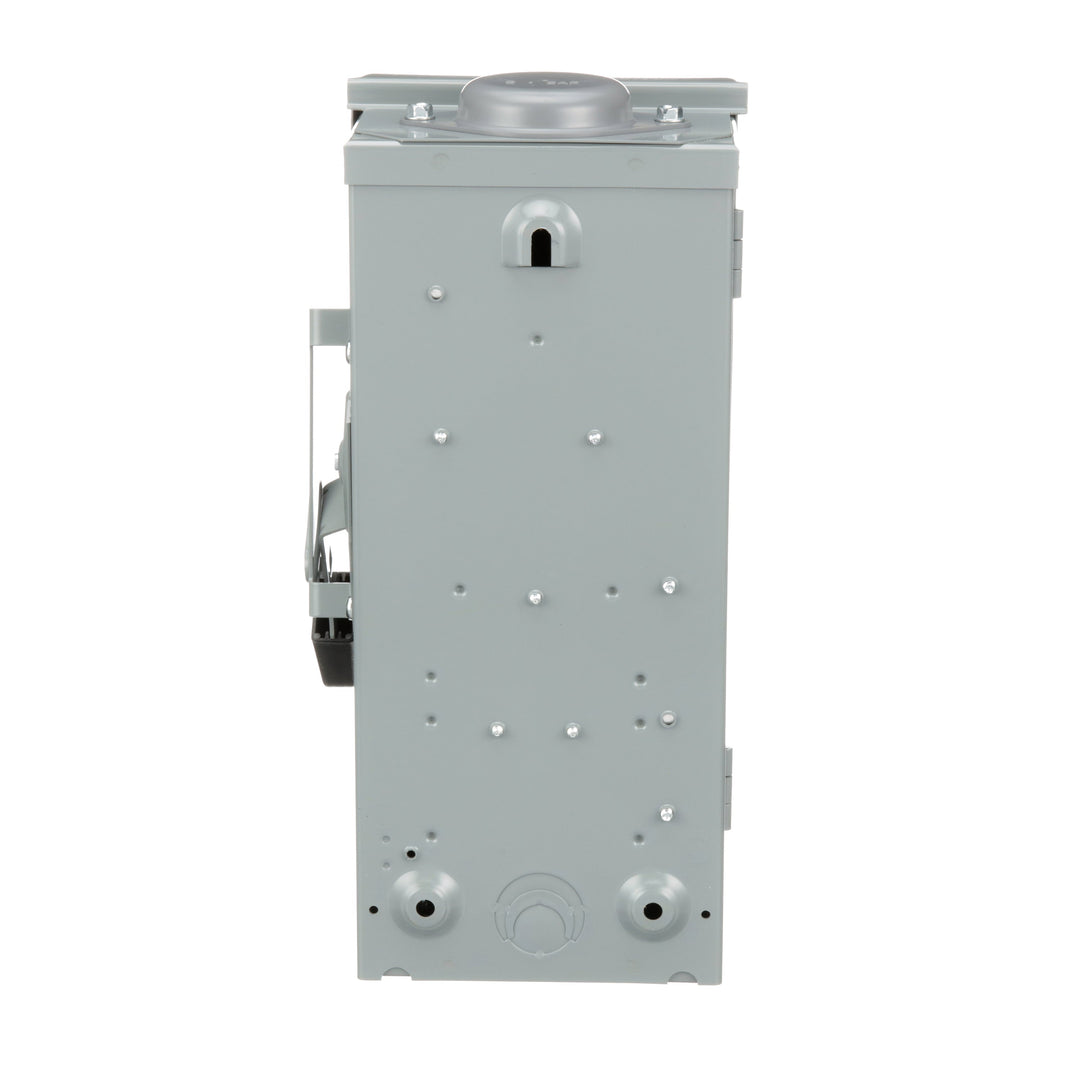

Square D D222NRB is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in industrial and commercial electrical systems. It is rated for 60A at 240V AC in a single-phase configuration, featuring a compact design measuring 377.95 mm H x 189.23 mm W x 123.70 mm D and a robust NEMA 3R enclosure for outdoor durability. The switch is UL listed and offers a high interrupting capacity of 100kA at 240V, ensuring reliable protection for compatible RLF frame fuses. Its typical applications include service entrance equipment, motor control centers, and HVAC systems where a secure isolation point is required.
Key Features & Specifications
Type: Fusible Safety Disconnect Switch, Series F, Type D
Voltage Rating: 240V AC
Current Rating: 60A
Configuration: Single Phase, 2-Pole
Dimensions: 14.88 in (377.95 mm) H x 7.45 in (189.23 mm) W x 4.87 in (123.70 mm) D
Weight: 8.36 lb
Standards: UL Listed, NEMA 3R Enclosure Rating
Applications: Service Entrance, Motor Control, HVAC, Industrial Power Distribution
Switch Style: Fusible
AIC Rating: 100kA @ 240V
Fuse Class: R
Compatible Frames: RLF
Wire Size: #10 to #2 AWG (Aluminum) / #14 to #2 AWG (Copper)
Country of Origin: United States
Product Identification
UPC: 785901460640
GTIN: 00785901460640
