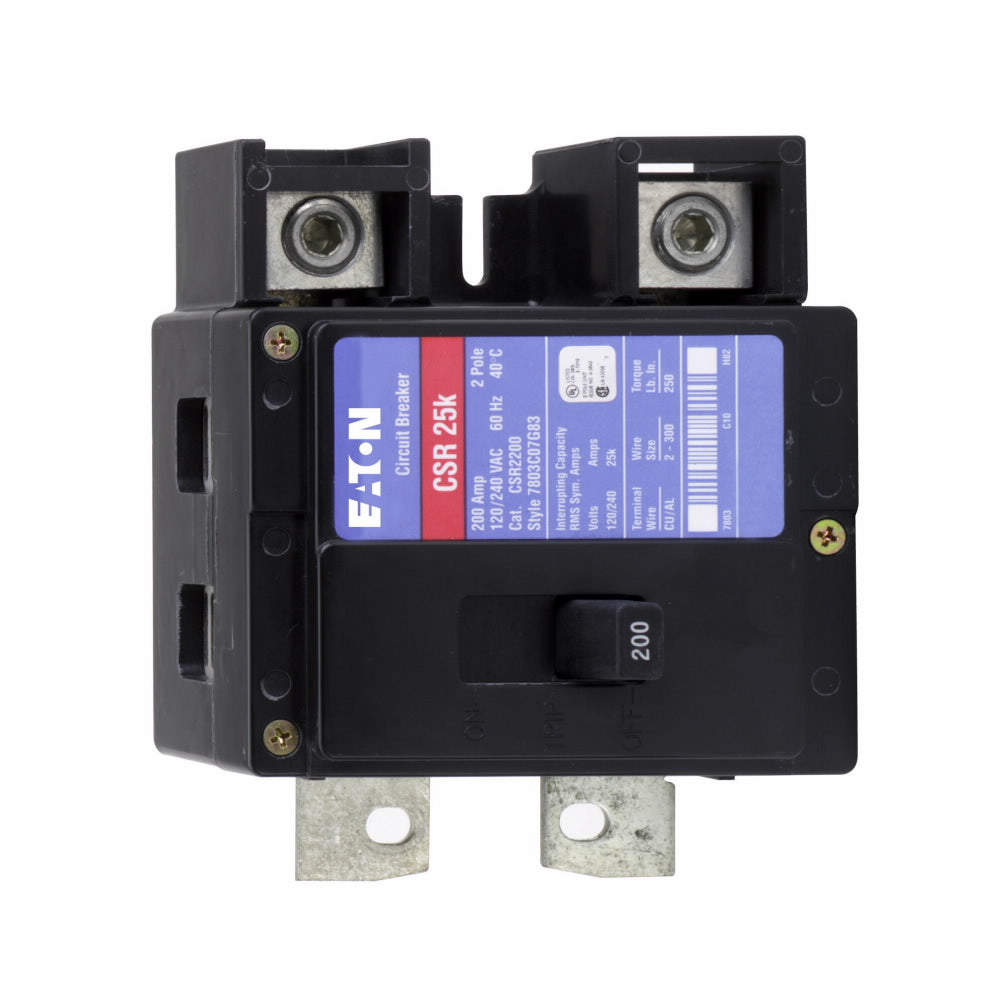

Cutler Hammer CSR2200N - 200A Molded Case Breaker (240V, 25kA AIC)
Cutler Hammer CSR2200N - 200A Molded Case Breaker (240V, 25kA AIC)

Cutler Hammer CSR2200N - 200A Molded Case Breaker (240V, 25kA AIC)

Cutler Hammer
Price
Save $1,063.93
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer CSR2200N is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 200A current rating and a 240V AC voltage rating, housed in a compact, durable molded case measuring 5.3 in (L) x 3.52 in (H) x 4.2 in (W) and weighing 2.5 lb. This two-pole, plug-in breaker is UL 489 certified and utilizes a thermal-magnetic trip mechanism with long-time and instantaneous (LI) functions to ensure coordinated protection. It is engineered for single-phase applications, offering a 25kA interrupting capacity at 240V and is suitable for use with conductors from AWG 2 to 300 kcmil.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection with LI (Long-time & Instantaneous) Trip
  • Voltage Rating: 240V AC
  • Current Rating: 200A
  • Dimensions: 5.3 in (Length/Depth) x 3.52 in (Height) x 4.2 in (Width)
  • Standards: UL 489
  • Applications: Industrial and Commercial Electrical Distribution
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Phase: 1
  • Amperage: 200A
  • AIC Rating: 25kA @ 240V
  • Connection: Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Wire Size: AWG 2 to 300KCmil
  • Certification: UL 489
  • Family: CSR Series
  • Country of Origin: United States
  • Weight: 2.5 lb


Product Identification
  • UPC: 78211309846
  • GTIN: 00782113098463
