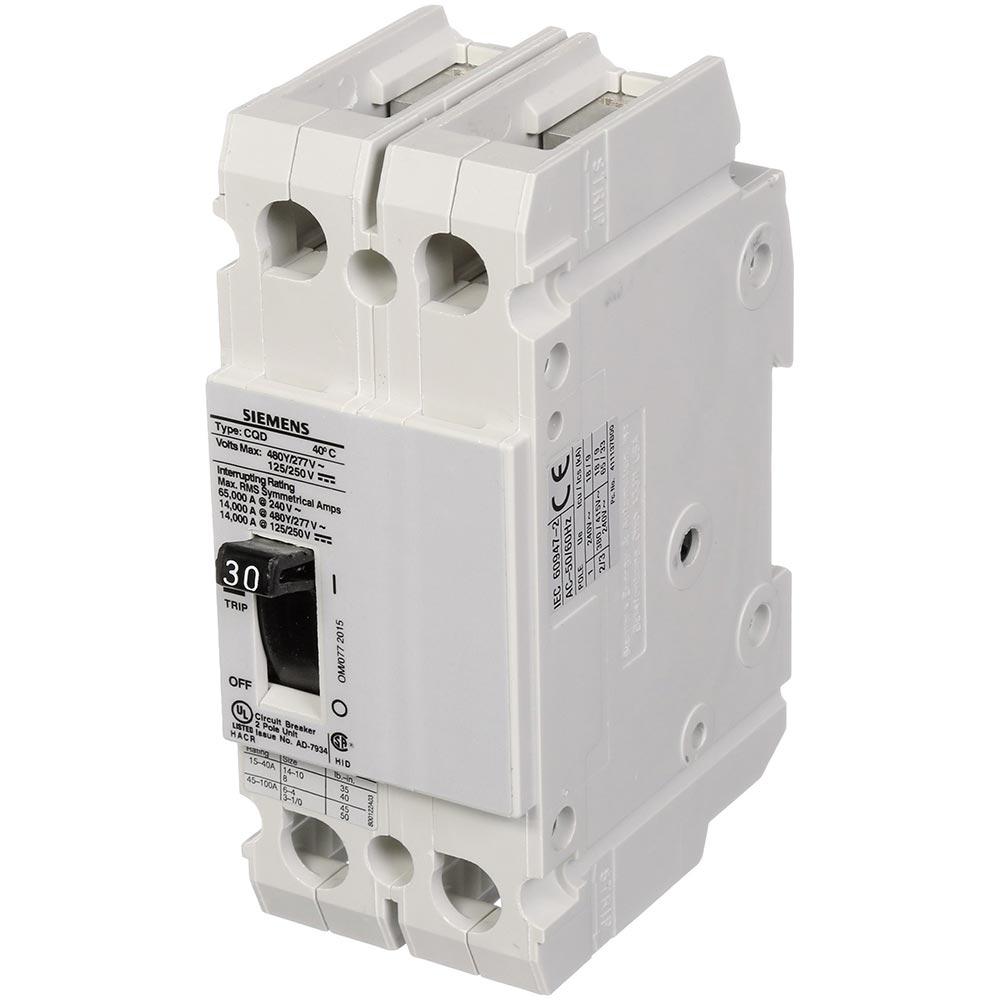

Siemens CQD230 - Molded Case Breaker 30A 2-Pole (480V 14kA)
Siemens CQD230 - Molded Case Breaker 30A 2-Pole (480V 14kA)

Siemens CQD230 - Molded Case Breaker 30A 2-Pole (480V 14kA)

Siemens
Price
Save $658.39
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price
Siemens CQD230 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 30A current rating and a 480V AC voltage rating, engineered with a compact, two-pole feed-thru connection and a thermal-magnetic trip mechanism for both long-time and instantaneous (LI) protection functions. The unit is constructed for durability and complies with UL and CSA standards, offering an interrupting capacity of 14kA at 480V. Its typical applications include protection for feeders and branch circuits in panelboards and switchboards, compatible with copper wire sizes from 14 to 6 AWG and aluminum from 12 to 6 AWG.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, CQD Series
  • Voltage Rating: 480V AC
  • Current Rating: 30A
  • Poles: 2
  • Connection: Feed-Thru
  • Phase: 1
  • AIC Rating: 14kA @ 480V
  • Protection Functions: LI (Long-Time and Instantaneous)
  • Wire Size Compatibility: 12 to 6 AWG Aluminum, 14 to 6 AWG Copper
  • Certification: UL, CSA
  • Weight: 1.581 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643277632
  • GTIN: 00783643277632
