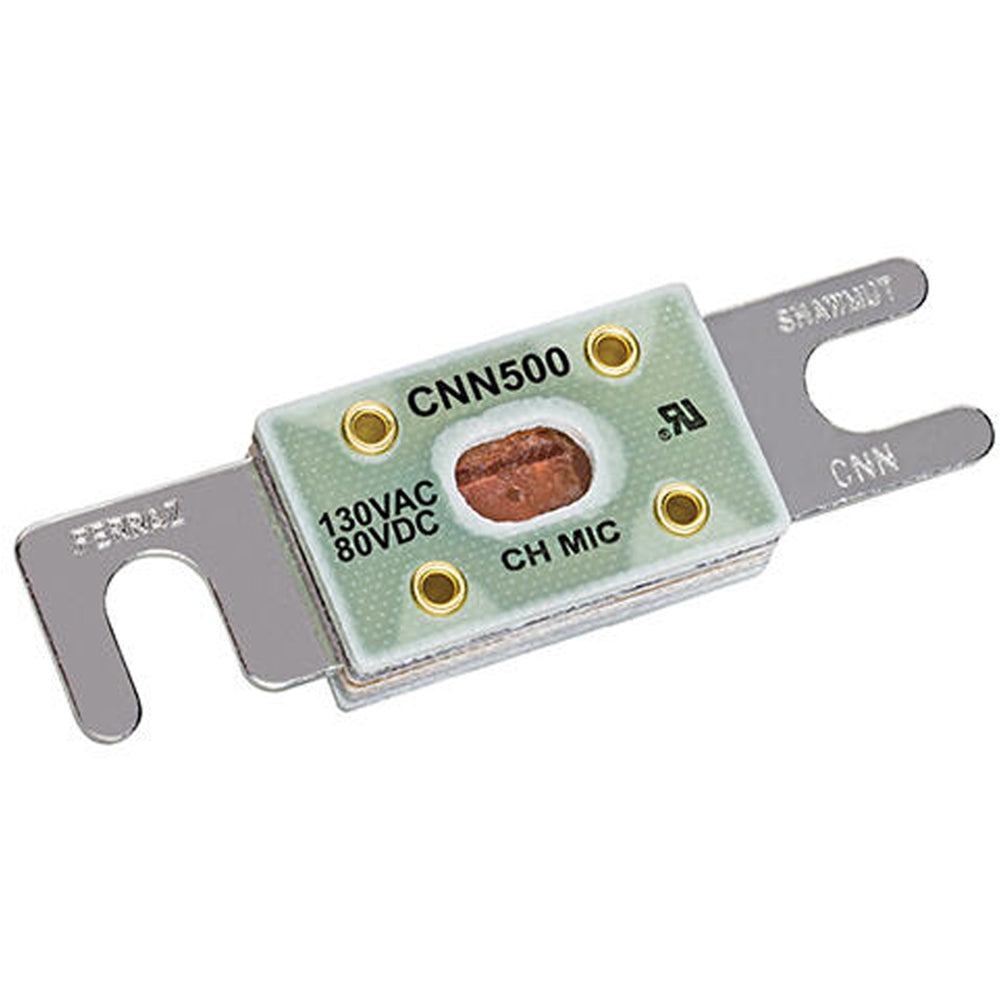

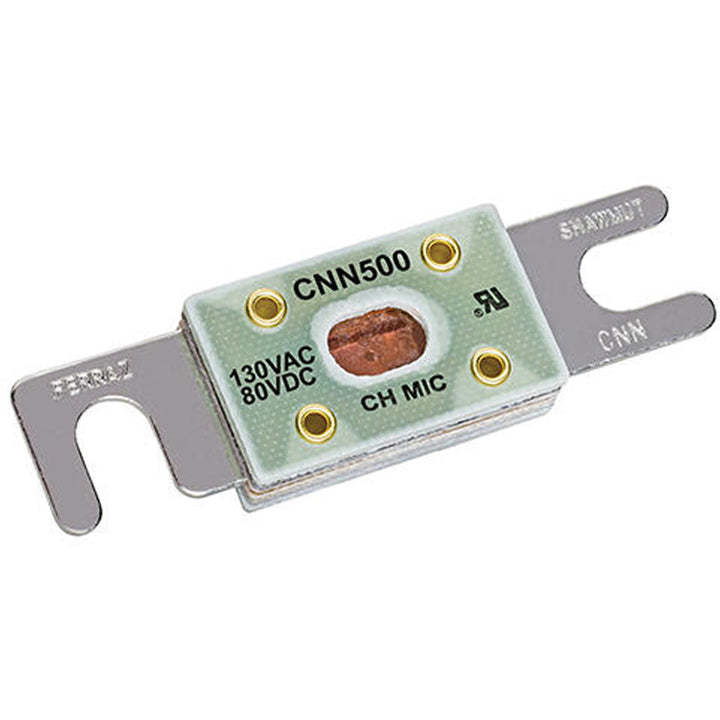

Littelfuse CNN500 - Low Voltage Fuse 500A@130V (2500kA AIC Rating)

Littelfuse CNN500 is a low-voltage fuse designed for high-current circuit protection in industrial applications. It features a 500A current rating and 130V voltage rating with a compact 3/4" x 3-3/16" forklift connection design. The UL-recognized component meets standard 248-1 with a 2500kA@130Vac interrupting capacity, constructed with a single-barrel configuration for reliable performance. This fuse is commonly used in power distribution systems, motor protection circuits, and heavy equipment requiring robust overcurrent protection.

Key Features & Specifications

• Type: CNN series low-voltage fuse with single-barrel construction
• Voltage Rating: 130V AC
• Current Rating: 500A
• Dimensions: 3/4" x 3-3/16" x [depth not specified]
• Weight: 0.01 lb
• Standards: UL Recognized Component to Standard 248-1 (File E60314 JFHR2)
• Applications: Industrial power distribution, motor circuits, heavy equipment
• AIC rating: 2500kA@130Vac
• Connection: Forklift style
• Barrels: 1
• Certification: UL Recognized Component

Product Identification

• UPC: 687855949045
• GTIN: 00687855949045
