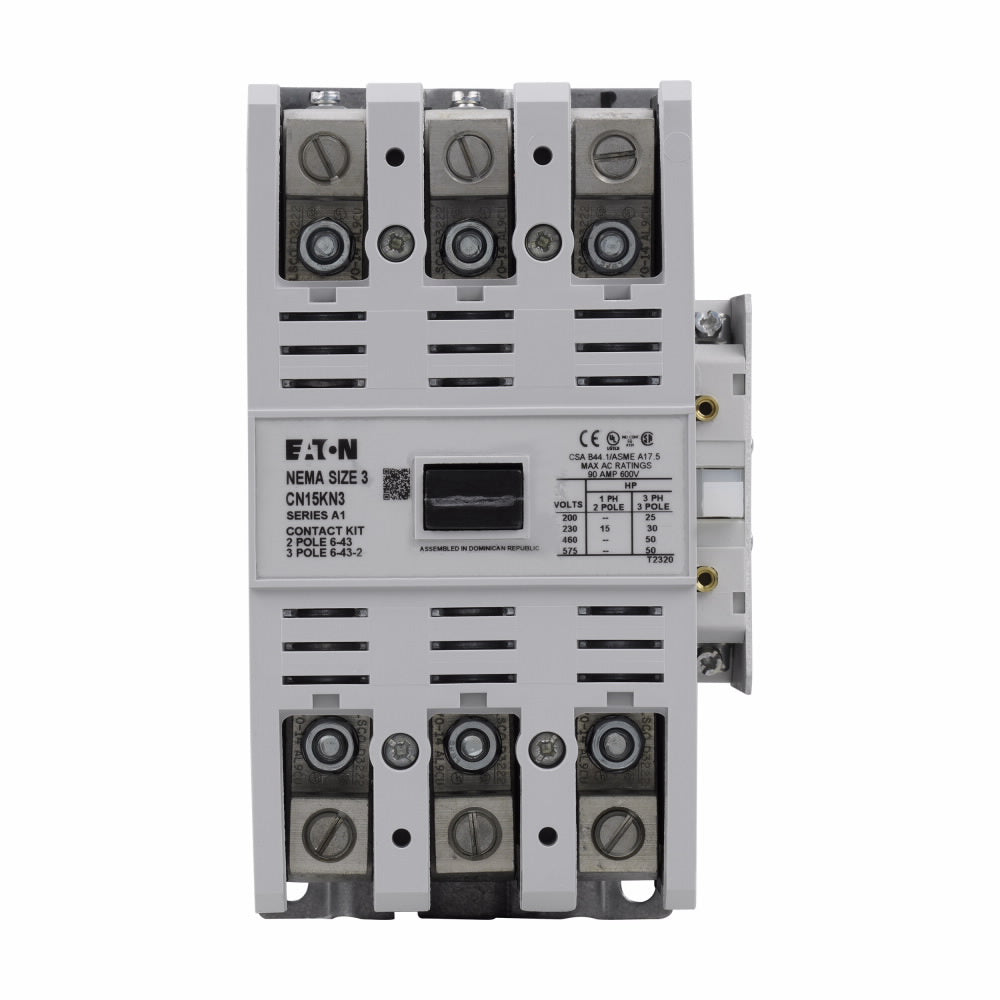

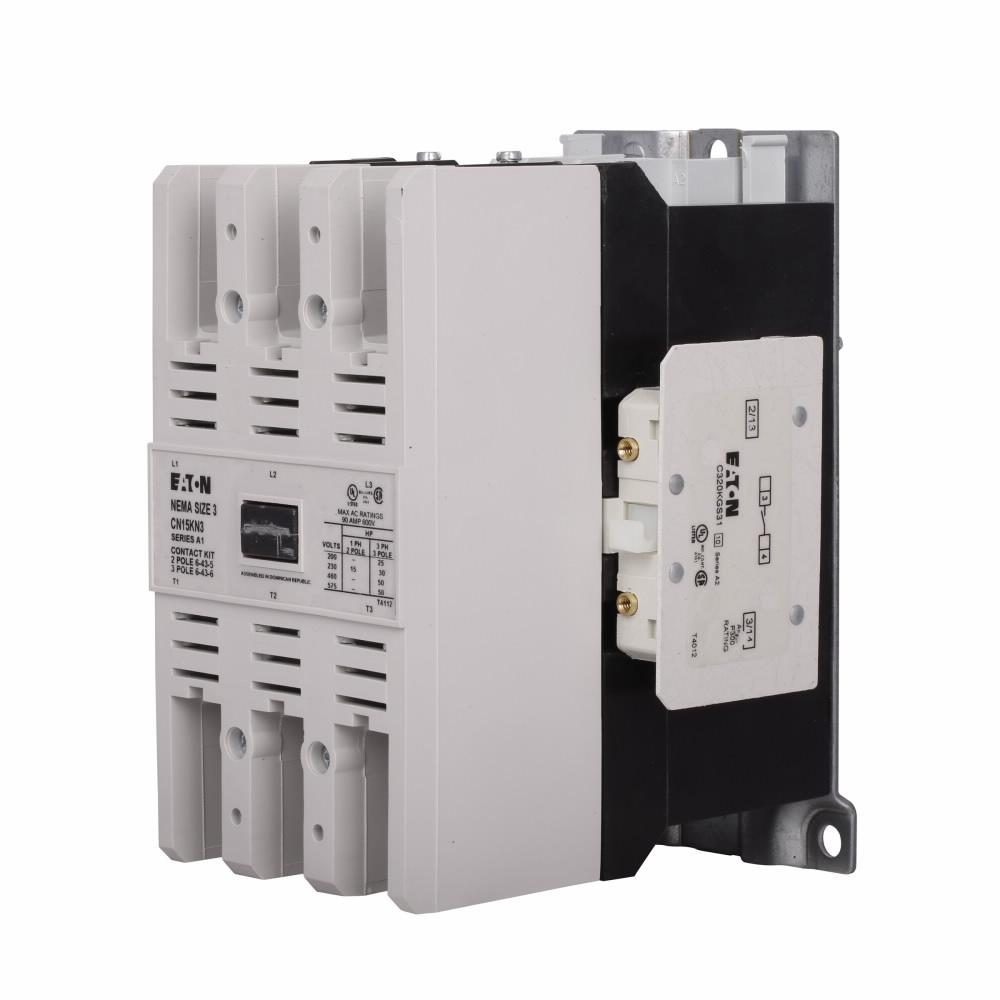

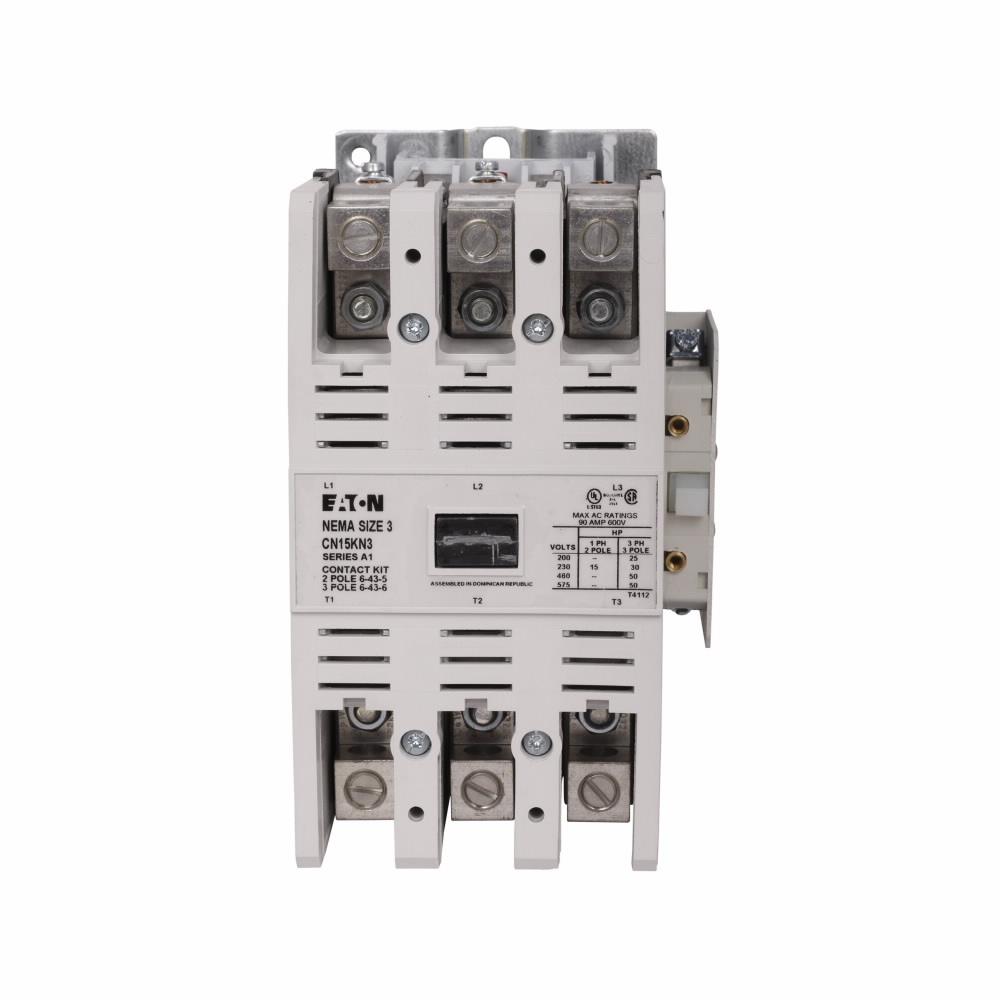

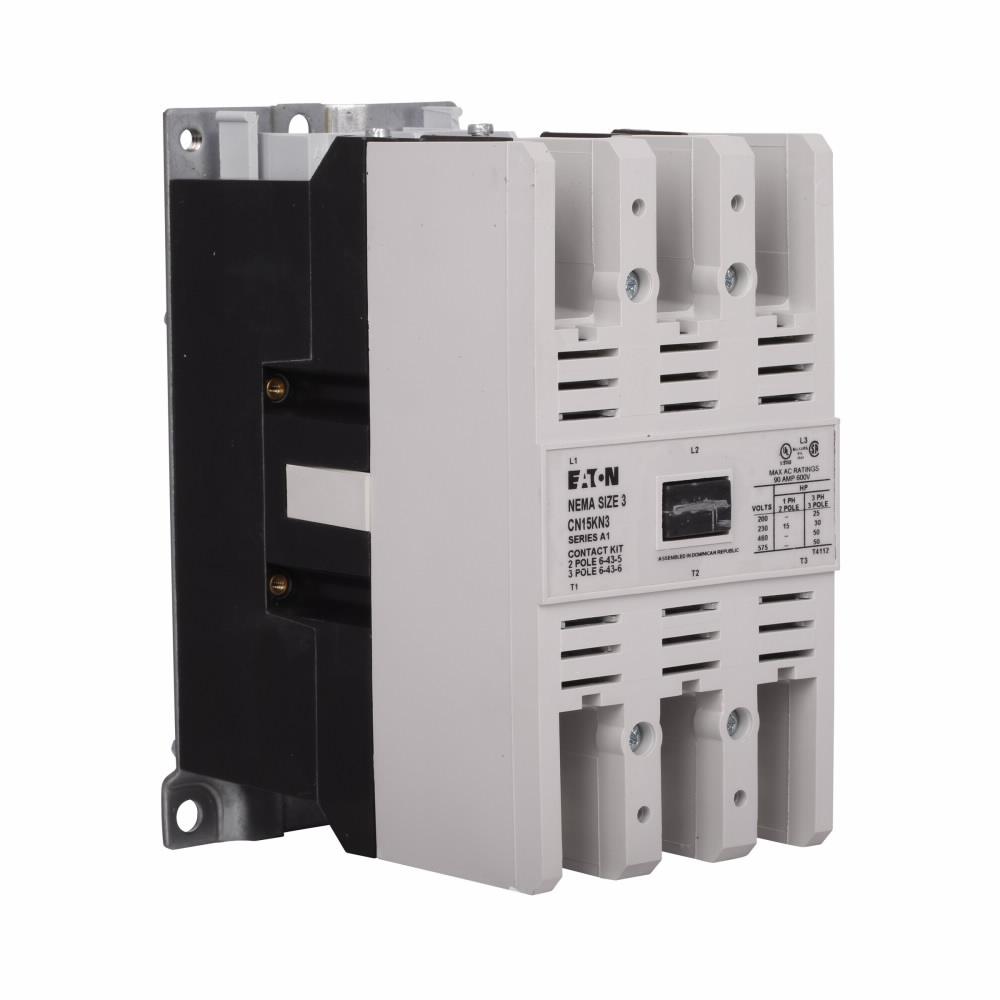

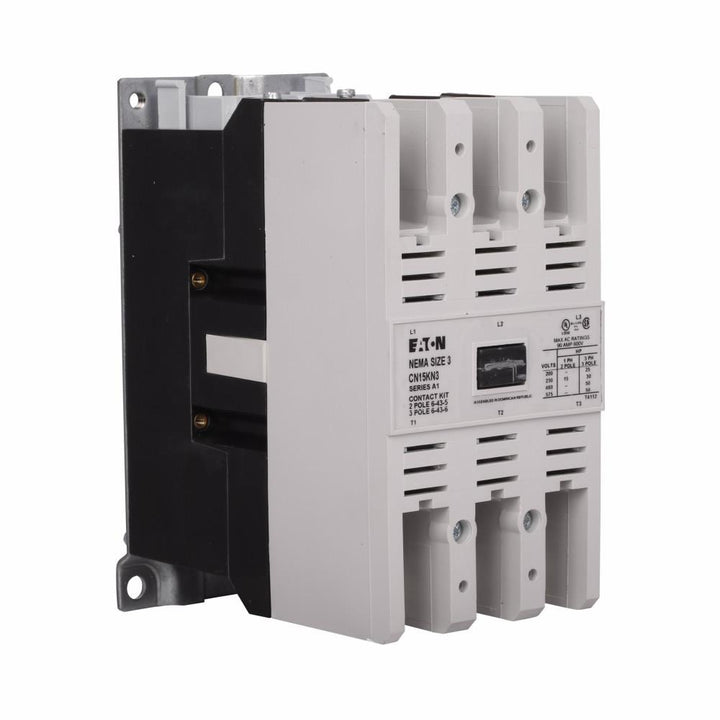

Cutler Hammer CN15KN3A is a three-pole contactor from the Freedom Series designed for reliable motor control and switching in demanding industrial environments. It features a 90A current rating and a 600V voltage rating, supporting three-phase motors up to 50 HP at 480V. The unit is constructed with a durable design, measuring 5.94 in x 7.17 in x 4.08 in and weighing 8 lb, and operates with a 110-120V AC control coil and one normally open auxiliary contact. It is certified to CSA and UL standards, ensuring compliance with North American safety requirements for industrial control applications such as HVAC systems, pumps, and compressors.
Key Features & Specifications
Type: 3-pole electromechanical contactor, Freedom Series
Voltage Rating: 600V AC
Current Rating: 90A Full Load
Phase: 3
Horse Power: 25 HP @ 208V, 30 HP @ 240V, 50 HP @ 480V
Coil Voltage: 110-120V AC
Aux Contacts: 1NO
Dimensions: 5.94 in (L) x 7.17 in (H) x 4.08 in (W)
