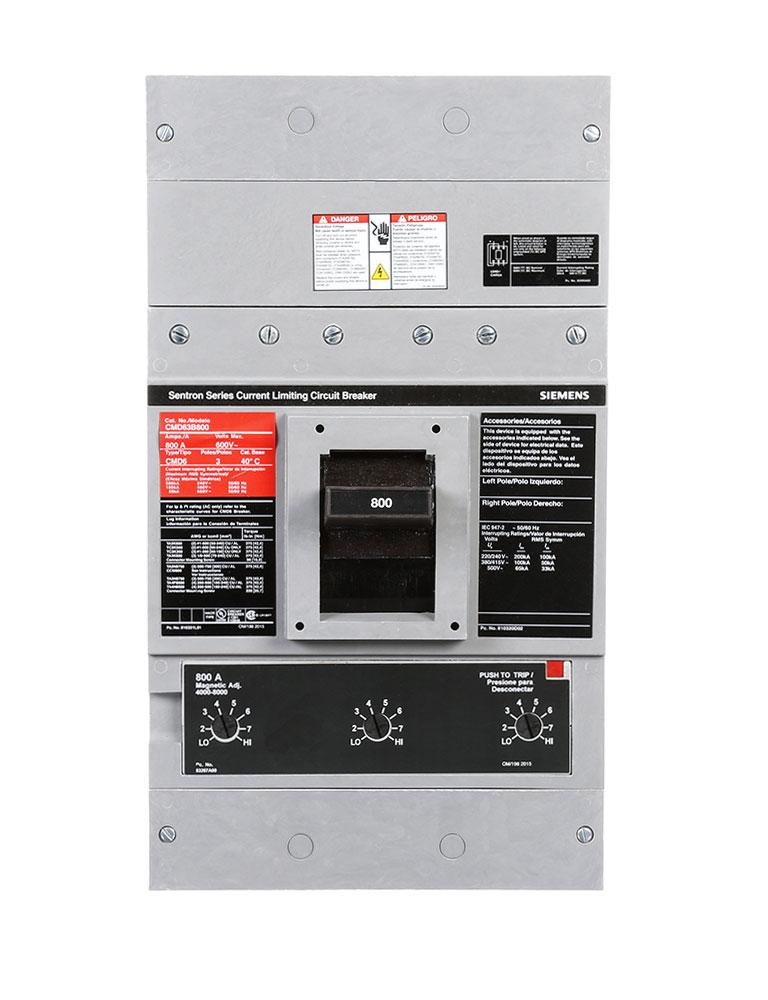

Siemens CMD63B800 - Molded Case Circuit Breaker 800A 600V 3P
Siemens CMD63B800 - Molded Case Circuit Breaker 800A 600V 3P

Siemens CMD63B800 - Molded Case Circuit Breaker 800A 600V 3P

Siemens
Price
Save $39,259.48
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Siemens CMD63B800 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in demanding three-phase industrial power distribution systems. It features a robust thermal-magnetic trip unit with long-time and instantaneous (LI) functions, rated for 800A continuous current and a maximum voltage of 600V AC. The breaker is constructed with a durable MD frame in a three-pole, bolt-on configuration, supporting conductor sizes from 1/0 AWG to 500 KCMIL for both copper and aluminum, and offers an interrupting capacity of 100kA at 480V. This Sentron Series device is engineered to meet stringent industry standards for safety and performance in commercial and industrial applications, including main feeder and branch circuit protection in switchboards and panelboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection with Long-Time and Instantaneous (LI) Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 800A
  • Frame Size: MD Frame
  • Poles: 3
  • Connection: Bolt-On
  • Wire Size Range: 1/0 AWG to 500 KCMIL (Copper/Aluminum)
  • AIC Rating: 100kA at 480V
  • Phase: 3
  • Weight: 56.639 lb
  • Standards: Designed to meet applicable industry standards for circuit protection
  • Applications: Main and feeder protection in industrial and commercial power distribution systems
  • Additional Info: Lugs are not included


Product Identification
  • UPC: 783643215061
  • GTIN: 00783643215061
