Eaton CL120 - 20A 1-Pole Circuit Breaker (10kA AIC)
Eaton CL120 - 20A 1-Pole Circuit Breaker (10kA AIC)

Eaton CL120 - 20A 1-Pole Circuit Breaker (10kA AIC)

Eaton
Price
Save $59.10
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

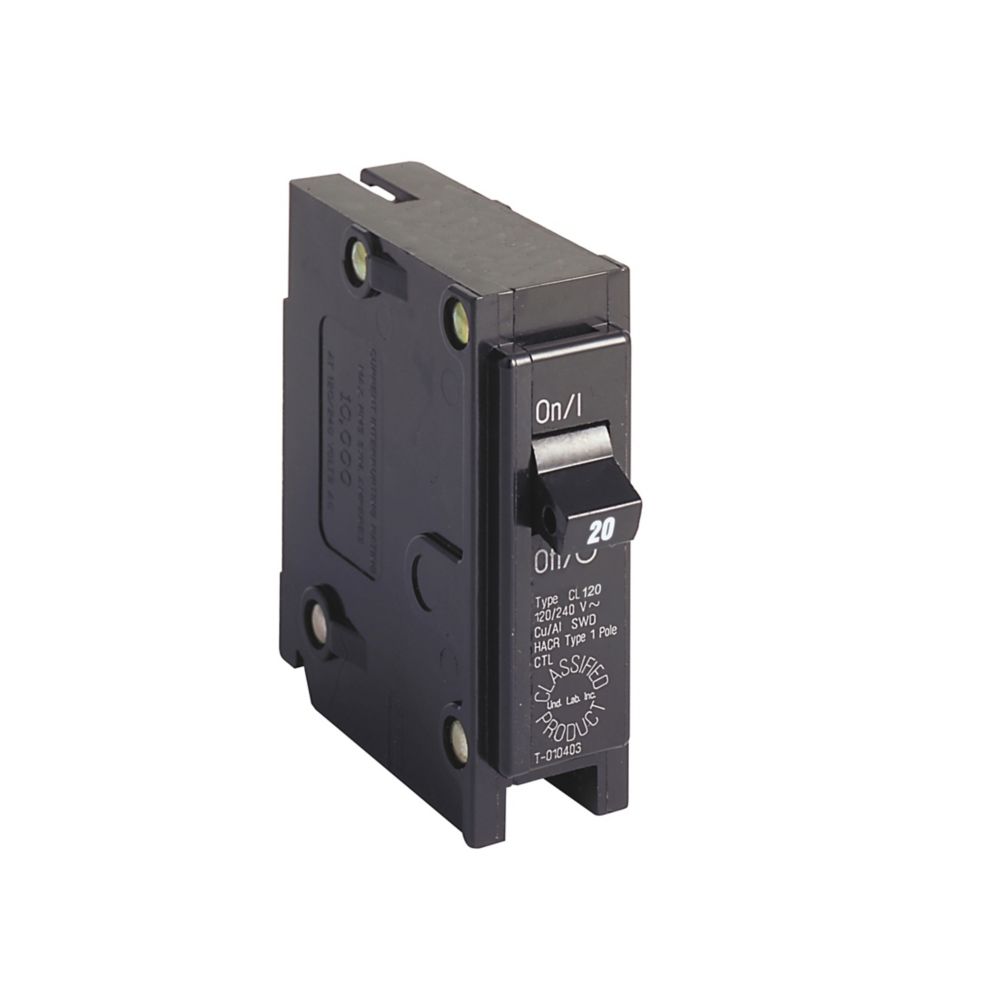

Eaton CL120 is a single-pole, plug-in molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in 120V AC residential and light commercial electrical systems. It features a 20A current rating and a 10kA interrupting capacity at 120V, utilizing a thermal-magnetic trip mechanism for both long-time delay and instantaneous protection functions. The compact unit measures 3" x 3" x 1" and is constructed for straightforward installation in Type CH loadcenters, accepting wire sizes from 14 AWG to 4 AWG. This breaker is UL 489 listed and is engineered for dependable performance in branch circuit applications, ensuring compliance with industry safety standards.

Key Features & Specifications
  • Type: CL Series, Molded Case, Thermal-Magnetic Protection
  • Voltage Rating: 120V AC
  • Current Rating: 20A
  • Dimensions: 3 in (L) x 3 in (H) x 1 in (W)
  • Standards: UL 489
  • Applications: Branch circuit protection in Type CH Loadcenters
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Poles: 1
  • Phase: 1
  • AIC Rating: 10kA @ 120V
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Breaker Type: CL
  • Panel Type: Type CH Loadcenters
  • Connection: Plug-In
  • Certification: UL 489
  • MCM Size: Min. 14 AWG, Max. 4 AWG (Cu/Al)
  • Weight: 0.3 lb
  • Country of Origin: United States


Product Identification
  • UPC: 786676011556
  • GTIN: 00786685211176
