Siemens CJD63B350 - Molded Case Circuit Breaker, 350A, 600V
Siemens CJD63B350 - Molded Case Circuit Breaker, 350A, 600V

Siemens CJD63B350 - Molded Case Circuit Breaker, 350A, 600V

Siemens
Price
Save $16,667.61
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price

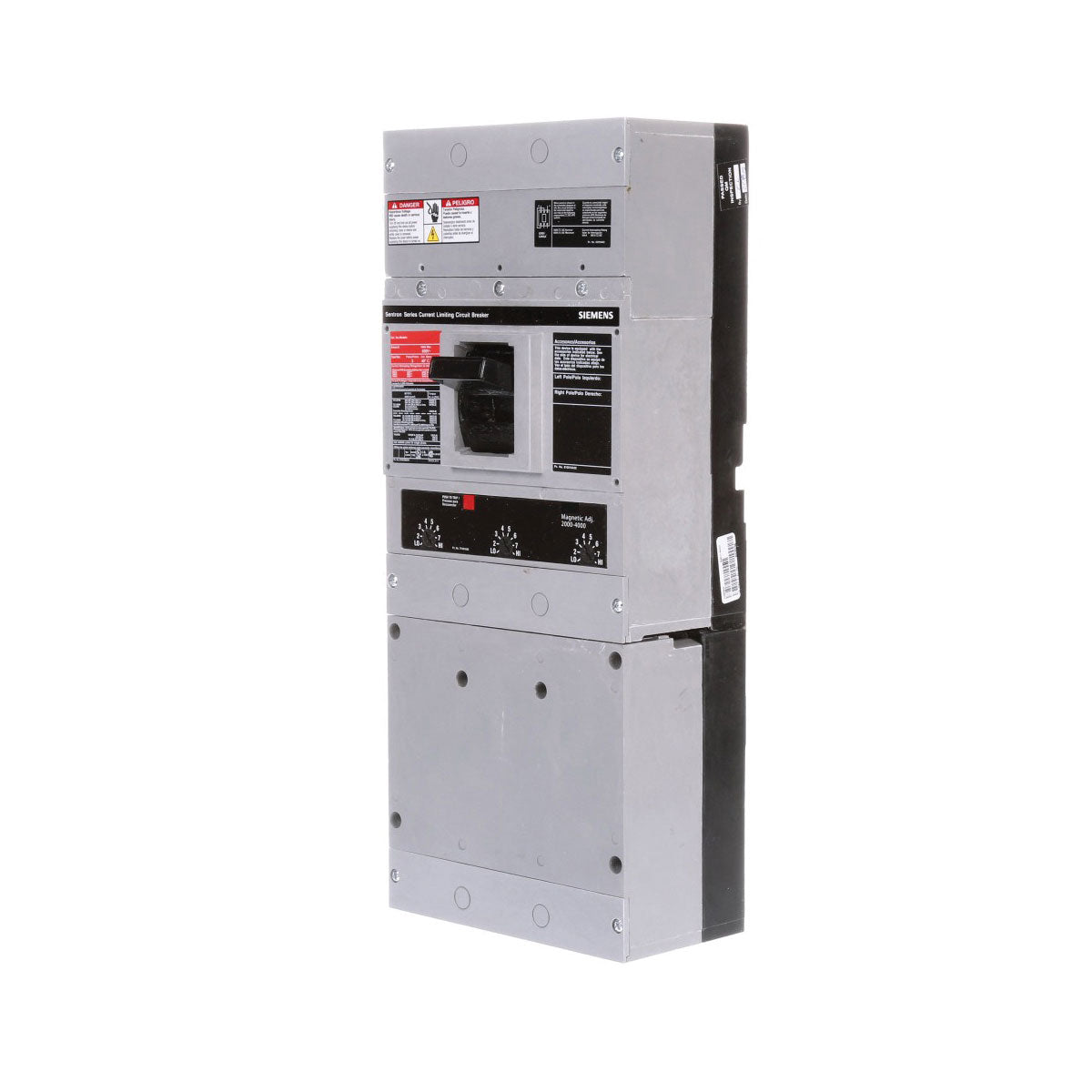

Siemens CJD63B350 is a molded case circuit breaker from the Sentron Series designed to provide reliable overcurrent and short-circuit protection for three-phase industrial power distribution systems. It features a 350A current rating and a 600V AC voltage rating, housed within a robust JD frame with a bolt-on connection for secure installation. This thermal magnetic breaker offers both long-time and instantaneous trip functions, is rated for 150kA interrupting capacity at 480V, and operates reliably across a temperature range of -25 to 70 °C. It is engineered for compatibility with copper conductors from AWG 3/0 to 500 KCMIL and aluminum conductors from AWG 4/0 to 500 KCMIL, ensuring versatile application in commercial and industrial panelboards and switchgear.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Long Time and Instantaneous Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 350A
  • Frame Size: JD Frame
  • Poles: 3
  • Connection: Bolt-On
  • AIC Rating: 150kA at 480V
  • Phase: 3
  • Wire Size: AWG 3/0 to 500 KCMIL (Copper), AWG 4/0 to 500 KCMIL (Aluminum)
  • Operating Temperature: -25 to 70 °C (-13 to 158 °F)
  • Weight: 33.246 lb
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643213609
  • GTIN: 00783643213609
