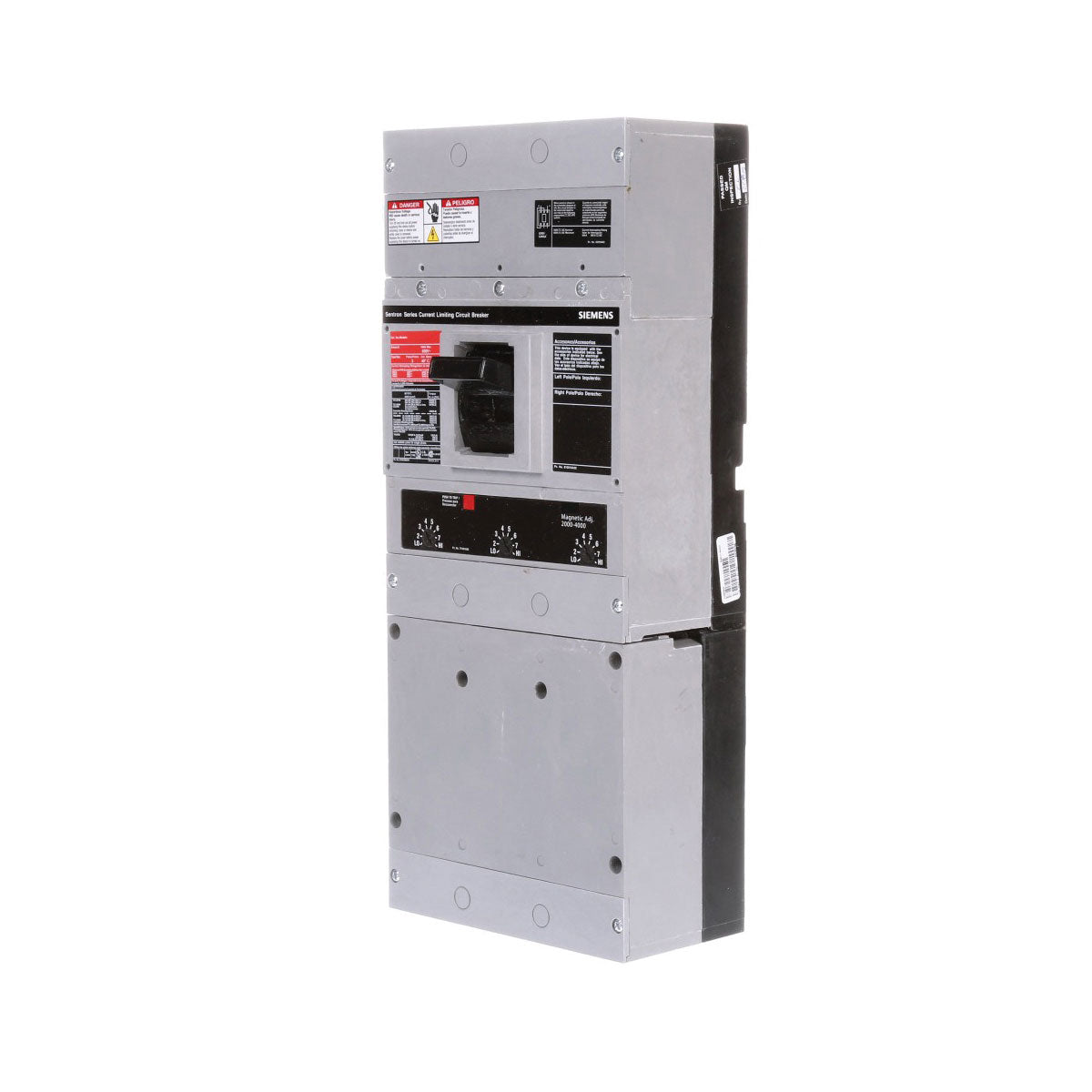

Siemens CJD63B225 - Molded Case Circuit Breaker, 225A 600V 3P
Siemens CJD63B225 - Molded Case Circuit Breaker, 225A 600V 3P

Siemens CJD63B225 - Molded Case Circuit Breaker, 225A 600V 3P

Siemens
Price
Save $12,052.43
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens CJD63B225 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 225A continuous current rating and a 600V AC voltage rating, housed within a robust JD frame with a bolt-on connection for secure installation. The breaker utilizes a thermal-magnetic trip unit offering both long-time and instantaneous protection functions and is constructed to operate across a temperature range of -25 to 70 °C. It complies with industry standards for interrupting a 150kA fault current at 480V and is engineered for integration into panelboards and switchboards requiring protection for conductors sized from 3/0 AWG to 500 kcmil for copper or 4/0 AWG to 500 kcmil for aluminum.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Long Time and Instantaneous Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 225A
  • Frame Size: JD Frame
  • Poles: 3
  • Connection: Bolt-On
  • AIC Rating: 150kA at 480V
  • Phase: 3
  • Wire Size: 3/0 AWG - 500 kcmil (Copper), 4/0 AWG - 500 kcmil (Aluminum)
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Weight: 32.9 lb
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643213579
  • GTIN: 00783643213579
