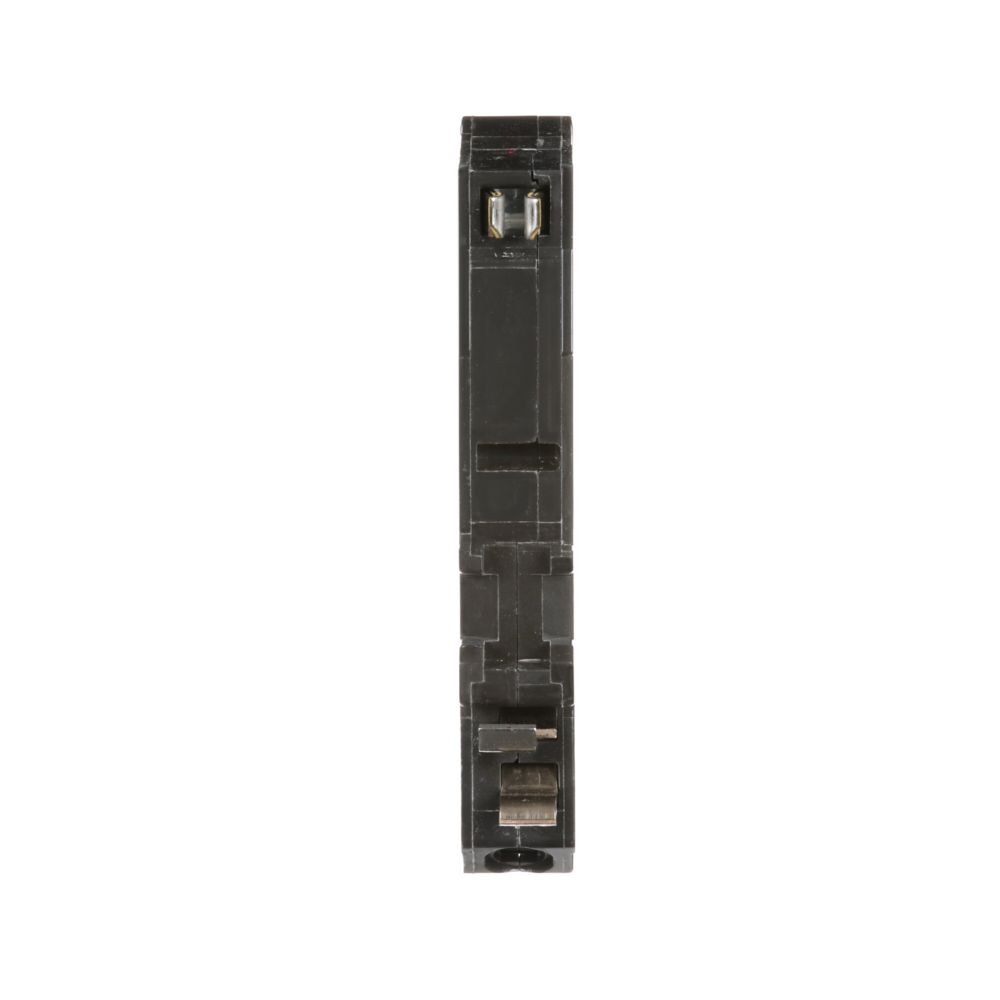

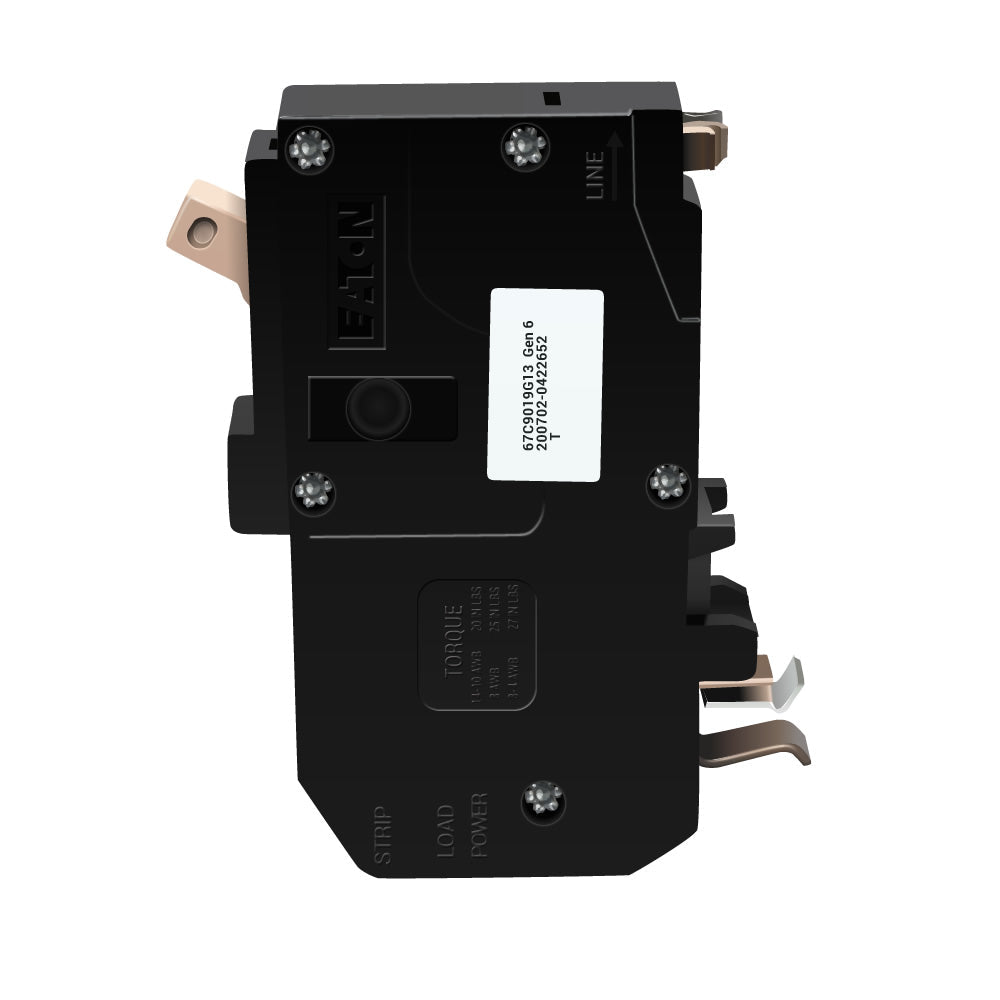

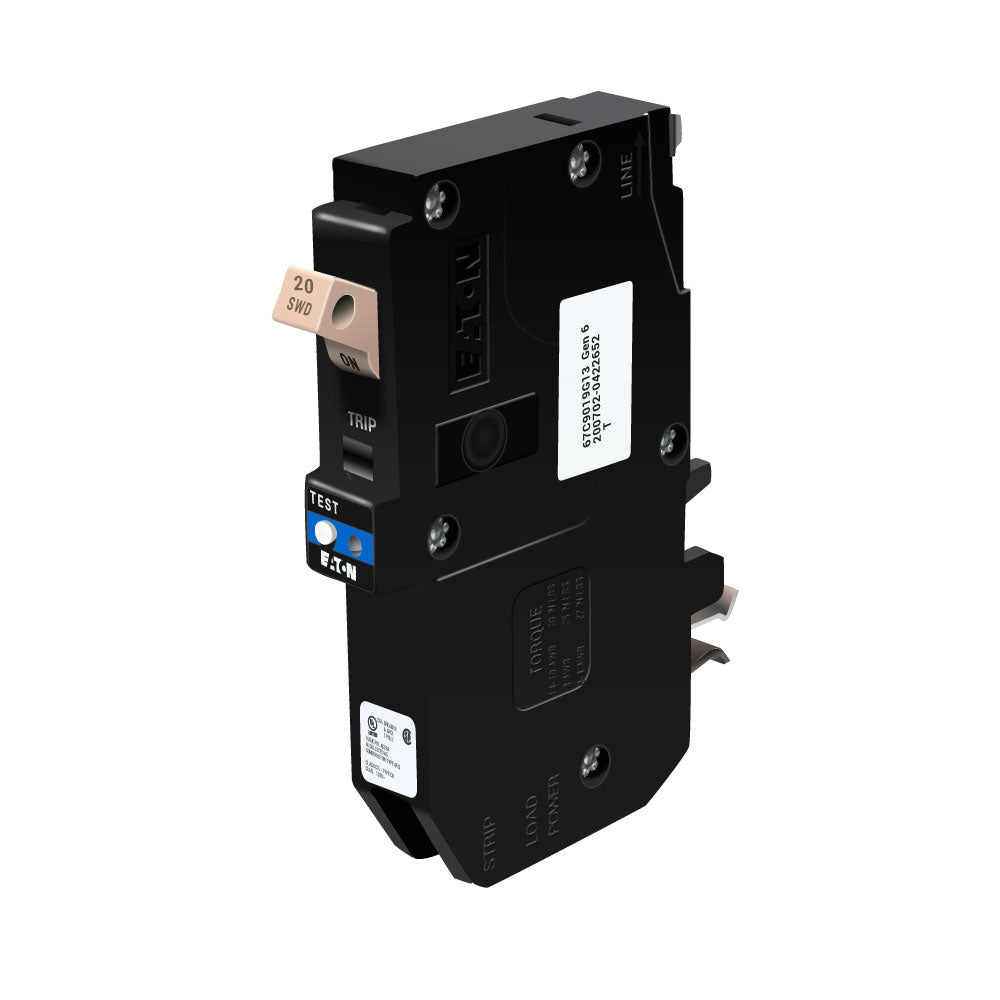

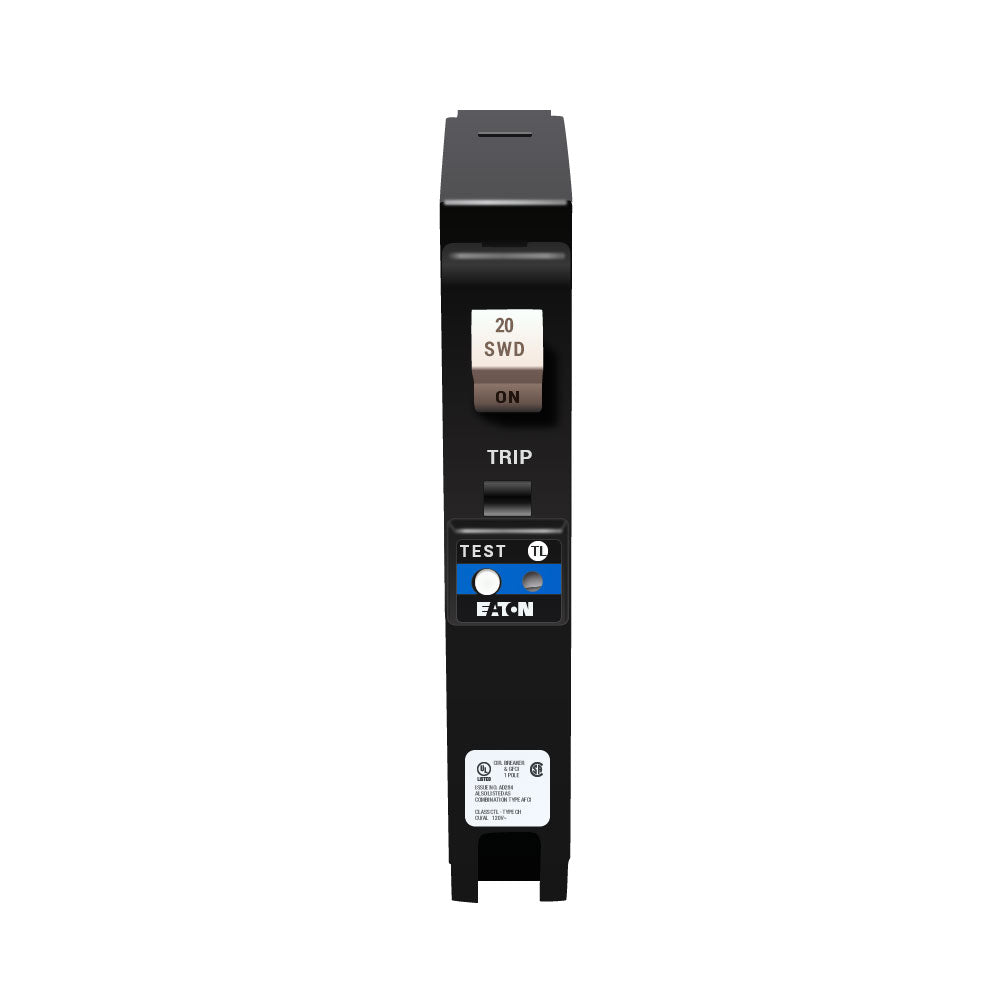

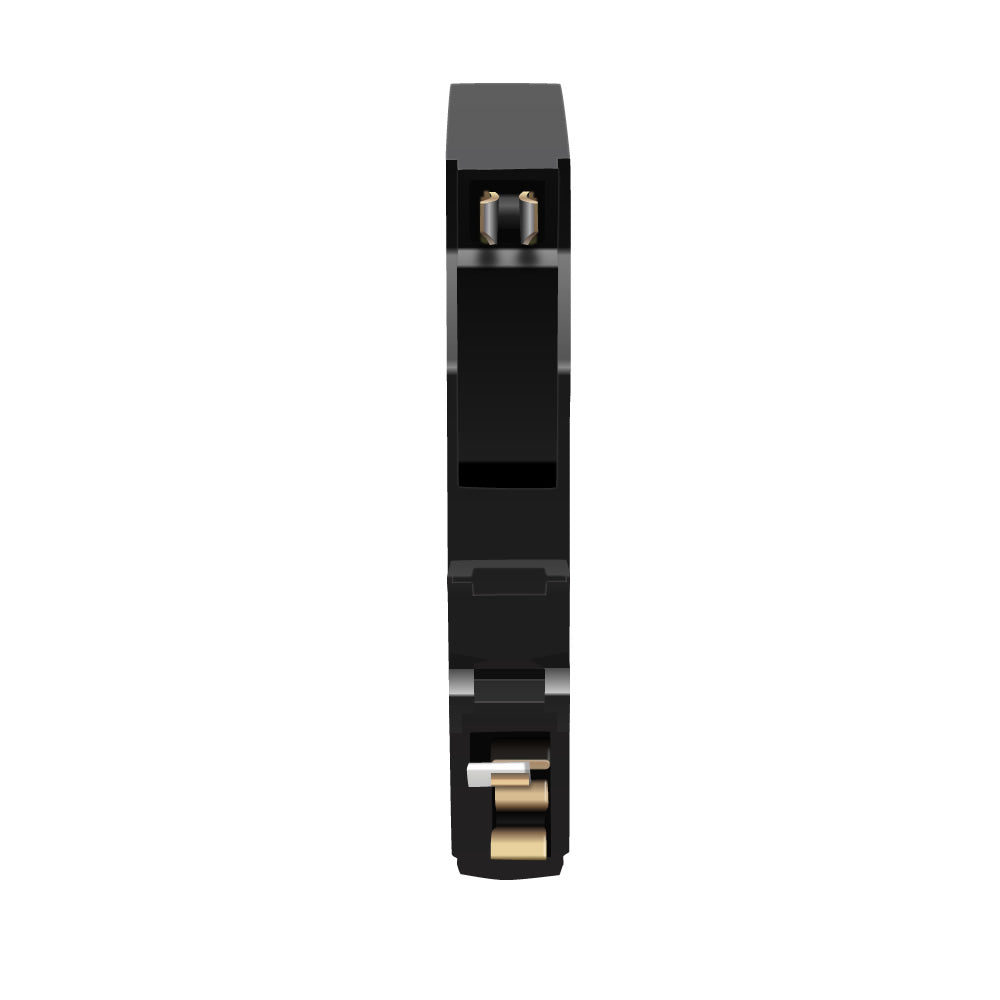

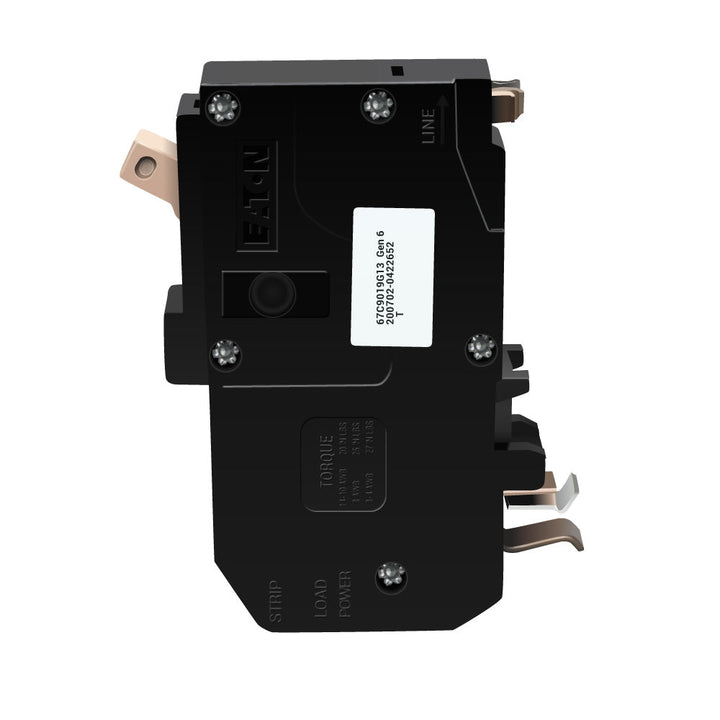

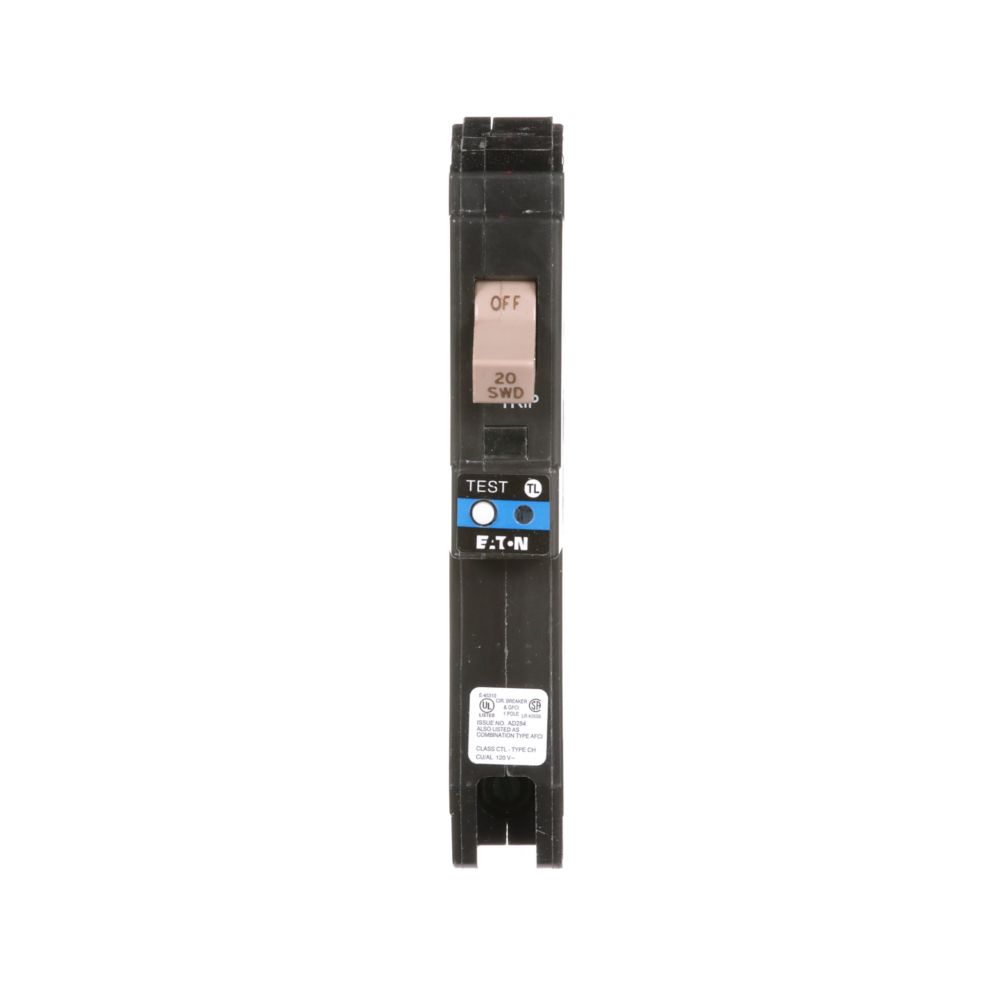

Eaton CHFP120DF is a molded case circuit breaker designed for providing reliable overcurrent protection in single-phase electrical systems. It features a 20A current rating and a 120V voltage rating, housed in a compact plug-in configuration measuring 3.4 in x 1.2 in x 0.75 in (L/D x H x W) and weighing 0.45 lb. This UL Listed device utilizes a thermal-magnetic trip mechanism for both long-time and instantaneous (LI) protection, with an interrupting capacity of 10kA at 120V. It is engineered for compliance with industry standards and is typically applied in industrial and commercial panelboards for branch circuit protection.
Key Features & Specifications
Type: Molded Case Circuit Breaker, CHFP type, plug-in connection
Voltage Rating: 120V AC
Current Rating: 20A
Dimensions: 3.4 in x 1.2 in x 0.75 in (Length/Depth x Height x Width)
Standards: UL Listed
Applications: Industrial and commercial branch circuit protection
Switch Type: Circuit Breaker
Configuration: Plug-In
Phase: 1
Poles: 1
Protection: Thermal Magnetic
Functions: LI - Long-Time and Instantaneous
Breaker Type: CH Frame
AIC rating: 10kA@120V
Weight: 0.45 lb
Family: CH Series
Country of Origin: Dominican Republic
Product Identification
UPC: 786689058968
GTIN: 00786689058968
