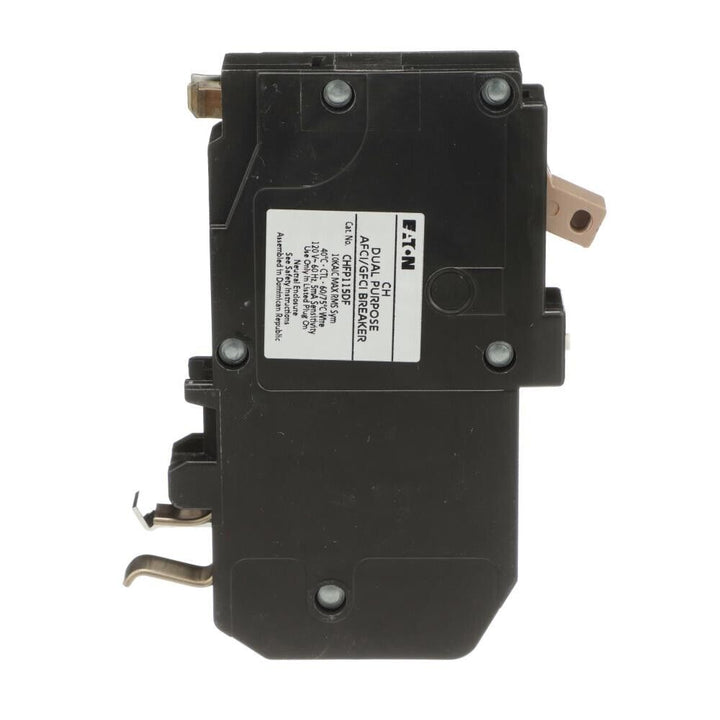

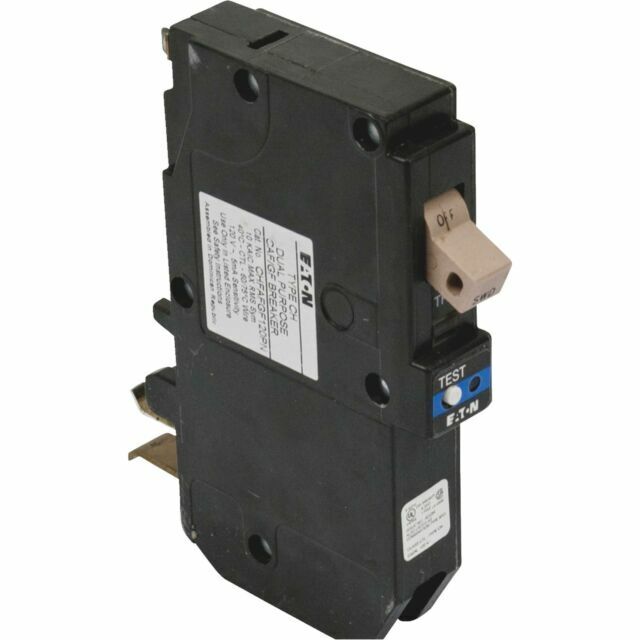

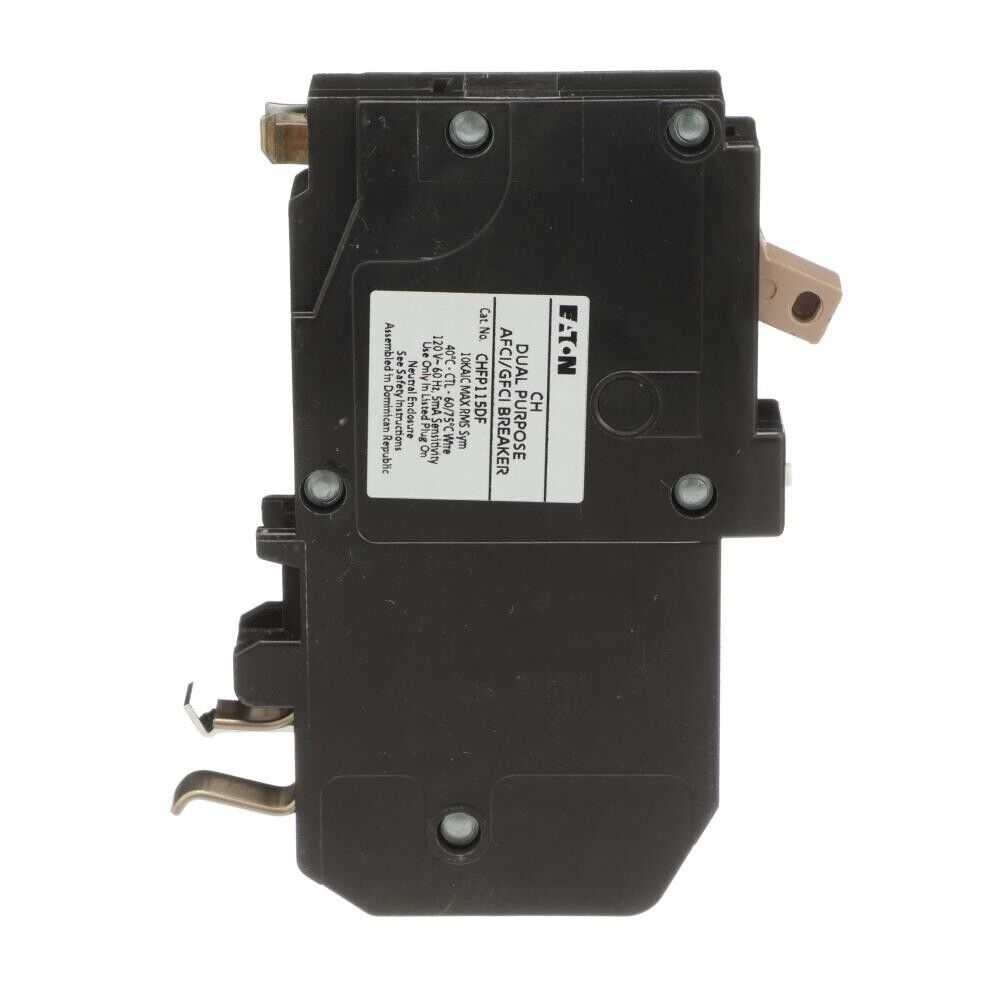

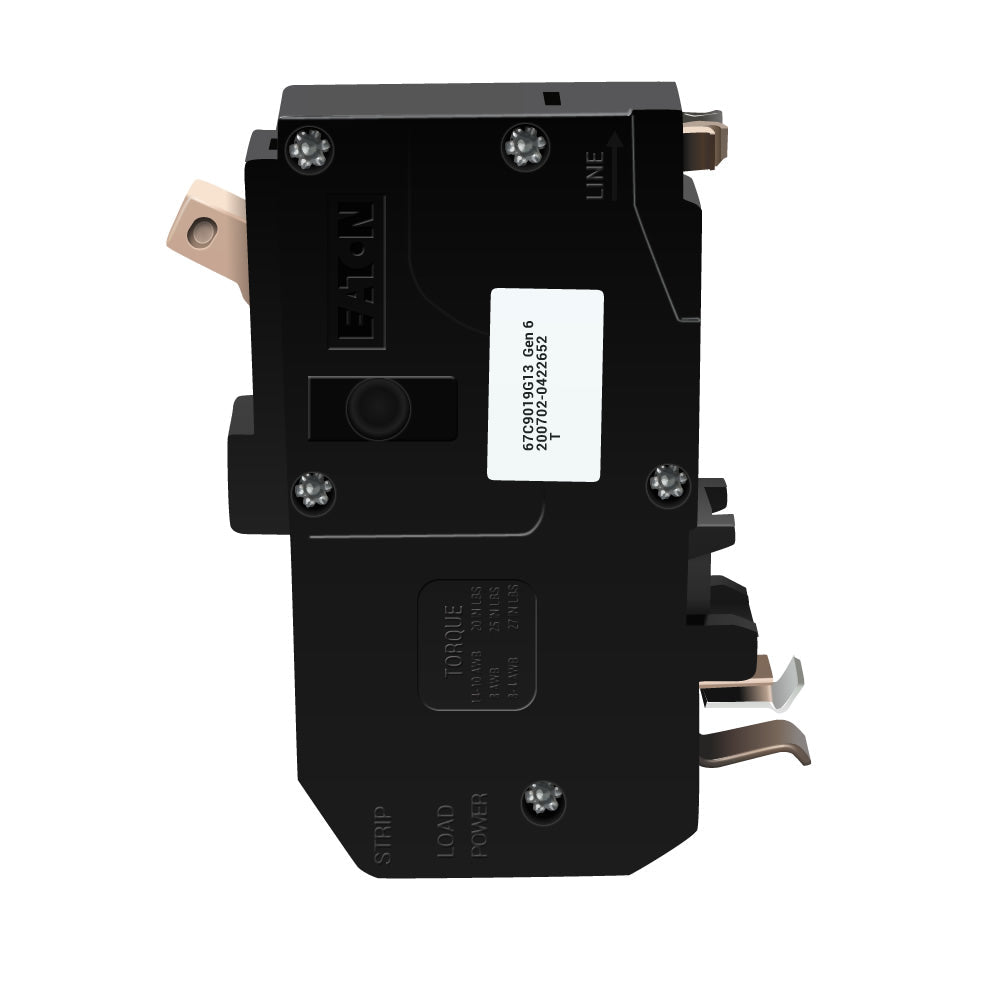

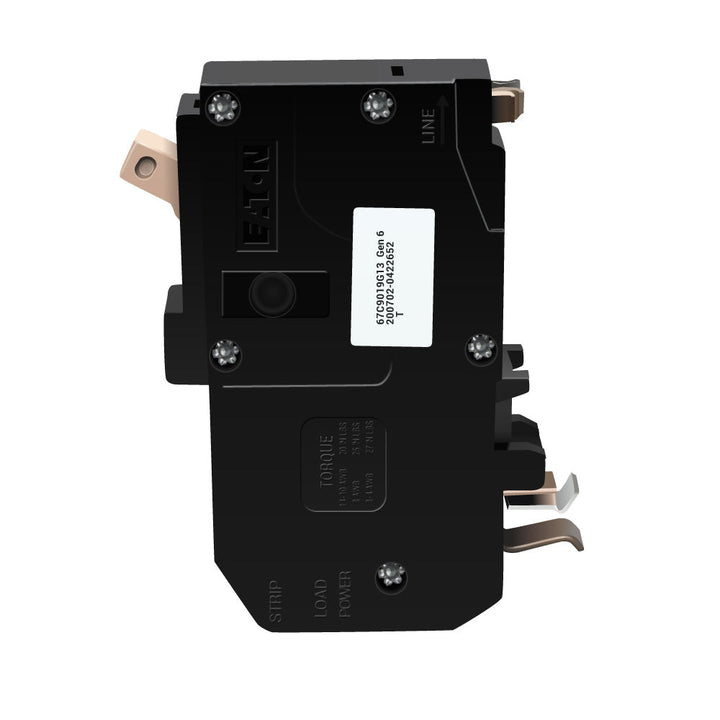

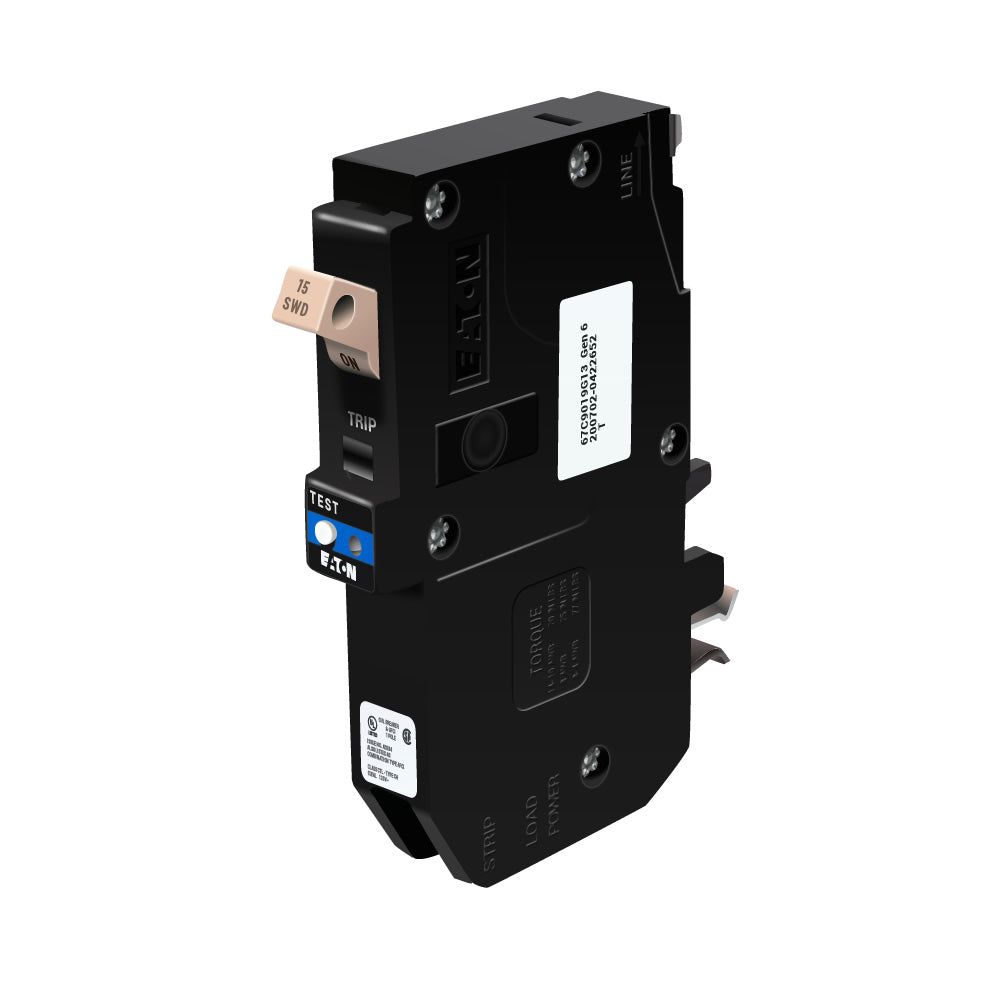

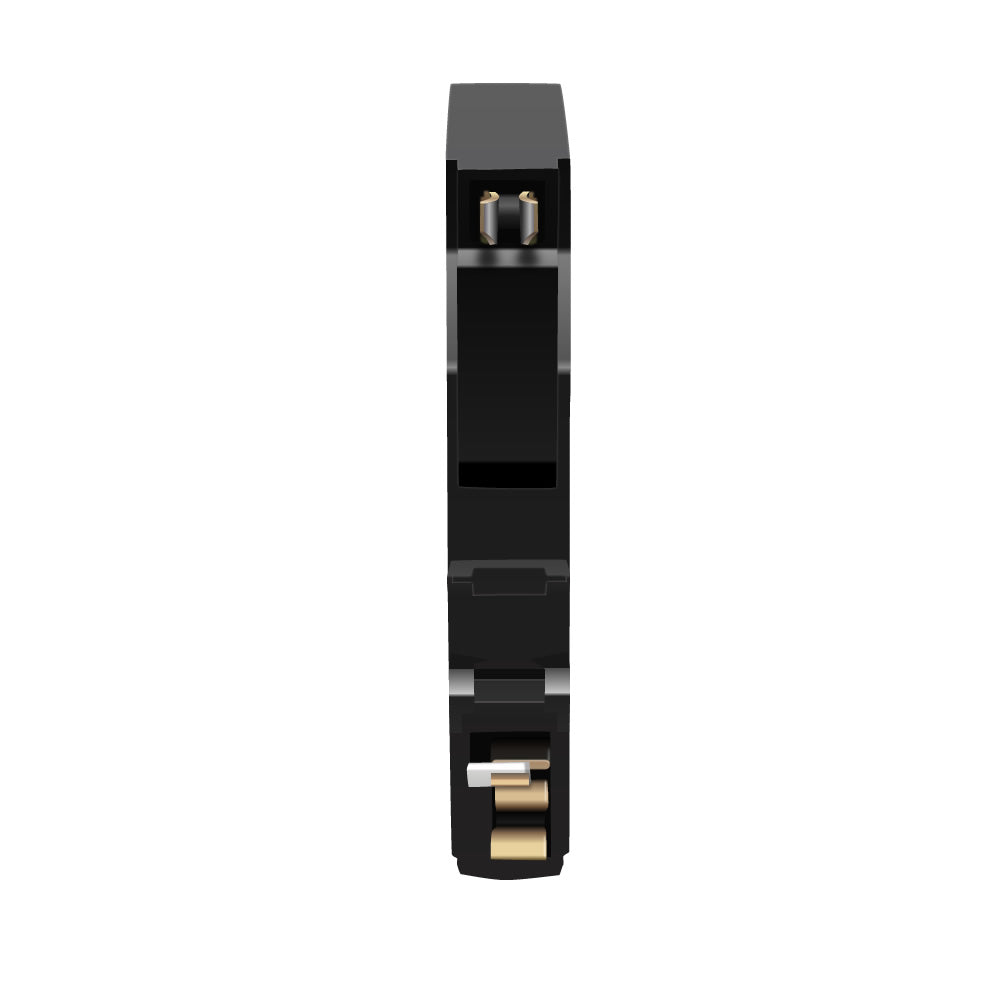

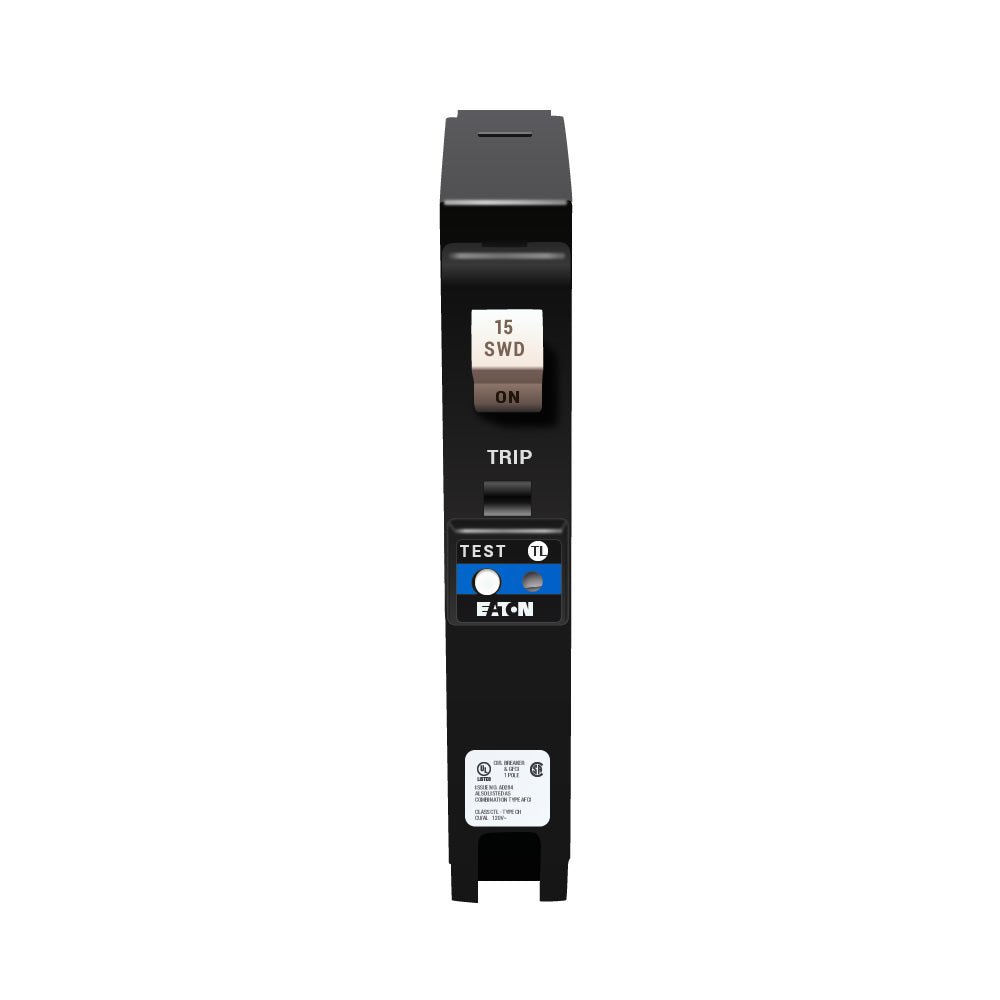

Eaton CHFP115DF - CH Series 15A Circuit Breaker (10kA AIC, 120V)
Eaton CHFP115DF - CH Series 15A Circuit Breaker (10kA AIC, 120V)
Eaton CHFP115DF - CH Series 15A Circuit Breaker (10kA AIC, 120V)
Eaton CHFP115DF - CH Series 15A Circuit Breaker (10kA AIC, 120V)
Eaton CHFP115DF - CH Series 15A Circuit Breaker (10kA AIC, 120V)
Eaton CHFP115DF - CH Series 15A Circuit Breaker (10kA AIC, 120V)
Eaton CHFP115DF - CH Series 15A Circuit Breaker (10kA AIC, 120V)
Eaton CHFP115DF - CH Series 15A Circuit Breaker (10kA AIC, 120V)
Eaton CHFP115DF - CH Series 15A Circuit Breaker (10kA AIC, 120V)
Eaton CHFP115DF - CH Series 15A Circuit Breaker (10kA AIC, 120V)
Eaton CHFP115DF - CH Series 15A Circuit Breaker (10kA AIC, 120V)
Eaton CHFP115DF - CH Series 15A Circuit Breaker (10kA AIC, 120V)

Eaton CHFP115DF - CH Series 15A Circuit Breaker (10kA AIC, 120V)

Eaton
Price
Save $624.08
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton CHFP115DF is a single-pole, plug-in molded case circuit breaker designed for providing reliable overcurrent protection in 120V AC residential and light commercial electrical panels. It features a 15A thermal-magnetic trip unit with long-time and instantaneous (LI) functions for protection against both overloads and short circuits, with an interrupting capacity of 10kA at 120V. The compact unit measures 3.4" x 1.2" x 0.75" (L x H x W), weighs 0.45 lb, and utilizes a plug-on neutral terminal connection for simplified installation. This UL-listed breaker is constructed to meet industry safety standards and is typically applied in load centers and panelboards for branch circuit protection.

Key Features & Specifications
  • Type: CH Series, Molded Case, Thermal Magnetic Protection, Plug-In Connection
  • Voltage Rating: 120V AC
  • Current Rating: 15A
  • Dimensions: 3.4 in x 1.2 in x 0.75 in (Length/Depth x Height x Width)
  • Standards: UL Listed
  • Applications: Residential & Light Commercial Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Single-Pole
  • Phase: 1
  • AIC Rating: 10kA @ 120V
  • Connection: Plug-In
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous)
  • Breaker Type: CH
  • Terminal Connection: Plug-On Neutral
  • Certification: UL
  • Weight: 0.45 lb


Product Identification
  • UPC: 786689058937
  • GTIN: 00786689058937
