Westinghouse CHF215 is a molded case circuit breaker designed for providing reliable overcurrent protection in residential and light commercial electrical systems. It features a 15A current rating and a 240V AC voltage rating, housed within a compact, plug-in unit measuring 1.5 in x 2.6 in x 1.5 in and weighing 0.5 lb. This thermal magnetic breaker complies with UL 489 standards and is HACR rated, ensuring safe operation for air conditioning and heating equipment. Its typical application is within Type CH loadcenters, where it protects 1-phase branch circuits using a combination of long-time and instantaneous trip functions.
Key Features & Specifications
Type: Molded Case, Thermal Magnetic Protection, Plug-In Connection
Voltage Rating: 240V AC
Current Rating: 15A
Dimensions: 1.5 in (D) x 2.6 in (H) x 1.5 in (W)
Standards: UL 489, HACR Rated
Applications: Type CH Loadcenters for Residential/Light Commercial
Breaker Type: CHF
Phase: 1
Poles: 2
Protection: Thermal Magnetic
Functions: LI - Long-Time and Instantaneous Trip
Connection: Plug-In
AIC Rating: 10kA @ 120V
Wire Size: 2x AWG 14 to AWG 10 (Cu/Al), 1x AWG 14 to AWG 8
Certification: UL Listed
Family: CH Series
Weight: 0.5 lb
Product Identification
UPC: 78668536187
GTIN: 00786685361871
Same-day Shipping Available
Same-day Delivery Availabile
24/7 Customer Support

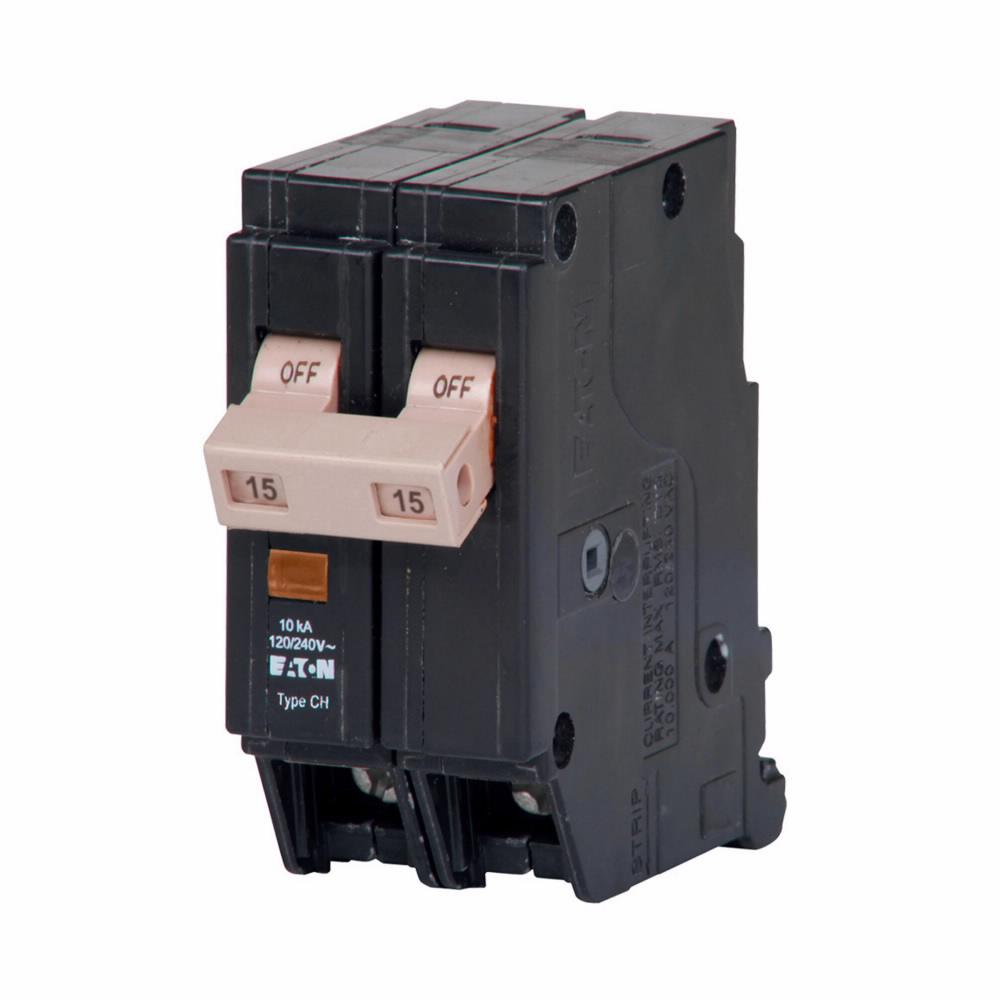

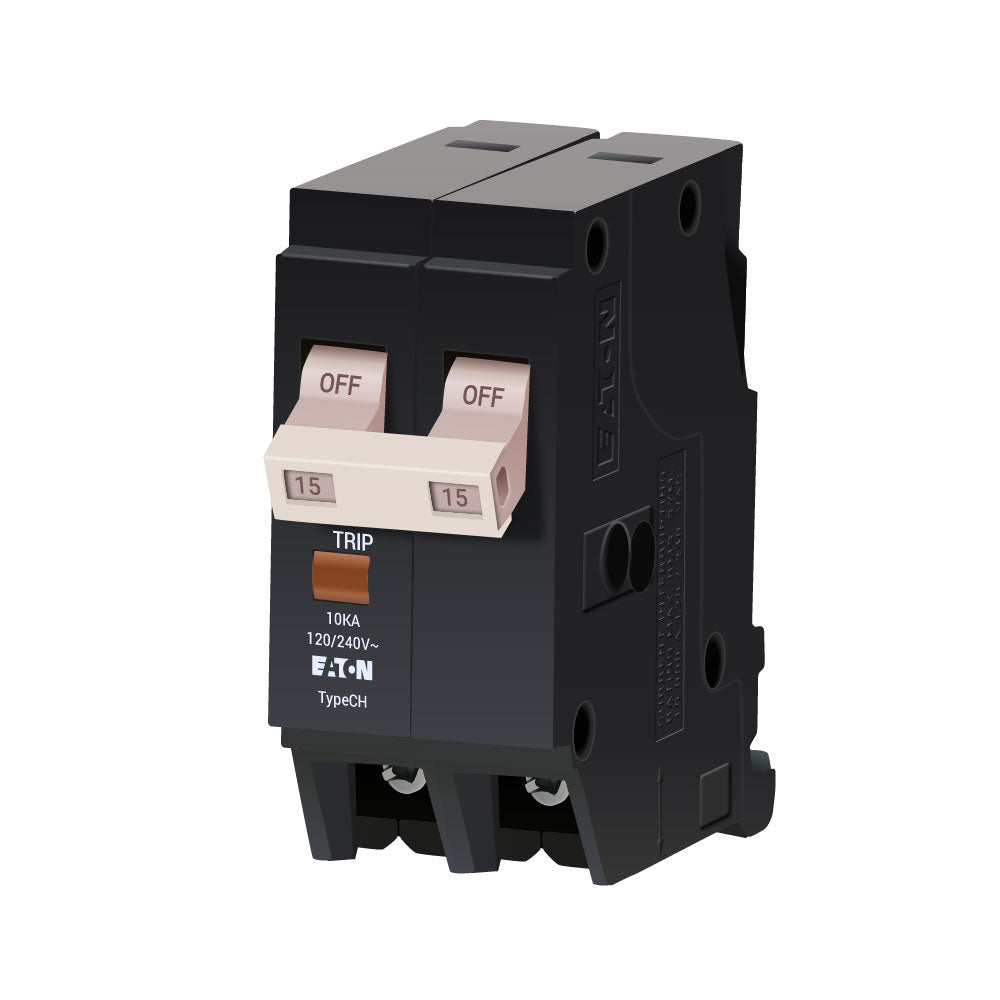

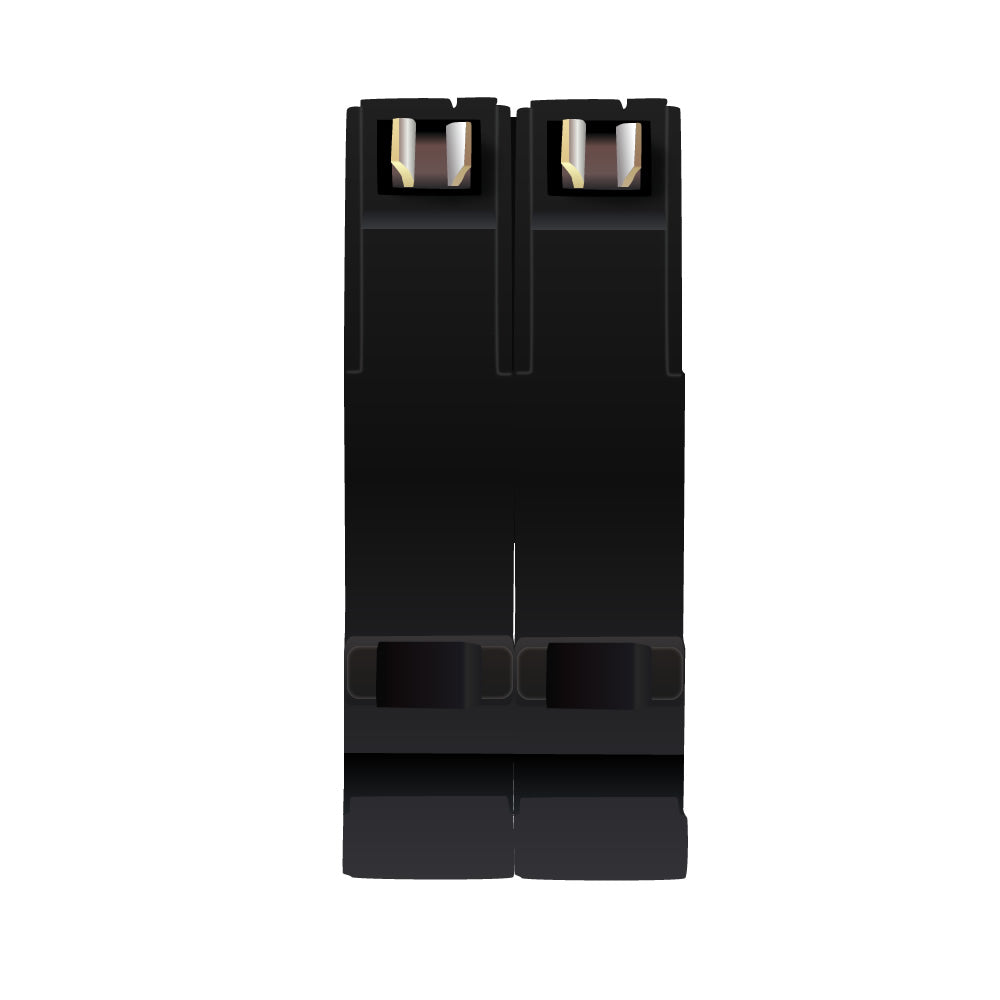

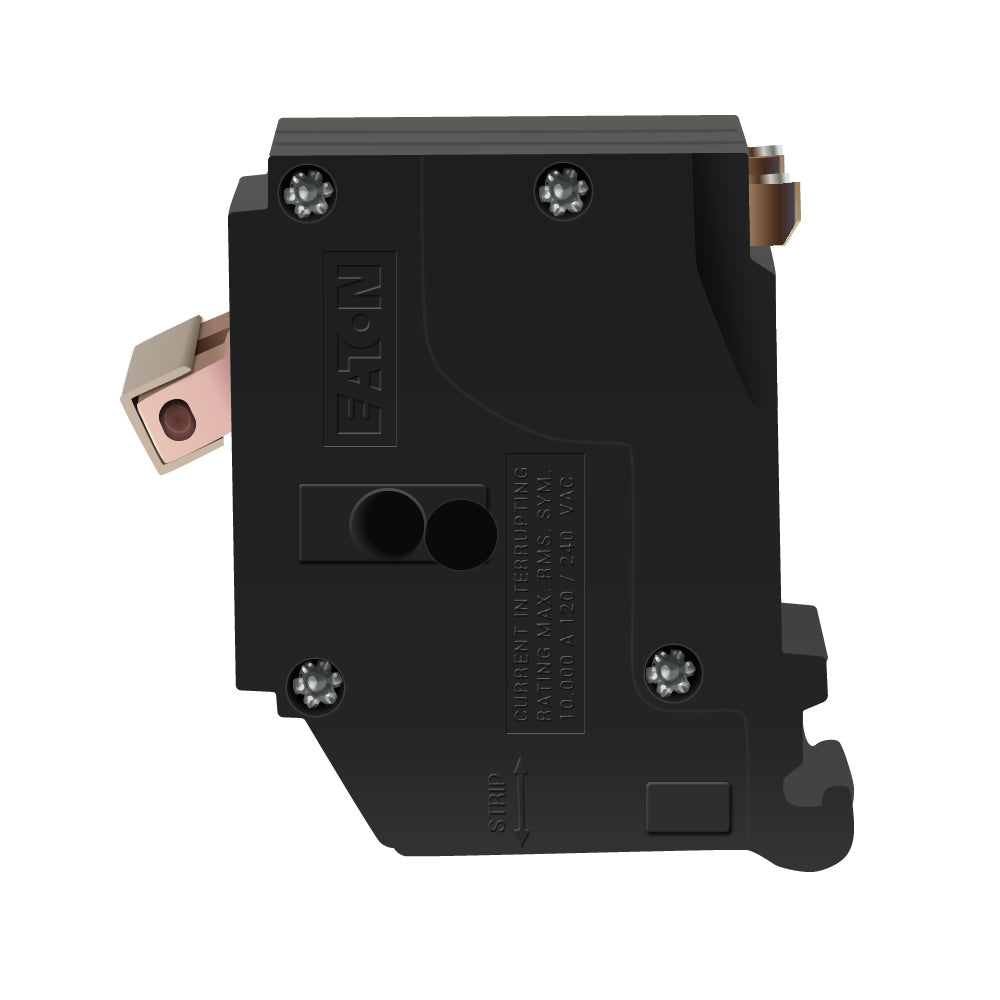

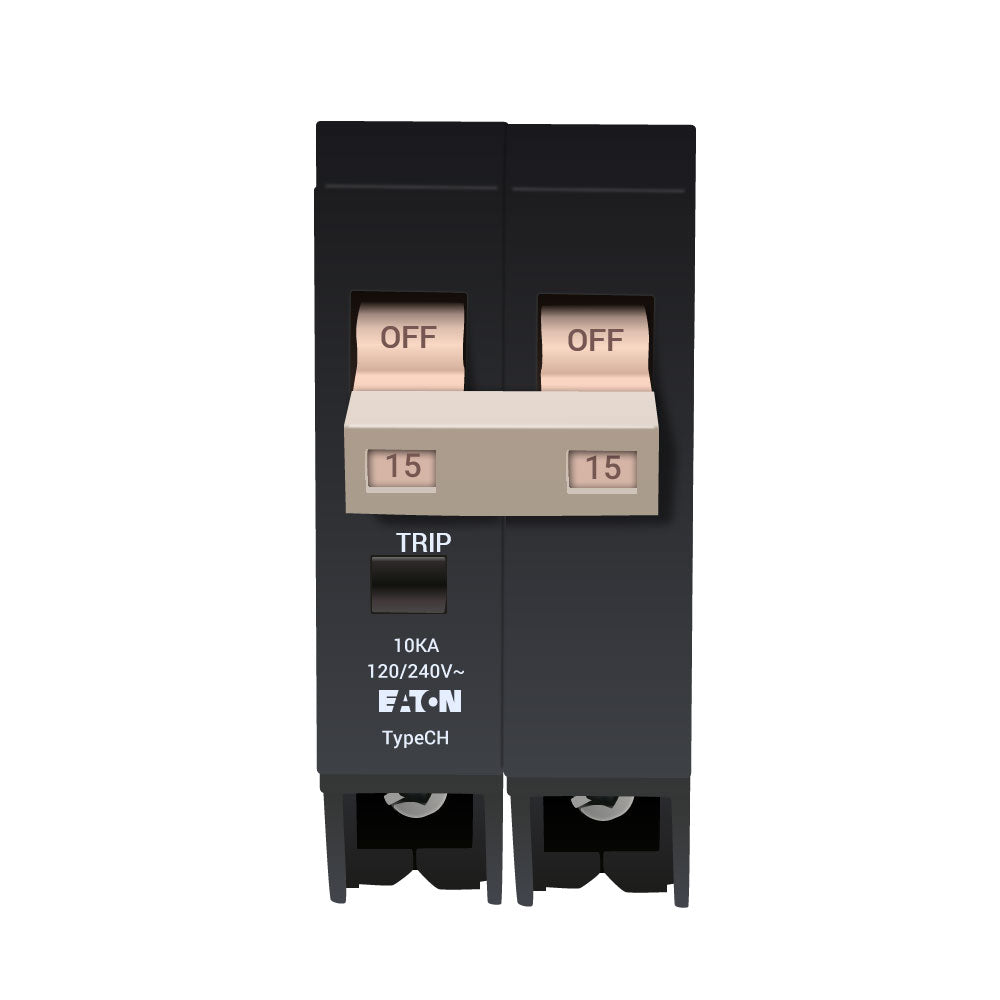

Westinghouse CHF215 - 15A 2-Pole Thermal Magnetic Circuit Breaker
