Westinghouse CHF130 - Molded Case Circuit Breaker 30A 1-Pole
Westinghouse CHF130 - Molded Case Circuit Breaker 30A 1-Pole
Westinghouse CHF130 - Molded Case Circuit Breaker 30A 1-Pole
Westinghouse CHF130 - Molded Case Circuit Breaker 30A 1-Pole
Westinghouse CHF130 - Molded Case Circuit Breaker 30A 1-Pole
Westinghouse CHF130 - Molded Case Circuit Breaker 30A 1-Pole
Westinghouse CHF130 - Molded Case Circuit Breaker 30A 1-Pole
Westinghouse CHF130 - Molded Case Circuit Breaker 30A 1-Pole
Westinghouse CHF130 - Molded Case Circuit Breaker 30A 1-Pole
Westinghouse CHF130 - Molded Case Circuit Breaker 30A 1-Pole

Westinghouse CHF130 - Molded Case Circuit Breaker 30A 1-Pole

Eaton
Price
Save $57.82
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

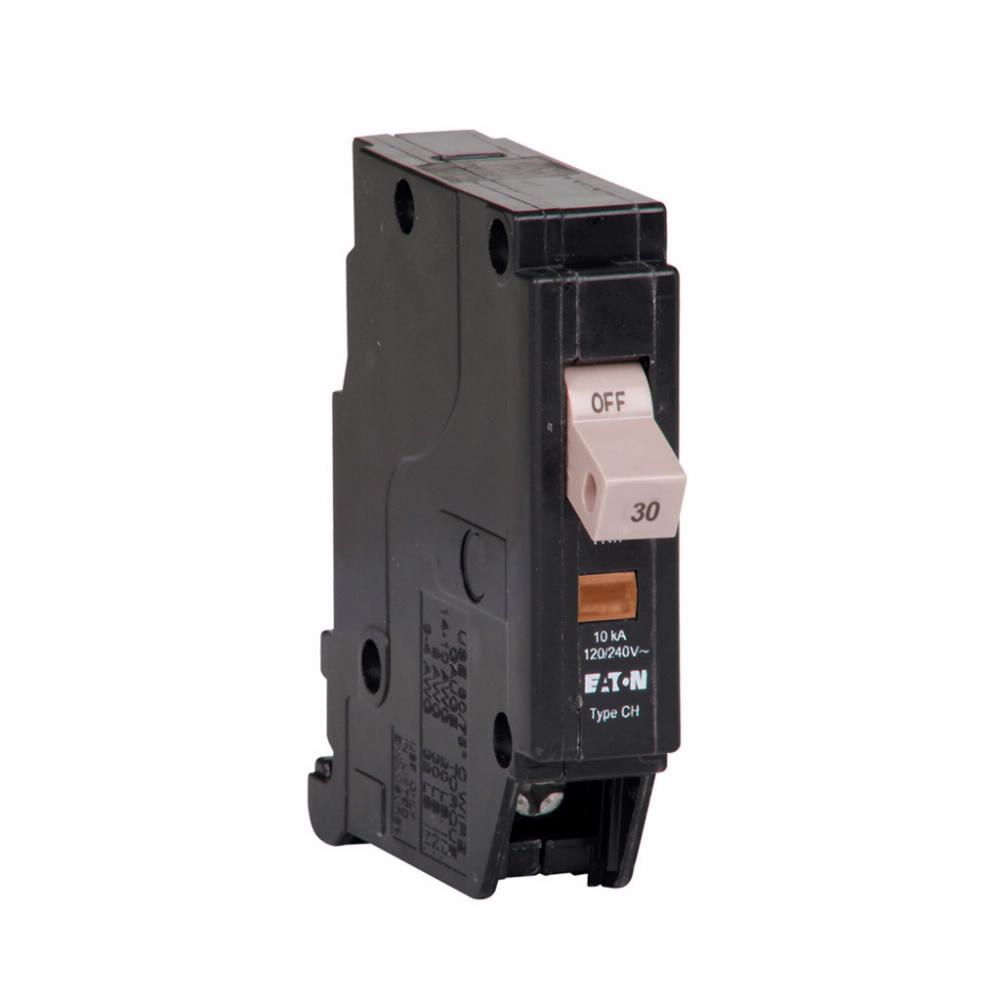

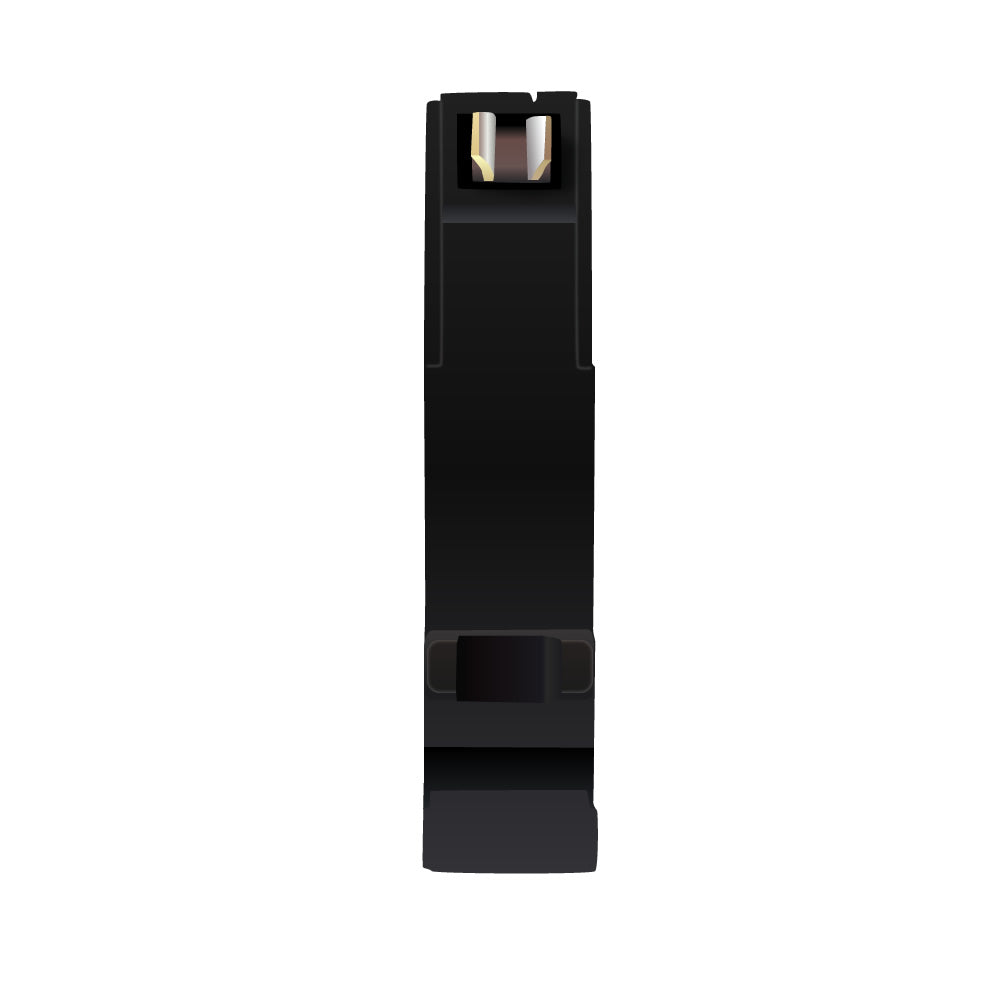

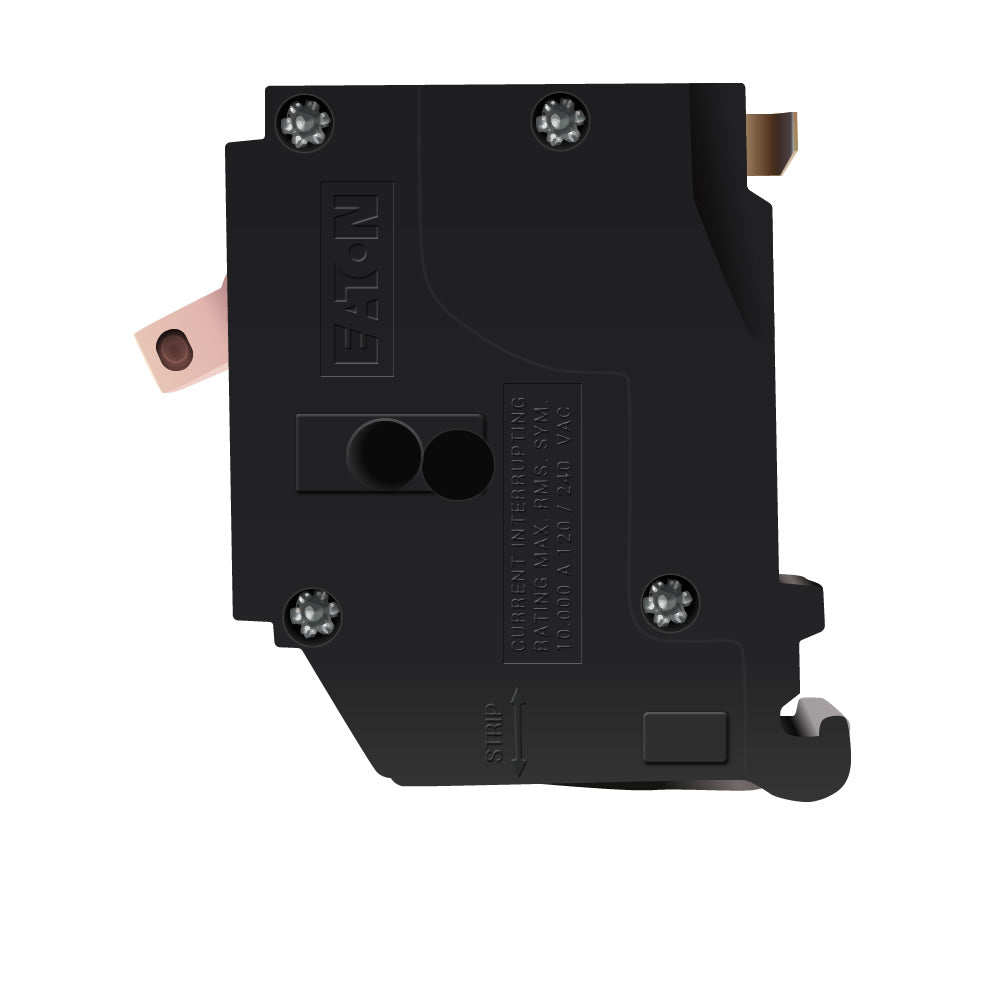

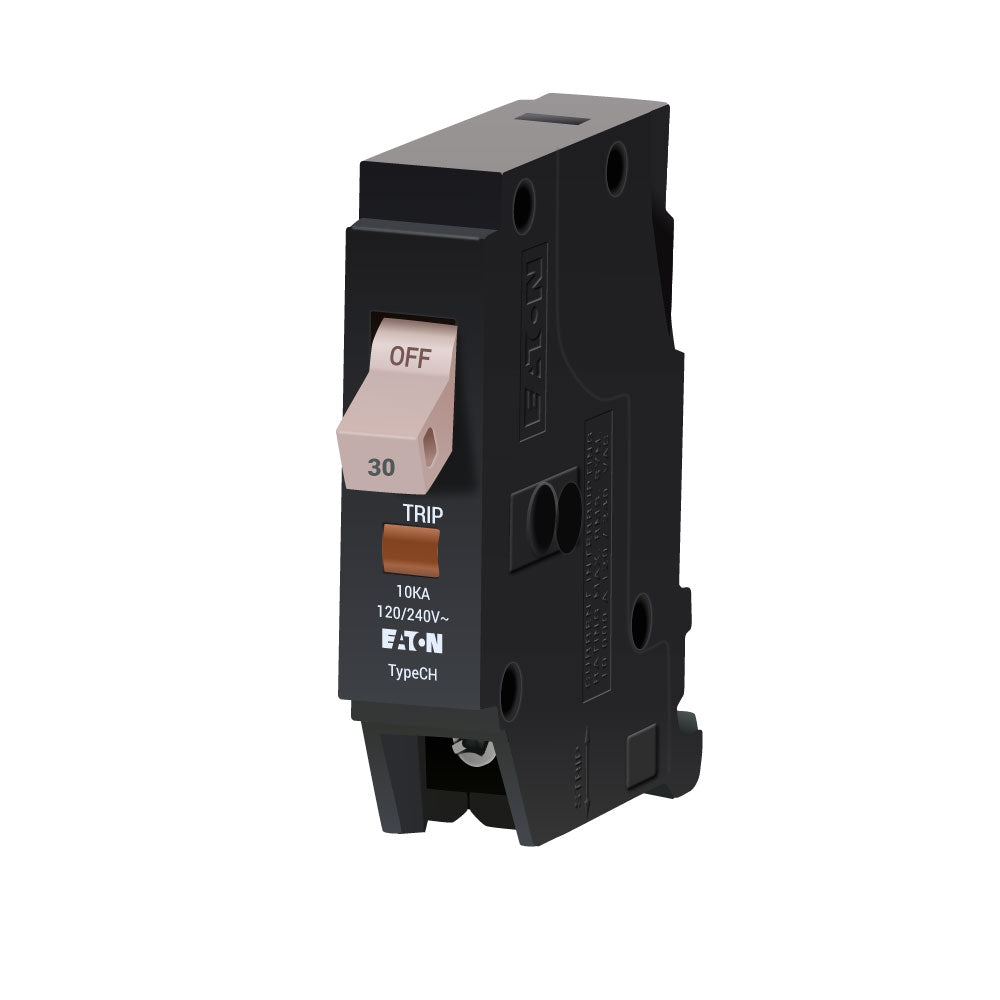

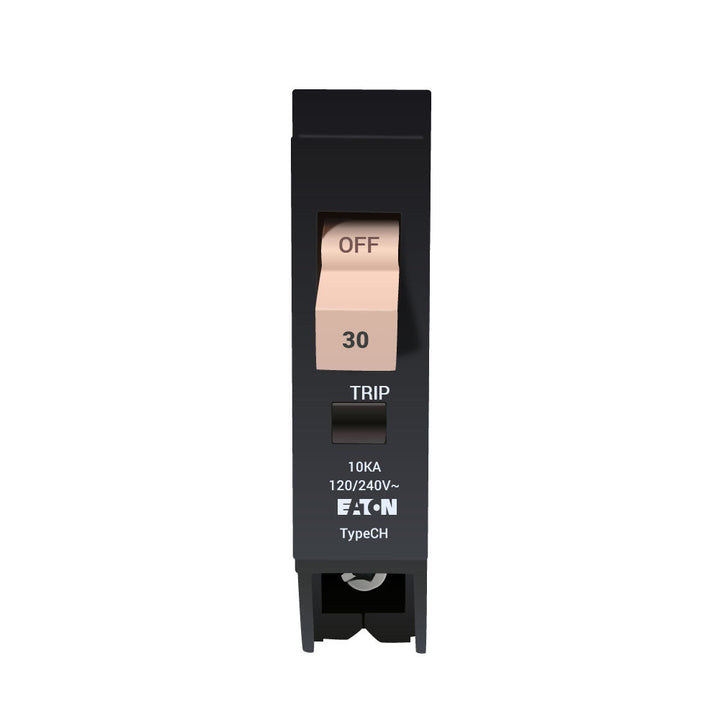

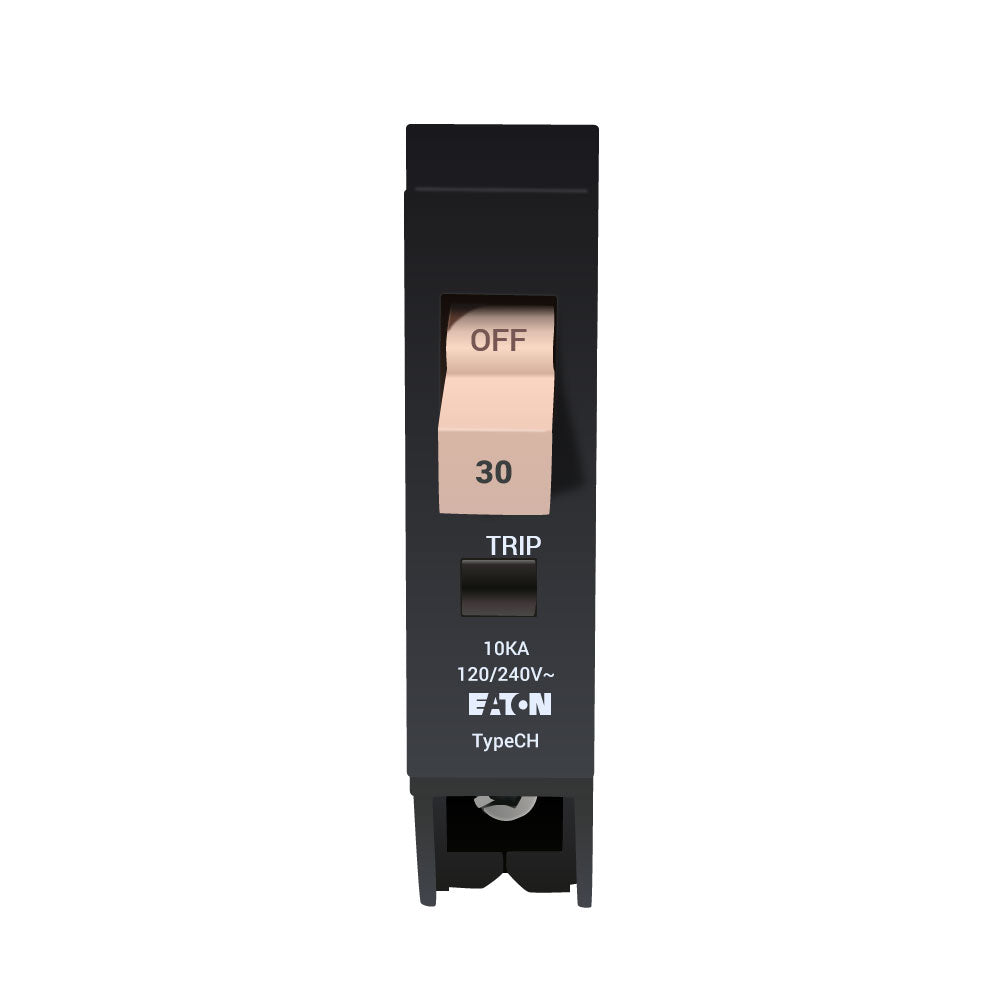

Westinghouse CHF130 is a molded case circuit breaker designed for providing reliable overcurrent protection in residential and light commercial electrical systems. It features a 30A current rating and a 240V AC voltage rating, housed within a compact, plug-in design measuring 3.2 in x 2.6 in x 0.7 in and weighing 0.3 lb. This single-pole, thermal-magnetic breaker complies with UL 489 standards and is HACR rated for heating, air conditioning, and refrigeration equipment, ensuring safe operation. It is engineered for compatibility with Type CH loadcenters, offering long-time and instantaneous (LI) trip functions with a 10kA interrupting capacity at 120V for effective short-circuit protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Plug-In Connection
  • Voltage Rating: 240V AC
  • Current Rating: 30A
  • Dimensions: 3.2 in (L) x 2.6 in (H) x 0.7 in (W)
  • Standards: UL 489, HACR Rated
  • Applications: Residential & Light Commercial Load Centers, Branch Circuit Protection
  • Phase: 1
  • Poles: 1
  • AIC Rating: 10kA @ 120V
  • Connection: Plug-In
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Breaker Type: CHF
  • Panel Type: Type CH Loadcenters
  • Wire Size: 2x AWG 14 to AWG 8, 1x AWG 14 to AWG 8, Copper/Aluminum
  • Certification: UL 489, HACR Rated
  • Family: CH Series
  • Country of Origin: Dominican Republic
  • Weight: 0.3 lb


Product Identification
  • UPC: 786685361864
  • GTIN: 00786685361864
