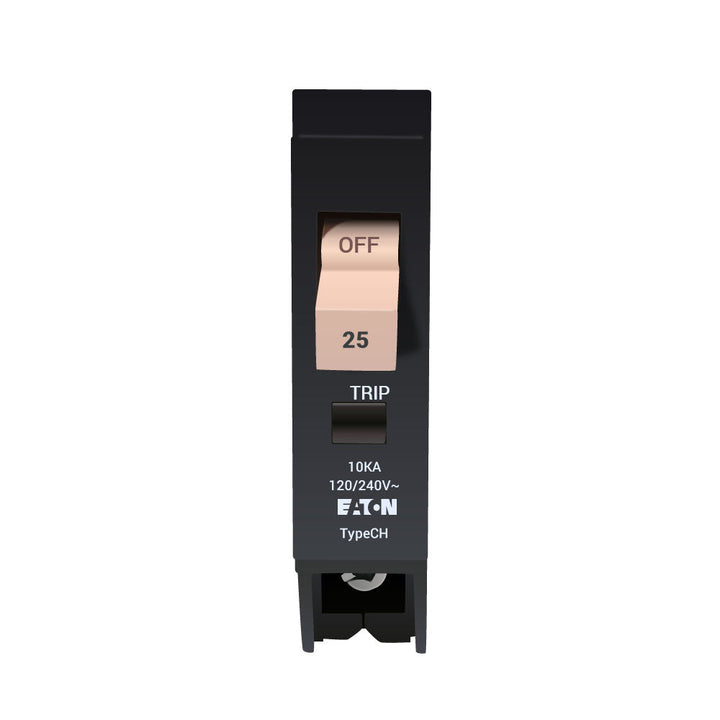

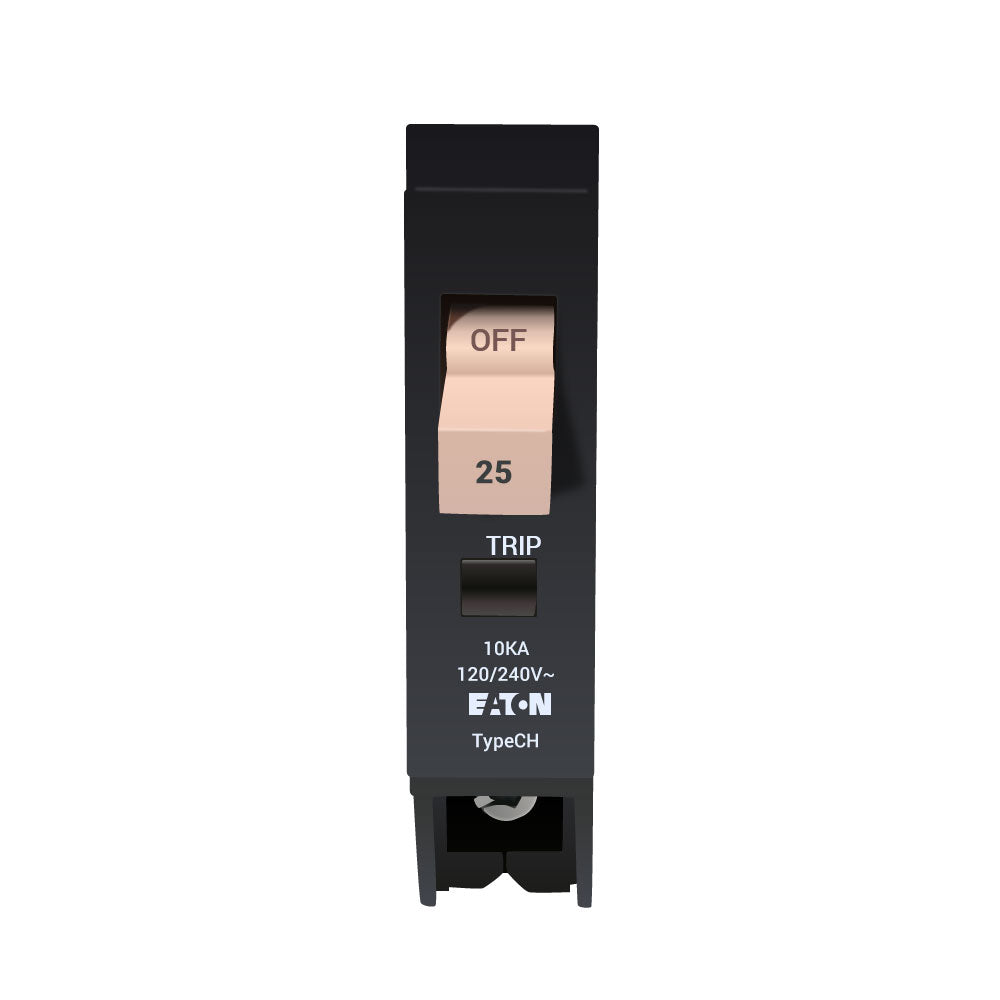

Westinghouse CHF125 - 1-Pole Thermal Magnetic Circuit Breaker (25A, 10kA AIC)
Westinghouse CHF125 - 1-Pole Thermal Magnetic Circuit Breaker (25A, 10kA AIC)

Westinghouse CHF125 - 1-Pole Thermal Magnetic Circuit Breaker (25A, 10kA AIC)

Westinghouse
Price
Save $52.08
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Westinghouse CHF125 is a single-pole, plug-in molded case circuit breaker designed for providing reliable overcurrent protection in 120/240V AC single-phase residential and light commercial electrical systems. It features a 25A continuous current rating and a 10kA interrupting capacity at 120V, utilizing a thermal-magnetic trip mechanism for combined long-time and instantaneous (LI) protection against both overloads and short circuits. The compact unit measures 0.7" D x 2.6" H x 3.2" W, weighs 0.25 lb, and is constructed for straightforward installation into compatible plug-in panels. It is certified to UL 489 and is HACR rated for use with heating, air conditioning, and refrigeration equipment, ensuring compliance with common industry safety standards for branch circuit protection.

Key Features & Specifications
  • Type: CHF Series, Molded Case, Thermal Magnetic Protection, Plug-In Connection
  • Voltage Rating: 240V AC, 1 Phase
  • Current Rating: 25A
  • AIC Rating: 10kA @ 120V
  • Poles: 1
  • Functions: LI (Long-Time and Instantaneous)
  • Dimensions: 0.7 in (Depth) x 2.6 in (Height) x 3.2 in (Width)
  • Weight: 0.25 lb
  • Standards & Certification: UL 489, HACR Rated
  • Connection: Plug-In
  • Protection: Thermal Magnetic
  • Family: CH Series
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786685361857
  • GTIN: 00786685361857
