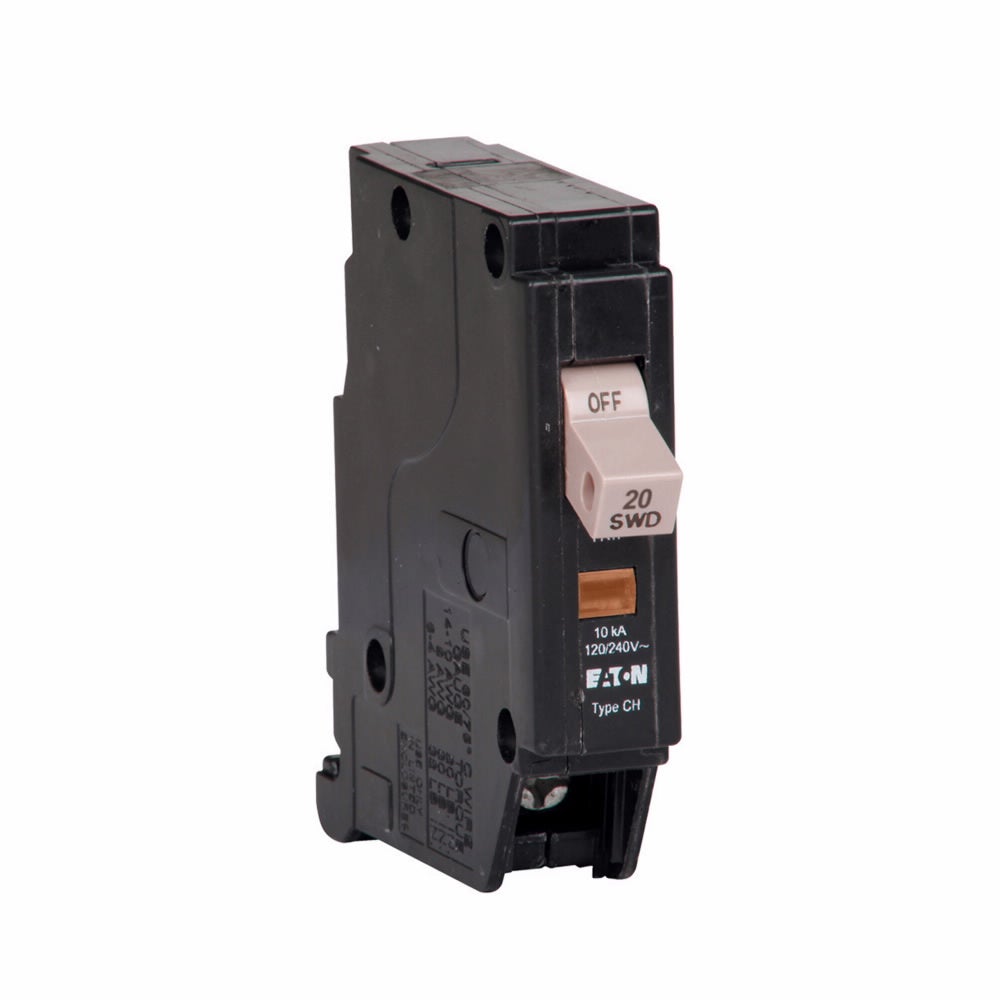

Eaton CHF120ST - Molded Case Circuit Breaker 20A 1-Pole 240V
Eaton CHF120ST - Molded Case Circuit Breaker 20A 1-Pole 240V

Eaton CHF120ST - Molded Case Circuit Breaker 20A 1-Pole 240V

Eaton
Price
Save $156.84
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton CHF120ST is a molded case circuit breaker designed for providing reliable overcurrent protection in single-phase electrical systems. It features a 20A current rating and a 240V AC voltage rating, housed within a compact plug-in unit measuring 4.8 in x 3.5 in x 3.5 in and weighing 0.55 lb. The breaker utilizes a thermal-magnetic trip mechanism for both long-time and instantaneous protection, ensuring compliance with industry standards for safety and performance. Its 10kA interrupting rating at 240V makes it suitable for a range of commercial and light industrial applications, including panelboards and load centers, where it accommodates copper or aluminum conductors from AWG 14 to AWG 8.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Plug-In Connection
  • Voltage Rating: 240V AC
  • Current Rating: 20A
  • Dimensions: 4.8 in (L) x 3.5 in (H) x 3.5 in (W)
  • Weight: 0.55 lb
  • Standards: Designed to meet applicable industry safety standards
  • Applications: Commercial and Light Industrial Panelboards, Load Centers
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Phase: 1
  • Amperage: 20A
  • AIC Rating: 10kA @ 240V
  • Connection: Plug-In
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Wire Size: 1x AWG 14 to AWG 8, 2x AWG 14 to AWG 10, Cu/Al
  • Family: CH Series
  • Frame Size: CH
  • Trip Type: Thermal-Magnetic
  • Breaker Type: Molded Case


Product Identification
  • UPC: 786685384818
  • GTIN: 00786685384818
