Westinghouse CHF120 - 1-Pole 20A Circuit Breaker (240V, 10kA AIC)
Westinghouse CHF120 - 1-Pole 20A Circuit Breaker (240V, 10kA AIC)
Westinghouse CHF120 - 1-Pole 20A Circuit Breaker (240V, 10kA AIC)
Westinghouse CHF120 - 1-Pole 20A Circuit Breaker (240V, 10kA AIC)
Westinghouse CHF120 - 1-Pole 20A Circuit Breaker (240V, 10kA AIC)
Westinghouse CHF120 - 1-Pole 20A Circuit Breaker (240V, 10kA AIC)
Westinghouse CHF120 - 1-Pole 20A Circuit Breaker (240V, 10kA AIC)
Westinghouse CHF120 - 1-Pole 20A Circuit Breaker (240V, 10kA AIC)
Westinghouse CHF120 - 1-Pole 20A Circuit Breaker (240V, 10kA AIC)
Westinghouse CHF120 - 1-Pole 20A Circuit Breaker (240V, 10kA AIC)

Westinghouse CHF120 - 1-Pole 20A Circuit Breaker (240V, 10kA AIC)

Eaton
Price
Save $59.47
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

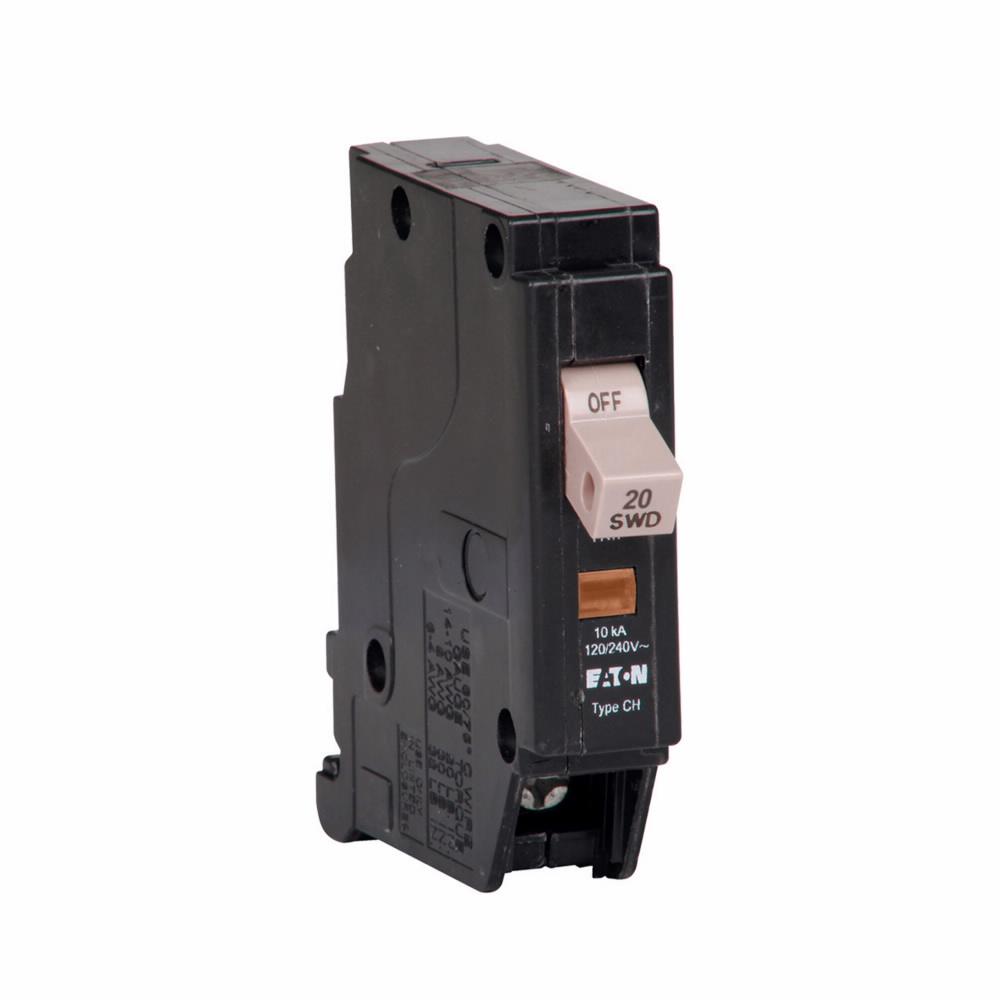

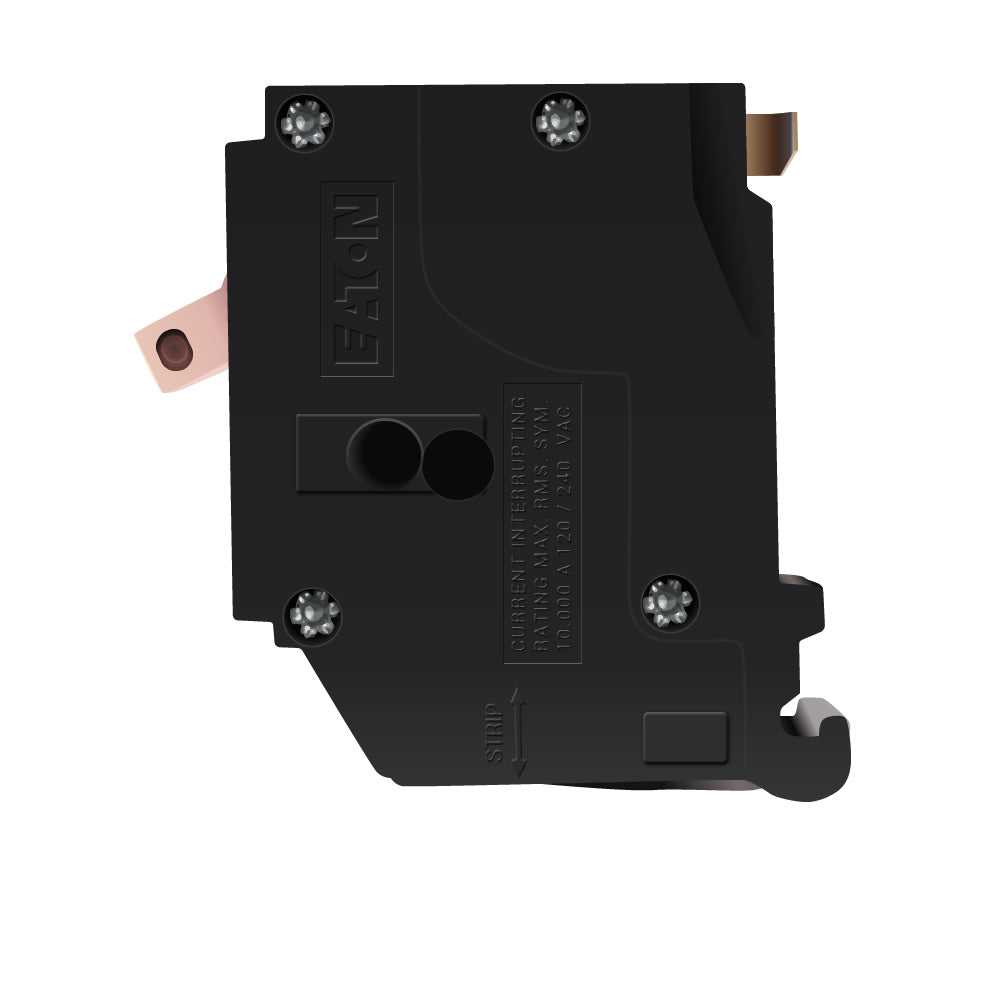

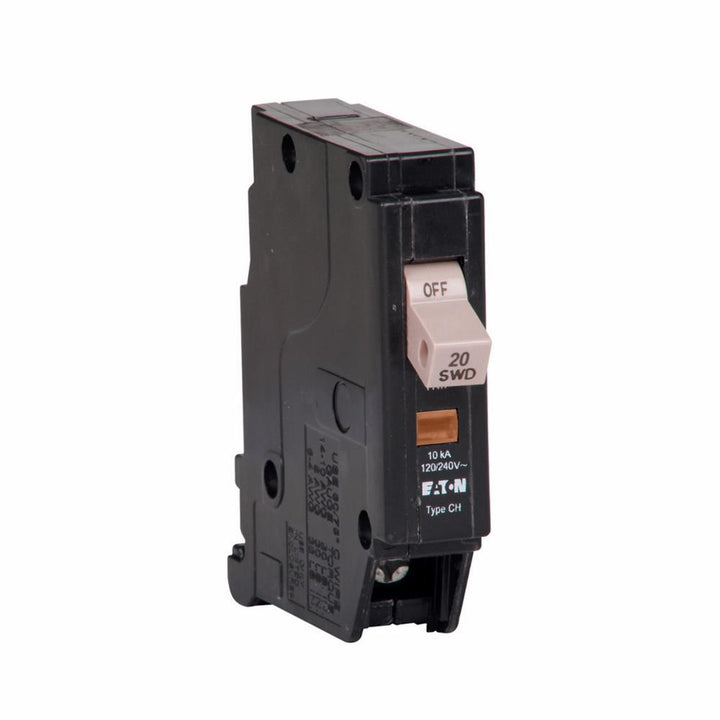

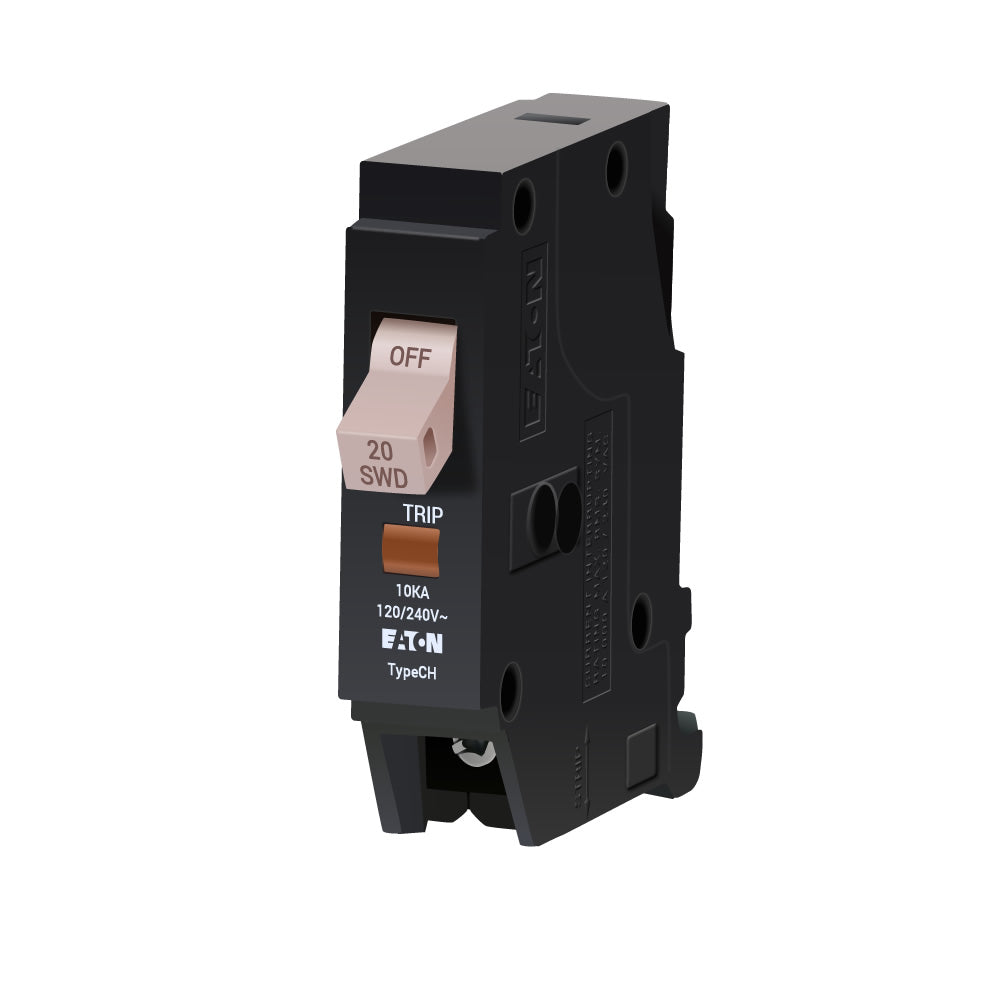

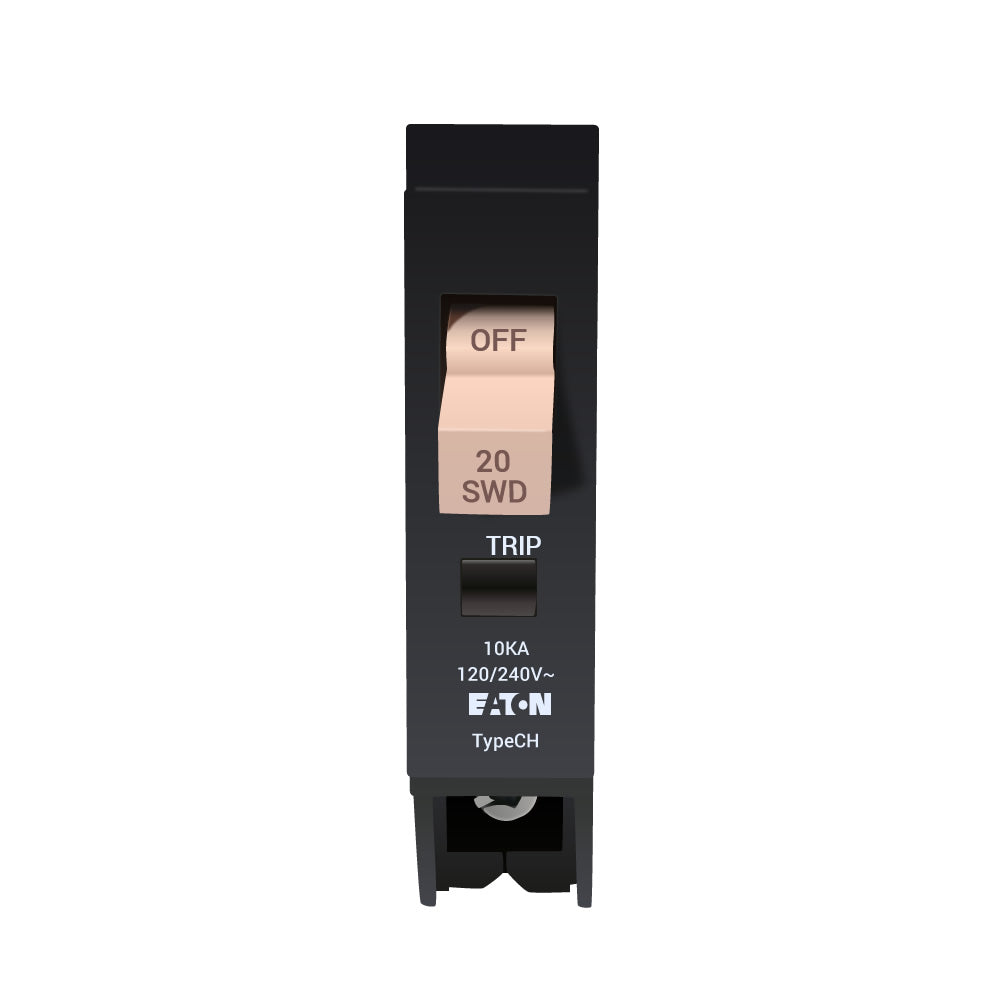

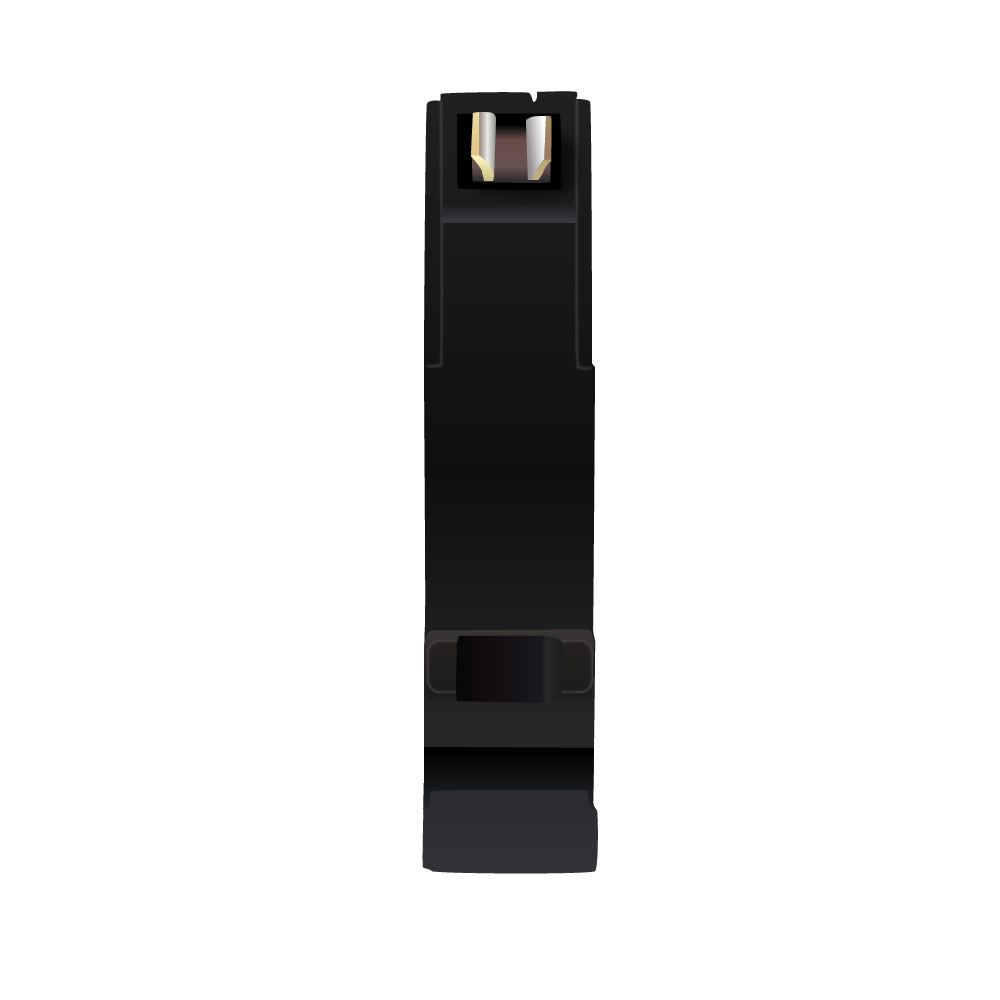

Westinghouse CHF120 is a molded case circuit breaker designed for providing reliable overcurrent protection in residential and light commercial electrical systems. It features a 20A current rating and a 240V AC voltage rating, housed in a compact 3" x 3" x 0.75" plug-in unit weighing 0.28 lb. The breaker is UL 489 listed and HACR rated, ensuring compliance with North American safety standards for heating, air conditioning, and refrigeration equipment. Its thermal-magnetic trip mechanism provides both long-time and instantaneous (LI) protection, making it suitable for use in Type CH loadcenters to safeguard branch circuits.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker (CHF), Thermal-Magnetic Protection, Plug-In Connection
  • Voltage Rating: 240V AC
  • Current Rating: 20A
  • Dimensions: 3 in (L) x 3 in (H) x 0.75 in (W)
  • Standards: UL 489, HACR Rated
  • Applications: Branch circuit protection in Type CH loadcenters
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Phase: 1
  • Amperage: 20A
  • AIC rating: 10kA @ 120V
  • Connection: Plug-In
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Breaker Type: CHF
  • Wire Size: 1-pole: 14-8 AWG, 2-pole: 14-10 AWG (Cu/Al)
  • Certification: UL 489, HACR Rated
  • Panel Type: Type CH Loadcenters
  • Family: CH Series
  • Country of Origin: United States
  • Weight: 0.28 lb


Product Identification
  • UPC: 786685361840
  • GTIN: 00786685361840
