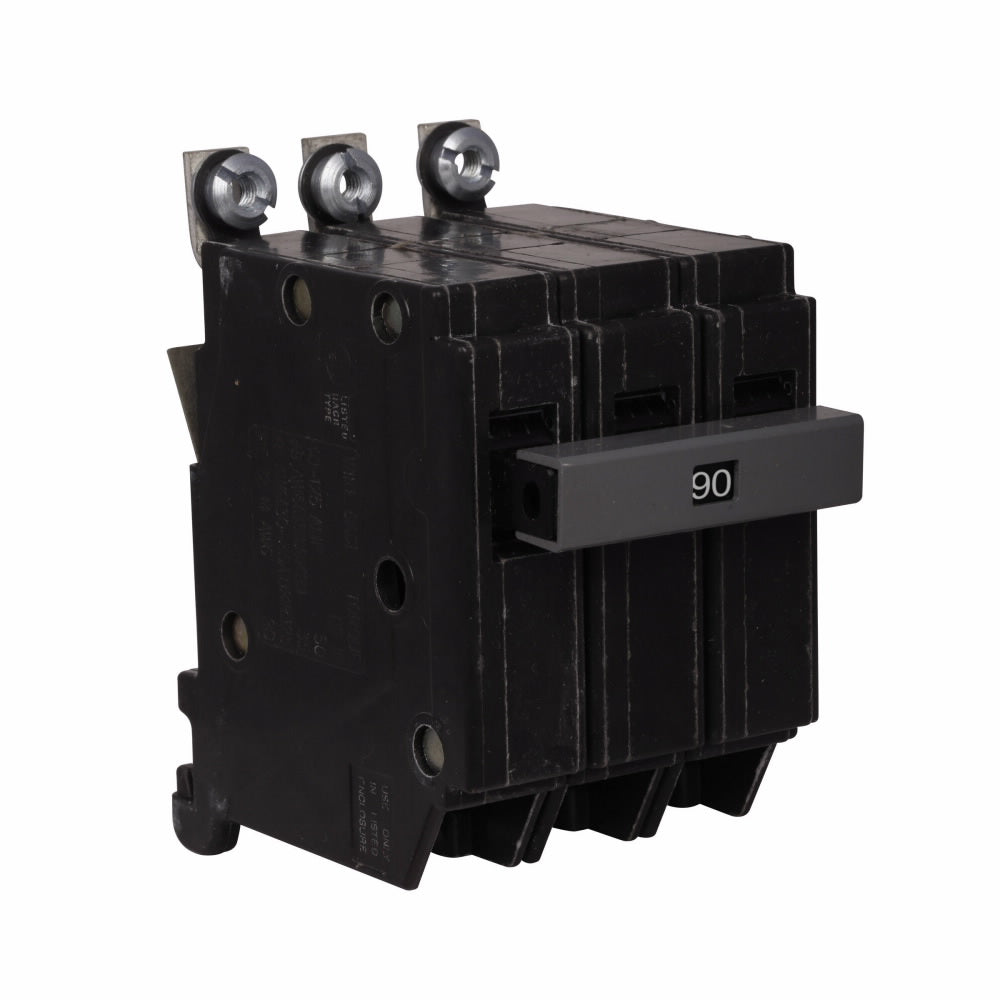

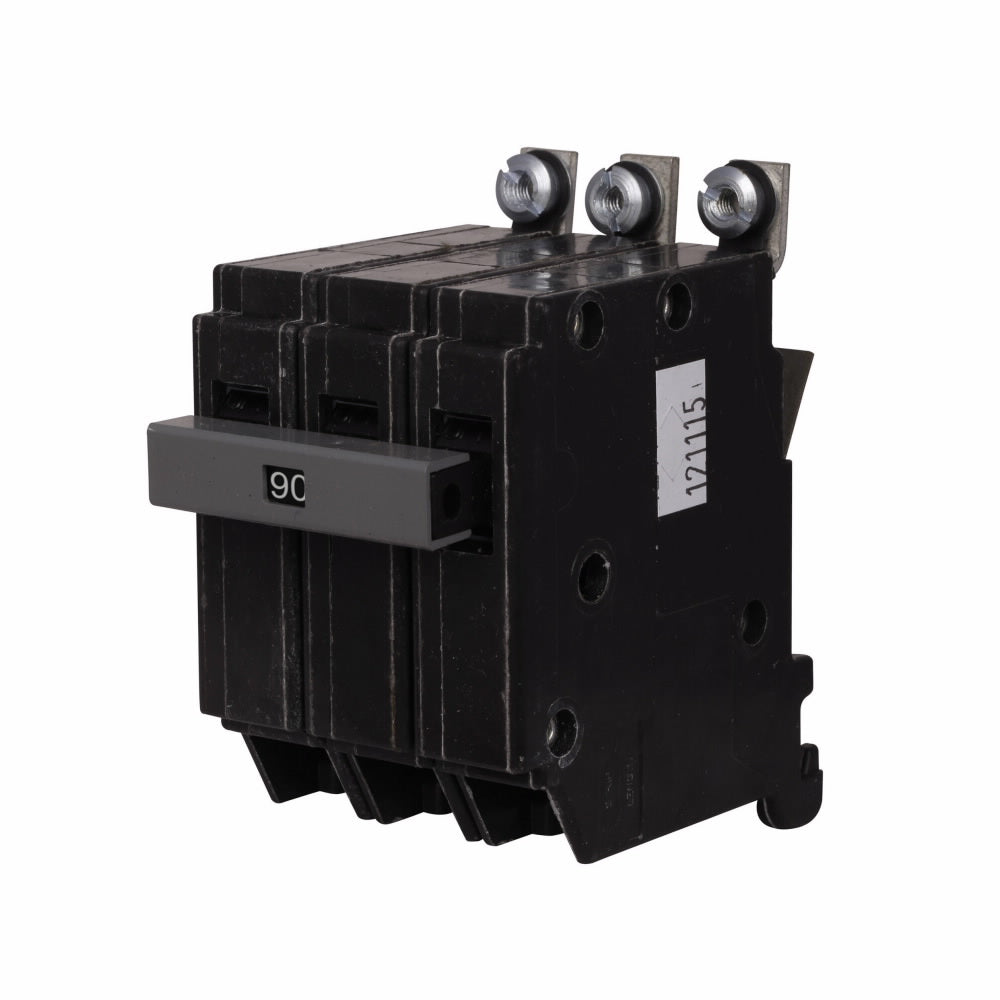

Eaton CHB3090 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase electrical systems. It features a 90A current rating and a 240V AC voltage rating, housed within a compact, robust enclosure measuring 5.7 in x 2.6 in x 3.7 in (L/D x H x W) and weighing 0.9 lb. This thermal-magnetic breaker is UL 489 certified and offers a 10kA interrupting capacity at 240V, ensuring compliance with industry safety standards for industrial power distribution, panelboards, and motor control applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker (CHB), Thermal-Magnetic Protection with Long Time and Instantaneous Trip Functions
  • Voltage Rating: 240V AC
  • Current Rating: 90A
  • Dimensions: 5.7 in x 2.6 in x 3.7 in (Length/Depth x Height x Width)
  • Standards: UL 489
  • Applications: Industrial power distribution, panelboards, motor control centers
  • Phase: 3
  • AIC Rating: 10kA @ 240V
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous
  • Wire Size: #4-1/0 AWG
  • Weight: 0.9 lb


Product Identification
  • UPC: 782113112695
  • GTIN: 00782113112695
