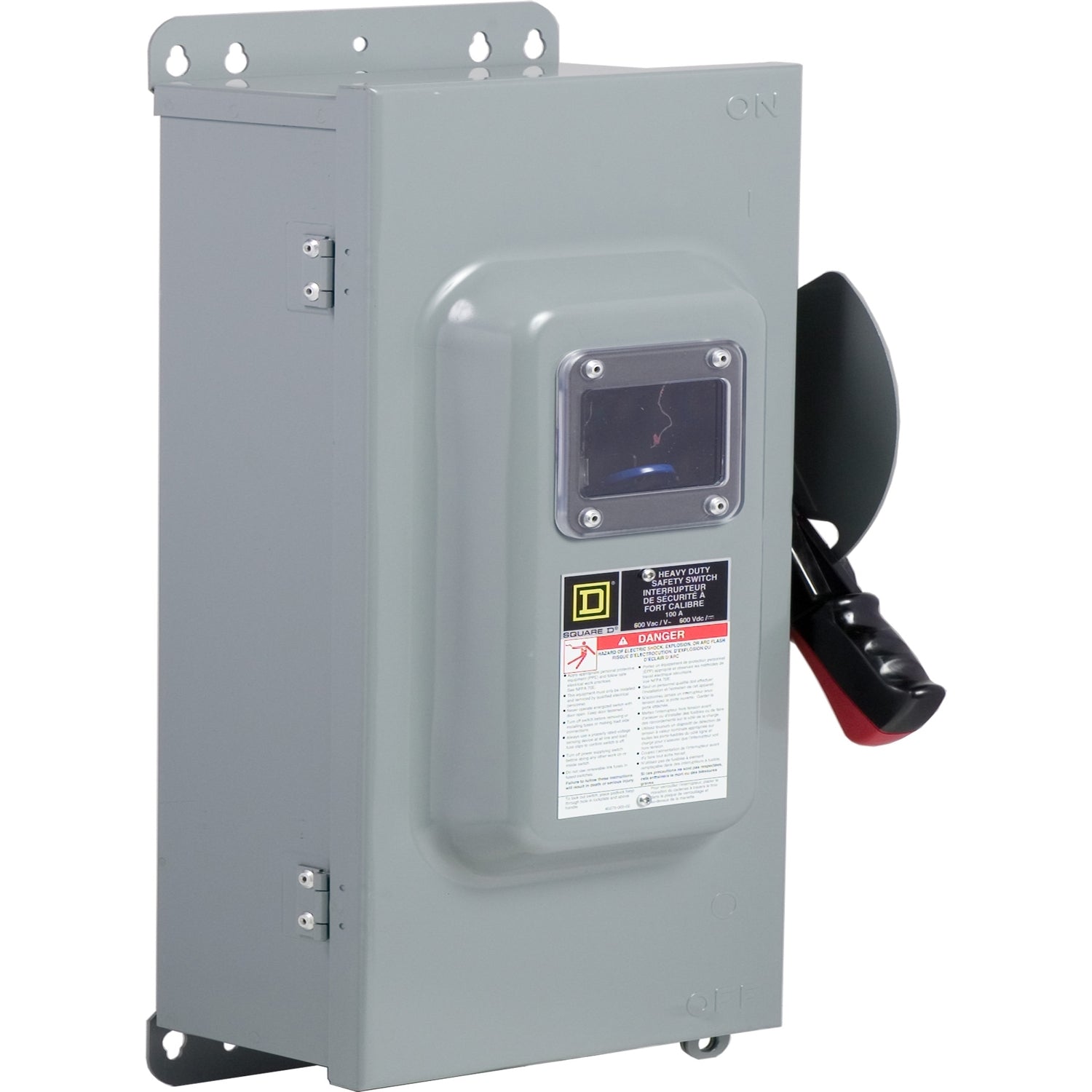

Square D CH363AWK - Fusible Disconnect Switch 100A 600V 3-Pole

Square D
Price
Save $1,619
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D CH363AWK is a fusible safety switch designed for providing reliable circuit isolation and overcurrent protection in industrial power distribution systems. It is rated for 600V AC and 100A current in three-phase configurations, featuring a robust construction with dimensions of 520.7 mm H x 266.7 mm W x 177.8 mm D and a weight of 19.969 lb. The switch complies with NEMA 3R/12 standards for indoor/outdoor use and offers a high interrupting capacity of 200kA at 600V. Its design is typically applied in industrial panels and motor control centers for safely disconnecting and protecting electrical circuits.

Key Features & Specifications
  • Type: Fusible Disconnect Safety Switch
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Configuration: Single, 3-Pole
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • Fuse Class: J, R
  • Compatible Frames: RJF
  • NEMA Rating: 3R/12
  • Dimensions: 20.5 in (520.7 mm) H x 10.5 in (266.7 mm) W x 7 in (177.8 mm) D
  • Weight: 19.969 lb
  • Standards: NEMA 3R/12
  • Applications: Industrial power distribution, motor control centers, panel disconnects


Product Identification
  • UPC: 078590199532
