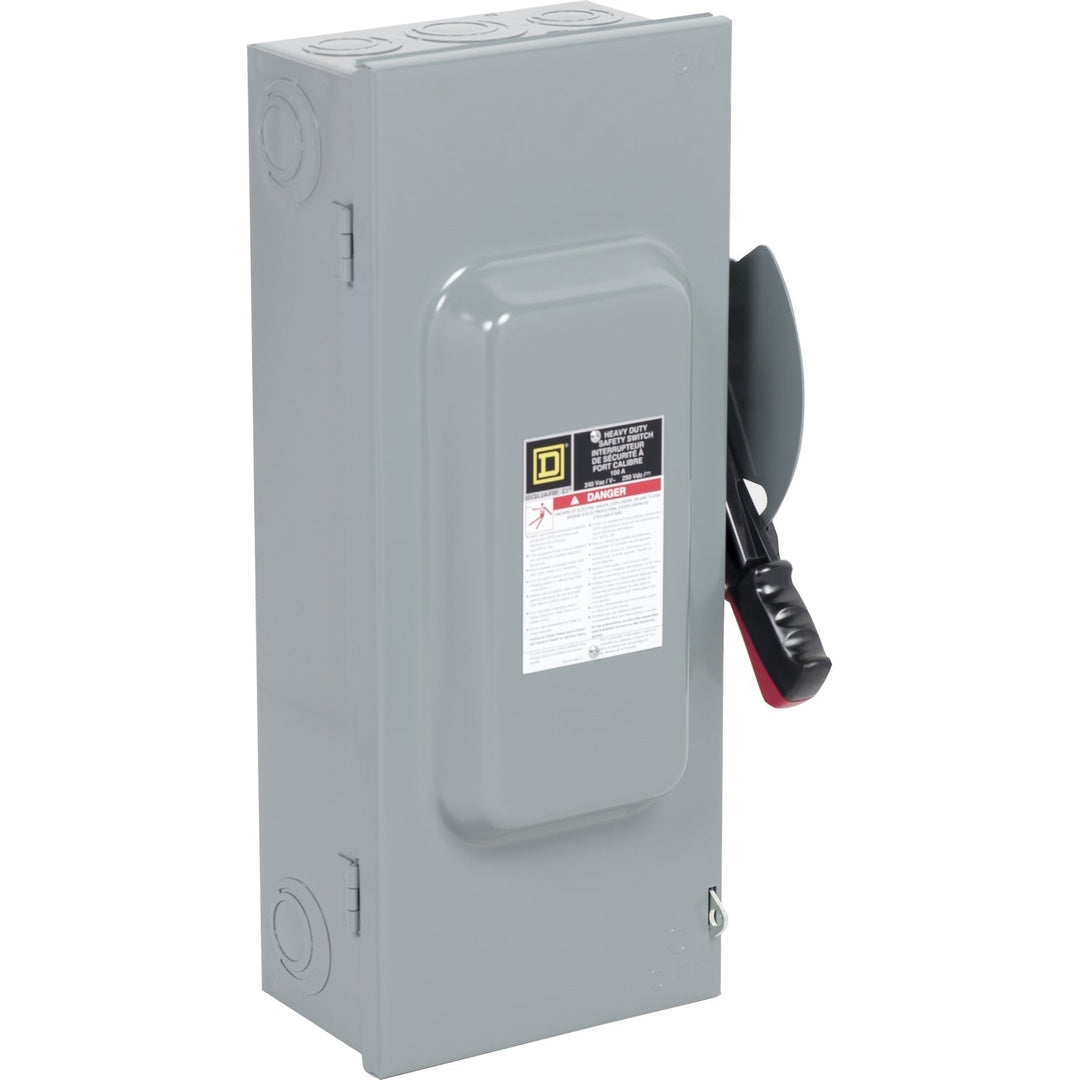

Square D CH323N - Fusible Safety Switch 100A 3-Pole

Square D
Price
Save $-352
/
Title
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D CH323N is a fusible safety switch designed for providing reliable circuit isolation and overcurrent protection in industrial power distribution systems. It features a 240V AC voltage rating and a 100A current rating for robust three-phase applications. The unit is constructed with a NEMA 1 enclosure measuring 21.25 in (539.75 mm) H x 8.5 in (215.9 mm) W x 6.38 in (162.05 mm) D and weighs 17.54 lb, offering a compact and durable design. It complies with industry standards, including a 10kA interrupting rating at 600V, and is typically applied in motor control centers, panelboards, and machinery requiring a 3-pole disconnect solution.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, Series F, CH Type
  • Voltage Rating: 240V AC
  • Current Rating: 100A
  • Configuration: Single, 3-Pole
  • Phase: 3
  • AIC Rating: 10kA @ 600V
  • Fuse Class: H, R
  • Dimensions: 21.25 in (539.75 mm) H x 8.5 in (215.9 mm) W x 6.38 in (162.05 mm) D
  • Weight: 17.54 lb
  • NEMA Rating: 1
  • Switch Style: Fusible
  • Compatible Frames: RJF
  • Standards: Designed for industrial safety and isolation applications
  • Applications: Industrial power distribution, motor control centers, panelboards, and machinery disconnects


Product Identification
  • Manufacturer: Schneider Electric
  • Model: CH323N
