Eaton CH3100 - 3-Pole Molded Case Circuit Breaker 100A 240V
Eaton CH3100 - 3-Pole Molded Case Circuit Breaker 100A 240V

Eaton CH3100 - 3-Pole Molded Case Circuit Breaker 100A 240V

Eaton
Price
Save $808.65
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

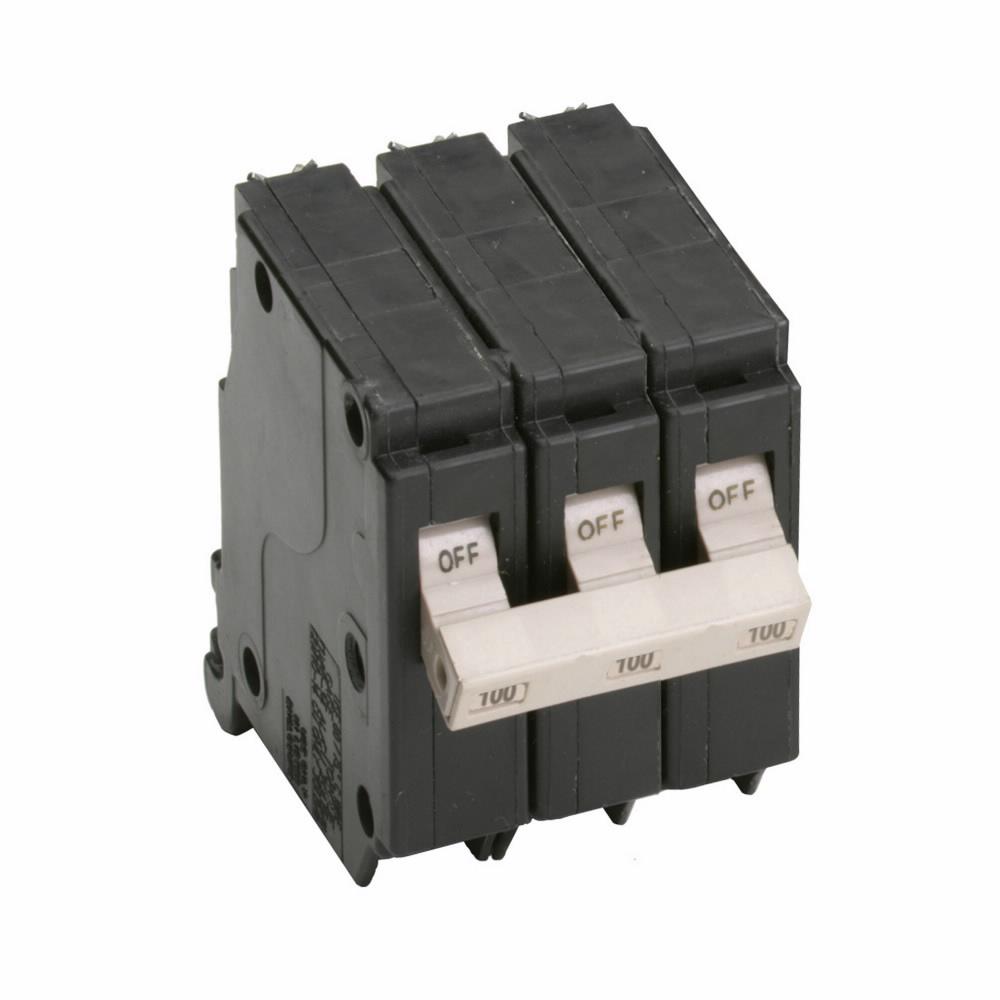

The Eaton Cutler-Hammer CH3100 is a three-pole molded case circuit breaker designed to provide reliable overcurrent protection for three-phase 240VAC industrial power distribution systems. It features a 100A continuous current rating and a 10kA interrupting capacity at 240V, utilizing a thermal-magnetic trip mechanism with long-time and instantaneous (LI) protection functions for coordinated system safety. The compact plug-in unit measures 2.2" D x 2.6" H x 3.1" W, weighs 0.85 lb, and is constructed to accept conductors from 10 AWG to 1/0 AWG for both aluminum and copper wiring. This breaker is UL 489 listed and is commonly applied in panelboards, switchboards, and motor control centers for the protection of feeders and branch circuits.

Key Features & Specifications
  • Type: CH Series, 3-Pole, Molded Case Circuit Breaker with Thermal-Magnetic Protection
  • Voltage Rating: 240V AC
  • Current Rating: 100A
  • Dimensions: 2.2 in (Depth) x 2.6 in (Height) x 3.1 in (Width)
  • Standards: UL 489 Listed
  • Applications: Industrial Feeder and Branch Circuit Protection in Panelboards and Switchgear
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Phase: 3
  • AIC Rating: 10kA @ 240V
  • Connection: Plug-In
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Wire Size: 10 To 1/0 AWG (Aluminum/Copper)
  • Certification: UL 489


Product Identification
  • UPC: 782113102405
  • GTIN: 00782113102405
