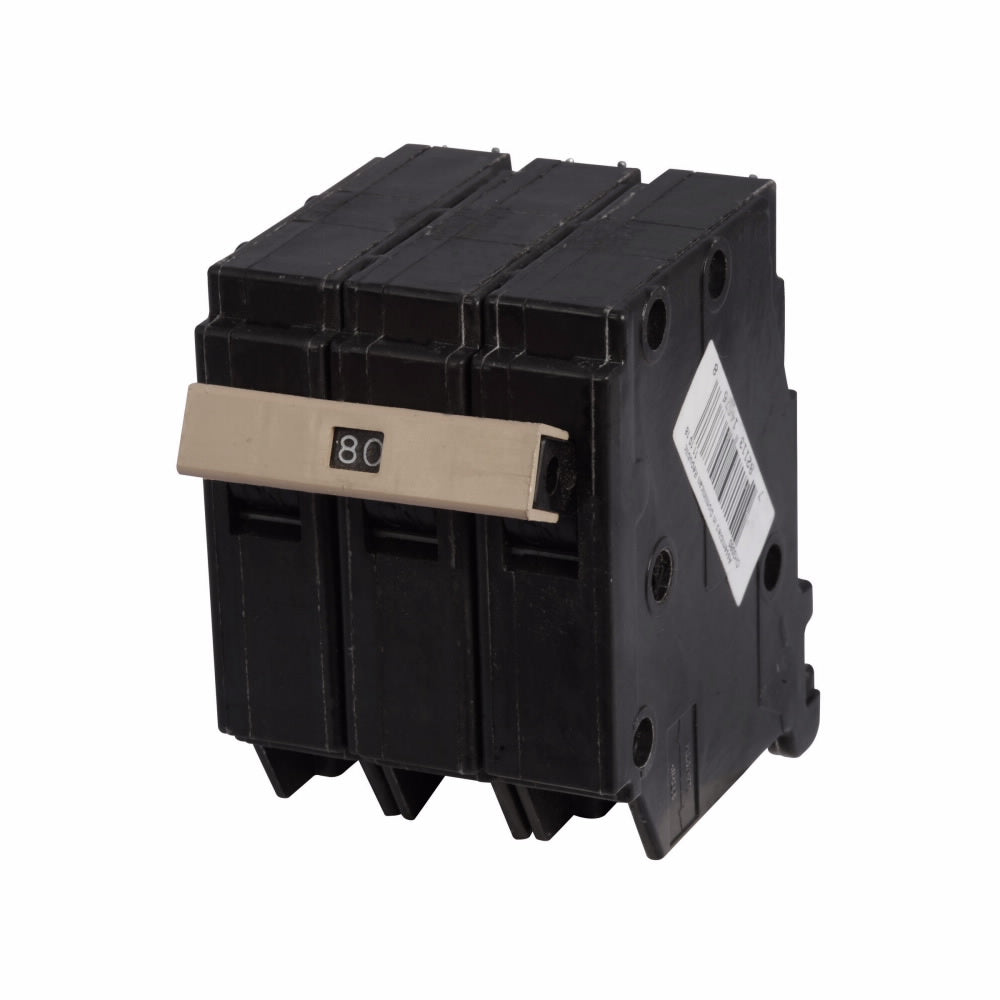

Challenger CH3080 - Molded Case Breaker 80A 480V 3P (10kA AIC)
Challenger CH3080 - Molded Case Breaker 80A 480V 3P (10kA AIC)
Challenger CH3080 - Molded Case Breaker 80A 480V 3P (10kA AIC)
Challenger CH3080 - Molded Case Breaker 80A 480V 3P (10kA AIC)
Challenger CH3080 - Molded Case Breaker 80A 480V 3P (10kA AIC)
Challenger CH3080 - Molded Case Breaker 80A 480V 3P (10kA AIC)

Challenger CH3080 - Molded Case Breaker 80A 480V 3P (10kA AIC)

Eaton
Price
Save $804.44
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

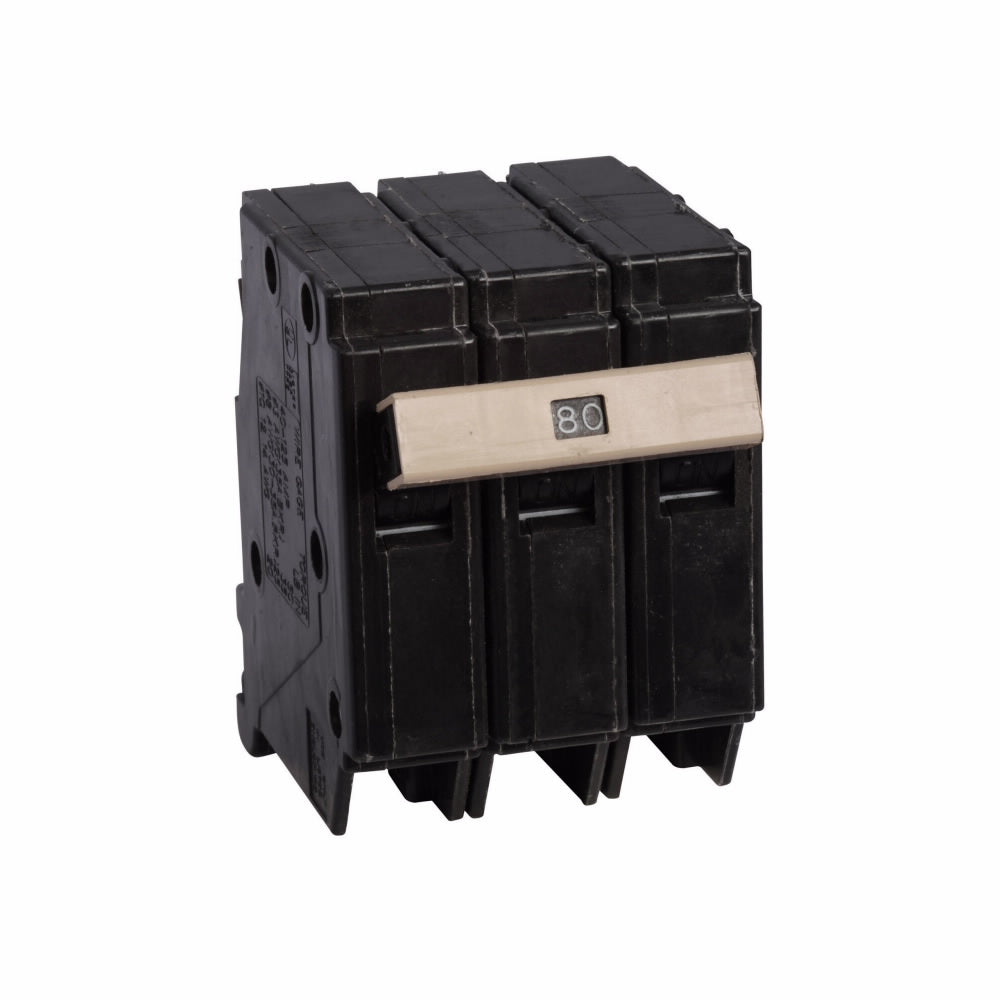

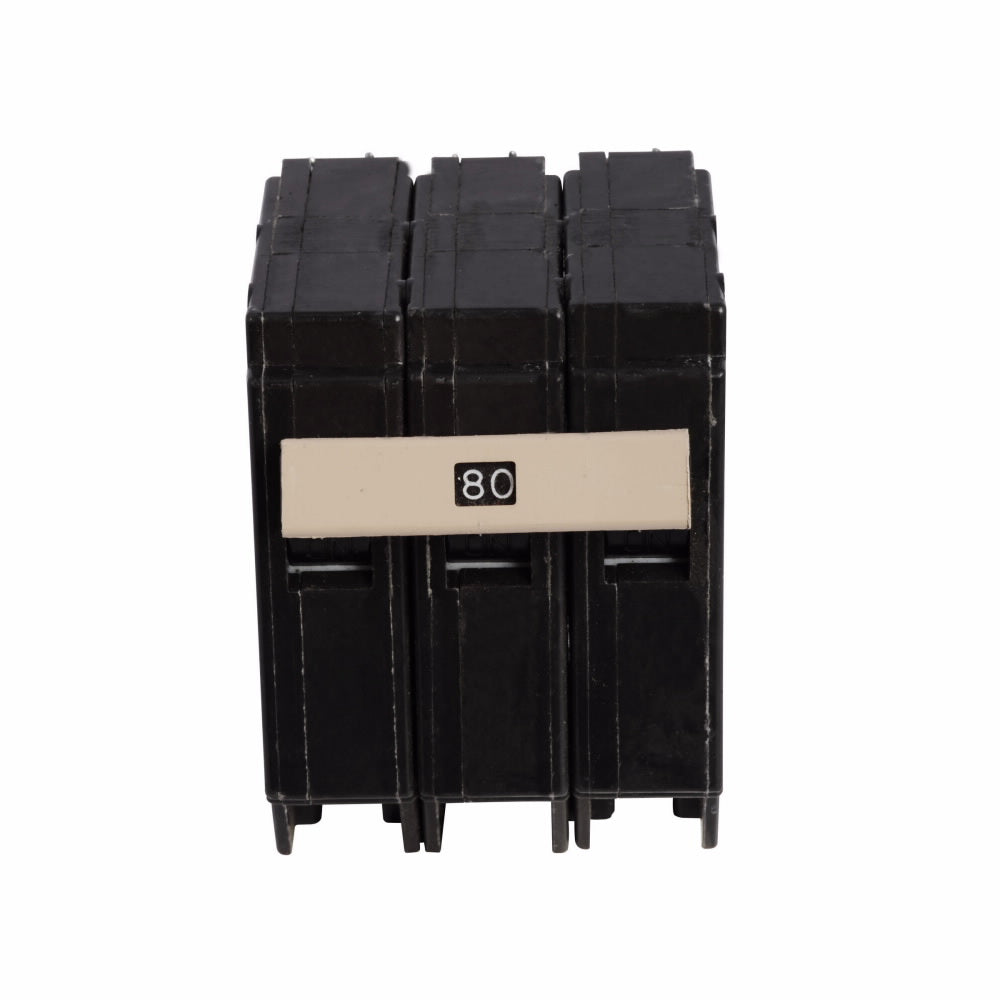

Challenger CH3080 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase electrical systems. It features a thermal-magnetic trip unit with long-time and instantaneous (LI) functions, rated for 80A at 480V AC. The plug-in, three-pole breaker is constructed for industrial environments with an operating temperature range of -25 to 70 °C (-13 to 158 °F) and accepts copper or aluminum conductors from #10 to 1/0 AWG. It is certified to UL 489 and offers an interrupting capacity of 10kA at 240V, making it suitable for use in panelboards and switchboards for commercial and industrial power distribution.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 480V AC
  • Current Rating: 80A
  • Poles: 3
  • Connection: Plug-In
  • Protection: Thermal Magnetic
  • Functions: LI - Long Time and Instantaneous
  • AIC Rating: 10kA @ 240V
  • Wire Size: #10 to 1/0 AWG CU/AL
  • Phase: 3
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Certification: UL 489
  • Frame: CH Series
  • Weight: 1 lb


Product Identification
  • UPC: 782113146768
  • GTIN: 00782113146768
