Eaton CH230GFT - 2-Pole 30A Circuit Breaker (10kA AIC, 240V)
Eaton CH230GFT - 2-Pole 30A Circuit Breaker (10kA AIC, 240V)
Eaton CH230GFT - 2-Pole 30A Circuit Breaker (10kA AIC, 240V)
Eaton CH230GFT - 2-Pole 30A Circuit Breaker (10kA AIC, 240V)

Eaton CH230GFT - 2-Pole 30A Circuit Breaker (10kA AIC, 240V)

Eaton
Price
Save $-26.10
/
Condition
  • Low stock - 6 items left
  • Backordered, shipping soon
Call for Price

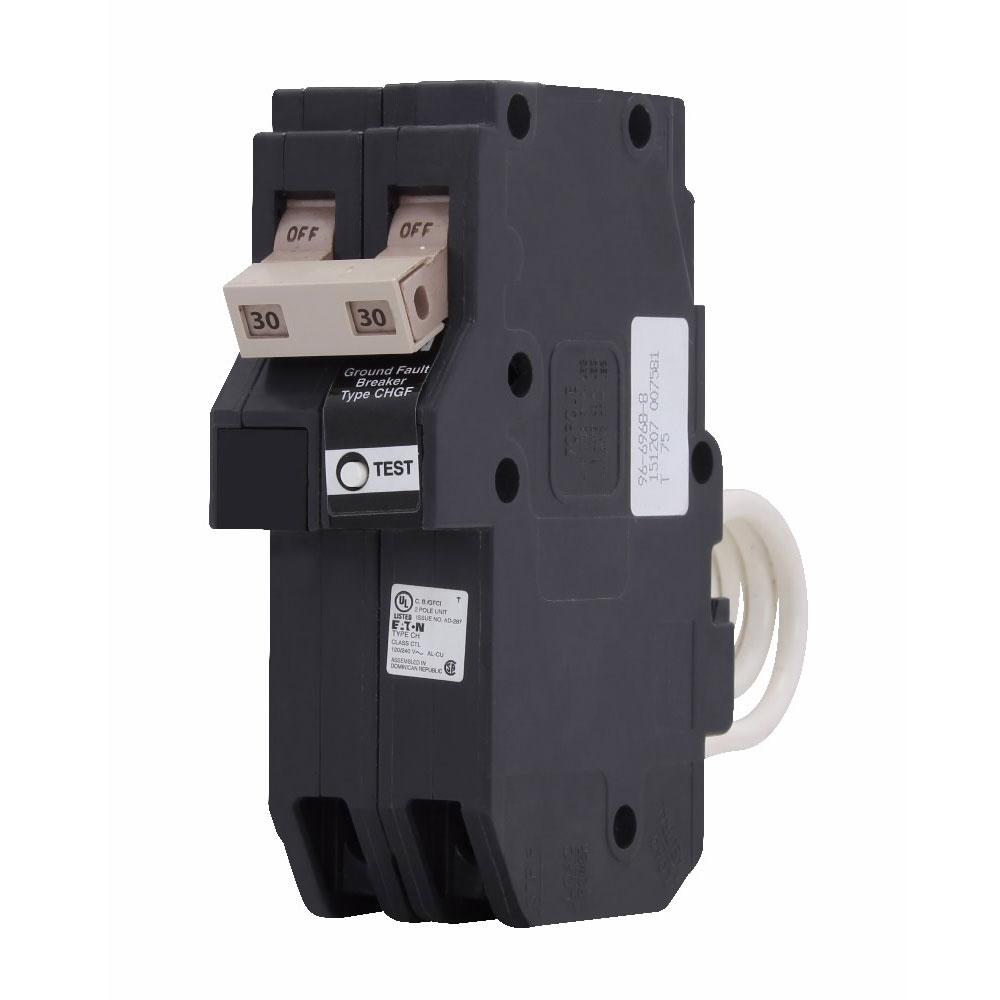

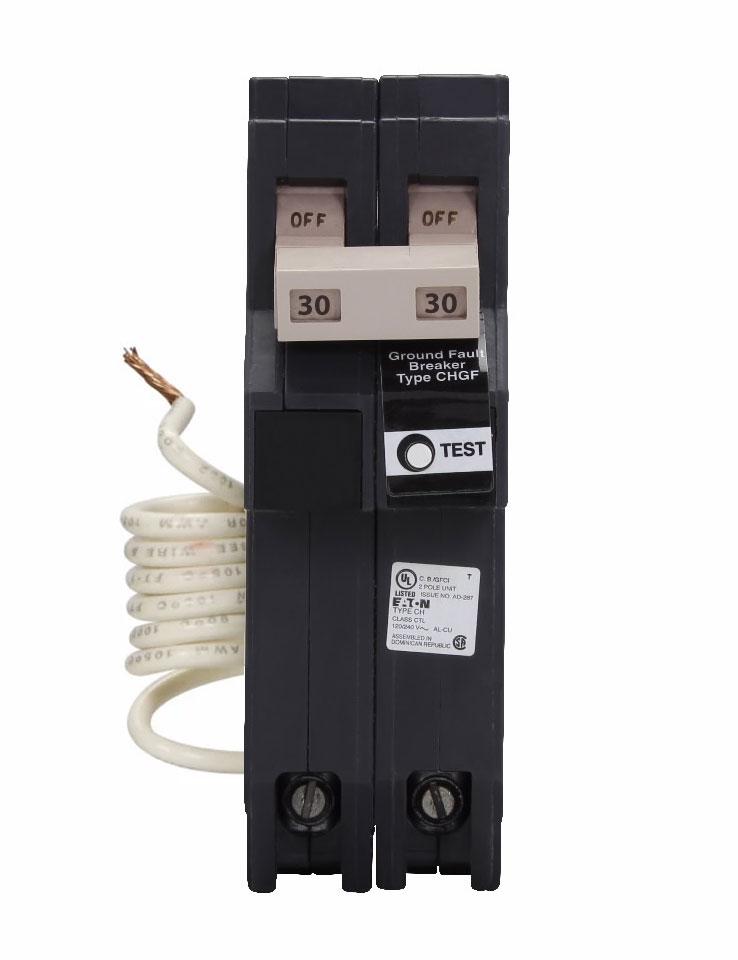

Eaton CH230GFT is a molded case circuit breaker designed for providing reliable overcurrent protection in single-phase electrical systems. It features a 30A current rating and a 240V AC voltage rating, housed within a compact, plug-in configuration measuring 4.5 in x 2 in x 2.75 in and weighing 0.7 lb. The breaker utilizes a thermal-magnetic trip unit with long-time and instantaneous (LI) functions to safeguard circuits, and it is certified to UL 489 standards with an interrupting capacity of 10kA at 240V. This unit is typically applied in industrial and commercial panelboards to protect downstream equipment and wiring from overloads and short circuits.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Plug-In Connection
  • Voltage Rating: 240V AC
  • Current Rating: 30A
  • Dimensions: 4.5 in (Depth) x 2 in (Height) x 2.75 in (Width)
  • Standards: UL 489
  • Applications: Industrial & Commercial Panelboards, Load Centers
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Phase: 1
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • AIC rating: 10kA @ 240V
  • Wire Size: AWG 14 to AWG 4
  • Certification: UL 489
  • Weight: 0.7 lb
  • Family: CH Series
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786676025645
  • GTIN: 00786676025645
