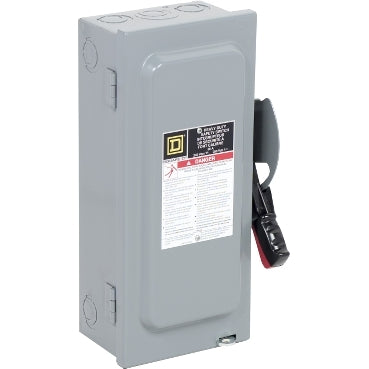

Square D CH221N - Fusible Safety Switch, 30A 240V 2-Pole (NEMA 1)

Square D
Price
Save $-188.08
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D CH221N is a fusible safety switch designed for providing reliable circuit isolation and overcurrent protection in industrial and commercial electrical systems. It is rated for 240V AC operation with a 30A current capacity, featuring a robust NEMA 1 enclosure measuring 370.8 mm H x 165.1 mm W x 123.95 mm D and weighing 8.029 lb. The switch complies with industry standards and is engineered for use with H and R class fuses, offering an interrupting rating of 10kA at 600V. Its single-phase, 2-pole configuration makes it suitable for protecting motor circuits, HVAC equipment, and industrial machinery panels where a visible disconnect is required.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, Series F, CH Type
  • Voltage Rating: 240V AC
  • Current Rating: 30A
  • Dimensions: 14.6 in (370.8 mm) H x 6.5 in (165.1 mm) W x 4.88 in (123.95 mm) D
  • Standards: NEMA 1 Enclosure Rating
  • Applications: Motor Circuit Protection, HVAC, Industrial Machinery Panels
  • Switch Type: Fusible Disconnect
  • Configuration: Single
  • Phase: 1
  • Poles: 2
  • AIC Rating: 10kA @ 600V
  • Fuse Class: H, R
  • Compatible Frames: RGF
  • Weight: 8.029 lb


Product Identification
  • UPC: 078590199482
  • GTIN: 00785901994824
