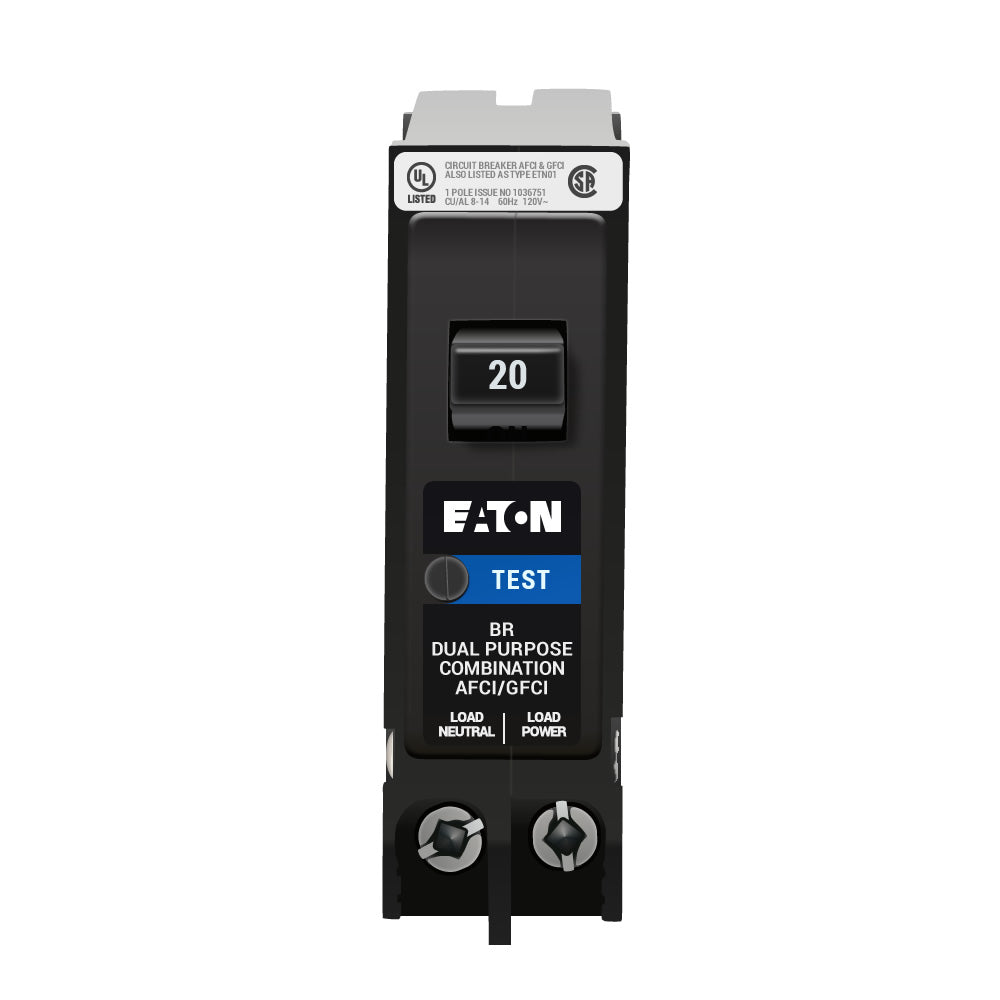

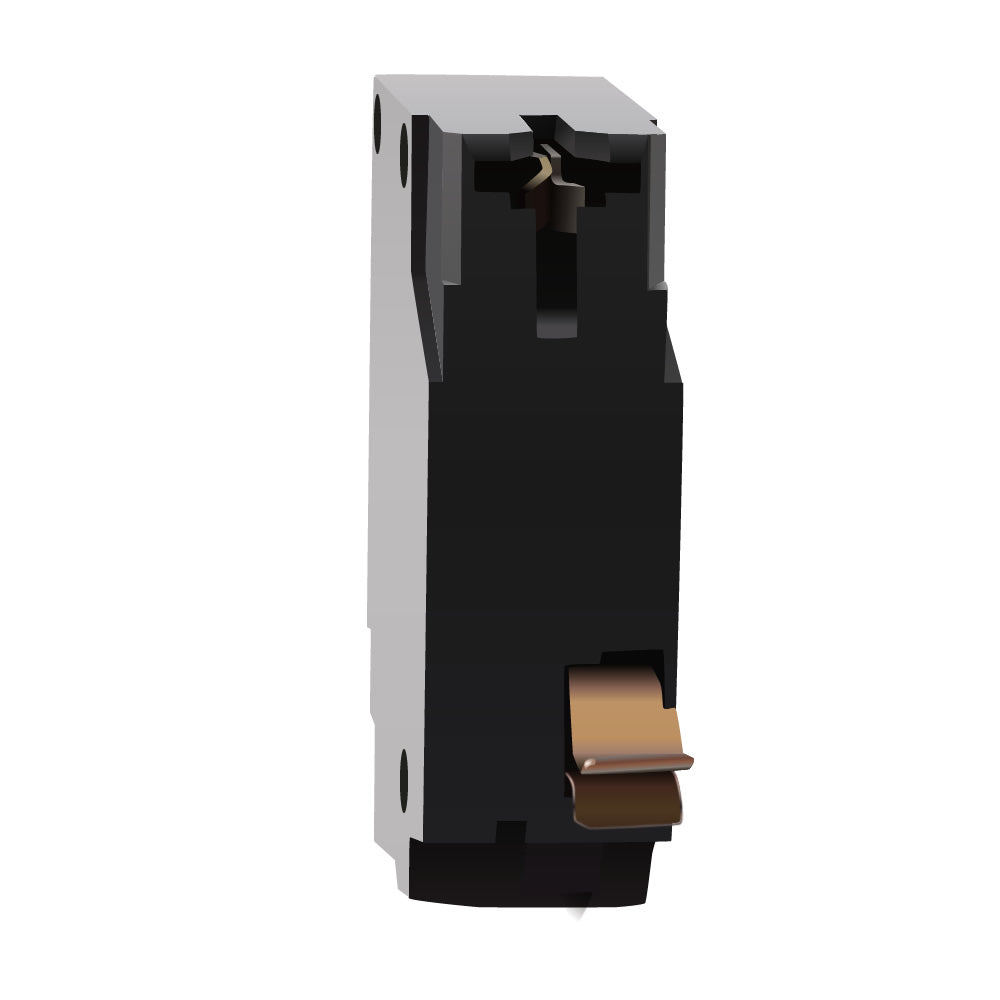

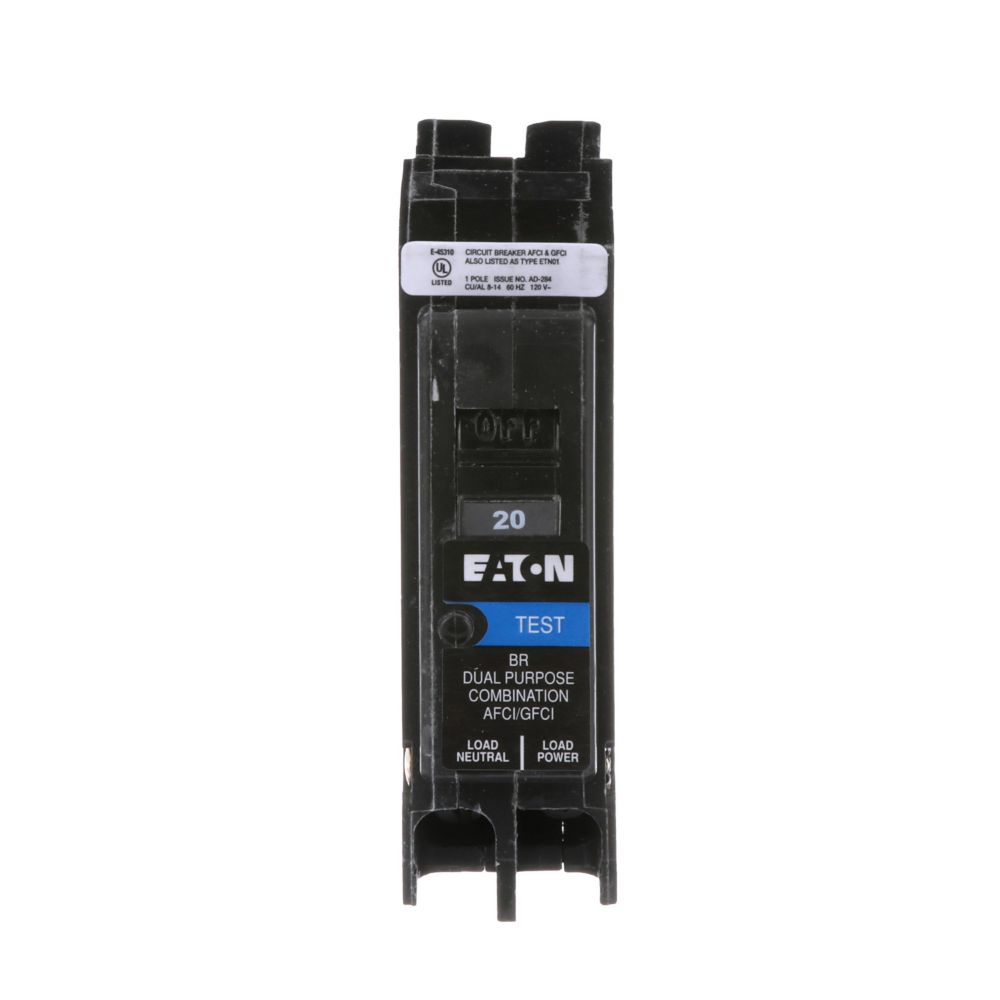

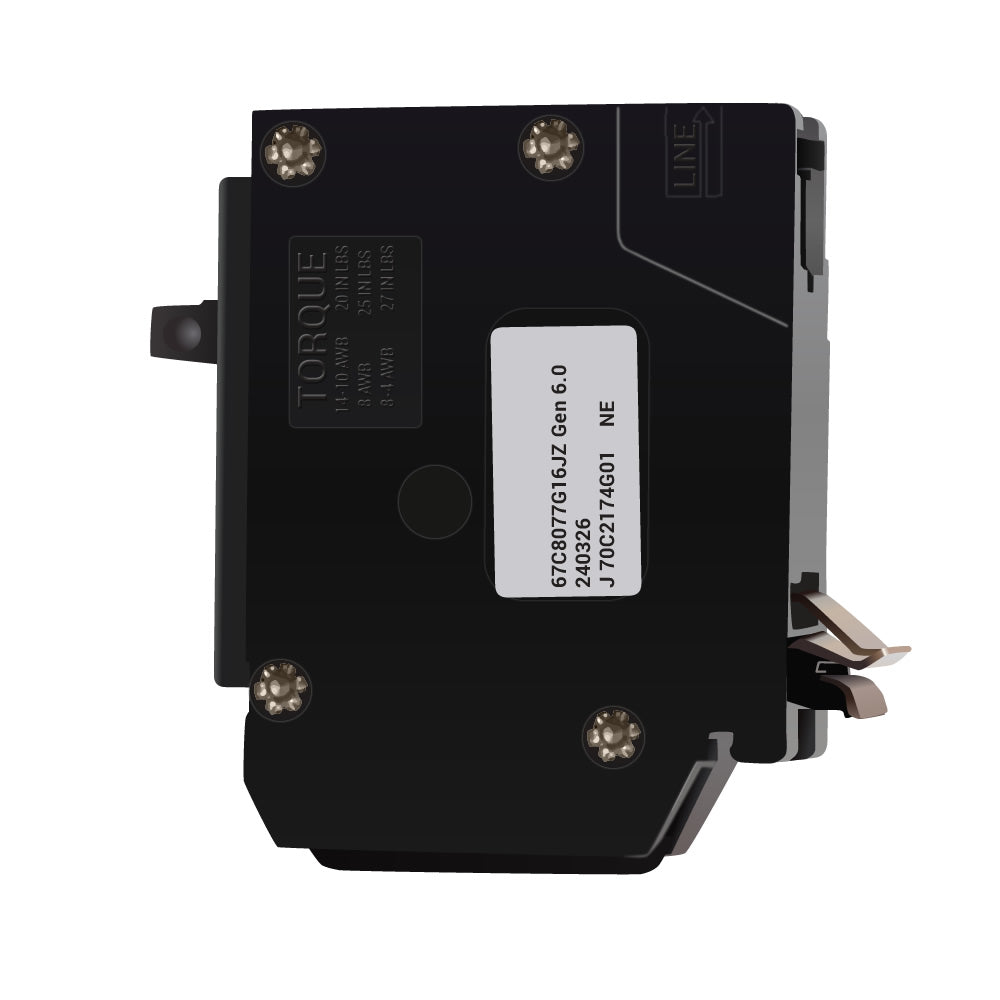

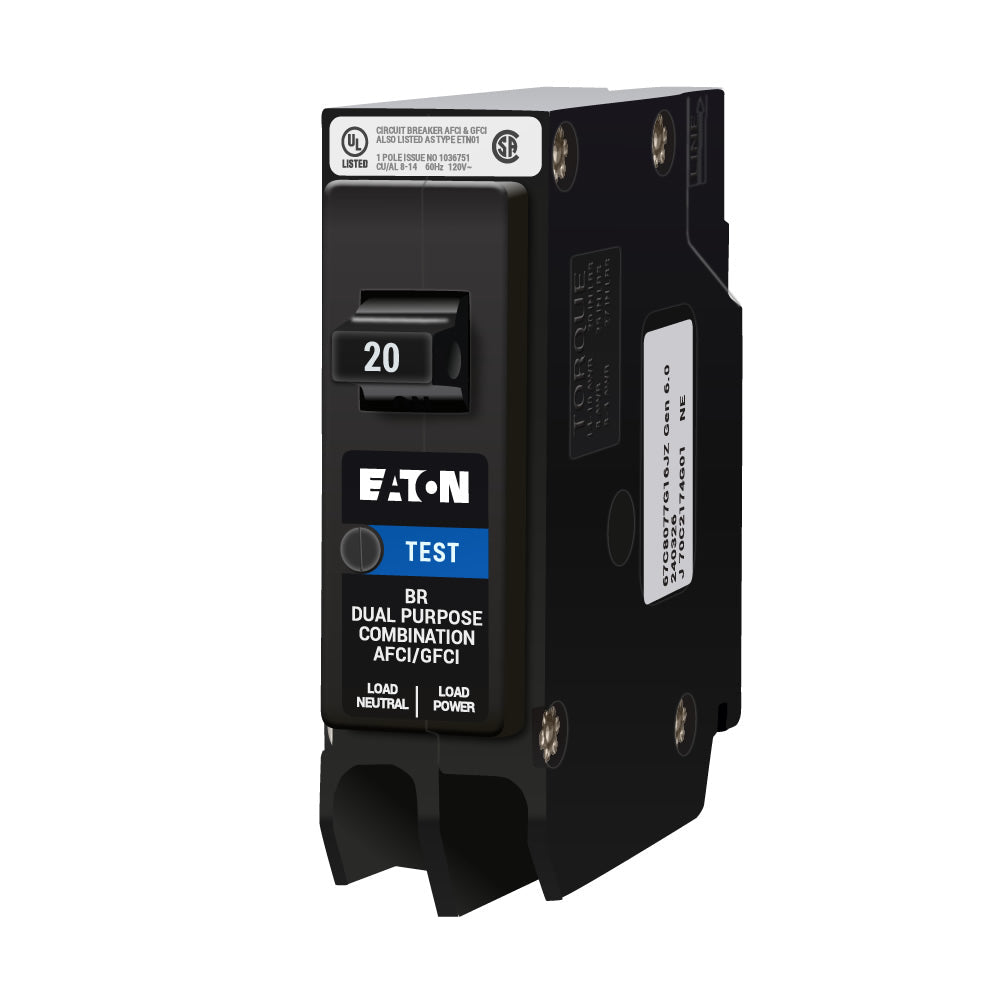

Eaton BRP120DF - 1-Pole 20A Circuit Breaker (10kA AIC, 120V)
Eaton BRP120DF - 1-Pole 20A Circuit Breaker (10kA AIC, 120V)
Eaton BRP120DF - 1-Pole 20A Circuit Breaker (10kA AIC, 120V)
Eaton BRP120DF - 1-Pole 20A Circuit Breaker (10kA AIC, 120V)
Eaton BRP120DF - 1-Pole 20A Circuit Breaker (10kA AIC, 120V)
Eaton BRP120DF - 1-Pole 20A Circuit Breaker (10kA AIC, 120V)
Eaton BRP120DF - 1-Pole 20A Circuit Breaker (10kA AIC, 120V)
Eaton BRP120DF - 1-Pole 20A Circuit Breaker (10kA AIC, 120V)
Eaton BRP120DF - 1-Pole 20A Circuit Breaker (10kA AIC, 120V)
Eaton BRP120DF - 1-Pole 20A Circuit Breaker (10kA AIC, 120V)

Eaton BRP120DF - 1-Pole 20A Circuit Breaker (10kA AIC, 120V)

Eaton
Price
Save $509.01
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton BRP120DF is a single-pole, plug-in molded case circuit breaker designed to provide reliable thermal-magnetic protection for 120V AC branch circuits. It features a 20A current rating and a 10kA interrupting capacity at 120V, housed in a compact, industry-standard BR frame measuring 2.9 in x 0.9 in x 2.9 in and weighing 0.4 lb. The breaker utilizes a combination of long-time and instantaneous trip functions to safeguard conductors from 14 to 4 AWG against overloads and short circuits. It is certified to UL 1699 and UL 943 standards for safety and is manufactured in the Dominican Republic as part of the Eaton BR Series.

Key Features & Specifications
  • Type: BRP Series, Molded Case, Thermal Magnetic Protection, Plug-In Connection
  • Voltage Rating: 120V AC
  • Current Rating: 20A
  • Dimensions: 2.9 in (L) x 0.9 in (H) x 2.9 in (W)
  • Standards: UL 1699, UL 943
  • Applications: Branch circuit protection in residential and light commercial panels
  • Switch Type: Circuit Breaker
  • Configuration: Single Pole
  • Phase: 1
  • AIC Rating: 10kA @ 120V
  • Connection: Plug-In
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: BR
  • Breaker Type: BR
  • Wire Size: 14 to 4 AWG
  • Certification: UL Listed
  • Circuit Breaker Mounting Style: Plug-In
  • Terminal Connection: Standard Lug
  • Standards: UL 1699, UL 943
  • Installation Type: Plug-In Mount
  • Weight: 0.4 lb
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786670009207
  • GTIN: 00786670009207
