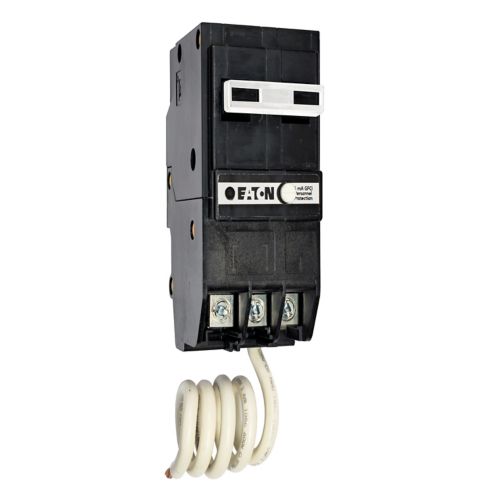

Eaton BRN245GF - Molded Case Circuit Breaker 45A 240V
Eaton BRN245GF - Molded Case Circuit Breaker 45A 240V

Eaton BRN245GF - Molded Case Circuit Breaker 45A 240V

Eaton
Price
Save $572.69
/
Condition
  • Low stock - 6 items left
  • Backordered, shipping soon
Call for Price
Eaton BRN245GF is a 2-pole molded case circuit breaker from the BR Series, designed for overcurrent and short-circuit protection in residential and light commercial electrical systems. It features a 45A current rating and a 240V voltage rating, with a 10kA interrupting capacity at 240V for reliable fault interruption. This plug-in breaker measures 4.25 inches in length, 2 inches in height, and 3 inches in width, weighing 1 lb, and is constructed with a thermal magnetic protection mechanism for long time and instantaneous trip functions. It complies with industry standards for molded case breakers, accepting wire sizes from AWG 14 to AWG 4 in single-phase configurations. Typical applications include branch circuit protection in load centers and panelboards for lighting, appliance, and general power distribution.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, BR Series, Type BRN
  • Voltage Rating: 240V
  • Current Rating: 45A
  • Dimensions: 4.25 in x 2 in x 3 in (Length/Depth x Height x Width)
  • Standards: UL Listed, CSA Certified
  • Applications: Residential and light commercial branch circuit protection
  • Switch Type: Toggle
  • Configuration: 1-Phase
  • Coil Voltage Maximum: Not applicable
  • Temp Rating: 40°C
  • Shipping Dimensions: 4.25 in x 2 in x 3 in
  • Phase: 1
  • Voltage: 240V
  • Amperage: 45A
  • AIC rating: 10kA@240V
  • Connection: Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: BR
  • Trip Type: Thermal Magnetic
  • Panel Type: Load Center
  • Breaker Type: Molded Case
  • Control Voltage Minimum: Not applicable
  • Control Voltage Maximum: Not applicable
  • MCM Size: Not applicable
  • Metal Type: Not specified
  • Panel Style: Not specified
  • Bus Type: Not specified
  • Fuse Class: Not applicable
  • Insulation Temperature: 60/75°C
  • Inductance: Not applicable
  • Impedance: Not applicable
  • Barrels: Not applicable
  • Class Rating: Not applicable
  • Diameter: Not applicable
  • Velocity: Not applicable
  • Clip Center: Not applicable
  • Clas: Not applicable
  • Mounting: Plug-In
  • Hz: 60
  • Coil Material: Not applicable
  • Horse Power: Not specified
  • Aux Contacts: Not applicable
  • CPT: Not applicable
  • Full Load Amps: Not specified
  • Dist Voltage: Not applicable
  • Bucket Size: Not applicable
  • Bucket Style: Not applicable
  • Bucket Type: Not applicable
  • Full Load Amp Maximum: Not specified
  • Full Load Amp Minimum: Not specified
  • Enclosure: Open
  • Relay Style: Not applicable
  • Coil Voltage Minimum: Not applicable
  • Wire: Not specified
  • Amperage Maximum: 45A
  • Amperage Minimum: Not specified
  • Nema Rating: Not specified
  • Switch Style: Toggle
  • Wire Size: AWG 14 to AWG 4
  • Certification: UL
  • Circuit Breaker Mounting Style: Plug-In
  • Terminal Connection: Lug
  • Frequency Rating: 60 Hz
  • Phase Connection: Single
  • Standards: UL 489
  • Compatible Frames: BR
  • Installation Type: Plug-In
  • Item QTY: 1
  • Nema Starter Size: Not applicable
  • Breaker Frame: BR
  • Current Rating: 45A
  • Reverse Standoff Voltage: Not applicable
  • Watts: Not applicable
  • Peak Pulse Current: Not applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not applicable
  • Breakdown Voltage (VBR@IT) (V): Not applicable
  • Polarity: Not applicable
  • Operating Temperature Maximum Celsius: 40°C
  • Max Clamp Voltage: Not applicable
  • On-State Current: Not applicable


Product Identification
  • UPC: 786676043878
