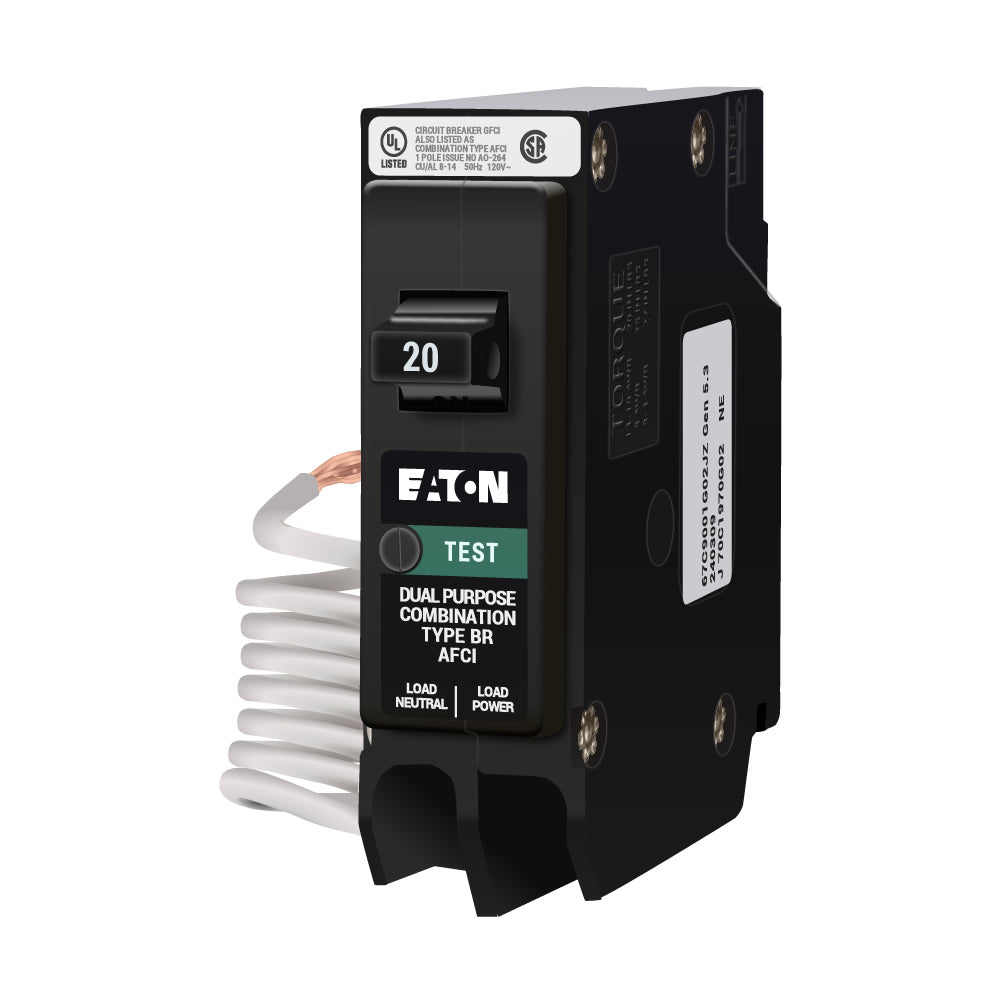

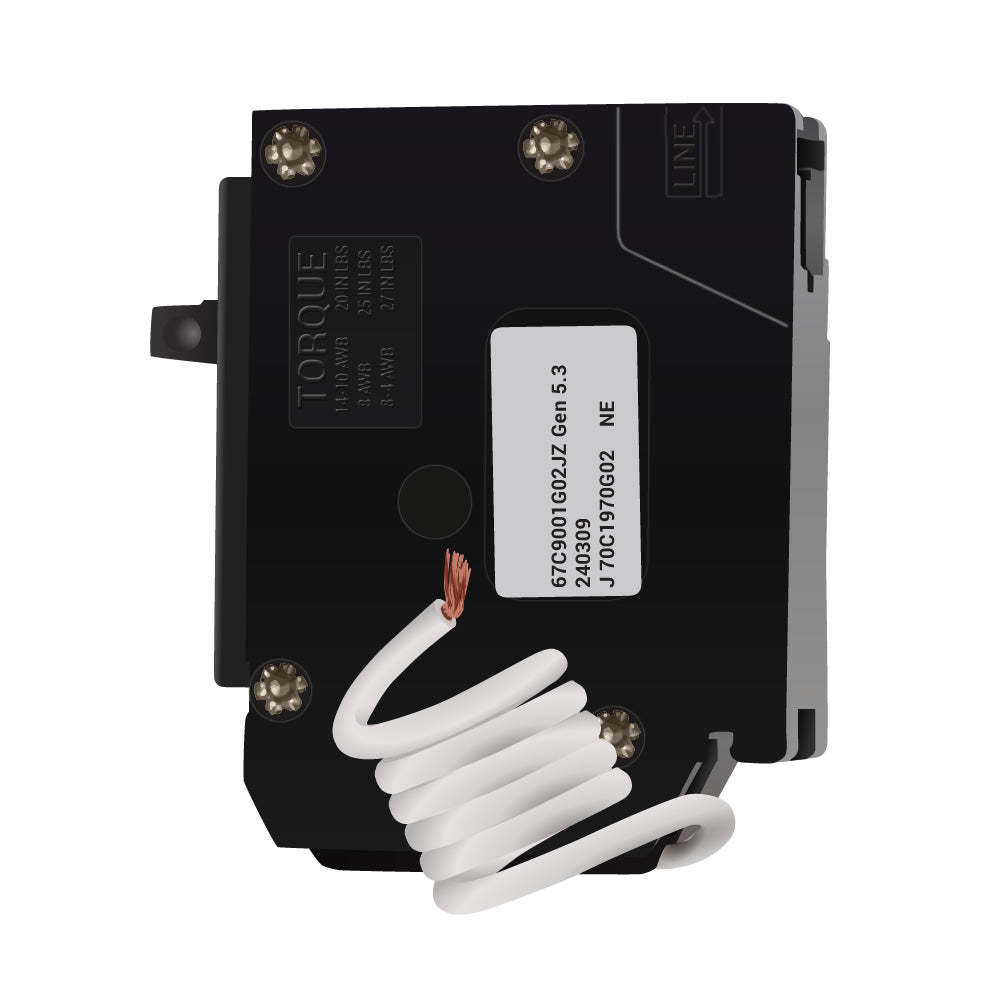

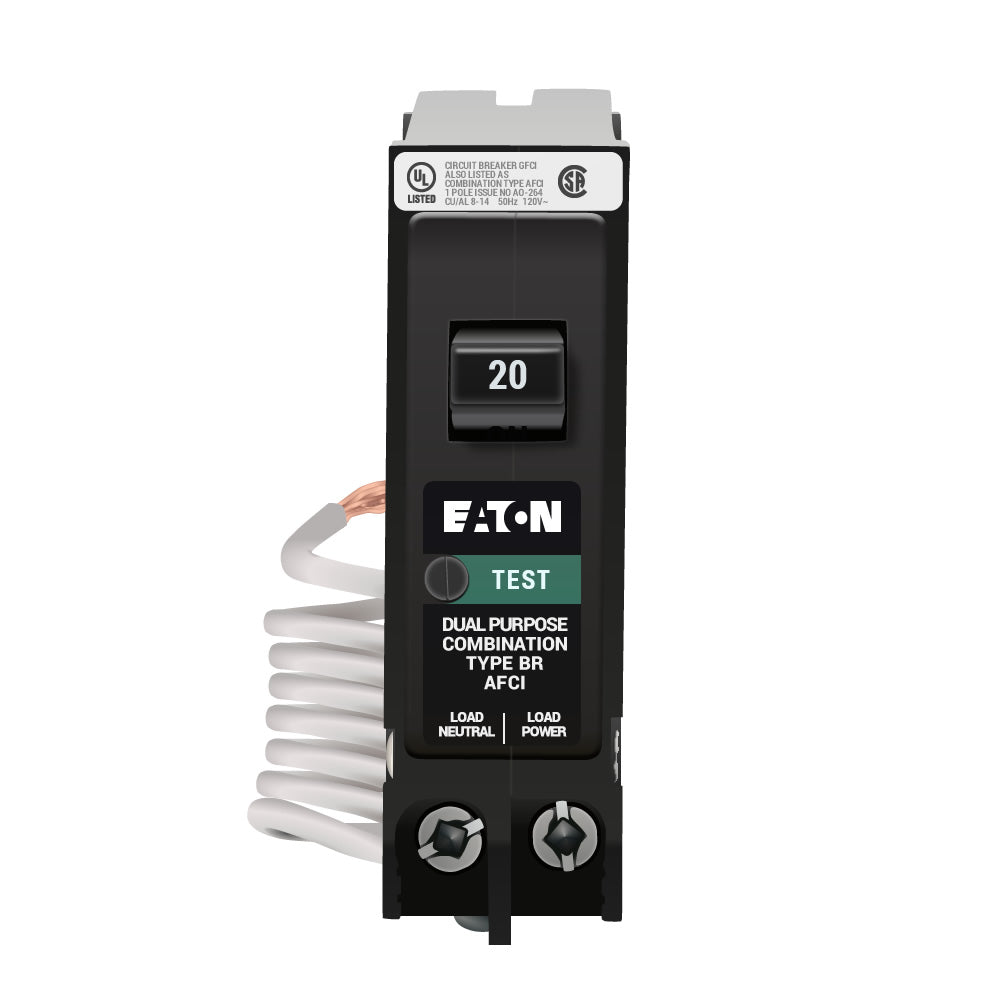

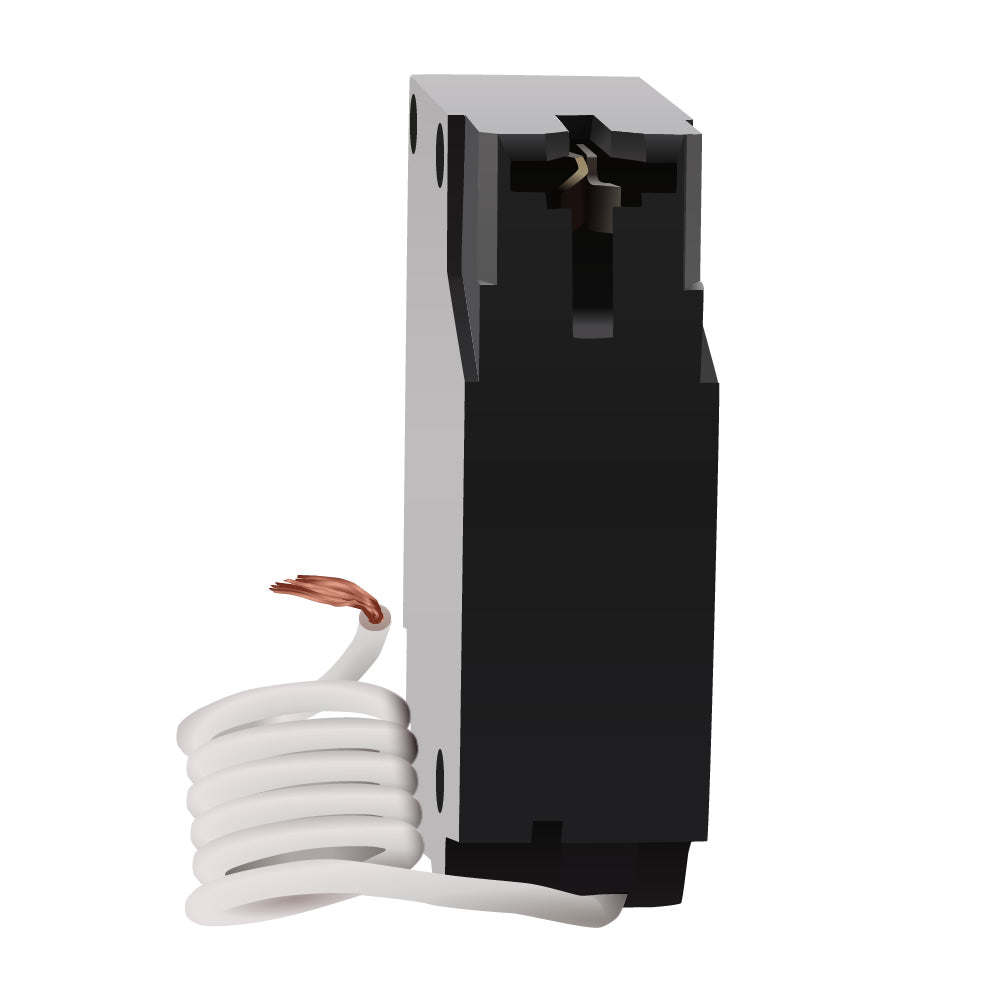

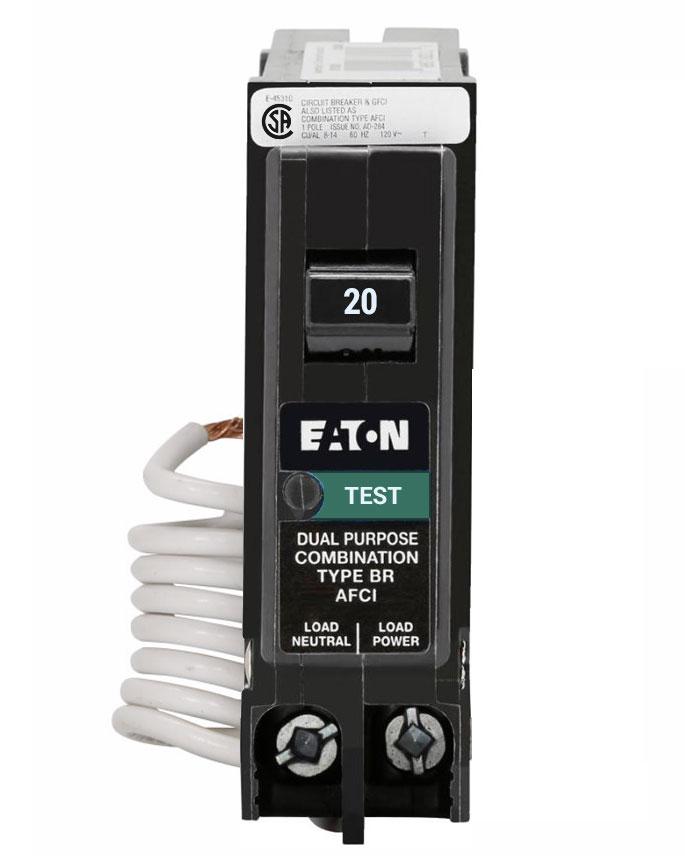

Eaton BRN120AF - BR Circuit Breaker 20A 1-Pole 120V

Price
Regular price $46.67
Regular price $520.71 Sale price $46.67
Save $474.04
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Eaton BRN120AF is a single-pole, plug-in molded case circuit breaker designed to provide reliable overcurrent protection for 120V AC branch circuits in residential and light commercial Type BR loadcenters. It features a 20A current rating with a 10kA interrupting capacity at 120V and utilizes a thermal-magnetic trip mechanism for both long-time delay and instantaneous protection against overloads and short circuits. The compact unit measures 3-1/2 inches by 1-1/4 inches, weighs 0.45 lb, and features a plug-on connection for conductors from 14 AWG to 8 AWG. This breaker is UL Listed, ensuring compliance with industry safety standards for electrical distribution equipment.

Key Features & Specifications
  • Type: BRN Series, Molded Case, Thermal-Magnetic Protection, Plug-In
  • Voltage Rating: 120V AC
  • Current Rating: 20A
  • Dimensions: 3-1/2 in H x 1-1/4 in W
  • Standards: UL Listed
  • Applications: Type BR Loadcenters, Residential & Light Commercial Branch Circuits
  • Switch Type: Circuit Breaker
  • Configuration: Single Pole
  • Phase: 1
  • AIC Rating: 10kA @ 120V
  • Connection: Plug-On Terminal
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI) Trip
  • Breaker Type: BR
  • Panel Type: Type BR Loadcenters
  • MCM Size: Wire Range 14 AWG to 8 AWG (Cu/Al)
  • Certification: UL Listed
  • Weight: 0.45 lb
  • Family: Type BR
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 78668904089
  • GTIN: 00786689040895
