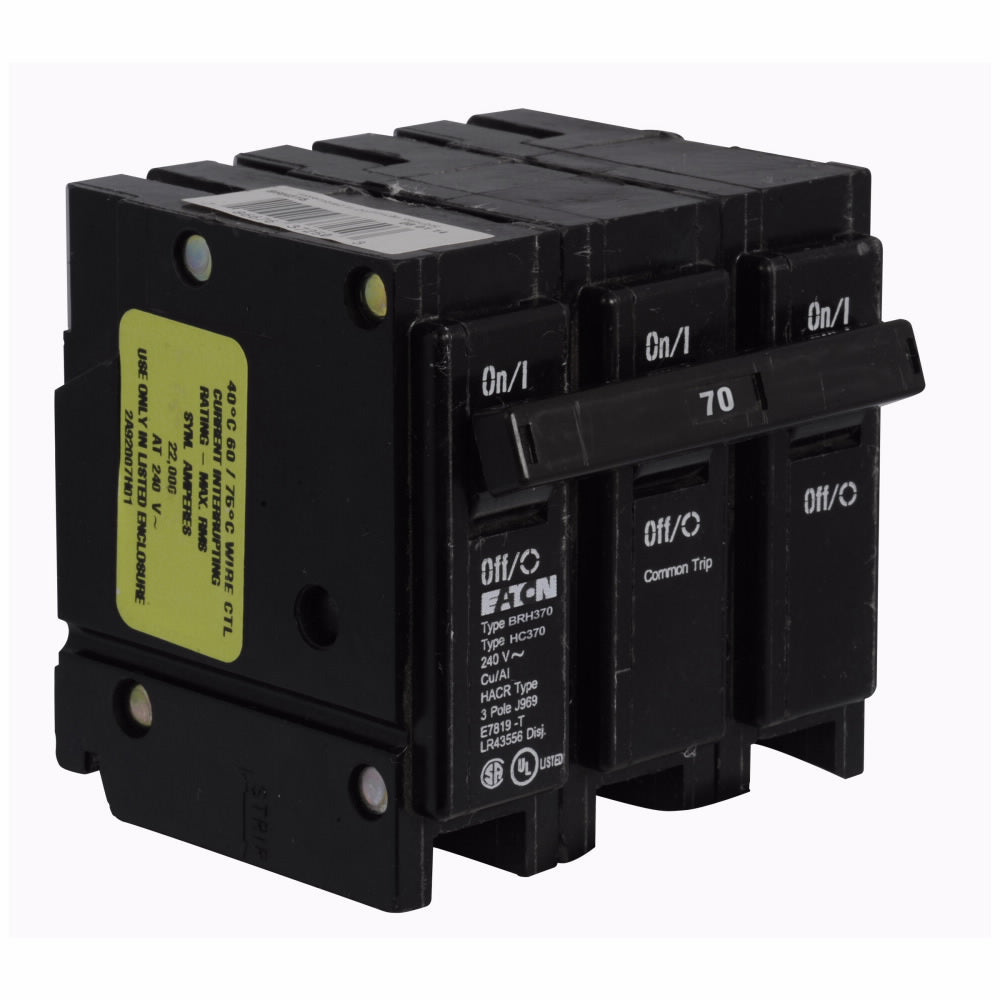

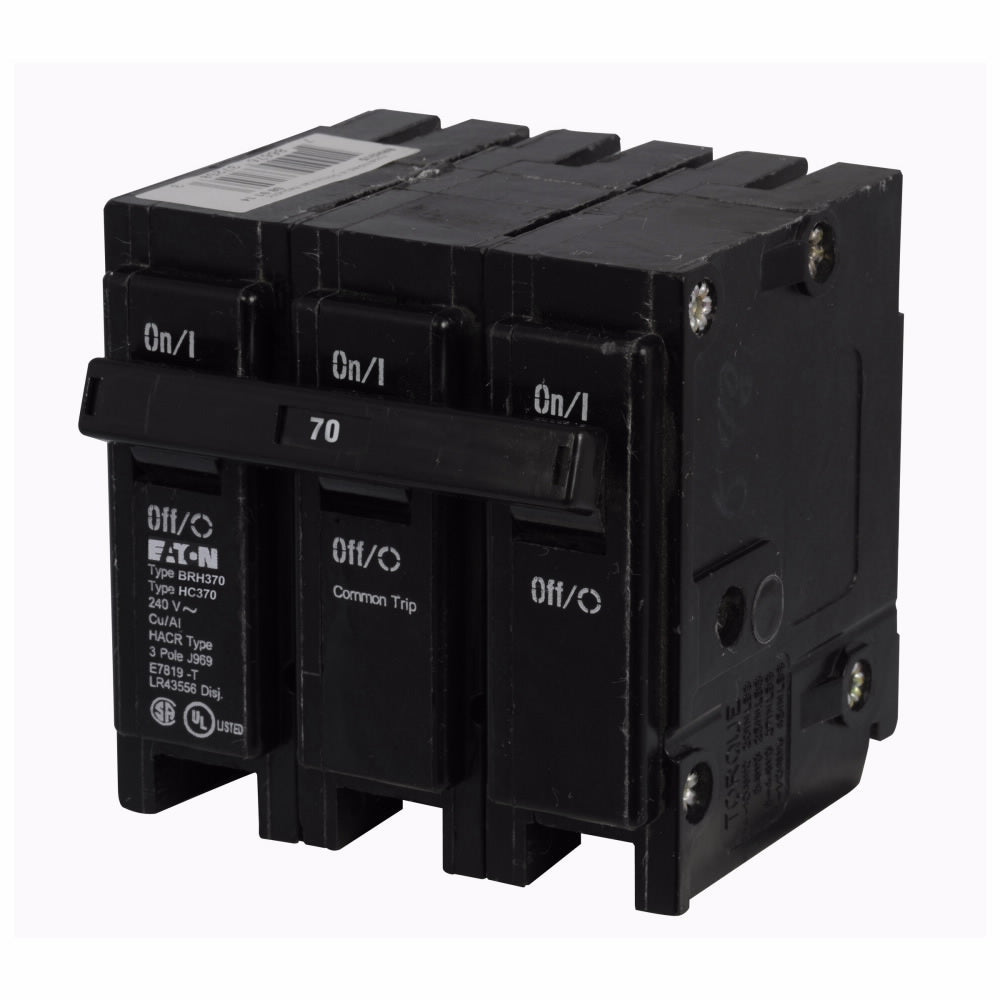

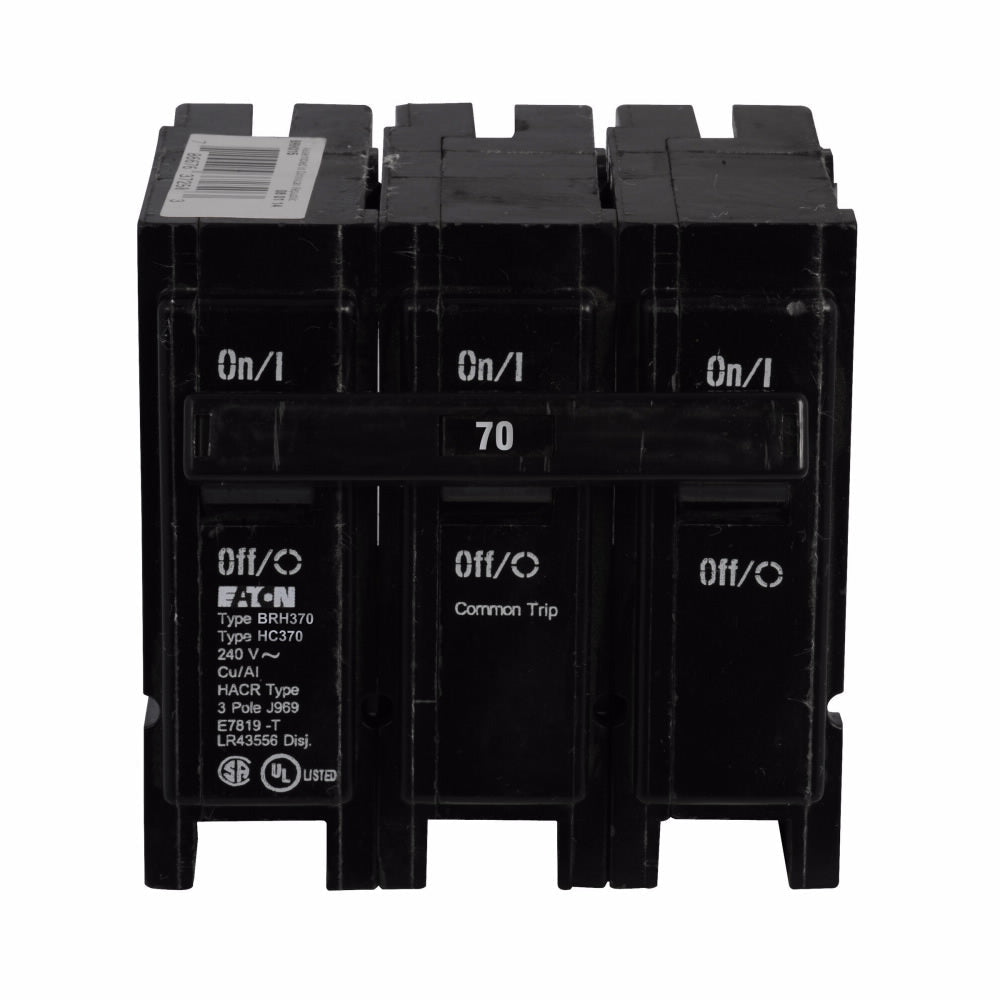

Cutler Hammer BRH370 - 70A 3-Pole Thermal Magnetic Breaker

Price
Regular price $186.47
Regular price $2,051.97 Sale price $186.47
Save $1,865.50
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Cutler Hammer BRH370 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase electrical systems. It features a 70A current rating and a 240V AC voltage rating, housed in a compact 3-inch cube plug-in configuration. The breaker utilizes a thermal-magnetic trip mechanism for both long-time delay and instantaneous protection, is rated for 22kA interrupting capacity at 240V, and operates across a temperature range of -25 to 70 °C. It complies with UL 489 and Federal Specification W-C-376 standards, making it suitable for industrial panelboards, switchboards, and motor control centers where robust branch circuit protection is required.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Long Time & Instantaneous Trip
  • Voltage Rating: 240V AC
  • Current Rating: 70A
  • Dimensions: 3 in x 3 in x 3 in (L x H x W)
  • Standards: UL 489, Federal Specification W-C-376
  • Applications: Industrial Panelboards, Switchboards, Motor Control Centers
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 3
  • AIC Rating: 22kA @ 240V
  • Connection: Plug-In
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Wire Size: AWG 4 to AWG 1/0, Copper/Aluminum
  • Certification: UL 489, Federal Specifications Classification W-C-376
  • Family: BR Series
  • Country of Origin: Dominican Republic
  • Weight: 2 lb


Product Identification
  • UPC: 786676372800
  • GTIN: 00786676372800
