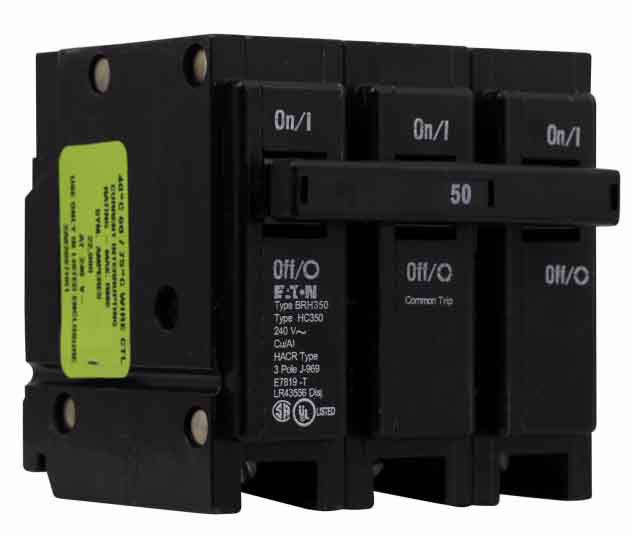

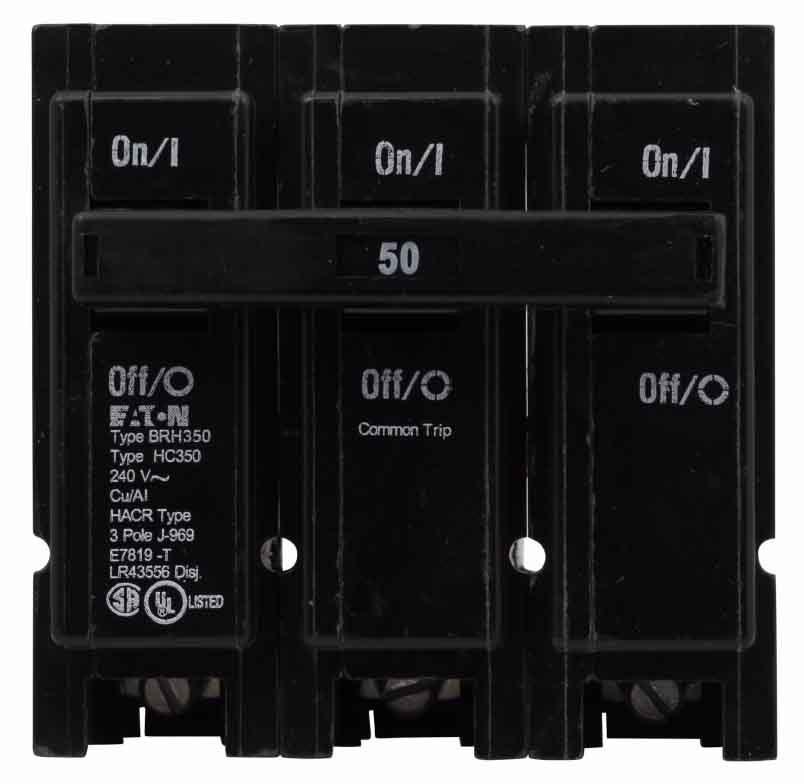

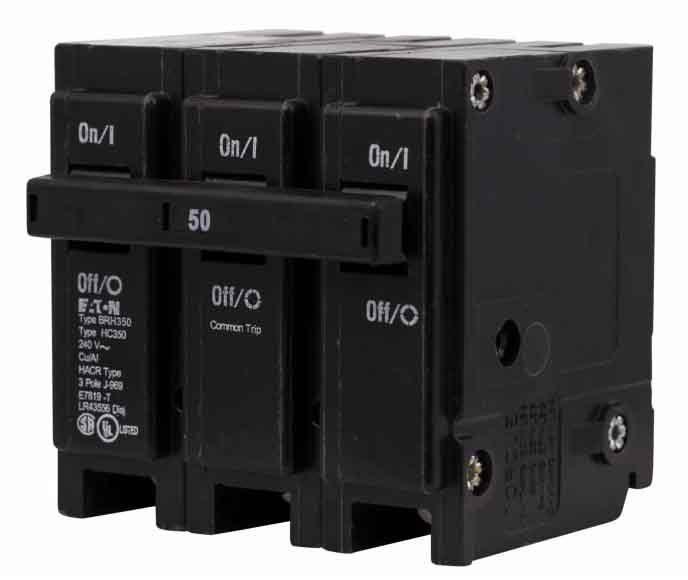

Cutler Hammer BRH350 - Molded Case Circuit Breaker 50A 3P 240V
Cutler Hammer BRH350 - Molded Case Circuit Breaker 50A 3P 240V
Cutler Hammer BRH350 - Molded Case Circuit Breaker 50A 3P 240V
Cutler Hammer BRH350 - Molded Case Circuit Breaker 50A 3P 240V
Cutler Hammer BRH350 - Molded Case Circuit Breaker 50A 3P 240V
Cutler Hammer BRH350 - Molded Case Circuit Breaker 50A 3P 240V

Cutler Hammer BRH350 - Molded Case Circuit Breaker 50A 3P 240V

Cutler Hammer
Price
Save $1,205.31
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer BRH350 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial electrical systems. It features a 50A current rating and a 240V AC voltage rating, housed within a compact 3-inch cube plug-in configuration. The breaker utilizes a thermal-magnetic trip mechanism for both long-time delay and instantaneous protection, is constructed to operate in temperatures from -25°C to 70°C, and complies with UL 489 and Federal Specification W-C376 standards. Its 22kA interrupting capacity at 240V makes it suitable for protecting feeders and branch circuits in commercial and industrial panelboards.

Key Features & Specifications
  • Type: BRH Series, Molded Case, Thermal-Magnetic Protection with Long Time and Instantaneous Trip Functions
  • Voltage Rating: 240V AC
  • Current Rating: 50A
  • Poles: 3
  • Connection: Plug-In
  • AIC Rating: 22kA @ 240V AC
  • Phase: 3
  • Wire Size: 14 to 4 AWG (Copper/Aluminum)
  • Dimensions: 3 in x 3 in x 3 in (L x H x W)
  • Weight: 1 lb
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Standards: UL 489, Federal Specification W-C376
  • Frame: BR Series
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786676372701
  • GTIN: 00786676372701
