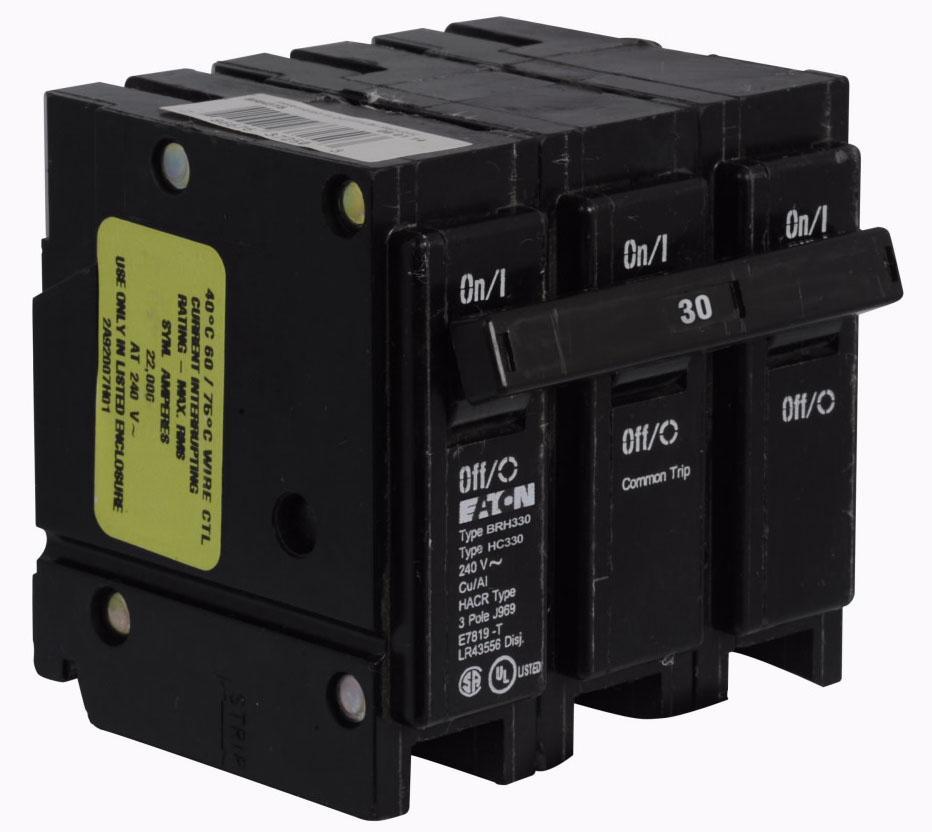

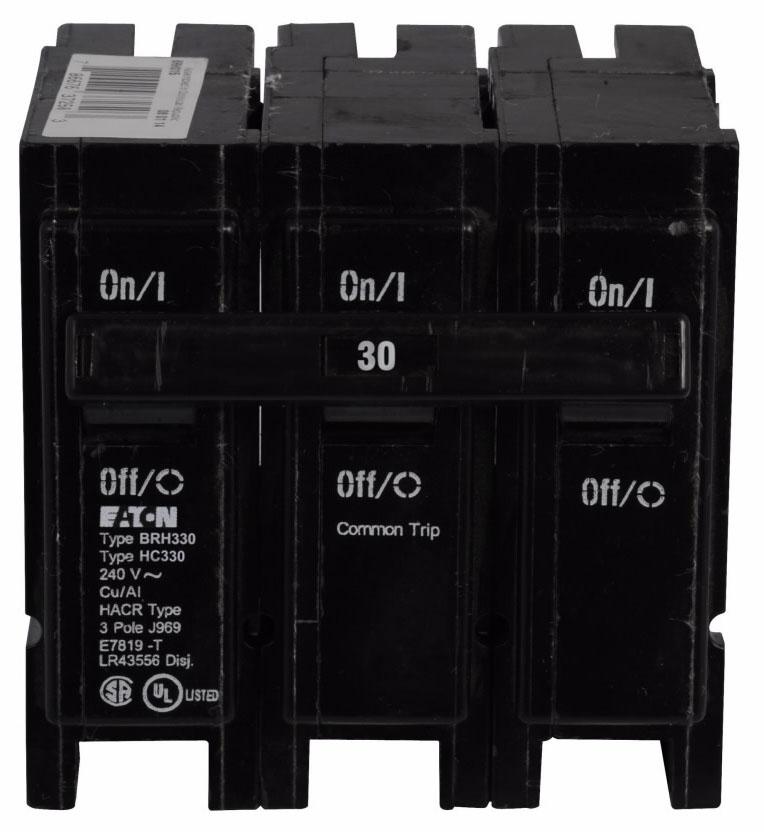

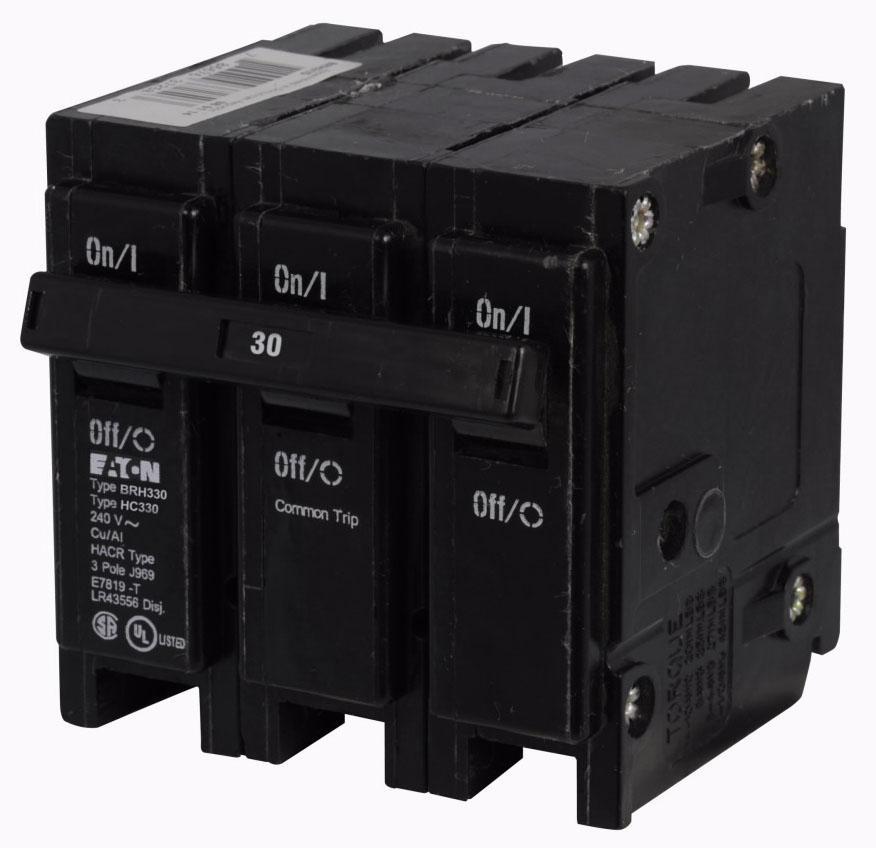

Cutler Hammer BRH330 - 3-Pole Circuit Breaker 30A 240V
Cutler Hammer BRH330 - 3-Pole Circuit Breaker 30A 240V
Cutler Hammer BRH330 - 3-Pole Circuit Breaker 30A 240V
Cutler Hammer BRH330 - 3-Pole Circuit Breaker 30A 240V
Cutler Hammer BRH330 - 3-Pole Circuit Breaker 30A 240V
Cutler Hammer BRH330 - 3-Pole Circuit Breaker 30A 240V

Cutler Hammer BRH330 - 3-Pole Circuit Breaker 30A 240V

Cutler Hammer
Price
Save $1,133.50
/
Condition
  • Low stock - 6 items left
  • Backordered, shipping soon
Call for Price
Cutler Hammer BRH330 is a three-pole molded case circuit breaker designed for providing reliable thermal-magnetic protection in three-phase industrial electrical systems. It features a 30A current rating and a 240V AC voltage rating, housed in a compact 3-inch cubic plug-in configuration for efficient panel space utilization. The breaker is constructed for durability with an operating temperature range of -25 to 70 °C and complies with UL 489 and Federal Specification W-C-376 standards. Its 22kA interrupting rating at 240V AC makes it suitable for protecting feeder and branch circuits in commercial and industrial panels, compatible with copper or aluminum conductors from AWG 14 to AWG 4.

Key Features & Specifications
  • Type: BRH Series, Three-Pole, Thermal-Magnetic, Molded Case Circuit Breaker
  • Voltage Rating: 240V AC
  • Current Rating: 30A
  • Dimensions: 3 in x 3 in x 3 in (L x H x W)
  • Standards: UL 489, Federal Specification W-C-376
  • Applications: Industrial and Commercial Feeder/Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 3
  • AIC Rating: 22kA @ 240V AC
  • Connection: Plug-In
  • Poles: 3
  • Protection: Thermal-Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Wire Size: AWG 14 to AWG 4, Cu/Al
  • Certification: UL 489, Federal Specification W-C-376
  • Weight: 2 lb
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786676372602
  • GTIN: 00786676372602
