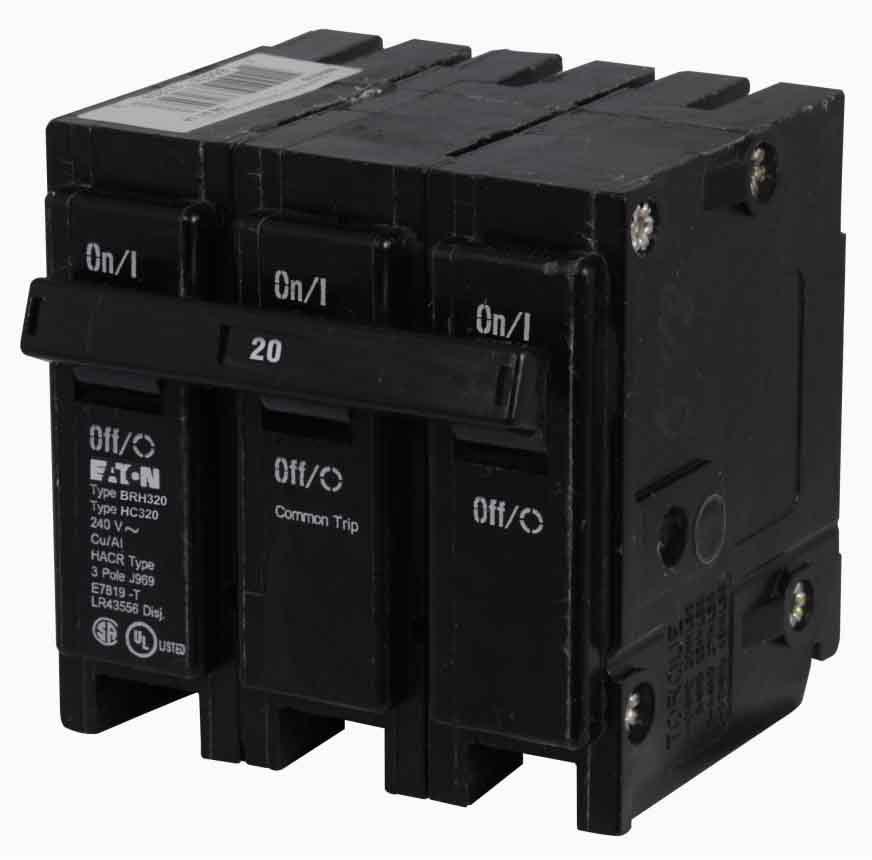

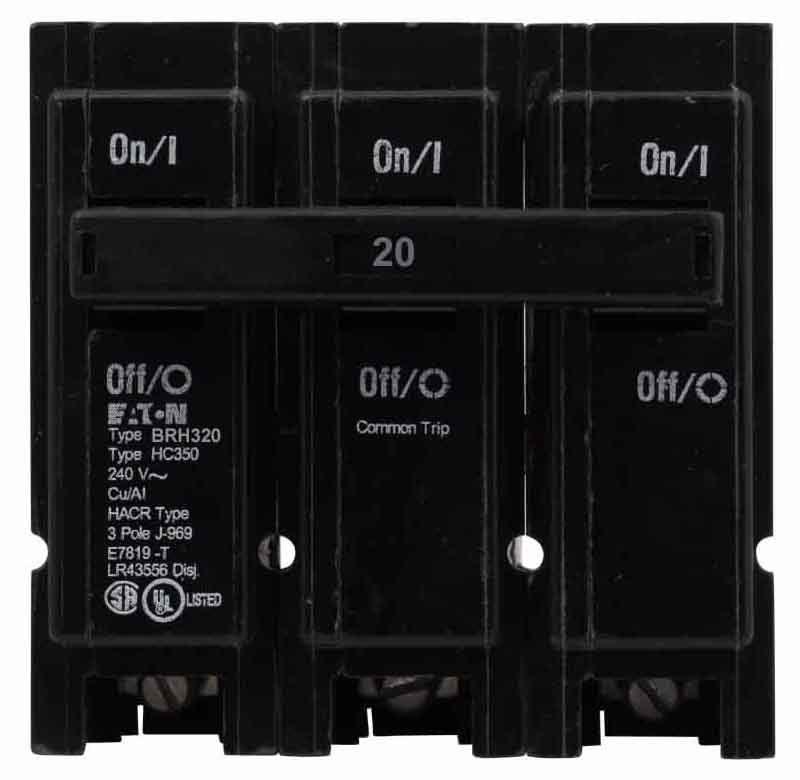

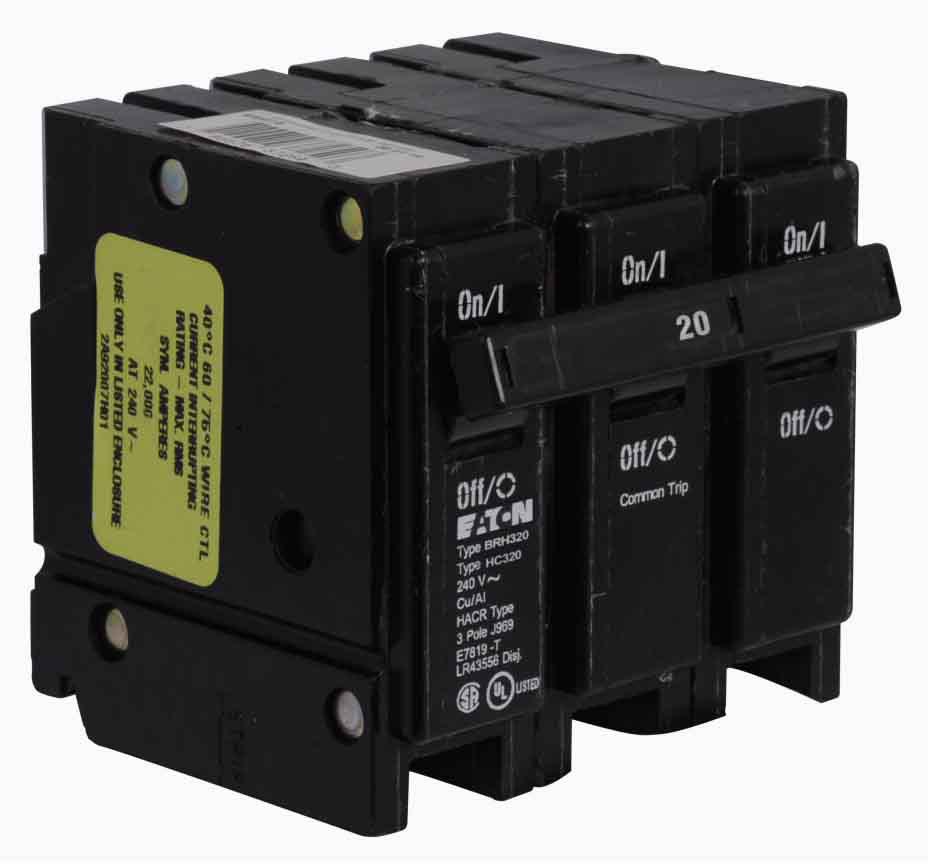

Cutler Hammer BRH320 - Molded Case Circuit Breaker 20A 3P 240V
Cutler Hammer BRH320 - Molded Case Circuit Breaker 20A 3P 240V
Cutler Hammer BRH320 - Molded Case Circuit Breaker 20A 3P 240V
Cutler Hammer BRH320 - Molded Case Circuit Breaker 20A 3P 240V
Cutler Hammer BRH320 - Molded Case Circuit Breaker 20A 3P 240V
Cutler Hammer BRH320 - Molded Case Circuit Breaker 20A 3P 240V

Cutler Hammer BRH320 - Molded Case Circuit Breaker 20A 3P 240V

Cutler Hammer
Price
Save $1,205.31
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer BRH320 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase electrical systems. It features a 20A current rating and a 240V AC voltage rating, housed within a compact 3-inch cube plug-in configuration. The breaker utilizes a thermal-magnetic trip mechanism for both long-time and instantaneous protection, is constructed to operate in temperatures from -25°C to 70°C, and complies with UL 489 and federal specification W-C376 standards. Its 22kA interrupting rating at 240V makes it suitable for safeguarding industrial control panels, HVAC systems, and commercial distribution equipment.

Key Features & Specifications
  • Type: BRH Series, Molded Case, Thermal-Magnetic Protection, Plug-In Connection
  • Voltage Rating: 240V AC
  • Current Rating: 20A
  • Dimensions: 3 in x 3 in x 3 in (76.2 mm x 76.2 mm x 76.2 mm)
  • Standards: UL 489, Federal Specifications Classification W-C376
  • Applications: Industrial Control Panels, Commercial Distribution, HVAC Systems
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Phase: 3
  • AIC rating: 22kA @ 240V
  • Connection: Plug-In
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: BR
  • Trip Type: Thermal-Magnetic
  • Wire Size: AWG 14 to AWG 4, Cu/Al
  • Certification: UL 489, Federal Specifications Classification W-C376
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Weight: 2 lb (0.91 kg)
  • Family: BR Series
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786676372558
  • GTIN: 00786676372558
