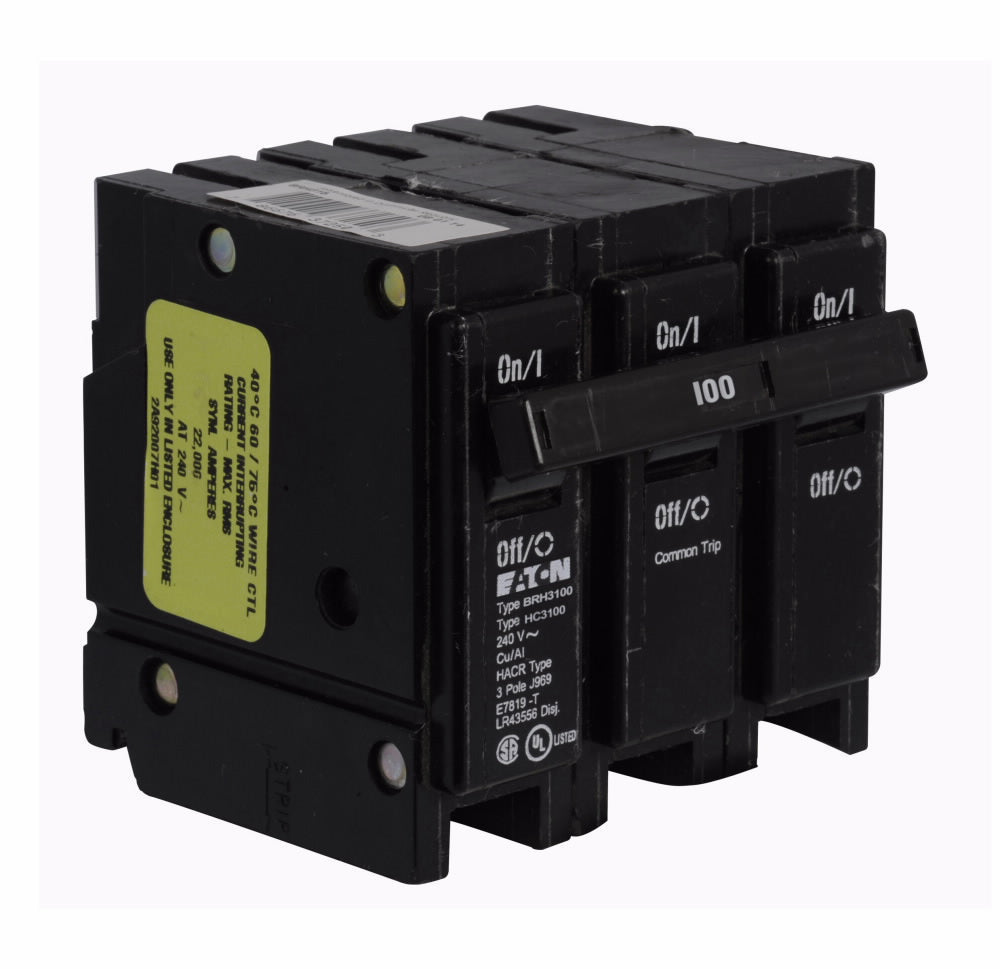

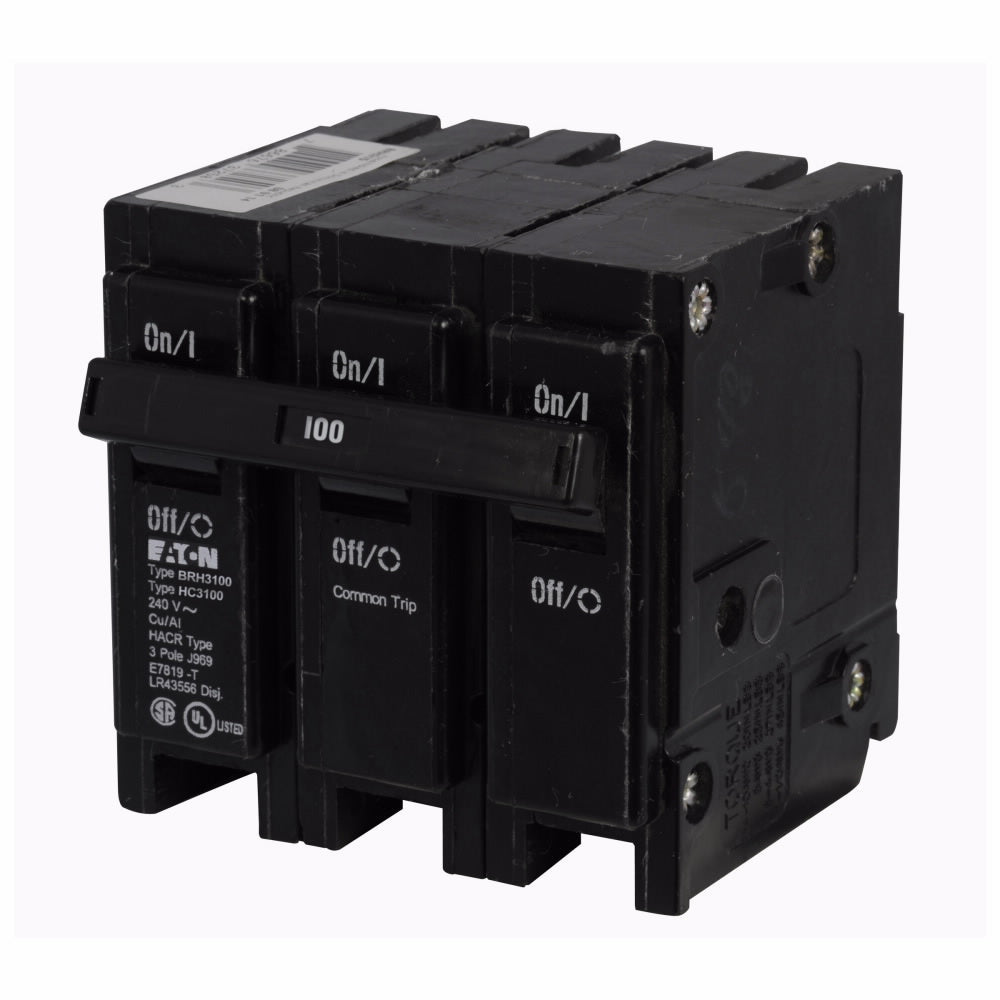

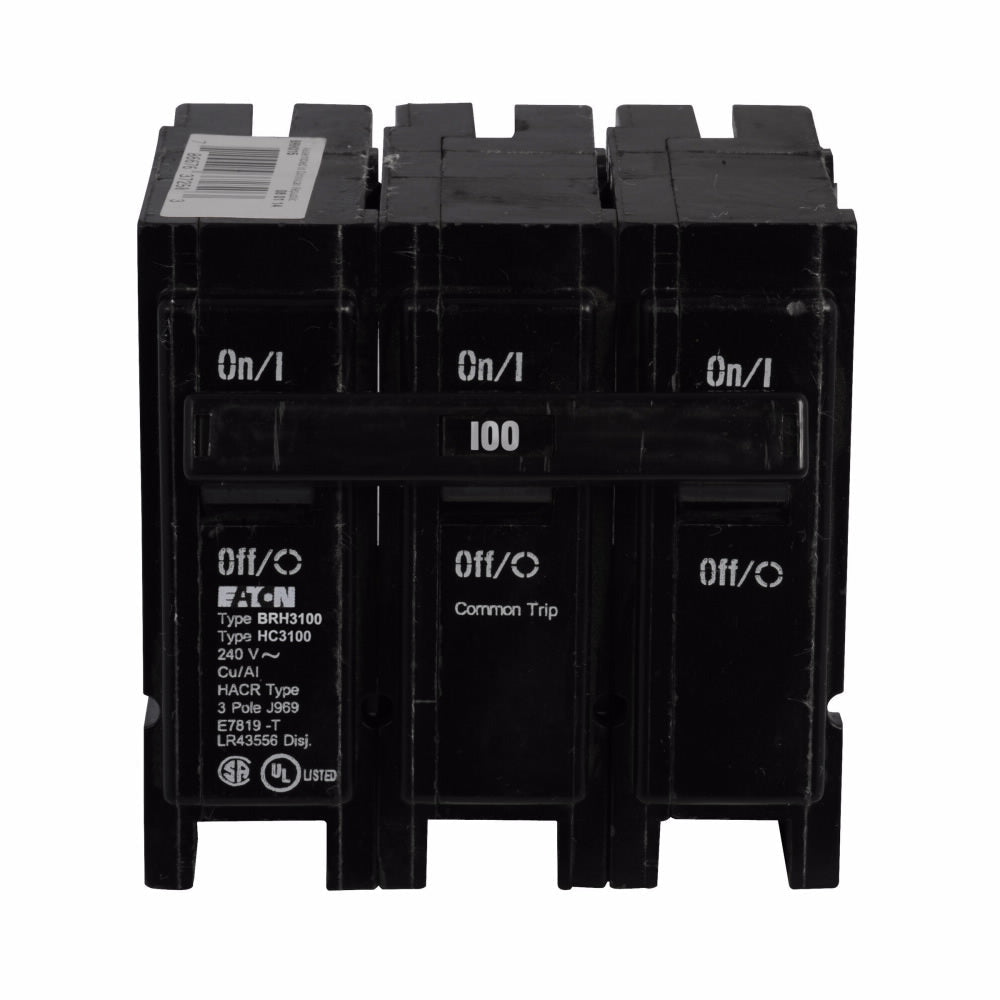

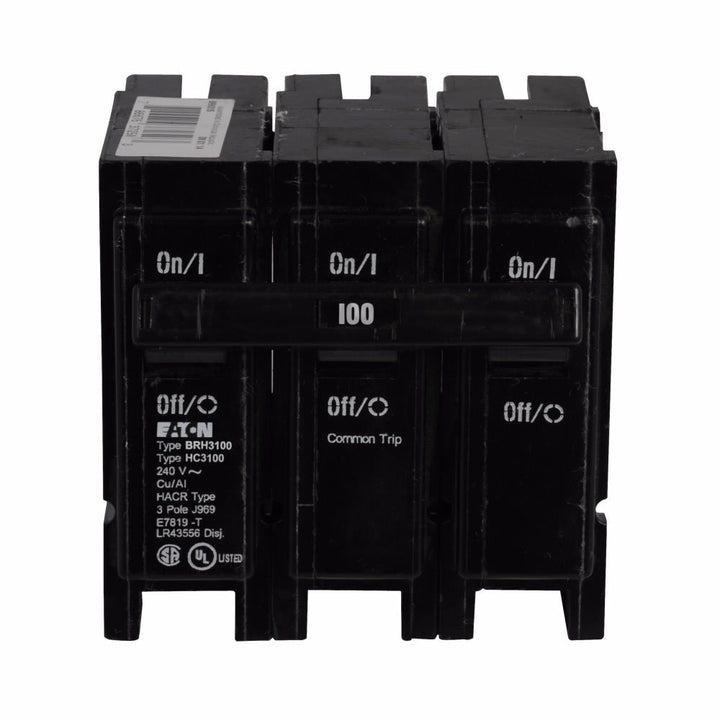

Cutler Hammer BRH3100 - Molded Case Circuit Breaker 100A 3P 240V
Cutler Hammer BRH3100 - Molded Case Circuit Breaker 100A 3P 240V
Cutler Hammer BRH3100 - Molded Case Circuit Breaker 100A 3P 240V
Cutler Hammer BRH3100 - Molded Case Circuit Breaker 100A 3P 240V
Cutler Hammer BRH3100 - Molded Case Circuit Breaker 100A 3P 240V
Cutler Hammer BRH3100 - Molded Case Circuit Breaker 100A 3P 240V

Cutler Hammer BRH3100 - Molded Case Circuit Breaker 100A 3P 240V

Cutler Hammer
Price
Save $1,738.42
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer BRH3100 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial electrical systems. It features a 100A current rating and a 240V AC voltage rating, housed in a compact 3" x 3" x 3" plug-in configuration with a thermal-magnetic trip unit for both long-time and instantaneous protection. This unit is constructed for durability across an operating temperature range of -25°C to 70°C and complies with UL 489 and Federal Specification W-C376 standards. Its 22kA interrupting rating at 240V and compatibility with copper or aluminum conductors from 4 AWG to 1/0 AWG make it suitable for panelboards, switchboards, and industrial control equipment.

Key Features & Specifications
  • Type: BRH Series, Molded Case, Thermal-Magnetic Protection with Long Time and Instantaneous Trip Functions
  • Voltage Rating: 240V AC
  • Current Rating: 100A
  • Dimensions: 3 in x 3 in x 3 in (Length/Depth x Height x Width)
  • Standards: UL 489, Federal Specifications Classification W-C376
  • Applications: Industrial Panelboards, Switchboards, Motor Control Centers
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 3
  • AIC rating: 22kA @ 240V
  • Connection: Plug-In
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Wire Size: 4 AWG to 1/0 AWG, Cu/Al
  • Certification: UL 489, Federal Specifications Classification W-C376
  • Family: BR Series
  • Country of Origin: Dominican Republic
  • Weight: 1 lb


Product Identification
  • UPC: 786676372909
  • GTIN: 00786676372909
