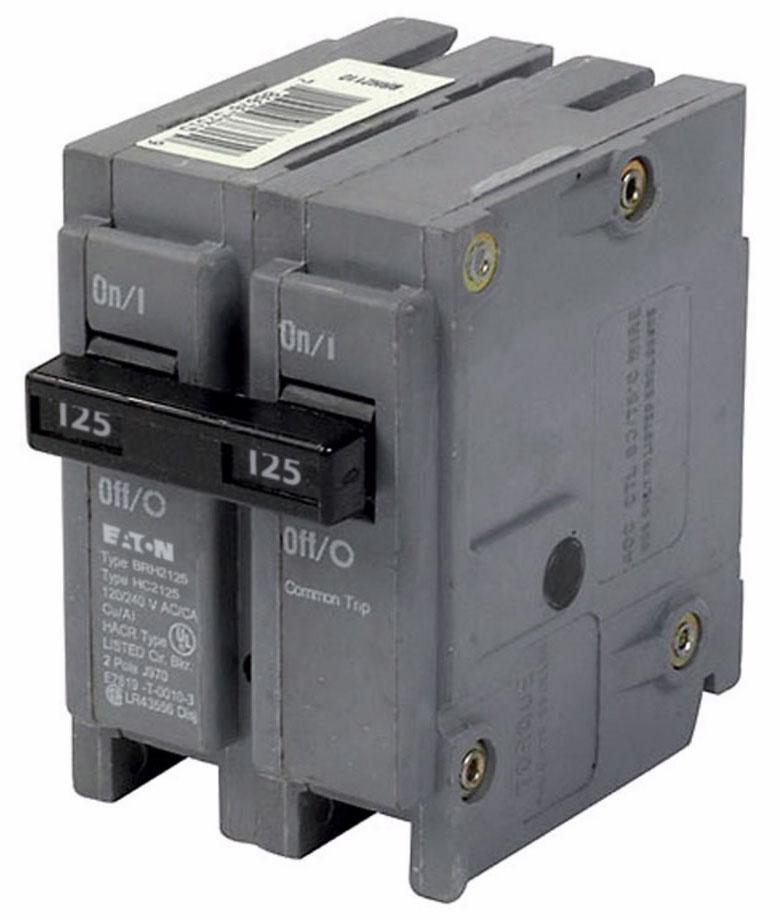

Cutler Hammer BRH2125 - 125A 2-Pole Circuit Breaker (22kA AIC)
Cutler Hammer BRH2125 - 125A 2-Pole Circuit Breaker (22kA AIC)

Cutler Hammer BRH2125 - 125A 2-Pole Circuit Breaker (22kA AIC)

Cutler Hammer
Price
Save $1,016.45
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer BRH2125 is a molded case circuit breaker designed for providing reliable overcurrent protection in single-phase electrical systems. It features a 125A current rating and a 240V AC voltage rating, housed within a compact 3" x 3" x 2" plug-in unit weighing 0.6 lb. The breaker is constructed with thermal-magnetic trip technology for both long-time and instantaneous protection, ensuring compliance with UL 490 and Federal Specification W-C376 standards. Its 22kA interrupting rating at 240V and operating temperature range of -25 to 70 °C make it suitable for use in Type BR loadcenters for commercial and light industrial applications.

Key Features & Specifications
  • Type: BRH Series, Molded Case, Thermal-Magnetic Protection, Plug-In Connection
  • Voltage Rating: 240V AC
  • Current Rating: 125A
  • Dimensions: 3 in (L) x 3 in (H) x 2 in (W)
  • Standards: UL 490, Federal Specifications Classification W-C376
  • Applications: Type BR Loadcenters, Commercial & Light Industrial
  • Phase: 1
  • Poles: 2
  • AIC Rating: 22kA @ 240V
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Breaker Type: BRH
  • Connection: Plug-In
  • Panel Type: Type BR Loadcenters
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Wire Size: #4 to 2/0 AWG CU/AL
  • MCM Size: Min. 4 AWG, Max. 2/0 AWG (Cu/Al)
  • Weight: 0.6 lb
  • Family: BR Series
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786676373951
  • GTIN: 00786676373951
