Cutler Hammer
Price
Save $1,060.43
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

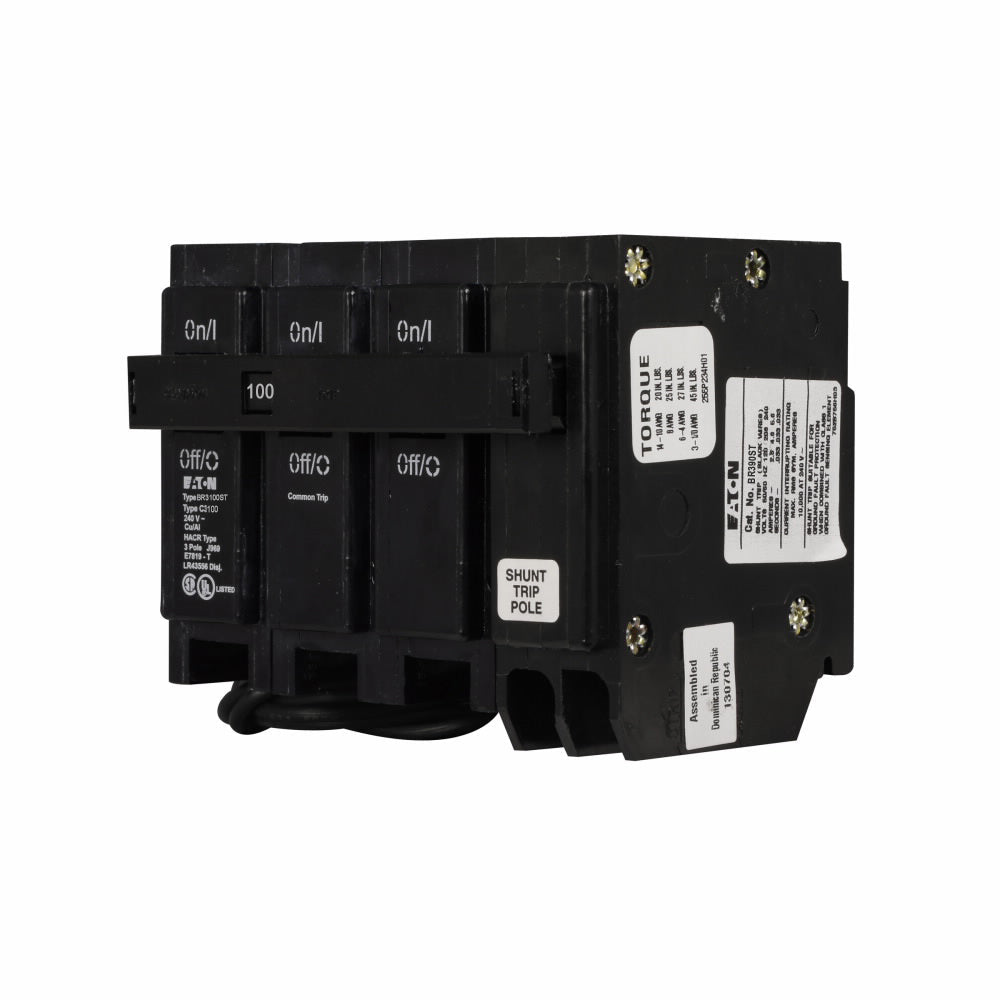

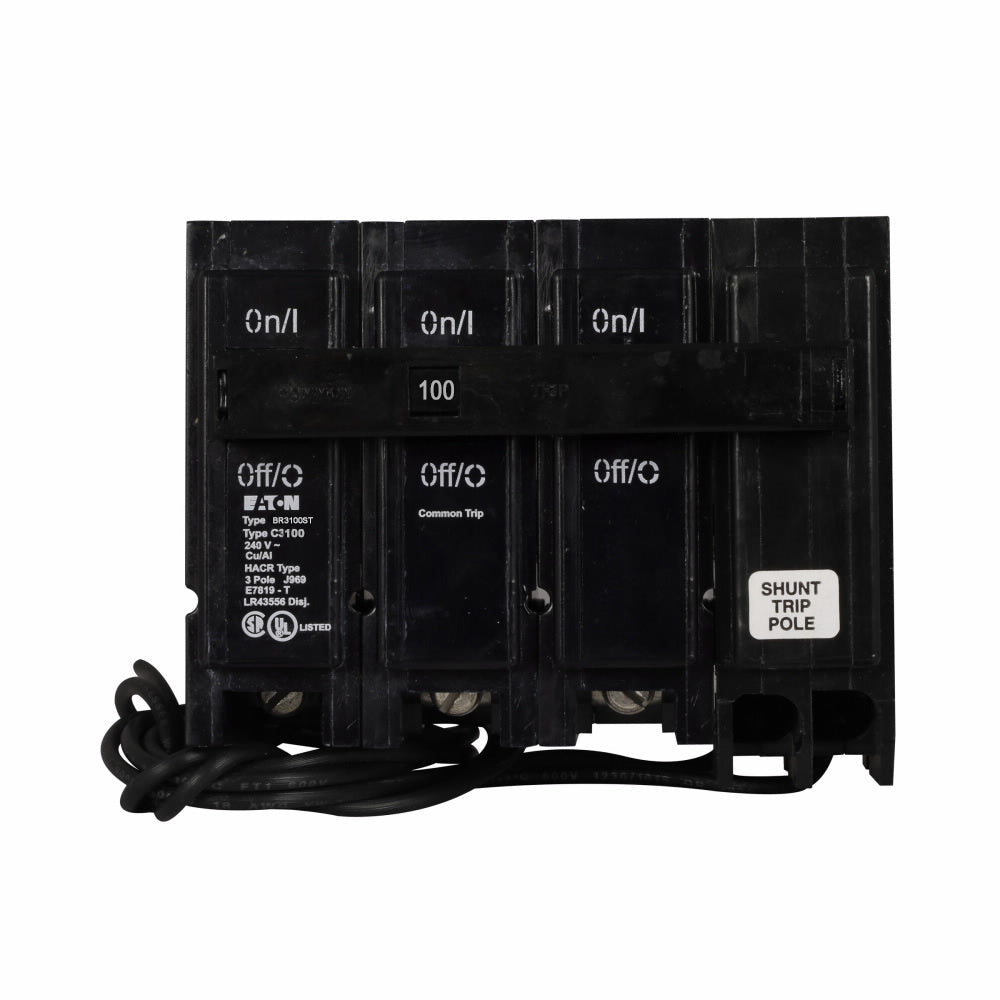

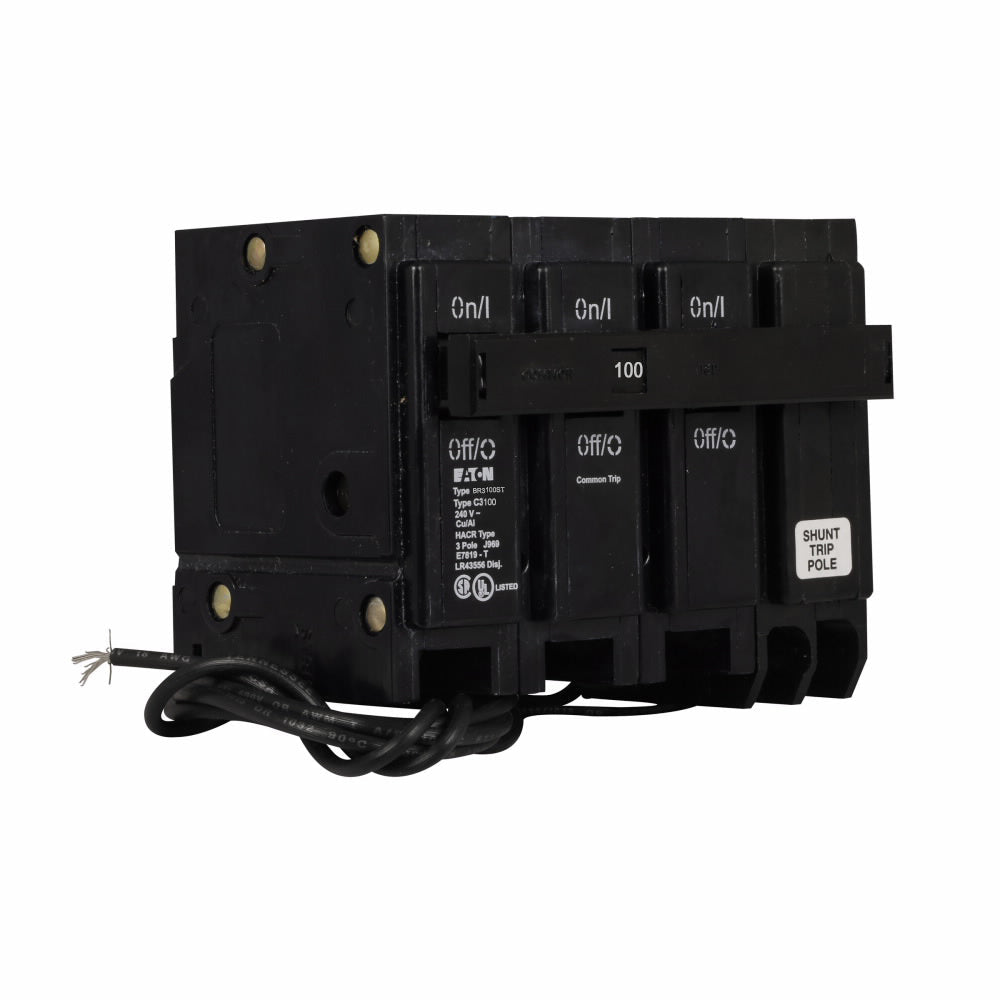

The Cutler Hammer BR3100ST is a three-pole molded case circuit breaker designed to provide reliable overcurrent and short-circuit protection for three-phase industrial electrical systems. It features a 100A current rating and a 240V AC voltage rating, with a 10kA interrupting capacity at that voltage. The unit is constructed with a plug-in connection type, measures 4" x 3.5" x 4", and weighs 1.5 lb, utilizing a thermal-magnetic trip mechanism for both long-time and instantaneous protection. It complies with UL 489 and Federal Specification W-C375 standards and is rated for operation in temperatures from -25°C to 70°C (-13°F to 158°F). This breaker is typically applied in panelboards and switchboards for commercial and industrial power distribution, and includes a 120V shunt trip for remote tripping capability.

Key Features & Specifications
  • Type: BR Series, Three-Pole, Molded Case Circuit Breaker with Thermal-Magnetic Protection
  • Voltage Rating: 240V AC
  • Current Rating: 100A
  • Dimensions: 4 in (Depth) x 3.5 in (Height) x 4 in (Width)
  • Standards: UL 489, Federal Specifications Classification W-C375
  • Applications: Industrial and Commercial Power Distribution in Panelboards/Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Three-Pole
  • Connection: Plug-In
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • AIC Rating: 10kA @ 240V AC
  • Phase: 3
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Wire Size: #1 AWG CU/AL
  • Additional Feature: Complete with 120V Shunt Trip
  • Weight: 1.5 lb
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786676002509
  • GTIN: 00786676002509
