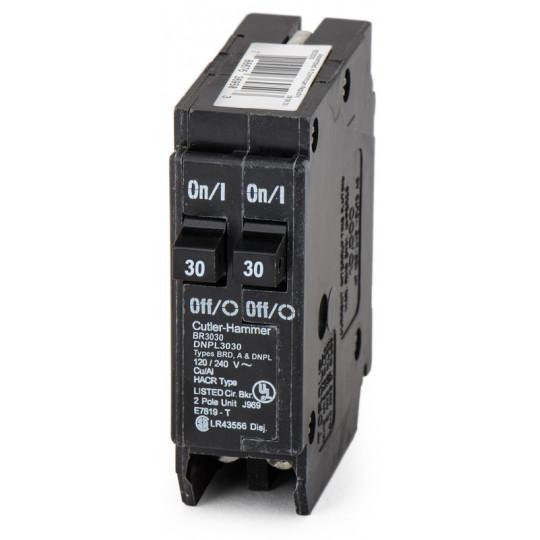

Cutler-Hammer BR3030 - BR Series 30A Circuit Breaker (10kA AIC)
Cutler-Hammer BR3030 - BR Series 30A Circuit Breaker (10kA AIC)

Cutler-Hammer BR3030 - BR Series 30A Circuit Breaker (10kA AIC)

Cutler Hammer
Price
Save $188.89
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Cutler-Hammer BR3030 is a single-pole, plug-in molded case circuit breaker designed to provide reliable overcurrent protection for 120V AC branch circuits. It features a 30A current rating and a 10kA interrupting capacity at 120V, utilizing a thermal-magnetic trip mechanism for both long-time and instantaneous protection against overloads and short circuits. The compact unit measures 1" x 2.5" x 2.9" (DxHxW), weighs 0.35 lb, and operates within a temperature range of -25°C to 70°C (-13°F to 158°F). It is UL 489 listed and is specifically engineered for compatibility with Type BR load centers, accepting copper or aluminum conductors from #14 to #4 AWG.

Key Features & Specifications
  • Type: Single-pole, plug-in, thermal-magnetic molded case circuit breaker
  • Voltage Rating: 120V AC
  • Current Rating: 30A
  • Dimensions: 1 in (Depth) x 2.5 in (Height) x 2.9 in (Width)
  • Standards: UL 489 Certified
  • Applications: Branch circuit protection in Type BR load centers
  • Phase: 1
  • AIC Rating: 10kA @ 120V
  • Connection: Plug-In
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Breaker Type: BR
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Wire Size: 14 AWG to 4 AWG (Copper or Aluminum)
  • Panel Type: Type BR Loadcenters
  • Weight: 0.35 lb


Product Identification
  • UPC: 786676370301
  • GTIN: 00786676370301
