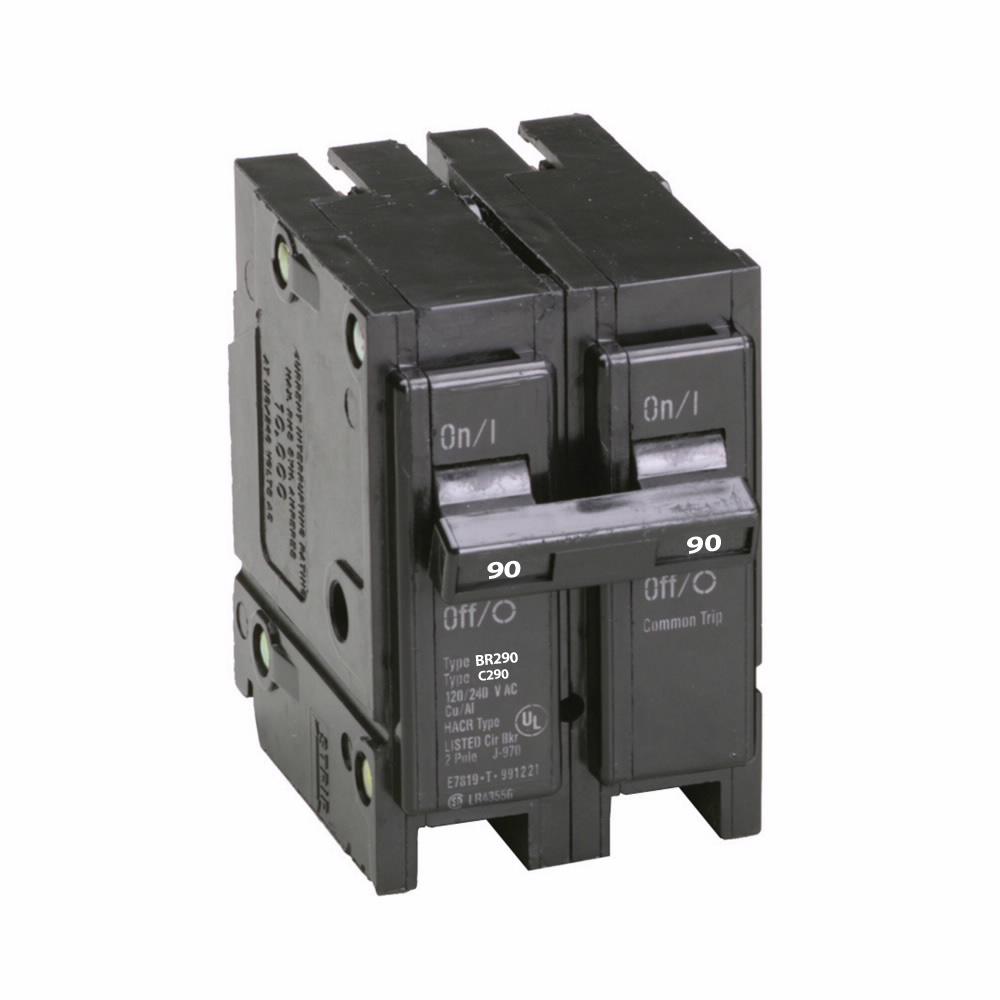

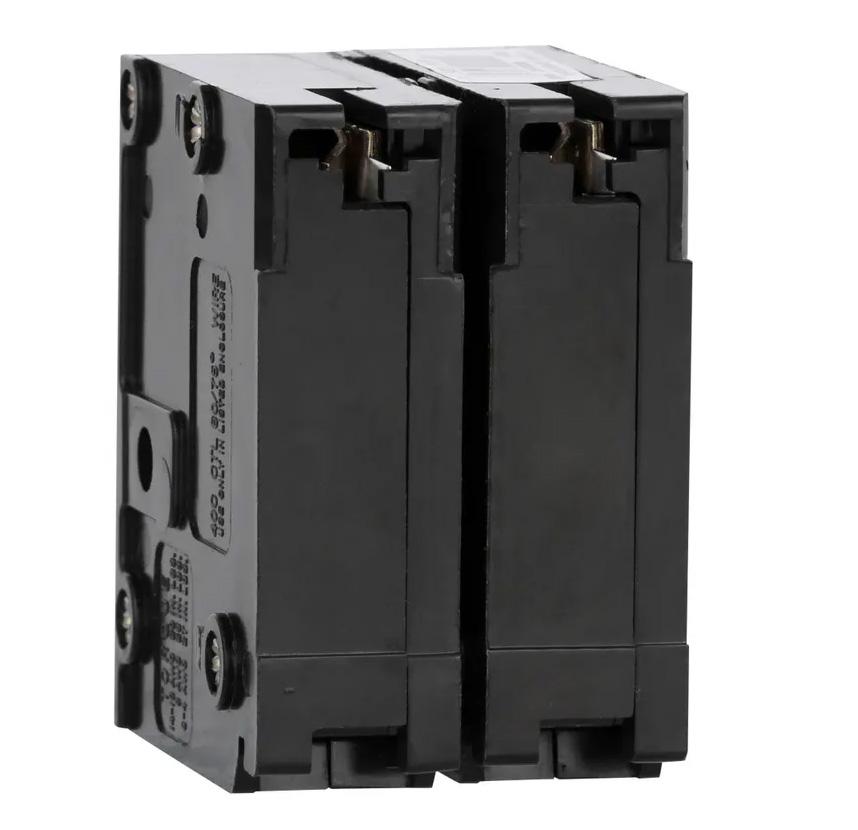

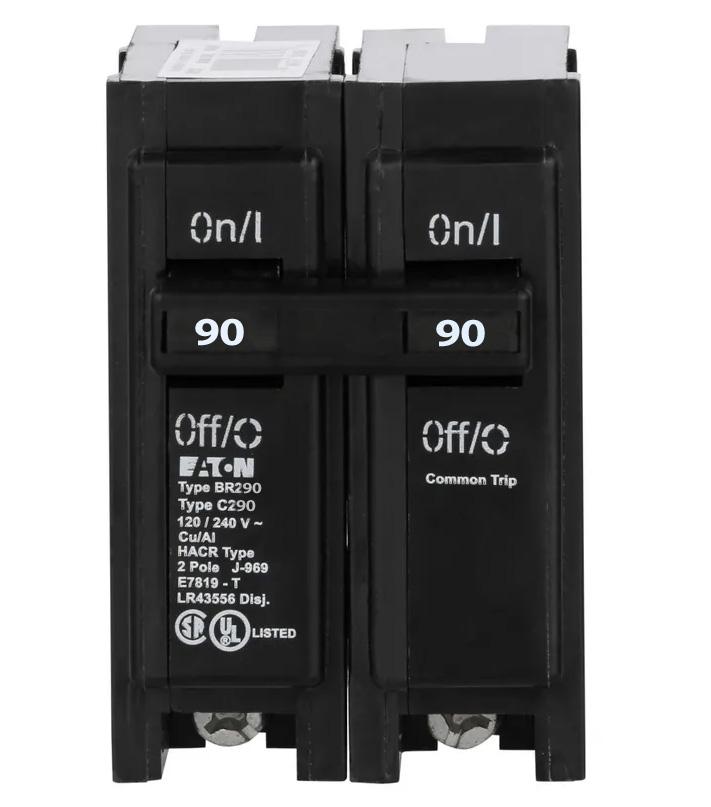

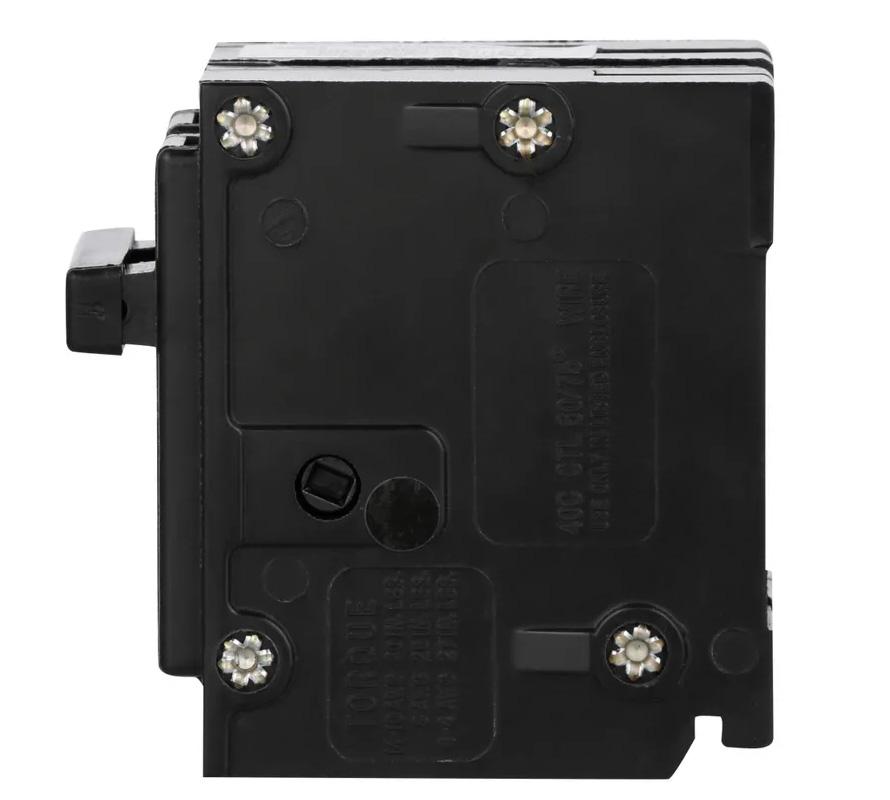

Cutler Hammer BR290 - 2-Pole 90A Circuit Breaker (10kA AIC, Plug-In)
Cutler Hammer BR290 - 2-Pole 90A Circuit Breaker (10kA AIC, Plug-In)
Cutler Hammer BR290 - 2-Pole 90A Circuit Breaker (10kA AIC, Plug-In)
Cutler Hammer BR290 - 2-Pole 90A Circuit Breaker (10kA AIC, Plug-In)
Cutler Hammer BR290 - 2-Pole 90A Circuit Breaker (10kA AIC, Plug-In)
Cutler Hammer BR290 - 2-Pole 90A Circuit Breaker (10kA AIC, Plug-In)
Cutler Hammer BR290 - 2-Pole 90A Circuit Breaker (10kA AIC, Plug-In)
Cutler Hammer BR290 - 2-Pole 90A Circuit Breaker (10kA AIC, Plug-In)

Cutler Hammer BR290 - 2-Pole 90A Circuit Breaker (10kA AIC, Plug-In)

Cutler Hammer
Price
Save $410.29
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer BR290 is a two-pole plug-in circuit breaker designed for providing reliable overcurrent protection in residential and light commercial load centers. It features a 90A current rating and a 240V AC voltage rating, housed in a compact thermal-magnetic unit measuring 2.5 in H x 2.9 in W x 2 in D with a weight of 0.7 lb. The breaker is UL 489 listed and complies with Federal Specification W-C375, ensuring safe operation across a temperature range of -25 to 70 °C. Its 10kA interrupting rating at 240V and compatibility with copper or aluminum conductors from AWG 8 to 1/0 make it suitable for feeder and branch circuit applications.

Key Features & Specifications
  • Type: BR Series, Thermal-Magnetic, Plug-In Circuit Breaker
  • Voltage Rating: 240V AC
  • Current Rating: 90A
  • Poles: 2
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Plug-In
  • Protection: Thermal-Magnetic with Long-Time and Instantaneous (LI) Trip
  • Wire Size: AWG 8 to 1/0, Cu/Al
  • Dimensions: 2.5 in H x 2.9 in W x 2 in D (63.5 x 73.7 x 50.8 mm)
  • Weight: 0.7 lb
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Standards: UL 489, Federal Specifications Classification W-C375
  • Applications: Load Centers, Feeder and Branch Circuit Protection


Product Identification
  • UPC: 786676363204
  • GTIN: 00786676363204
