Cutler Hammer
Price
Save $219.06
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

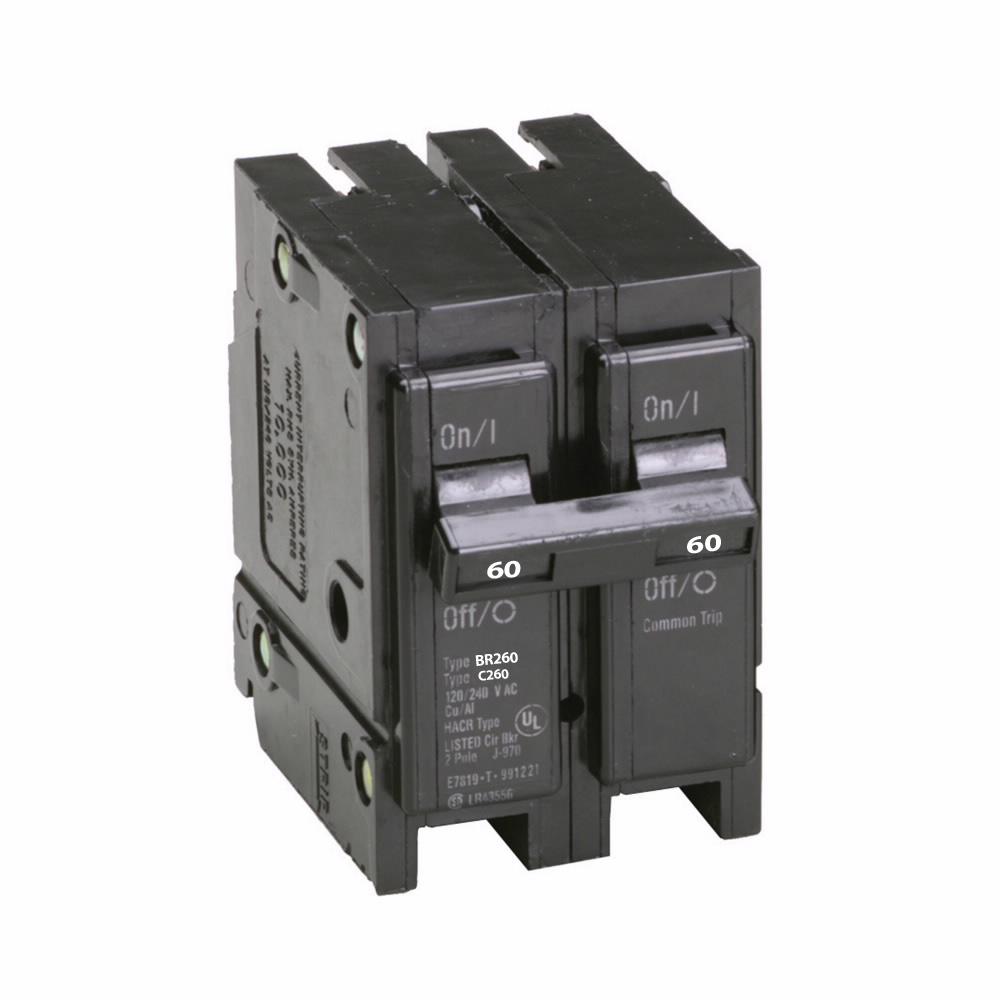

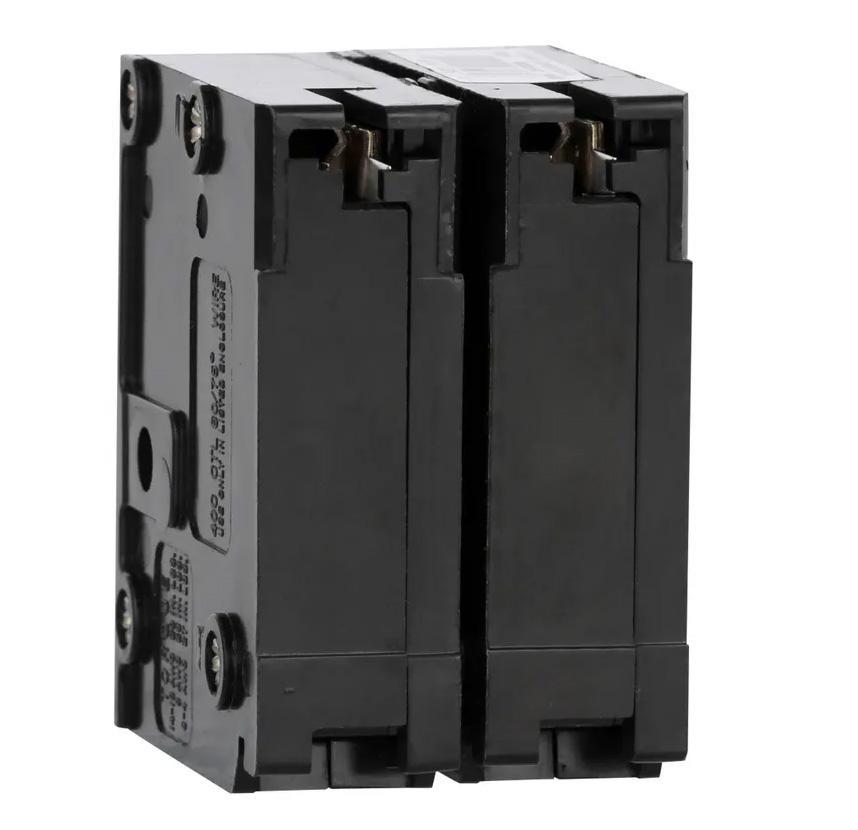

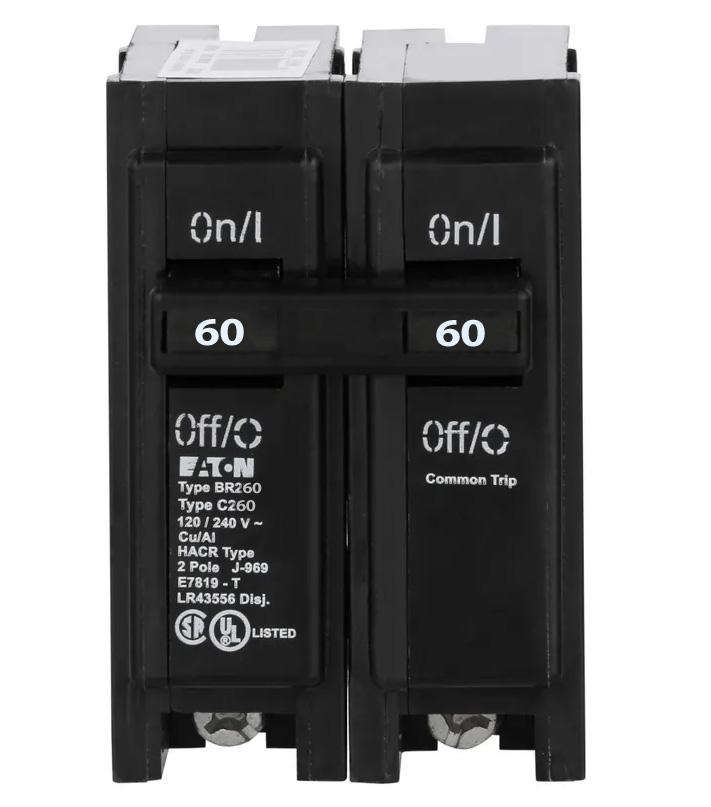

Cutler Hammer BR260 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in residential and light commercial electrical systems. It is rated for 60A at 240V AC in a single-phase configuration and features a 10kA interrupting capacity at 240V to safely clear faults. The compact, plug-in unit measures 1.9" x 2.5" x 2.9" (LxHxW) and utilizes a thermal-magnetic trip mechanism with long-time and instantaneous (LI) functions for coordinated protection. Constructed for compliance with UL 489 standards, this breaker operates reliably across a temperature range of -25°C to 70°C (-13°F to 158°F). It is engineered for compatibility with Type BR load centers, protecting circuits wired with 8 AWG to 1/0 AWG copper or aluminum conductors.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Plug-In Connection
  • Voltage Rating: 240V AC
  • Current Rating: 60A
  • Dimensions: 1.9 in (Depth) x 2.5 in (Height) x 2.9 in (Width)
  • Standards: UL 489 Certified
  • Applications: Residential & Light Commercial Load Centers
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • Amperage: 60A
  • AIC rating: 10kA @ 240V
  • Connection: Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI) Trip
  • Breaker Type: BR
  • Wire Size: 8 AWG to 1/0 AWG (Cu/Al)
  • Certification: UL 489
  • Panel Type: Type BR Loadcenters
  • Family: BR Series
  • Country of Origin: United States
  • Weight: 0.55 lb


Product Identification
  • UPC: 786676363105
  • GTIN: 00786676363105
