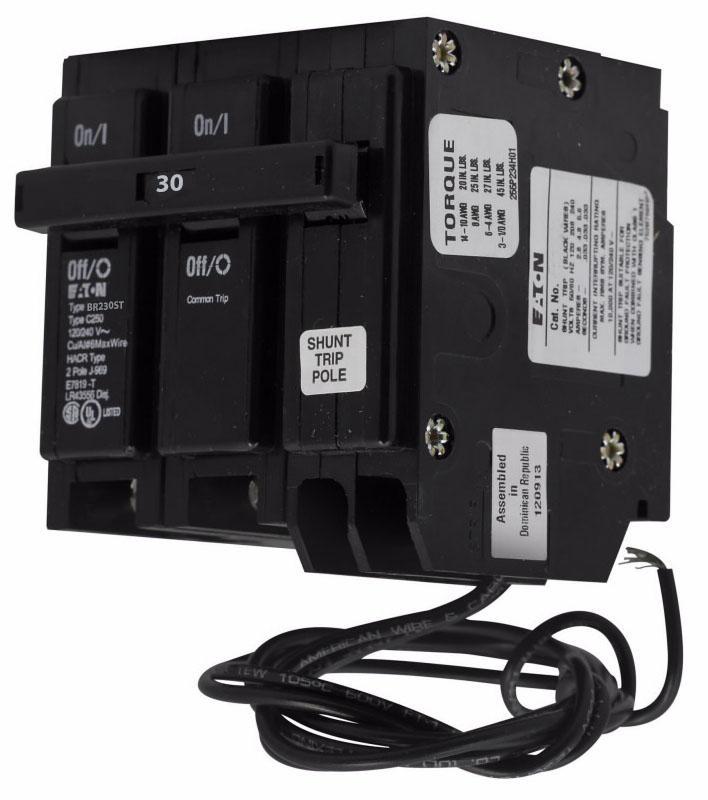

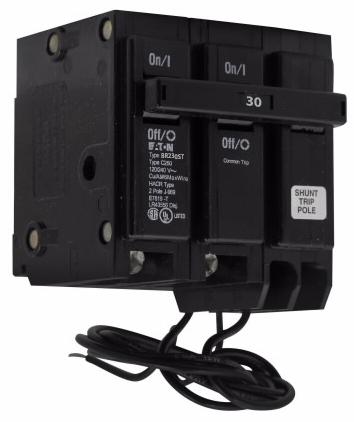

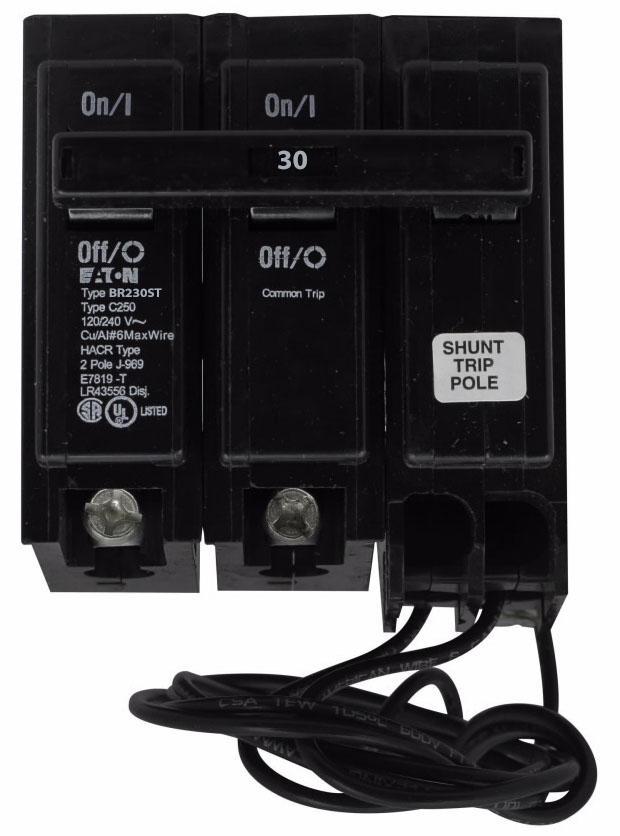

Eaton BR230ST - 2-Pole Circuit Breaker 30A 240V (10kA AIC)
Eaton BR230ST - 2-Pole Circuit Breaker 30A 240V (10kA AIC)
Eaton BR230ST - 2-Pole Circuit Breaker 30A 240V (10kA AIC)
Eaton BR230ST - 2-Pole Circuit Breaker 30A 240V (10kA AIC)
Eaton BR230ST - 2-Pole Circuit Breaker 30A 240V (10kA AIC)
Eaton BR230ST - 2-Pole Circuit Breaker 30A 240V (10kA AIC)

Eaton BR230ST - 2-Pole Circuit Breaker 30A 240V (10kA AIC)

Eaton
Price
Save $561.57
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton BR230ST is a two-pole molded case circuit breaker designed for providing reliable overcurrent protection in 240V AC single-phase electrical systems. It features a 30A current rating and a 10kA interrupting capacity at 240V, utilizing a thermal-magnetic trip mechanism for both long-time delay and instantaneous short-circuit protection. The compact plug-in unit measures 4.5" L x 4" H x 4.25" W, weighs 1 lb, and is constructed for operation in temperatures from -25°C to 70°C (-13°F to 158°F). It complies with UL 489 and Federal Specification W-C375 standards, ensuring suitability for commercial and light industrial panelboards. The breaker is rated for use with copper or aluminum conductors from AWG 14 to AWG 4 and includes an integrated 120V shunt trip accessory for remote tripping capability.

Key Features & Specifications
  • Type: BR Series, Two-Pole, Molded Case Circuit Breaker with Plug-In Connection & Thermal-Magnetic Protection
  • Voltage Rating: 240V AC
  • Current Rating: 30A
  • Dimensions: 4.5 in (Depth) x 4 in (Height) x 4.25 in (Width)
  • Standards: UL 489, Federal Specifications Classification W-C375
  • Applications: Commercial & Light Industrial Panelboard Protection
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • Amperage: 30A
  • AIC rating: 10kA @ 240V
  • Connection: Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI) Trip
  • Wire Size: AWG 14 to AWG 4, Copper or Aluminum
  • Certification: UL 489, Federal Specifications Classification W-C375
  • Additional Info: Complete with 120V Shunt Trip


Product Identification
  • UPC: 78667600023
  • GTIN: 00786676000239
