Eaton BR230 - 2-Pole 30A Circuit Breaker (10kA AIC, 240V)
Eaton BR230 - 2-Pole 30A Circuit Breaker (10kA AIC, 240V)
Eaton BR230 - 2-Pole 30A Circuit Breaker (10kA AIC, 240V)
Eaton BR230 - 2-Pole 30A Circuit Breaker (10kA AIC, 240V)
Eaton BR230 - 2-Pole 30A Circuit Breaker (10kA AIC, 240V)
Eaton BR230 - 2-Pole 30A Circuit Breaker (10kA AIC, 240V)
Eaton BR230 - 2-Pole 30A Circuit Breaker (10kA AIC, 240V)
Eaton BR230 - 2-Pole 30A Circuit Breaker (10kA AIC, 240V)

Eaton BR230 - 2-Pole 30A Circuit Breaker (10kA AIC, 240V)

Eaton
Price
Save $128.22
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

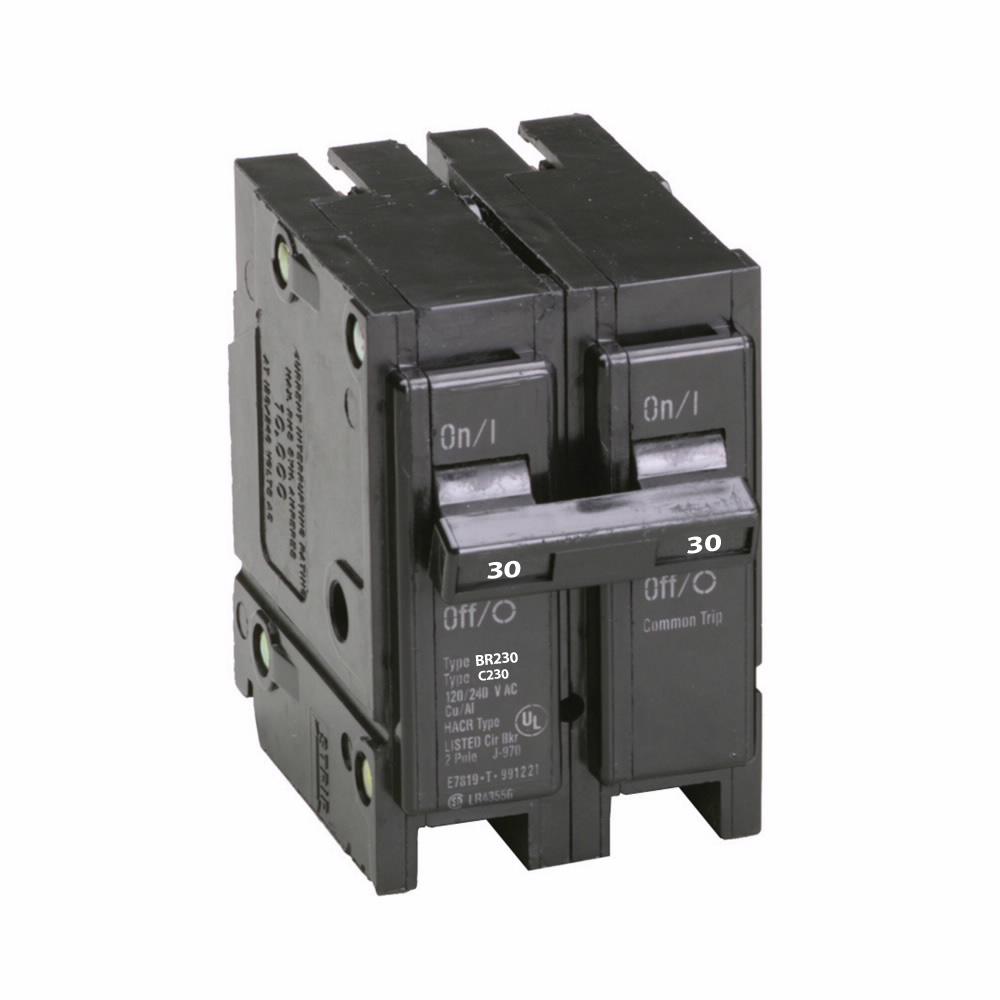

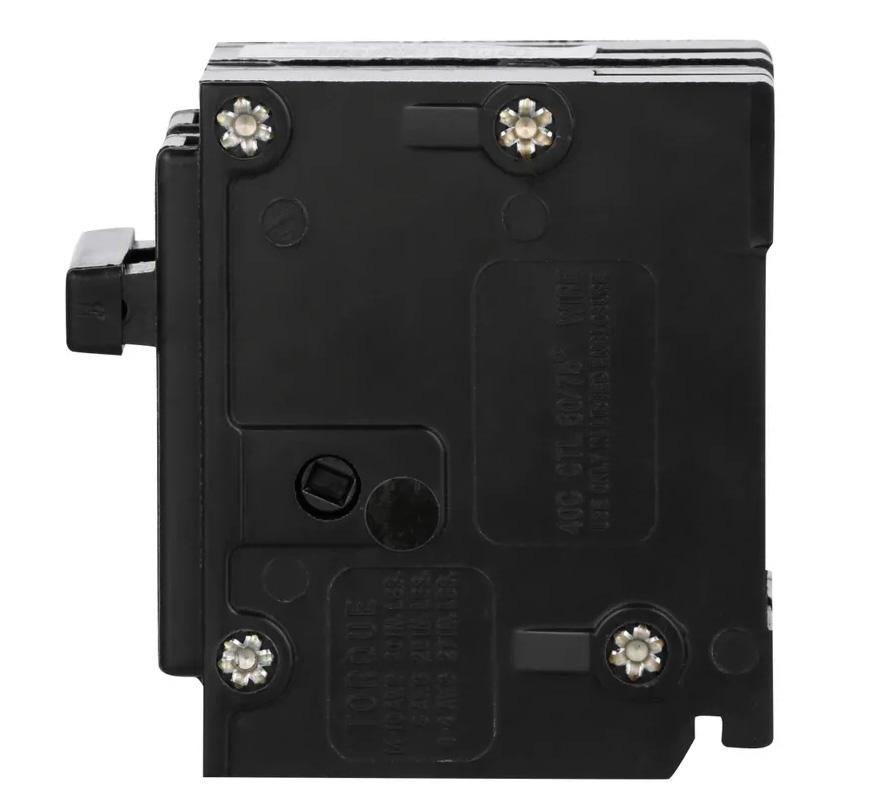

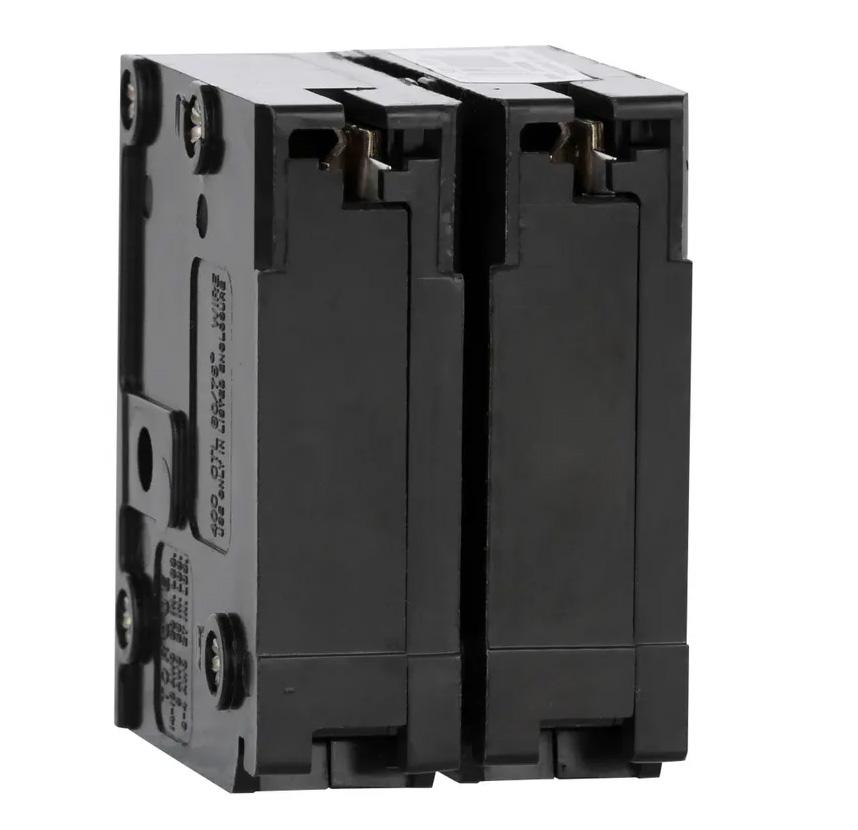

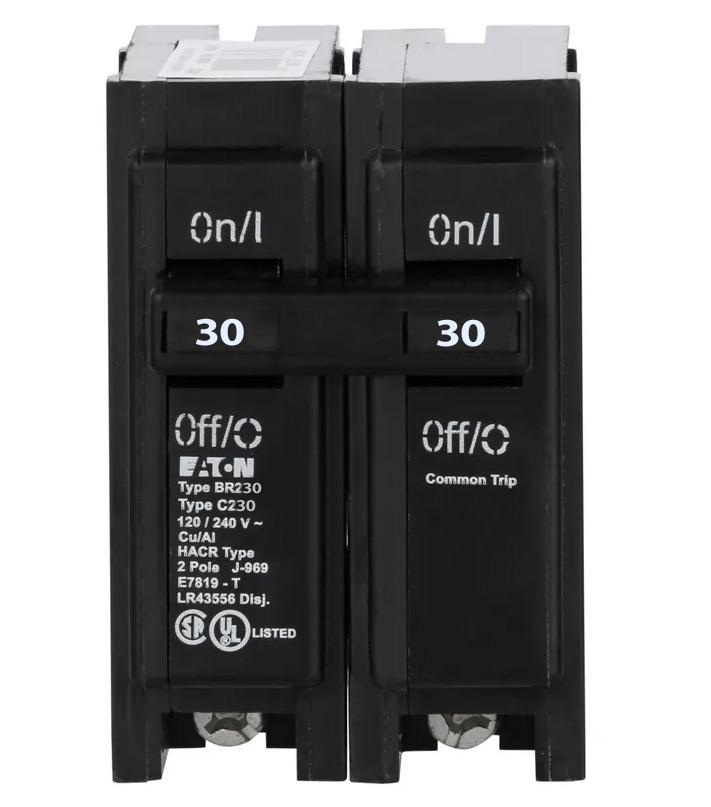

Eaton BR230 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in residential and light commercial electrical systems. It is rated for 30A at 240V AC in a single-phase configuration, featuring a compact plug-in design with dimensions of 1.9 in (D) x 2.5 in (H) x 2.9 in (W) and a weight of 0.65 lb. The thermal-magnetic trip unit provides both long-time and instantaneous (LI) protection, is UL 489 listed, and operates within a temperature range of -25 to 70 °C. This two-pole breaker is engineered for use in Type BR loadcenters, supporting wire sizes from 14 to 4 AWG for copper or aluminum conductors and offering an interrupting capacity of 10kA at 240V.

Key Features & Specifications
  • Type: BR Series, Two-Pole, Molded Case, Thermal-Magnetic Circuit Breaker
  • Voltage Rating: 240V AC
  • Current Rating: 30A
  • Dimensions: 1.9 in (Depth) x 2.5 in (Height) x 2.9 in (Width)
  • Standards: UL 489 Certified
  • Applications: Residential and Light Commercial Load Centers
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Breaker Type: BR
  • Wire Size: 14 AWG to 4 AWG (Cu/Al)
  • Certification: UL 489
  • Panel Type: Type BR Loadcenters
  • Family: BR Series
  • Country of Origin: United States
  • Item Subcategory: Molded Case
  • Weight: 0.65 lb


Product Identification
  • UPC: 786676362955
  • GTIN: 00786676362955
