Cutler Hammer
Price
Save $441.65
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

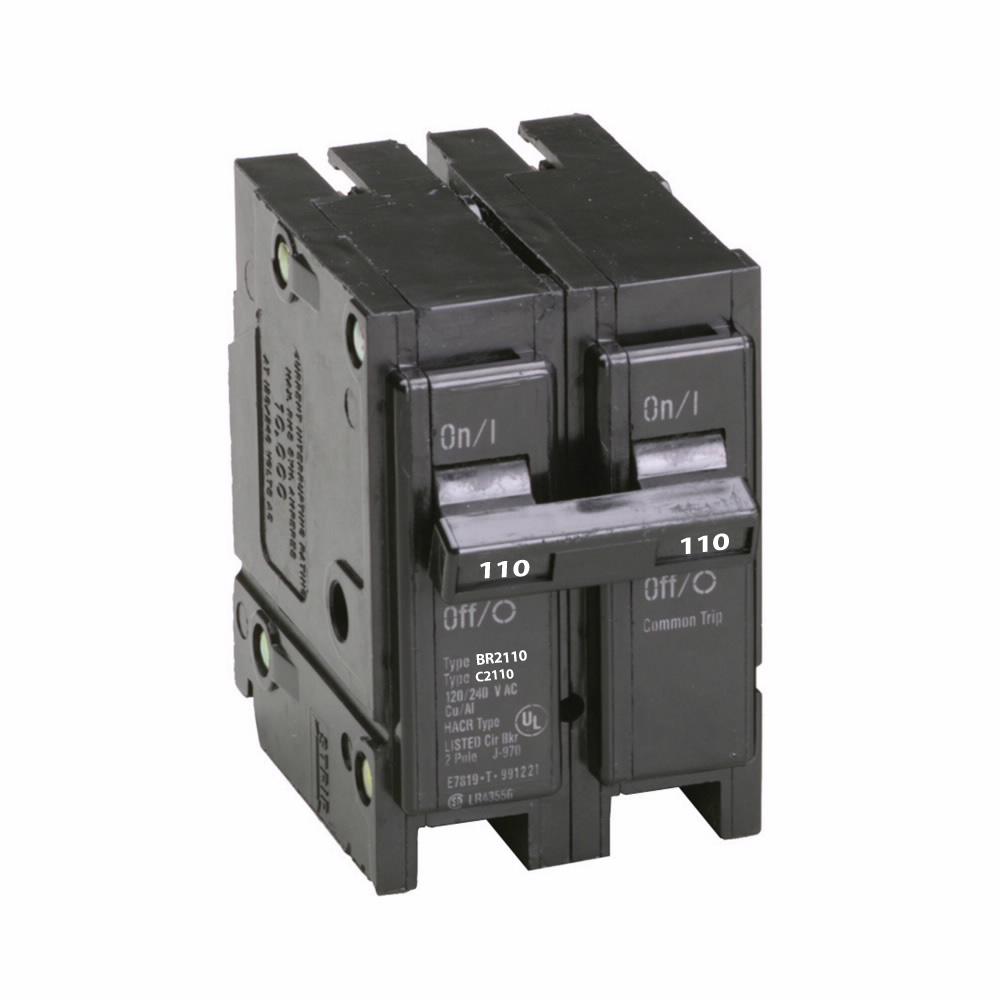

Cutler Hammer BR2110 is a molded case circuit breaker designed for providing reliable overcurrent protection in single-phase electrical systems. It features a 110A current rating and a 240V AC voltage rating, housed in a compact 3" x 3" x 2" plug-in configuration with a thermal-magnetic trip mechanism for both long-time and instantaneous protection. This unit complies with UL 489 and Federal Specification W-C375 standards, ensuring safe operation across a temperature range of -25°C to 70°C. Its 10kA interrupting rating at 240V makes it suitable for protecting feeders and branch circuits in industrial and commercial panelboards, compatible with #4 to 1/0 AWG copper or aluminum conductors.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Long Time & Instantaneous Trip
  • Voltage Rating: 240V AC
  • Current Rating: 110A
  • Dimensions: 3 in (L) x 3 in (H) x 2 in (W)
  • Standards: UL 489, Federal Specifications Classification W-C375
  • Applications: Industrial & Commercial Feeder/Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • Amperage: 110A
  • AIC rating: 10kA @ 240V
  • Connection: Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Wire Size: #4 to 1/0 AWG CU/AL
  • Certification: UL 489, Federal Specifications Classification W-C375
  • Family: BR Series
  • Country of Origin: Dominican Republic
  • Weight: 0.7 lb


Product Identification
  • UPC: 786676384278
  • GTIN: 00786676384278
