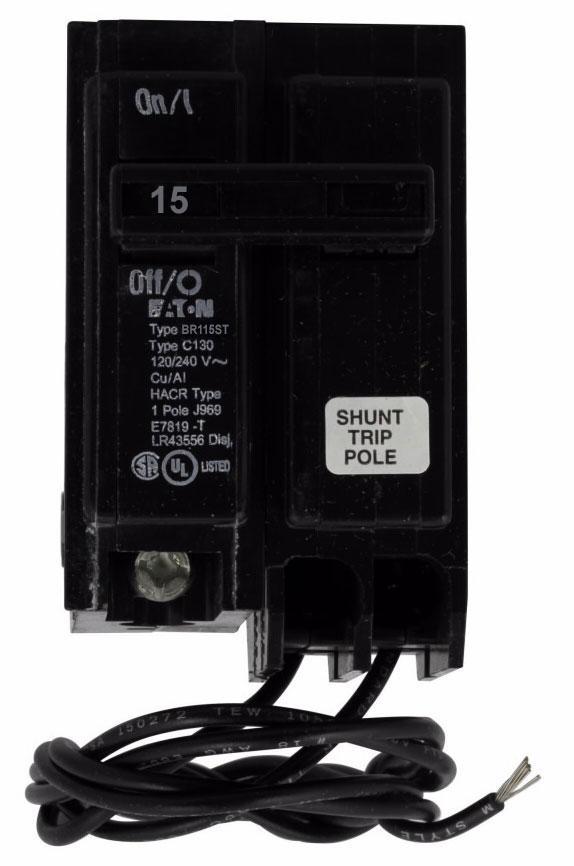

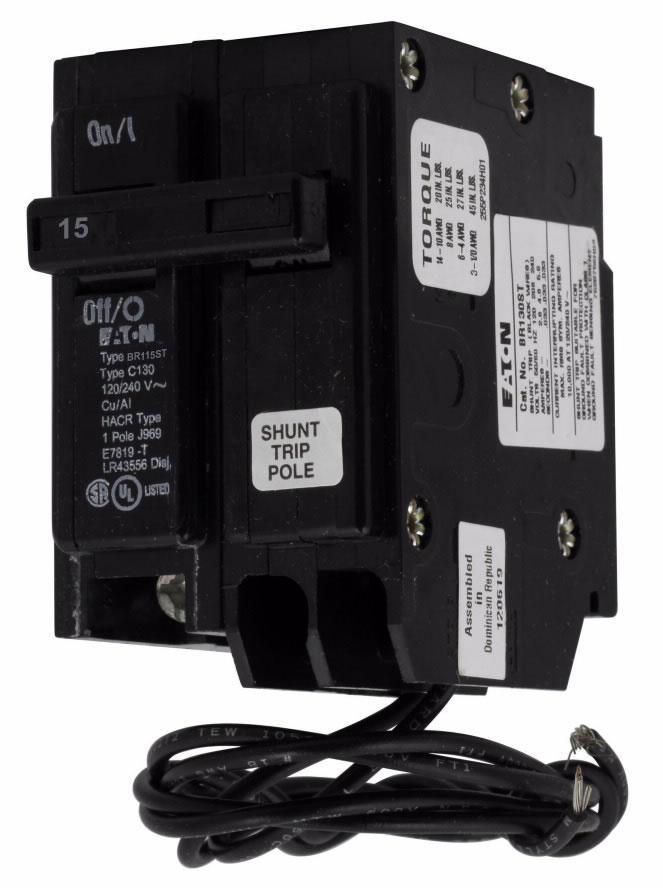

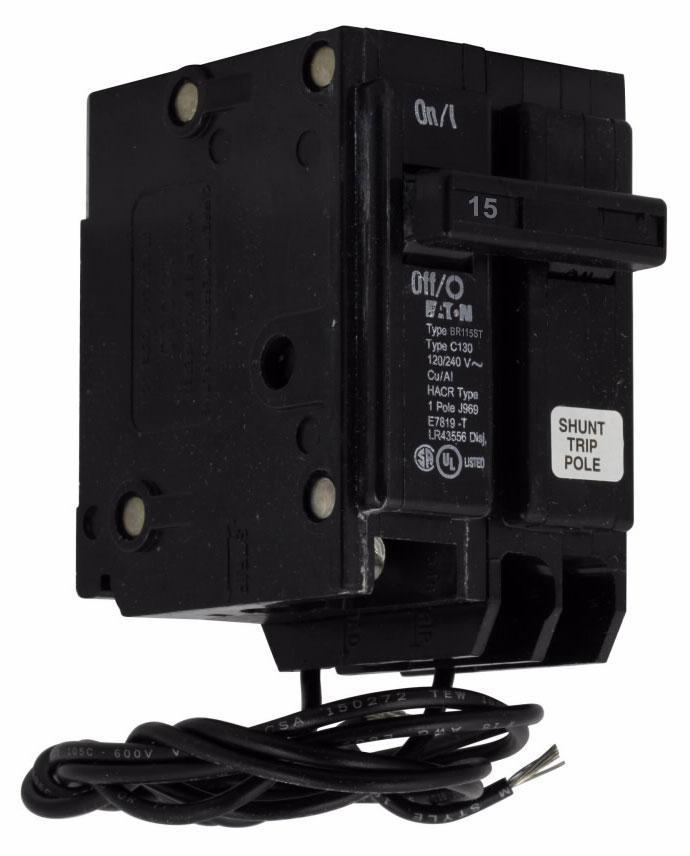

Cutler Hammer BR115ST - 15A Thermal Magnetic Circuit Breaker with Shunt Trip
Cutler Hammer BR115ST - 15A Thermal Magnetic Circuit Breaker with Shunt Trip
Cutler Hammer BR115ST - 15A Thermal Magnetic Circuit Breaker with Shunt Trip
Cutler Hammer BR115ST - 15A Thermal Magnetic Circuit Breaker with Shunt Trip
Cutler Hammer BR115ST - 15A Thermal Magnetic Circuit Breaker with Shunt Trip
Cutler Hammer BR115ST - 15A Thermal Magnetic Circuit Breaker with Shunt Trip

Cutler Hammer BR115ST - 15A Thermal Magnetic Circuit Breaker with Shunt Trip

Cutler Hammer
Price
Save $599.56
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer BR115ST is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in 1-phase electrical systems. It features a 15A current rating and a 240V AC voltage rating, housed in a compact plug-in unit measuring 2.5 in (D) x 4 in (H) x 4.5 in (W) and weighing 0.6 lb. The breaker utilizes a thermal-magnetic trip mechanism for both long-time and instantaneous protection, is rated for 10kA interrupting capacity at 240V, and operates within a temperature range of -25 to 70 °C. It complies with UL 489 and Federal Specification W-C375 standards, making it suitable for a variety of commercial and light industrial panelboards, and includes an integrated 120V shunt trip for remote tripping capability.

Key Features & Specifications
  • Type: BR Series, Molded Case, Thermal-Magnetic Protection with Long Time and Instantaneous Trip Functions
  • Voltage Rating: 240V AC
  • Current Rating: 15A
  • Dimensions: 2.5 in (Depth) x 4 in (Height) x 4.5 in (Width)
  • Weight: 0.6 lb
  • Standards: UL 489, Federal Specifications Classification W-C375
  • Applications: Commercial and Light Industrial Panelboards
  • Connection: Plug-In
  • Poles: 1
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Protection: Thermal Magnetic
  • Wire Size: #14 to 4 AWG (Copper/Aluminum)
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Additional Feature: Complete with 120V Shunt Trip


Product Identification
  • UPC: 786676000154
  • GTIN: 00786676000154
