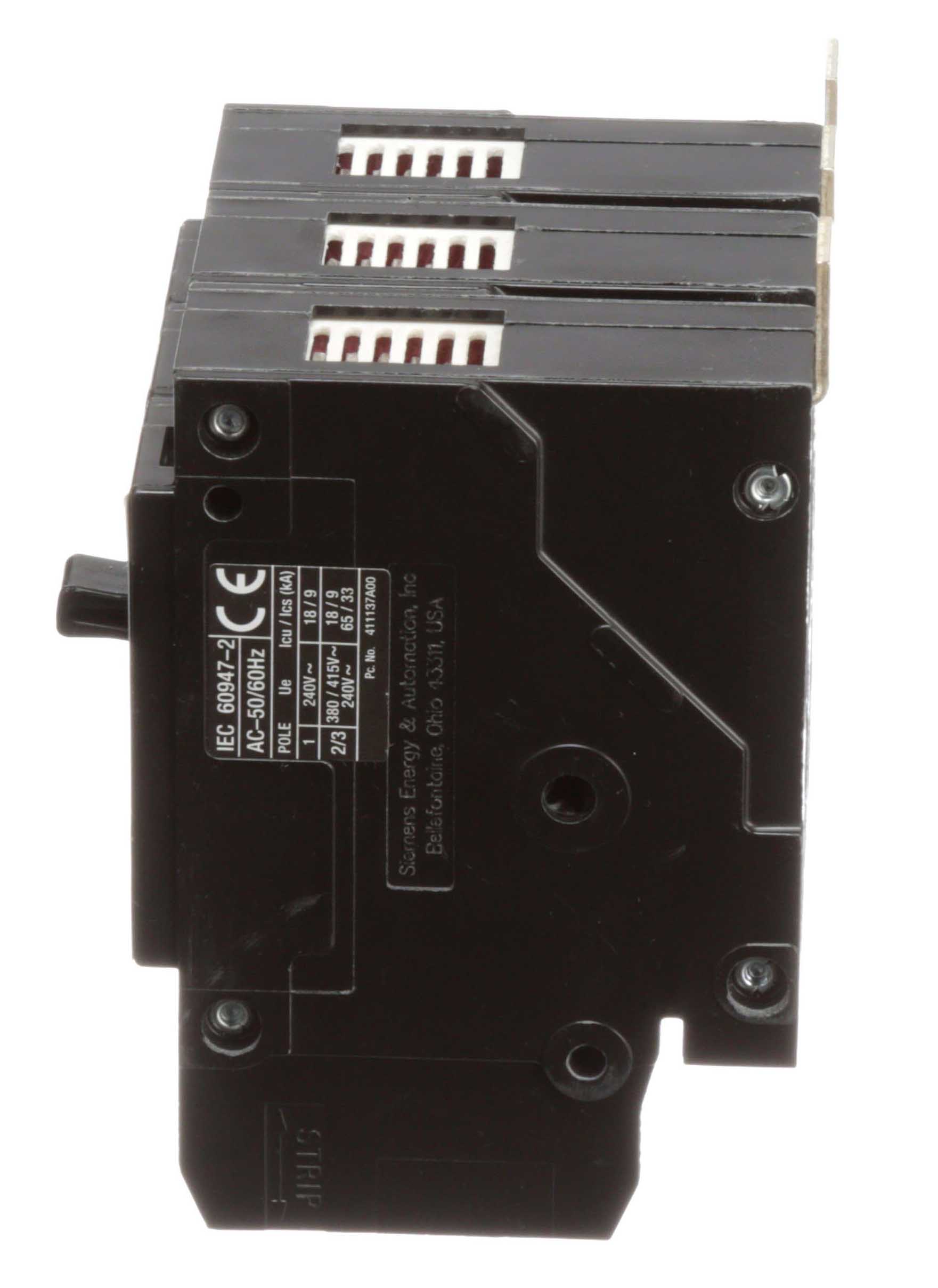

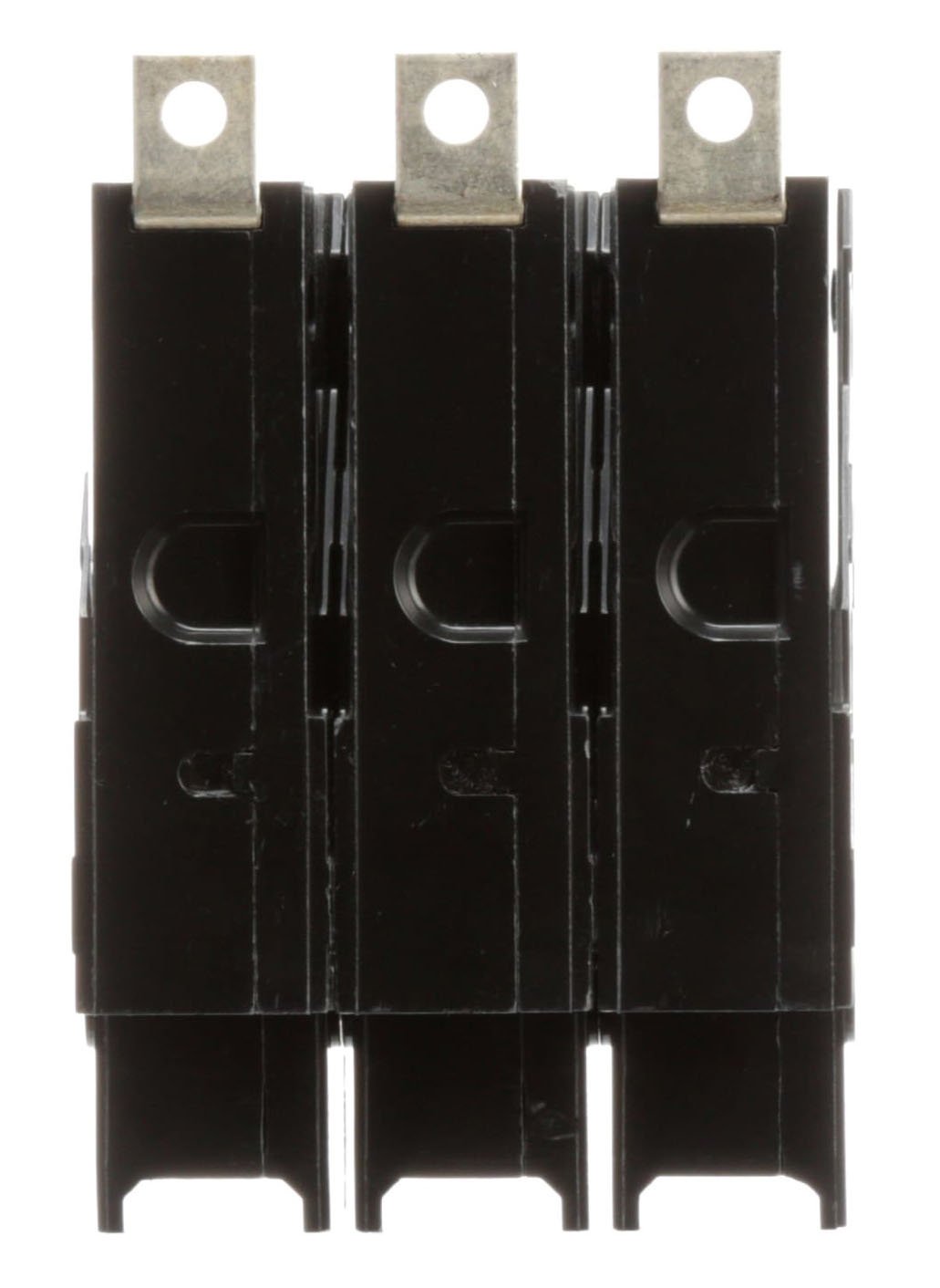

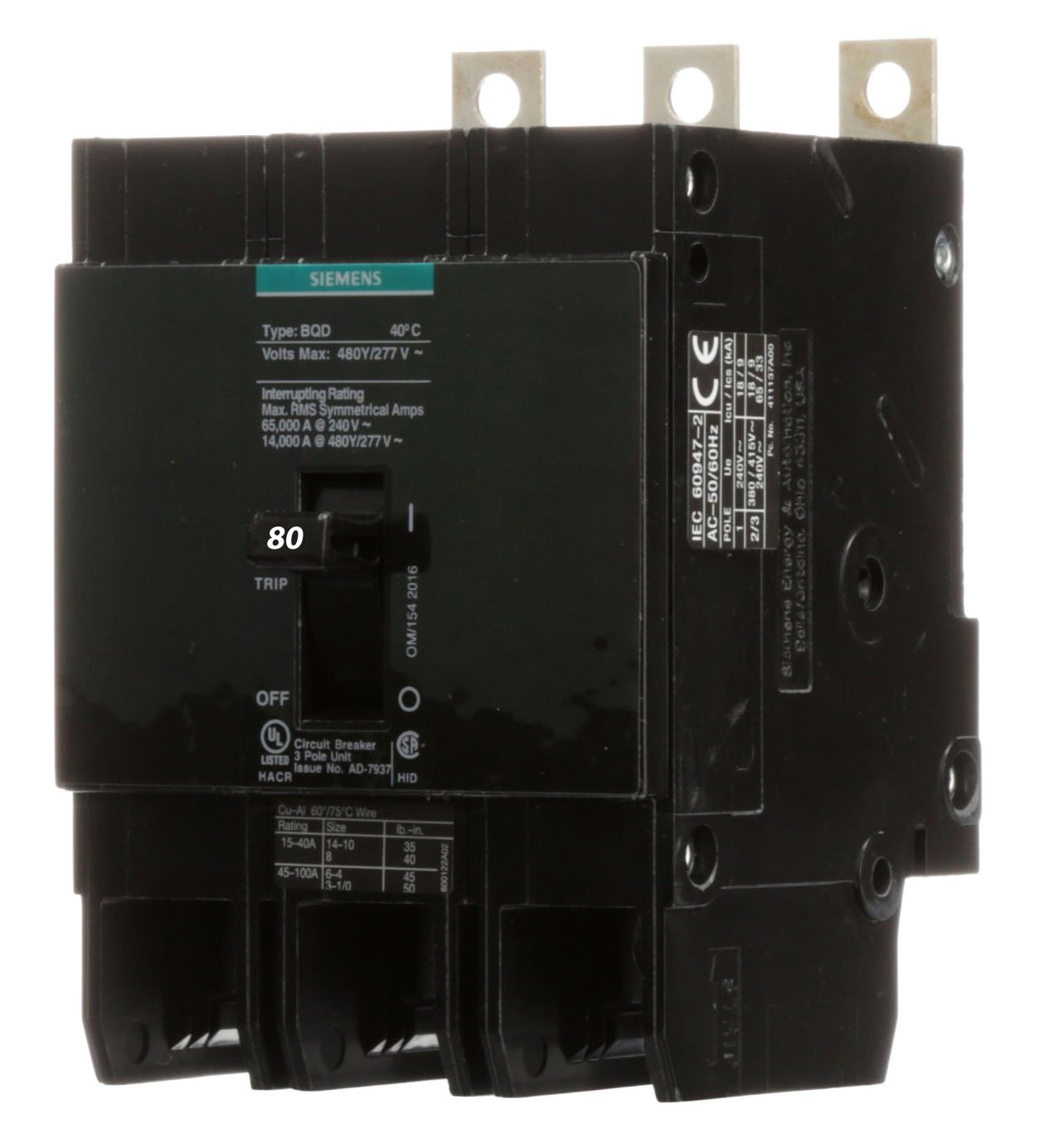

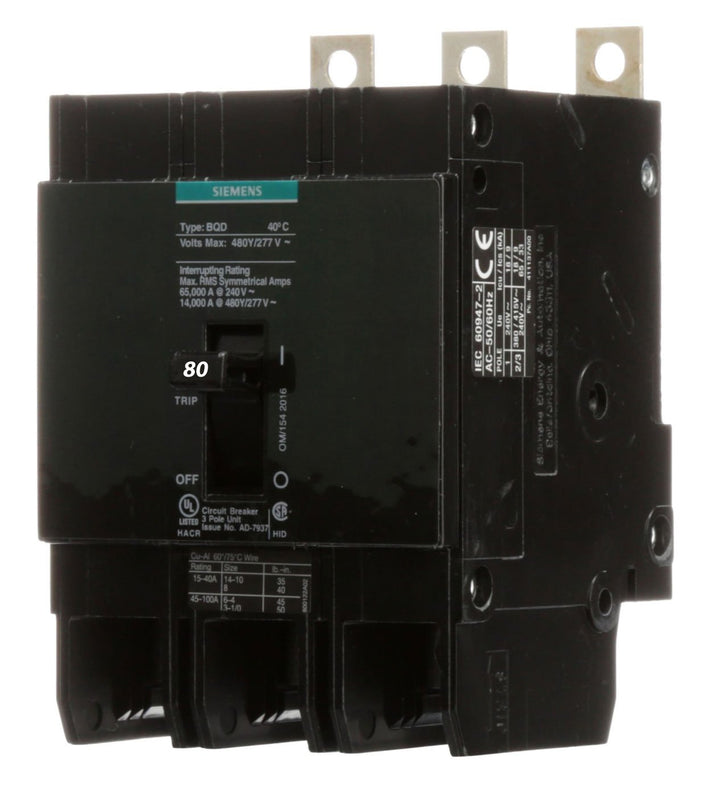

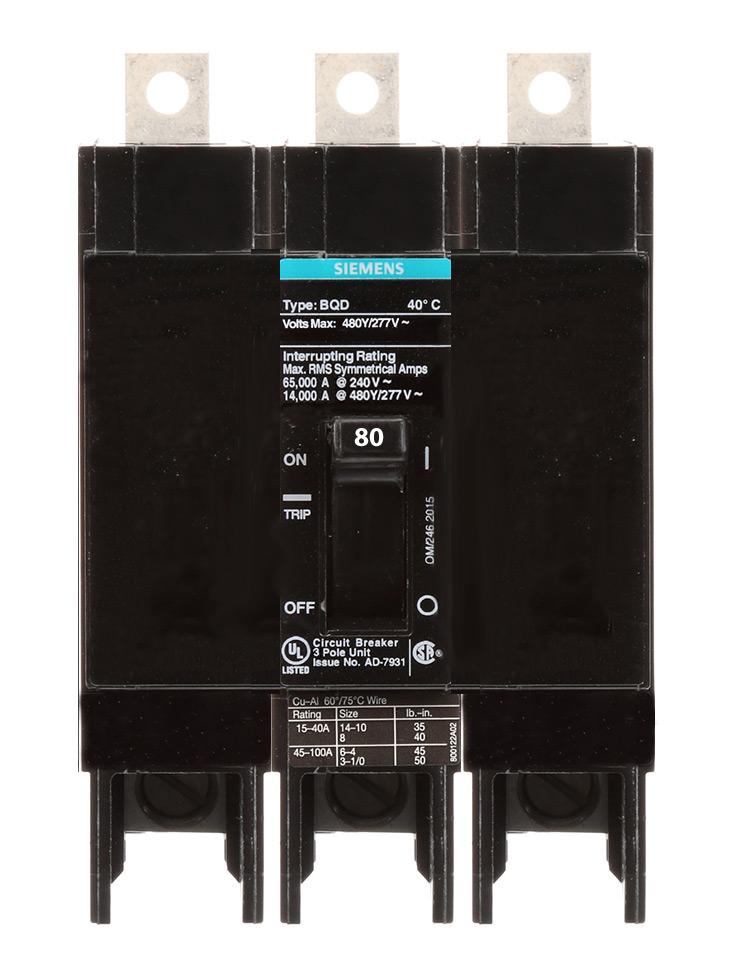

Siemens BQD380 - Molded Case Circuit Breaker 80A 480V 3P

Price
Regular price $184.74
Regular price $1,825.00 Sale price $184.74
Save $1,640.26
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens BQD380 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial electrical systems. It features an 80A current rating and a 480V voltage rating, housed within a compact, bolt-on design measuring 3" x 4.49" x 4.49" (76.2mm x 114mm x 114mm) and weighing 1.649 lb. The breaker is constructed for compliance with CSA-C22.2 and UL 539 standards and operates effectively within a temperature range of -25°C to 70°C. Its 14kA interrupting capacity at 480V and compatibility with Siemens P1 panelboards make it suitable for protecting feeders and branch circuits in commercial and industrial power distribution.

Key Features & Specifications
  • Type: Molded Case, Thermal Magnetic Protection, Standard Breaker Type
  • Voltage Rating: 480V AC
  • Current Rating: 80A
  • Frame Size: 100A/BQD
  • Poles: 3
  • Phase: 3
  • AIC Rating: 14kA @ 480V
  • Connection: Bolt-on, Lug Terminal
  • Protection Functions: Long Time and Instantaneous Trip
  • Dimensions: 3 in x 4.49 in x 4.49 in (76.2mm x 114mm x 114mm)
  • Weight: 1.649 lb
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • MCM Size / Wire Range: Min. 6 AWG (Al) / 8 AWG (Cu), Max. 1/0 AWG
  • Panel Type: Siemens P1 Panelboards
  • Standards & Certification: CSA-C22.2, UL 539
  • Country of Origin: Mexico
  • Family: BQD Series


Product Identification
  • UPC: 783643277441
  • GTIN: 00783643277441
