Siemens
Price
Save $1,094.62
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

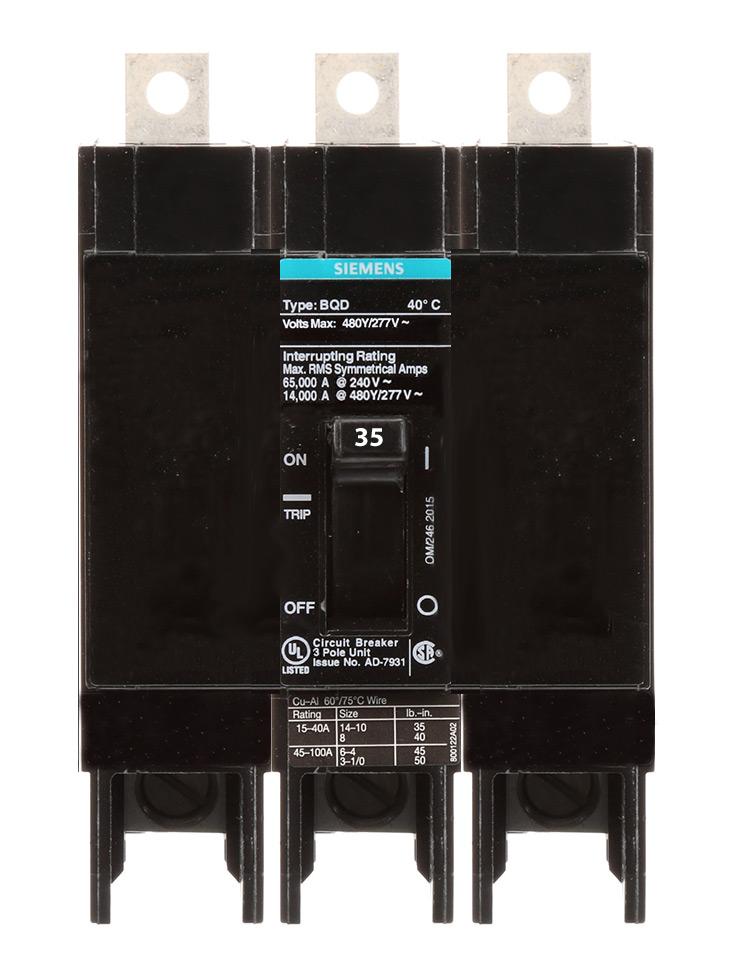

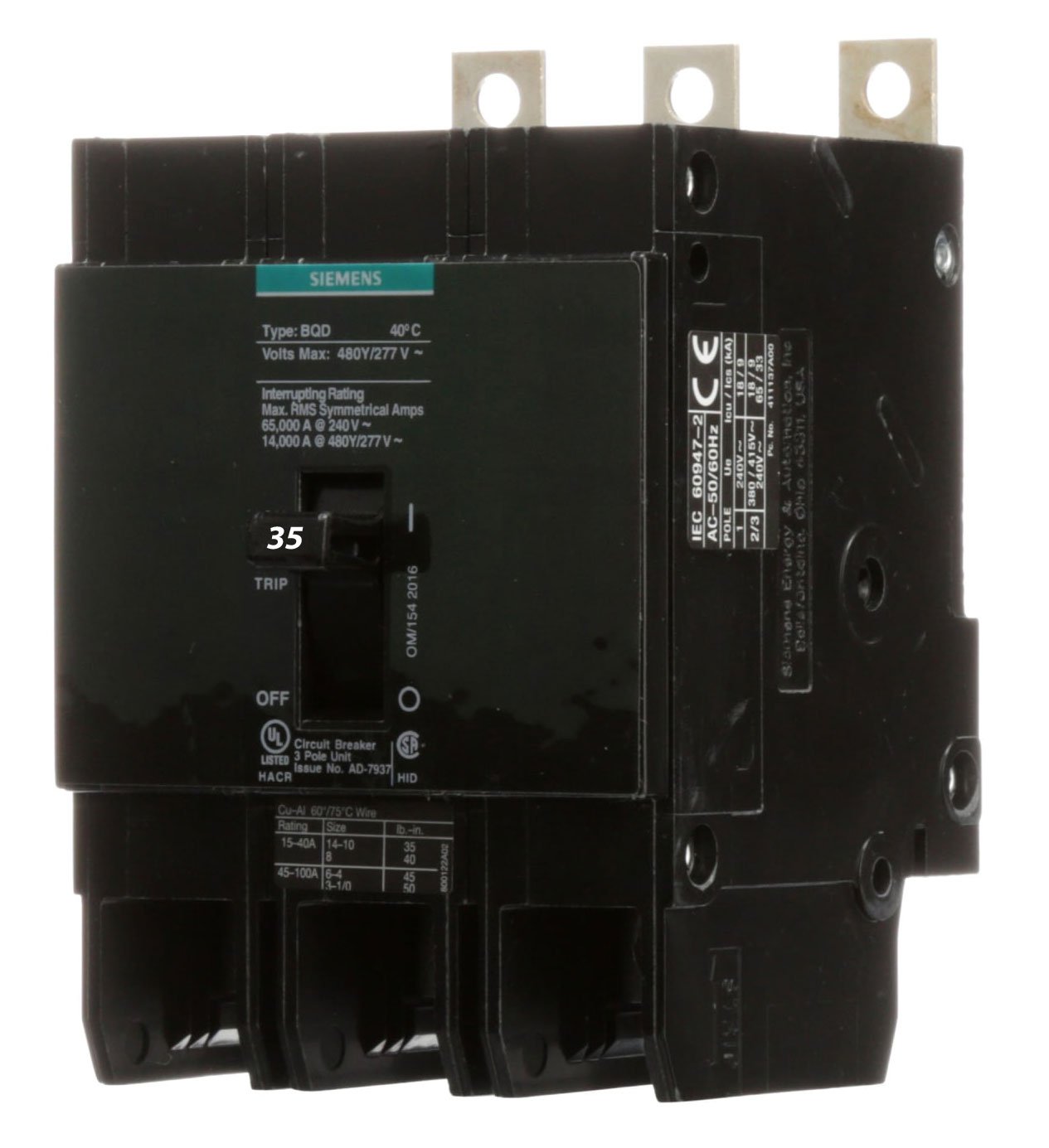

Siemens BQD335 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 35A current rating and a 480V AC voltage rating, housed within a compact 3" x 4.49" x 4.49" (76.2mm x 114mm x 114mm) bolt-on frame with a weight of 1.601 lb. The breaker's thermal-magnetic trip unit provides both long-time and instantaneous protection, and it is constructed for operation in temperatures from -25°C to 70°C. It complies with UL 528 and CSA C22.2 standards and is typically applied within Siemens P1 panelboards for feeder and branch circuit protection in commercial and industrial facilities.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Standard Trip
  • Voltage Rating: 480V AC
  • Current Rating: 35A
  • Frame Size: 100A / BQD
  • Poles: 3
  • AIC Rating: 14kA at 480V AC
  • Connection: Bolt-on, Lug Terminal
  • Phase: 3
  • Functions: Long Time and Instantaneous Trip
  • Protection: Thermal Magnetic
  • Breaker Type: Standard
  • Panel Type: Siemens P1 Panelboards
  • Temp Rating: -25°C to 70°C
  • Dimensions: 3 in x 4.49 in x 4.49 in (76.2mm x 114mm x 114mm)
  • Weight: 1.601 lb
  • MCM Size / Wire Range: Min. 6 AWG (Al) / 8 AWG (Cu), Max. 1/0 AWG
  • Standards & Certification: UL 528, CSA C22.2
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643277380
  • GTIN: 00783643277380
