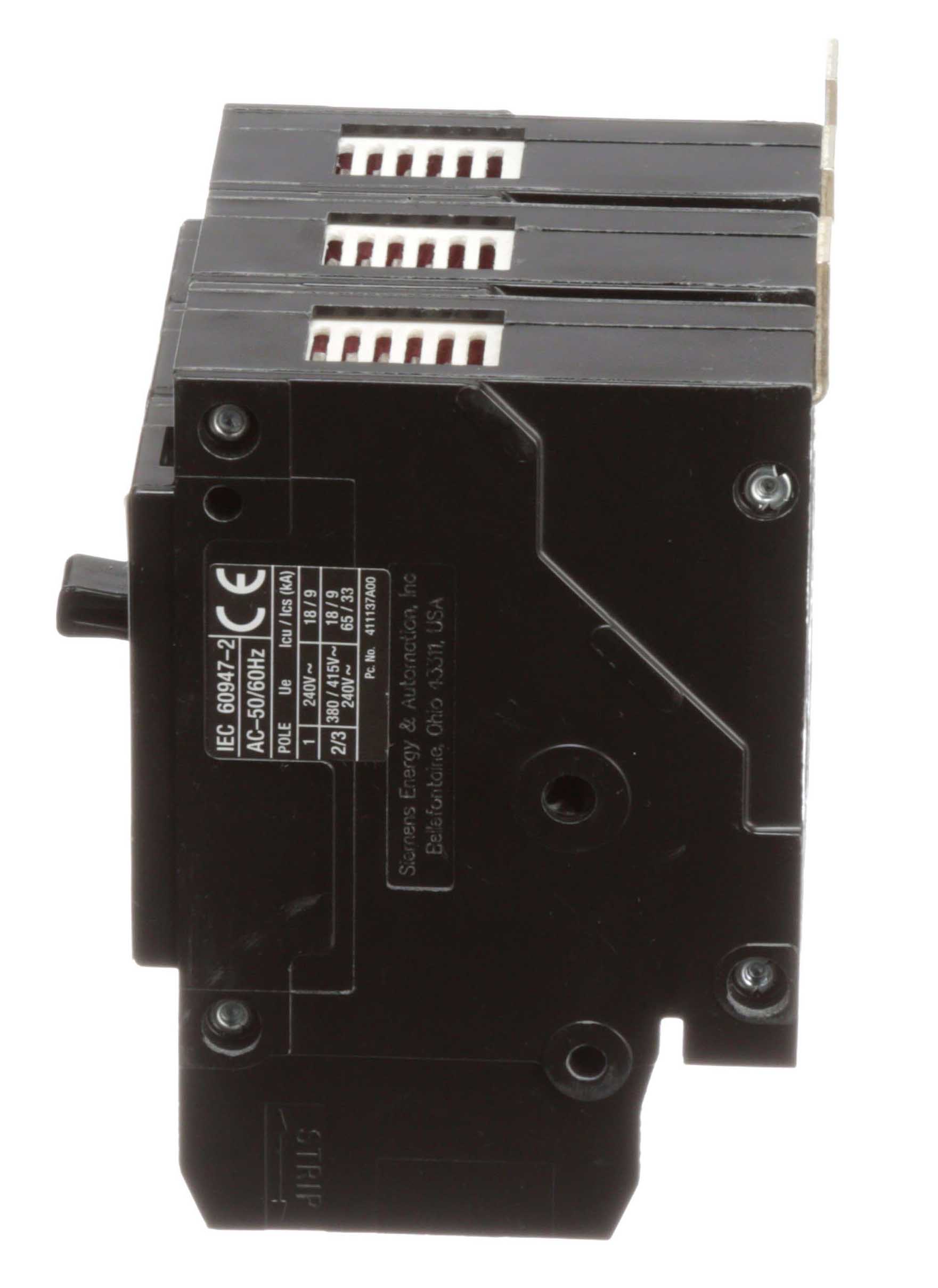

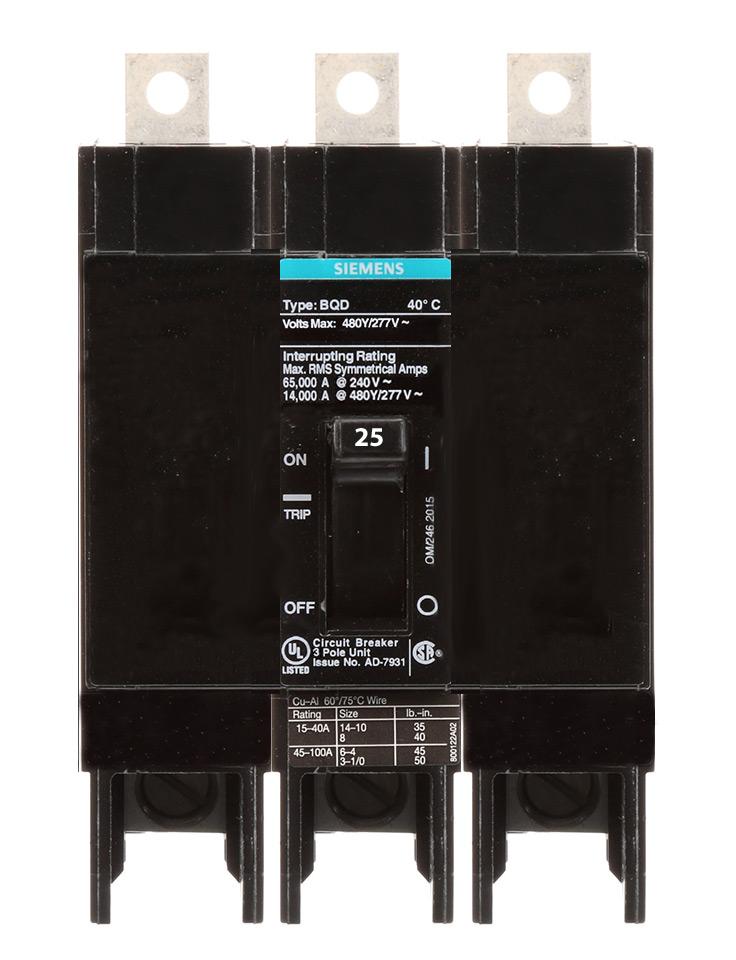

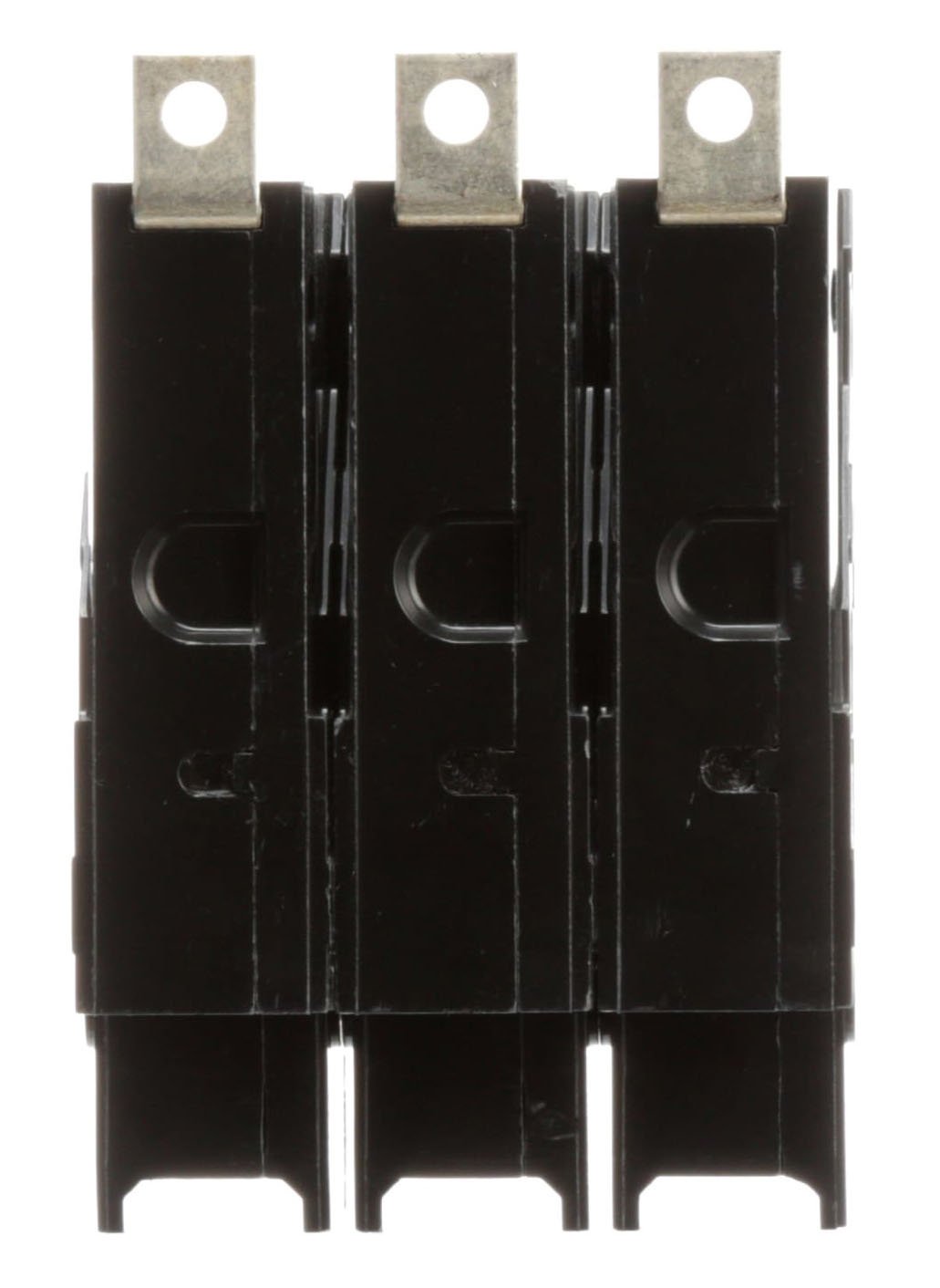

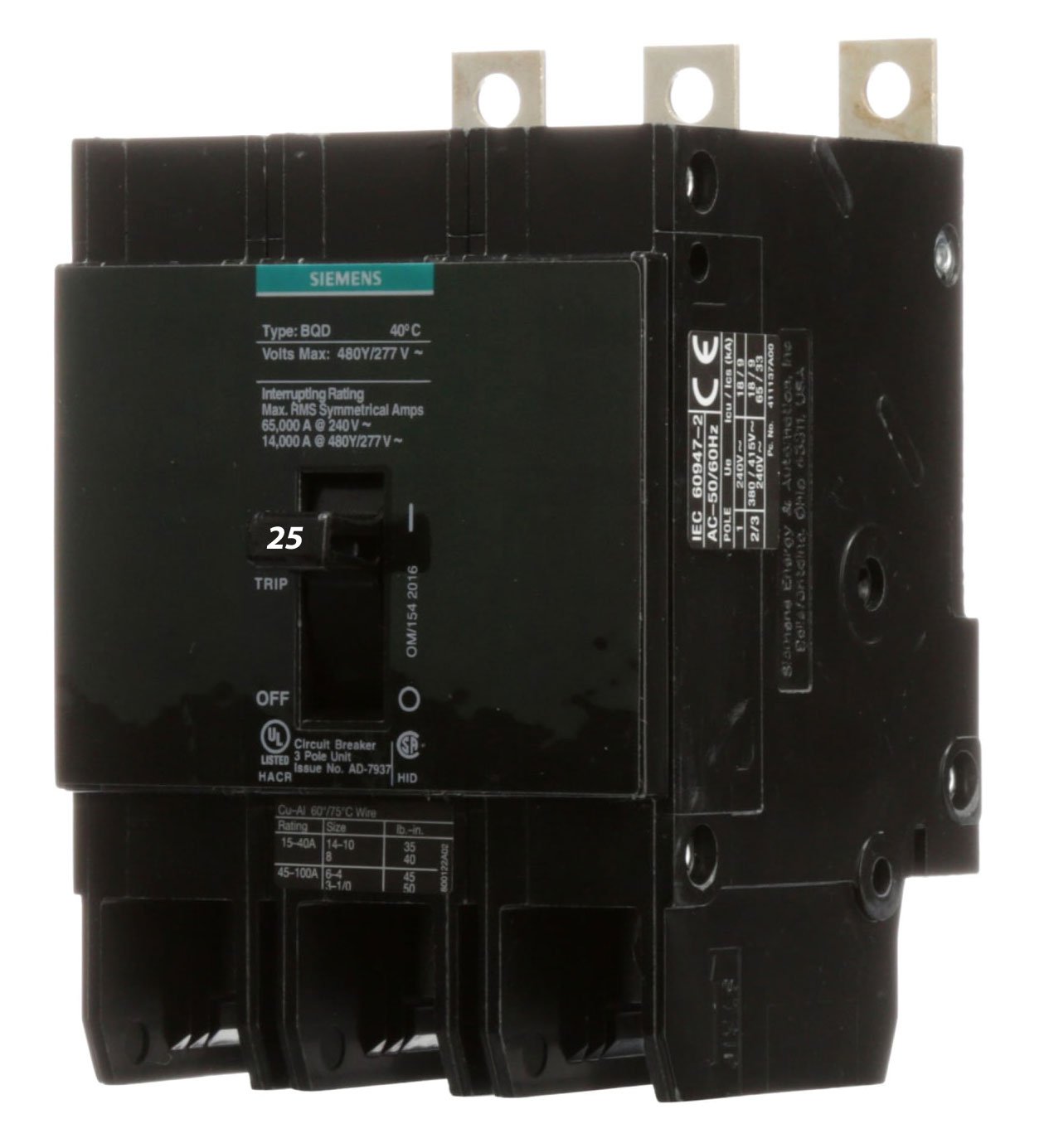

Siemens BQD325 - 3-Pole Molded Case Breaker, 25A 480V

Price
Regular price $254.14
Regular price $1,352.00 Sale price $254.14
Save $1,097.86
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens BQD325 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial electrical systems. It features a 25A current rating and a 480V voltage rating, housed within a compact 100A frame with dimensions of 3" x 4.49" x 4.49" and a weight of 1.601 lb. The breaker utilizes a thermal-magnetic trip unit for both long-time and instantaneous protection, is constructed with bolt-on lug connections compatible with wire sizes from 6 to 12 AWG (Al) or 14 AWG (Cu), and operates within a temperature range of -25°C to 70°C. It complies with UL 525 and CSA C22.2 standards and offers an interrupting capacity of 14kA at 480V, making it suitable for installation in Siemens P1 panelboards for motor and feeder circuit protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 480V AC
  • Current Rating: 25A
  • Frame Size: 100A/BQD
  • Poles: 3
  • AIC Rating: 14kA @ 480V
  • Connection: Bolt-on, Lug Terminal
  • Phase: 3
  • Functions: Long Time and Instantaneous Trip
  • Breaker Type: Standard
  • Panel Type: Siemens P1 Panelboards
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Wire Size (MCM): Min. 12 AWG (Al) / 14 AWG (Cu), Max. 6 AWG
  • Dimensions: 3 in H x 4.49 in W x 4.49 in D
  • Weight: 1.601 lb
  • Standards/Certification: UL 525, CSA C22.2
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643277366
  • GTIN: 00783643277366
  • Family: BQD Series
